HAAS MINI MILL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Mini-Mill
25449
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
(LB)
2001
$19,500.00

Description

Description & Specifications

HAAS MINI MILL

PRICE: Loaded on Truck, Our Warehouse, York, PA     $19,500.00

HMC Stock No. 19005

Machine Serial No. 25449
Machine Model No. Mini-Mill
New Date: 2001

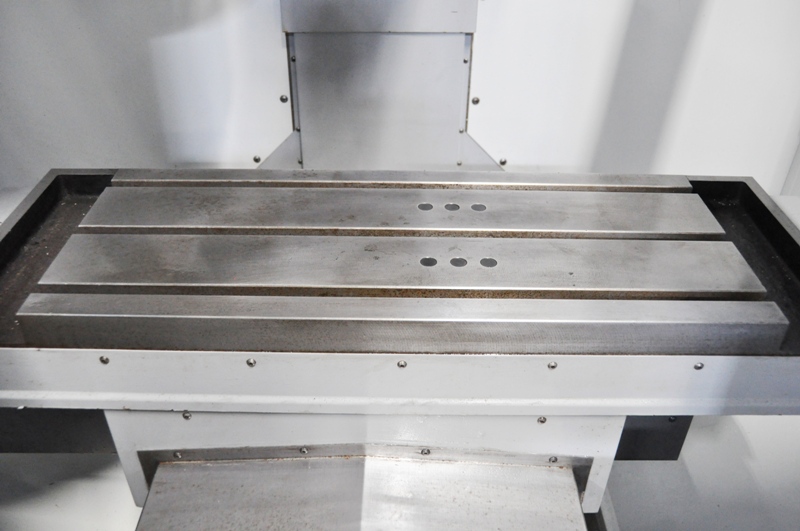

Table Size: 36" L-R x 12" F-B
Travels:
16" X-Axis
12" Y-Axis
10" Z-Axis
(3) T-Slots: .625" Wide on 4.33" Centers
Spindle Nose to Table: 4" Min. to 14" Max.
Over Travel: Up to 17.75" Under Spindle
Spindle Speeds: 6,000 Max. RPM
Spindle Taper: CAT 40
Spindle Drive: Belt
Max. Cutting Feed Rate: 500 IPM
Rapid Feed Rate: 650 IPM
Tool Capacity: 10
Max. Tool Weight: 12 Lbs.
Max. Tool Diameter: 3.5"
Air Required: 4 scfm at 100 psi

EQUIPPED WITH:
Umbrella Style Tool Changer
3-1/2" Floppy
Work Light
Manual
Coolant Tank and Pump
7.5 HP Main Motor
Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 68" L-R x 80" F-B x 85" H (Head Lowered)3-1/2" Floppy

HOURS FROM DEBUG SCREEN:
Servo Time: 1604
Motion Time: 251
Spindle Time: 262
Software Version: M11.10N
Approx. Total Run Time: 2287 Power On
