Specification Description

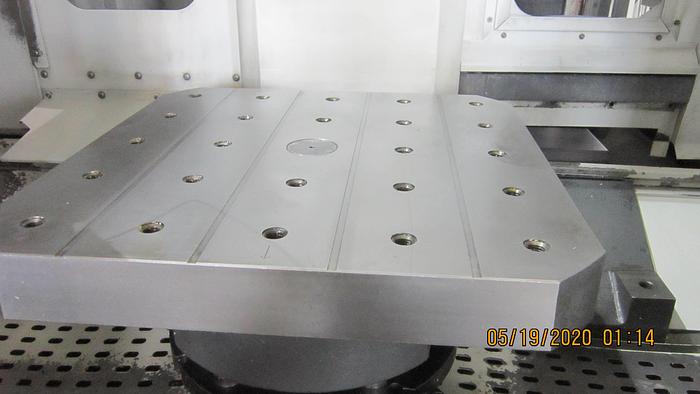

Table Size 19.69" x 19.69" Pallets
Table Load 880 lbs
Table Indexing 0.001 Deg
X-Axis Table Travel 32"
Y-Axis Vertical Travel 20"
Z-Axis Travel 28"
Rapid Traverse 710 IPM
Spindle Taper CAT40
Spindle Speeds 12,000 RPM
Spindle Drive Motor 30 HP

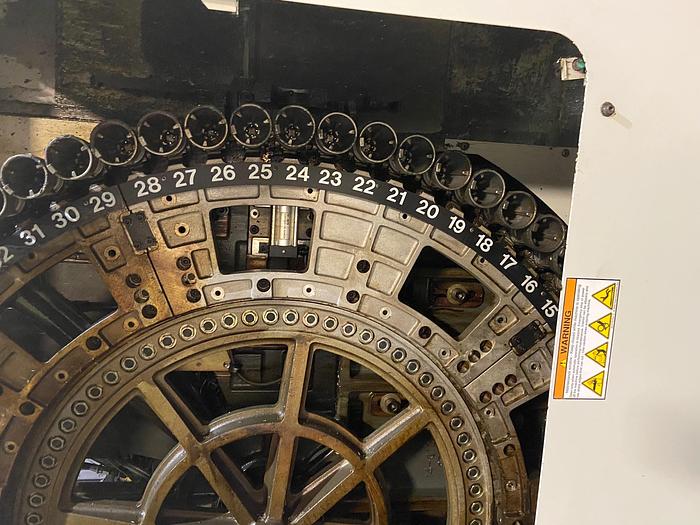

Automatic Tool Changer 70 Position ATC

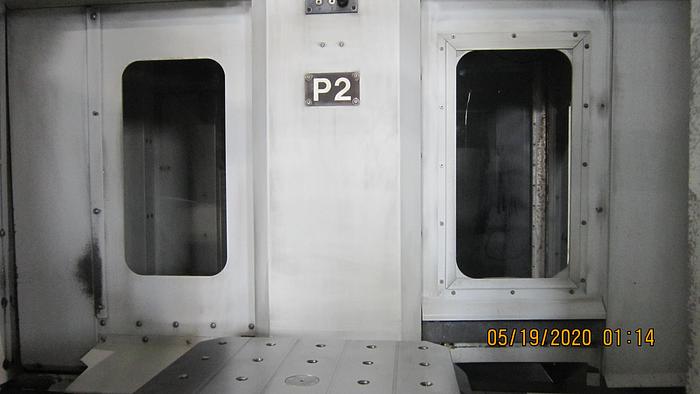

Number of Pallets 2
Floor Space 197" x 92" x 101"H
Machine Weight 20,120 lbs
Equipped With:

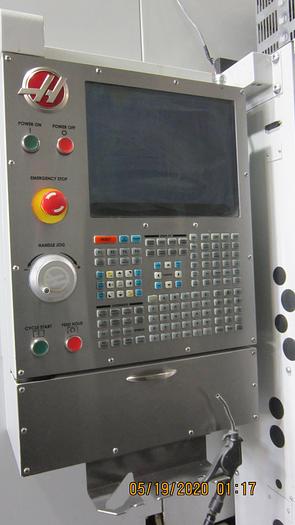

* Haas CNC Control * 12,000 RPM Inline Direct Drive Spindle * Full 4th Axis * 2 Position Pallet Changer w/Spare Pallets * 70 Position Sidemount Tool Changer * 16MB Expanded Memory * Programmable Coolant Nozzle * High Speed Machining * Thru Spindle Coolant - 300 PSI * WIPS Wireless Intuitive Probing * Remote Jog Handle * Thru Spindle Pull Studs * Chip Auger * All Available Manuals
