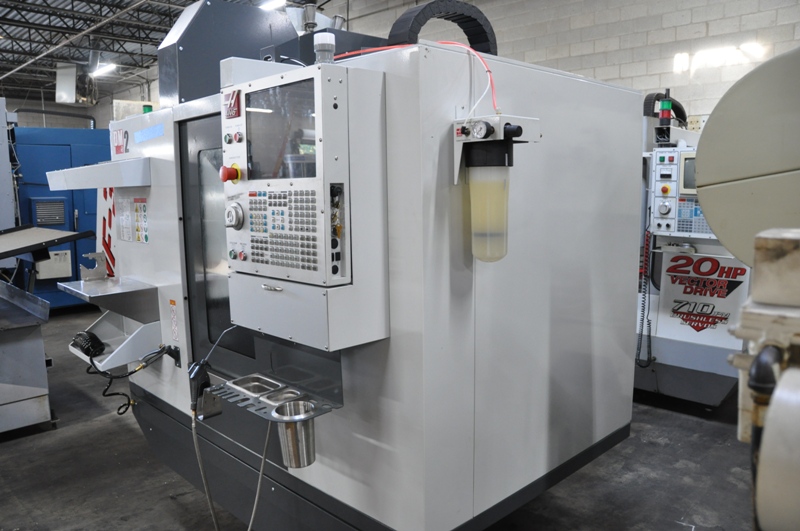

Description & SpecificationsHAAS VERTICAL MACHINING CENTER
PRICE: Loaded on Truck, Our Warehouse, York, PA $ POR
HMC Stock #19157-C

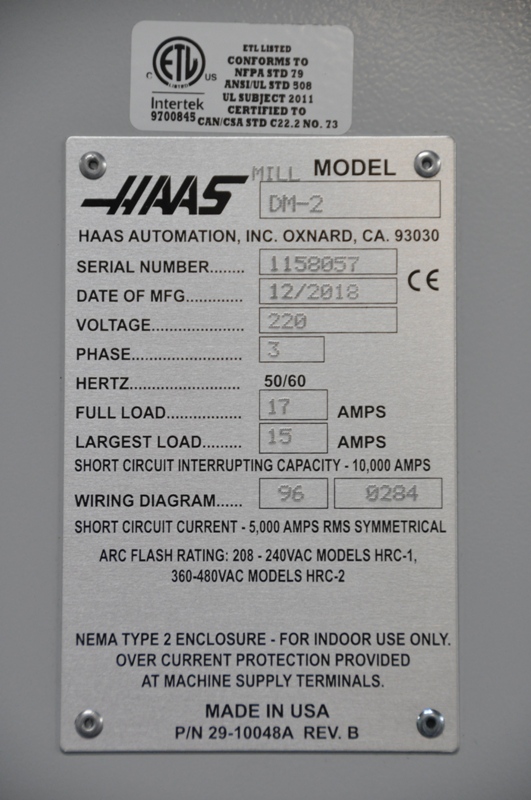

Machine Serial No. 1158057
Machine Model No. DM-2
New Date: 2018
This machine is on consignment. Any offer is welcome but subject to the consignees approval. Since the machine is being sold on behalf of the owner, (not owned by Hildebrand Machinery) it is being sold "As Is". Payment must be guaranteed funds or company check must clear bank account before release of this machine. All specifications must be verified by the purchaser for accuracy.

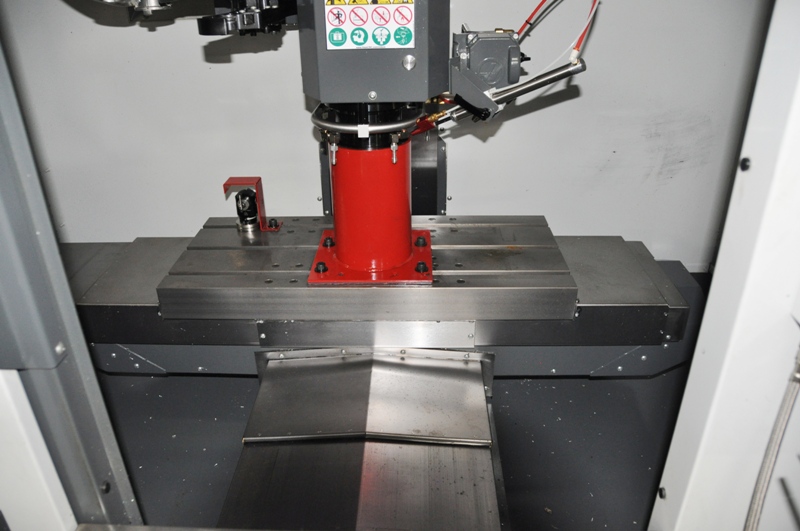

Table Size: 34" LR x 15" FB with (3) T-Slots
T-Slot Width: .630"
T-Slot Center: 4.92"
Maximum Weight on Table: 250 Lbs.
X Axis Travel: 28"
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Spindle Nose to Table: 6" Minimum to 21.5" Maximum
Spindle Taper: CAT-40
Spindle Speed: 10,000 RPM
Drive System: Direct Drive
Maximum Torque: 46 ft-lbf @ 1,700 RPM
Maximum Cutting Feed Rate: 1,200 IPM
Rapids on X, Y, Z: 2,400 IPM
Tool Changer Type: SMTC
Tool Changer Capacity: 18 + 1
Maximum Tool Diameter: 2.5"
Maximum Tool Length: 7"
Maximum Tapping Speed: 5,000 RPM

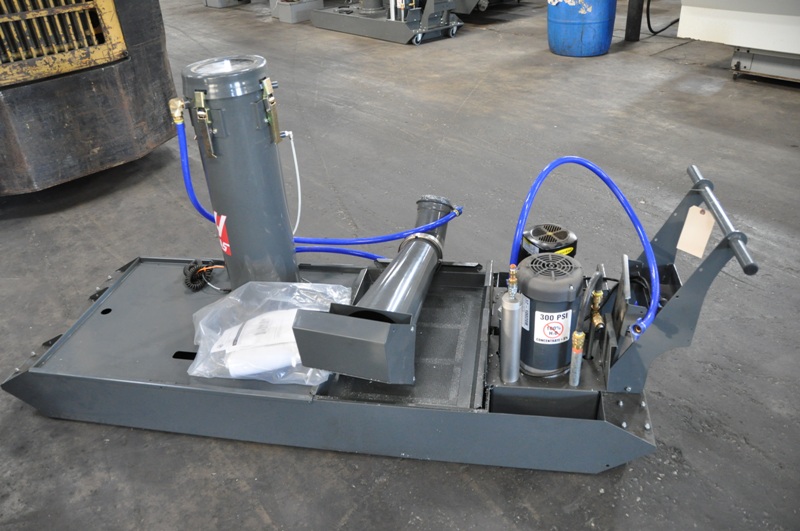

Coolant Capacity: 55 Gallons
Air Required: 4 scfm at 100 PSI
Machine is Wired 3 Phase, 220 Volts
Overall Machine Size: 84" LR x 84" FB x 100" H
Coolant System Size: 36" FB x 84" LR x 45" H
EQUIPPED WITH:
Tooling Taper (BT/CT): CT Option
10,000 RPM Spindle, 40 Taper, 15 HP (11.2 kW) Vector Drive, Inline Direct-Drive;
