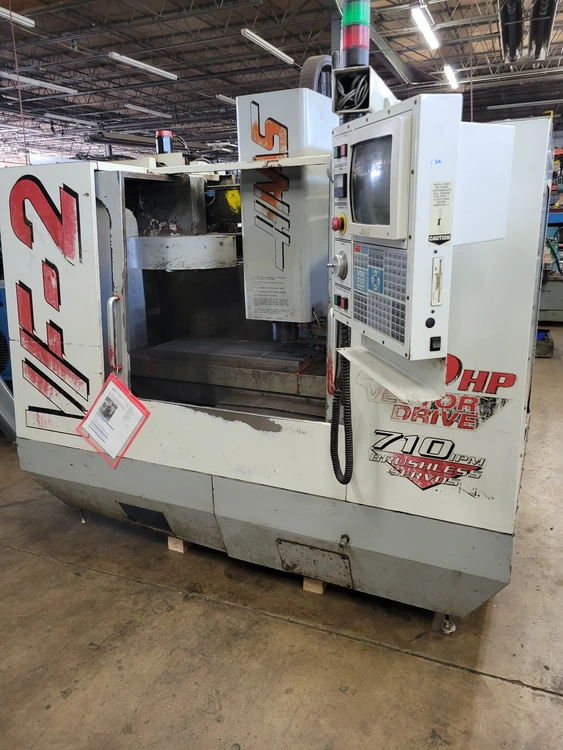

HAAS CNC VERTICAL MACHINING CENTER, WITH TSC, 1000 BLK., P-COOL, CC, 4TH AXIS DRIVE, REFURBISHED BY MTC (BED TYPE)

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VF-2
13408
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
8500 (LB)
0
$0.00

Description

Description:

Haas VF-2 Vertical Machining Center, 4th, gear, brushless 98, 2nd lift up conveyorRefurbished by MTC
1998 Haas VF-2 VMC w/ Through Spindle Coolant, (TSC), 20 HP Vector Drive Motor, brushless servos, 7,500 RPM Gearbox, Chip conveyor, 1000 blocks/sec., P-Cool, Quick code, 4th axis brushless, hi volt transformer, Macro Code, Coor. scale, rigid tap and 2nd lift up chip conveyor

Overview:
Type:
Vertical Machining Centers (Bed Type)
Manufacturer: HAAS
Model: VF-2
Year: 1998
Stock #: 7974
Status: For Sale
Serial #: 13408

Equipped With:

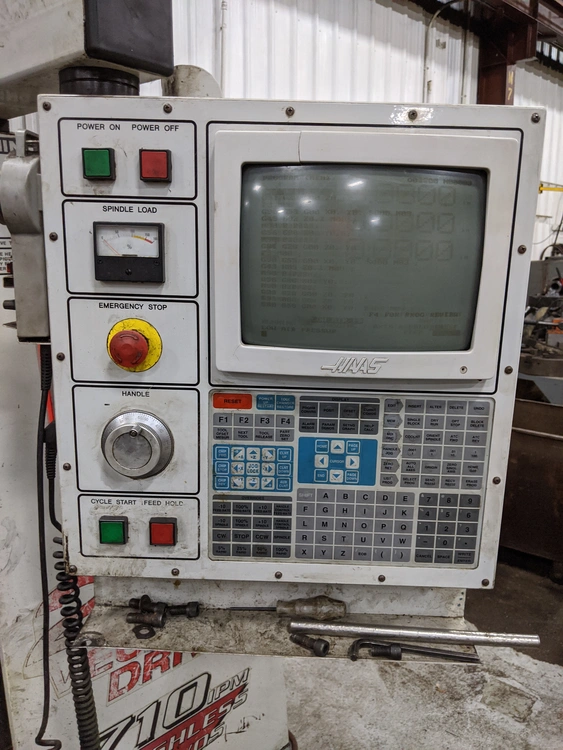

Cooalnt Through the Spindle, 4th Axis brushless drive, 7,500 RPM, Pendant control, Chip conveyor, 4MB extended memory, 1,000 block look ahead, Programmable coolant nozzle, Quick Code, Hi-Volt transformer, Macro, Coordinate, Scale and ridgid tapping


Specifications:
X 30"
Y 16"
Z 20"
Power 15 hp
RPM 7,500 RPM
# ATC 20
Taper Cat #40
Table-W 36"
Table-L 14"
# Axis 4
Control CNC (Haas Quick code)
Dimensions 110" x 93" x 105" High
Weight 7,800 Lbs.
Table Size 36" x 14"
Maximum Table Load 3,000 Lbs.
Spindle Nose to Table Top 4"- 24"
X-Axis Travel 30"
Y-Axis Travel 16"
Z-Axis Travel 20"
Rapid Traverse Rate X, Y , & Z 710 IPM
Cutting Feed Rate .1- 500 IPM
Spindle Taper CAT 40
Spindle Speeds 0- 5,500 RPM
Tool Changer Capacity 20 Station ATC
Max Tool Weight 12 Lbs.
Machine Weight, Approx 8,500 Lbs.
Dimensions, Approx. 110" x 93" x 105"
Add for lift up conveyor 108" front to back
Voltage 360-480 3 phase
