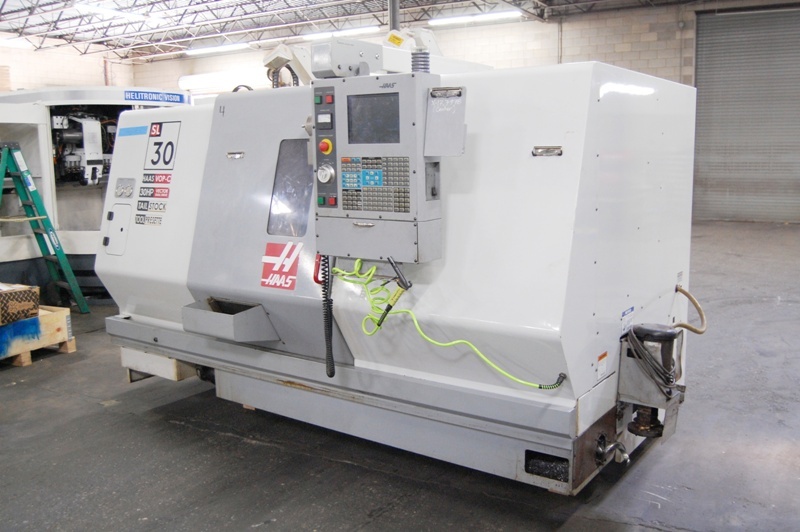

HAAS CNC SLANT BED LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA $ POR
HMC Stock # 19159-C
Machine Serial No. 68968
Machine Model No. SL30-T
New Date: 2004
This machine is on consignment. Any offer is welcome but subject to the consignees approval. Since the machine is being sold on behalf of the owner, (not owned by Hildebrand Machinery) it is being sold "As Is". Payment must be guaranteed funds or company check must clear bank account before release of this machine. All specifications must be verified by the purchaser for accuracy.
Maximum Swing Over Apron: 30"
Maximum Swing Over Cross Slide: 14.5"
Maximum Cutting Diameter: 17"
Maximum Turning Length: 34"
Distance Between Centers: 39"
X Axis Travel: 11.3"
Z Axis Travel: 34"
Spindle Nose: A2-6"
Spindle Bore: 3.5"
Bar Capacity: 3"
Spindle Speed: 3,400 RPM
Turret Positions: 12 Positions
Tailstock Travel: 33.5"
Rapid Traverse: 710 IPM
EQUIPPED WITH:

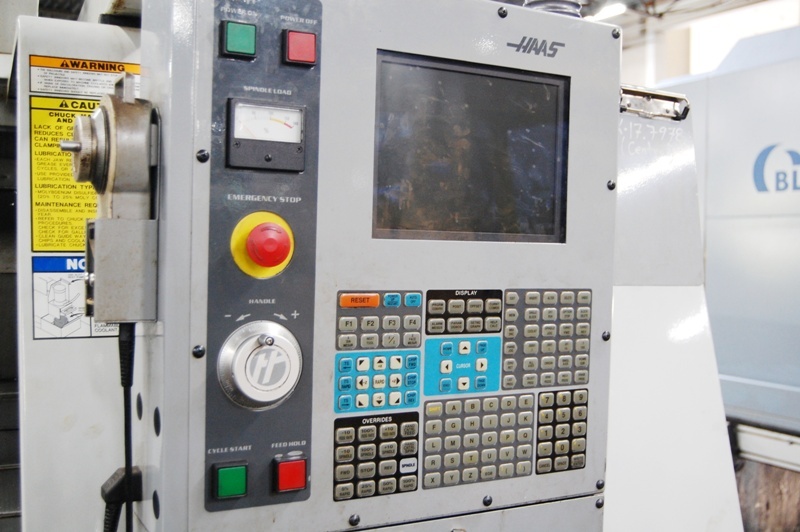

Haas Control
Chip Auger
USB Port
Probe Arm
Rigid Top
M19 Spindle Orientation
Tailstock
10" Kitagawa 3-Jaw Chuck
Parts Catcher
Hand Held MPG
Work Light
Servo VOP-C
30 HP Main Motor, Wired for 3 Phase, 60 Cycle, 220/440 Volts
Overall Machine Size: 161" LR x 77" FB x 74" H
Bar Feed Size: 96" LR x 60" FB x 48" H
