HAAS CNC SLANT BED LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA $ POR
HMC Stock # 19158-C
Machine Serial No. 62213
Machine Model No. SL20T
New Date: 1999
This machine is on consignment. Any offer is welcome but subject to the consignees approval. Since the machine is being sold on behalf of the owner, (not owned by Hildebrand Machinery) it is being sold "As Is". Payment must be guaranteed funds or company check must clear bank account before release of this machine. All specifications must be verified by the purchaser for accuracy.
Swing: 23"
X Axis Travel: 8.4"
Z Axis Travel: 20"
Maximum Turning Diameter: 10.3"
Maximum Turning Length: 20"
Bar Capacity: 2"
Turret Stations: 10 VDI
Spindle Speeds: 0 to 4000 RPM
EQUIPPED WITH:

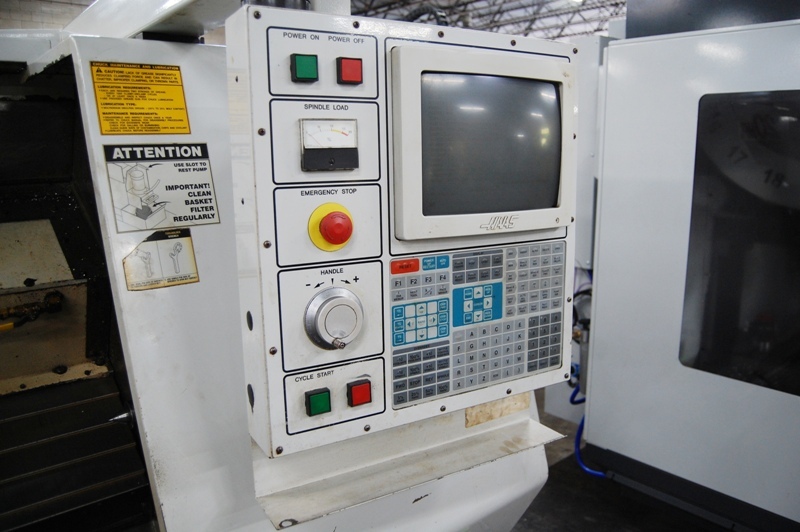

Haas Control
Collet Chuck
Assorted Tool Holders
Tailstock
USB Port
Parts Catcher
Chip Auger
Rigid Tap
Quick Code
1 MB Memory

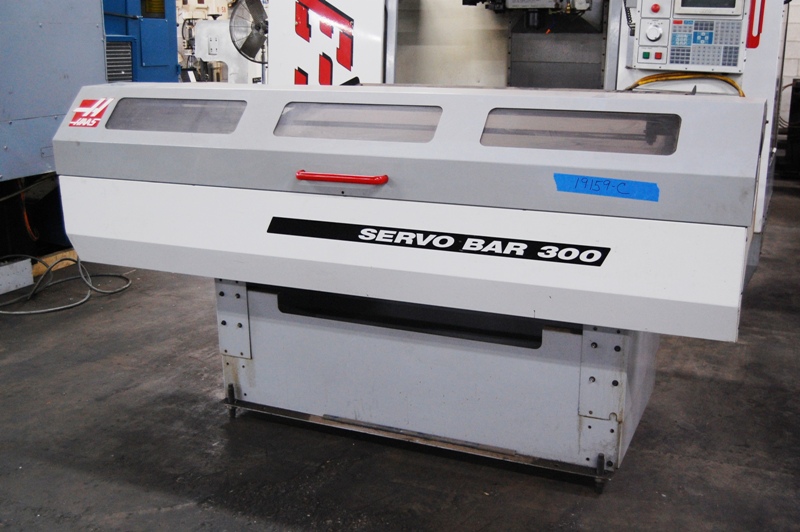

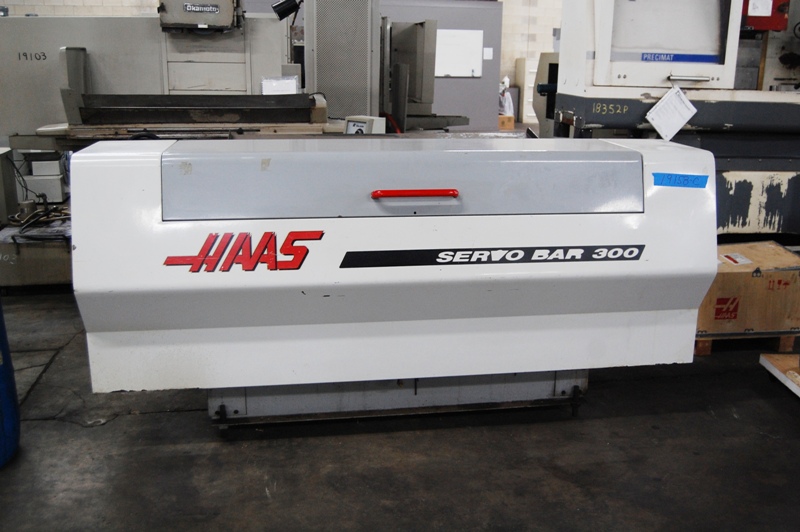

Servo 300 Bar Feed
? HP Main Motor
Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Machine Size: 127" LR x 74" FB x 72" H x 9,000 Lbs.
Bar Feed Size: 96" LR x 60" FB x 48" H
