HAAS #HL2 CNC TURNING CENTER
SWING OVER BED ---------------------------- 20"
SWING OVER CROSS SLIDE -------------------- 9.5"
DISTANCE BETWEEN CENTERS ------------------ 24"
MAXIMUM CUTTING DIAMETER ------------------ 10"
MAXIMUM CUTTING LENGTH -------------------- 20"
BAR CAPACITY, MAXIMUM --------------------- 2"
SPINDLE SPEED TO -------------------------- 3750 RPM
SPINDLE NOSE ------------------------------ A2-6
SPINDLE BORE ------------------------------ 3"
TRAVELS --------- ( X ) ------------------- 8.6"
TRAVEL ---------- ( Z ) ------------------- 20"
SPINDLE DRIVE --- ( PEAK ) ---------------- 15 HP A.C.
EQUIPPED WITH ---

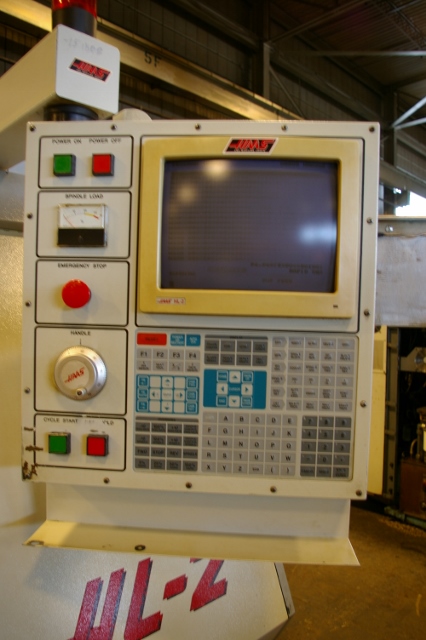

HAAS CNC CONTROL

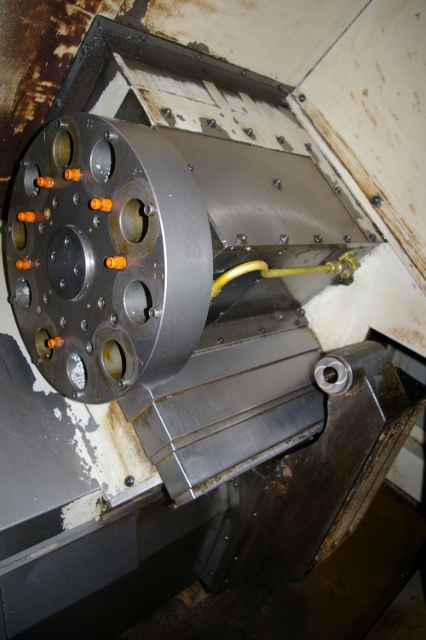

12 STATION TURRET
PROGRAMMABLE TAILSTOCK
SYNCHRONOUS TAPPING

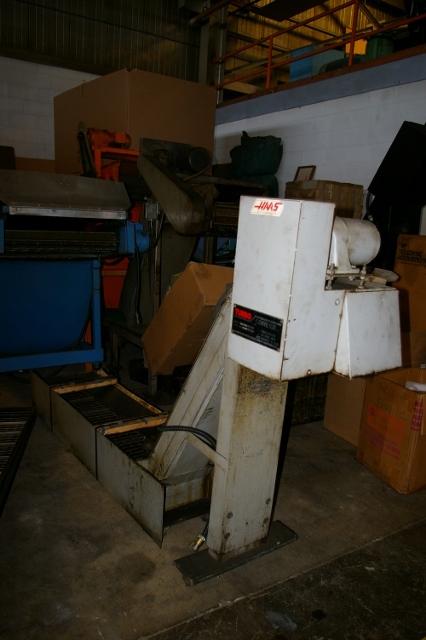

CHIP CONVEYOR
COOLANT SYSTEM

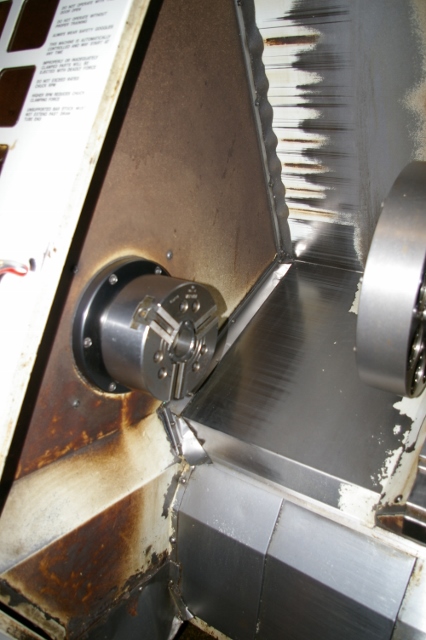

8" 3 JAW HYDRAULIC CHUCK
TO VIEW VIDEO, PLEASE CLICK LINK www.racomachinery.com/vlink/17868.mp4
STOCK# 17868
