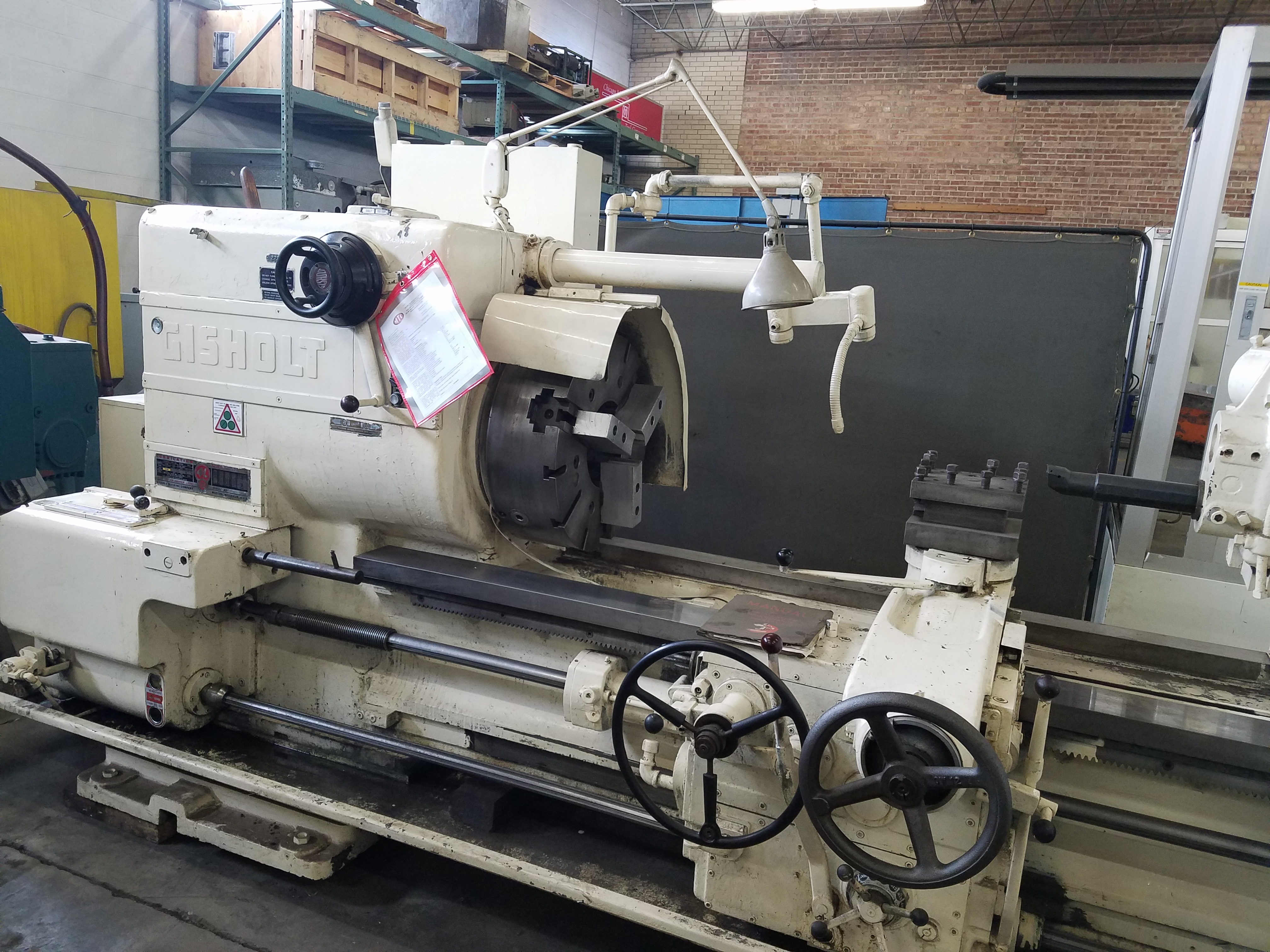

GISHOLT 4L TURRET LATHE, 24.5" SWING X 60"CC W/ 9.5" HOLE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


4L
Lathes (Manual)
Turret Lathes
used
30000 (LB)
1958
$34,950.00

Description

SpecificationDescriptionSwing over Bed Ways31-3/8"Swing over Cross Slide24-1/2"Center Distance60"Spindle Hole9-1/2"Spindle Speeds7-395 RMSpindle NoseA-1-20Chuck Size24" 3-JawFront cross slide travel15"Lonitudinal cross slide travel6316 power cross feeds front.0015" to .044"16 power longitudinal feeds.003" to .088"HEXAGON TURRET Longitudinal Travel63"end of spindle to face of turret73"16 power longitudinal feeds.003" to .088"center of turret holes to saddle18.5"Floor space109" by 208"Net weight30,000 lbs.main motor40 H.PVoltage 220/440 volt 3 phase
Equipped With:
3 Jaw 24" Chuck, 40 H.P motor, 4 tool holders on turret, 4 way tool post, Threading Attachments both carriages, all available manuals

Condition: Great
