GIDDINGS & LEWIS TABLE TYPE HORIZONTAL BORING MILL

PRICE: Loaded on Truck, Our Warehouse, York, PA    $32,500.00

HMC Stock # 20152

Machine Serial No.: 420-140-66

Machine Model No.: 70-H5-T

New Date: 1966 / retrofit June 2006

NOTE: Lucas Rotary Table on Main Table is an OPTIONAL ITEM
see HMC stock number 20153

Table Size: 60" x 98"
Table Travel: 92"
Saddle Travel: 70"
Head Vertical Travel: 64"

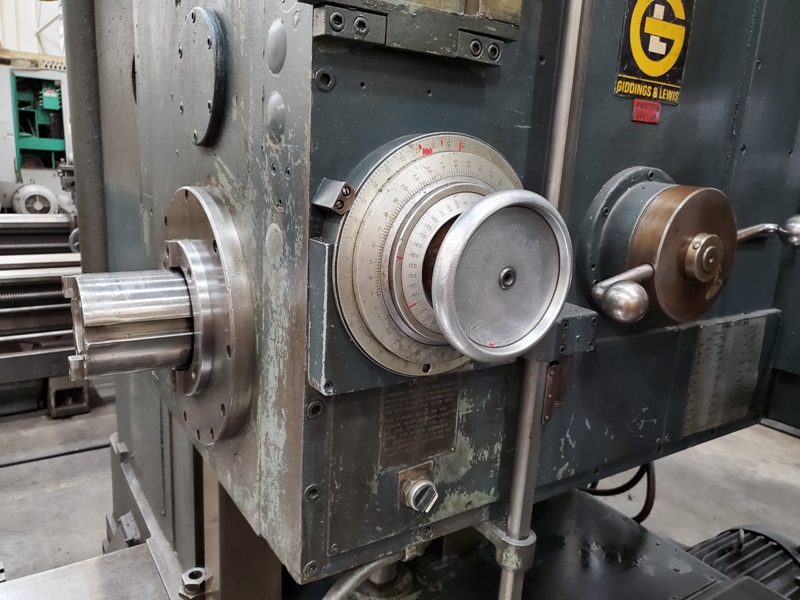

Spindle Diameter: 5"
Spindle Travel: 36-3/4"
Spindle Speeds: 5.6 to 1020 RPM
Spindle Taper: #50 National Standard with Power Draw Bolt
Spindle Feeds: 0.0007" to 0.125" IPR
Milling Feeds: 0.012 to 120 IPM

EQUIPPED WITH:
Hardened and Ground Saddle and Table Ways in Very Good Condition
(3) Column Vertical Ways Soft in Good Condition
Full Pendant Control Operation
Auto Cycle Feature NOT Operational
Spindle Load Meter

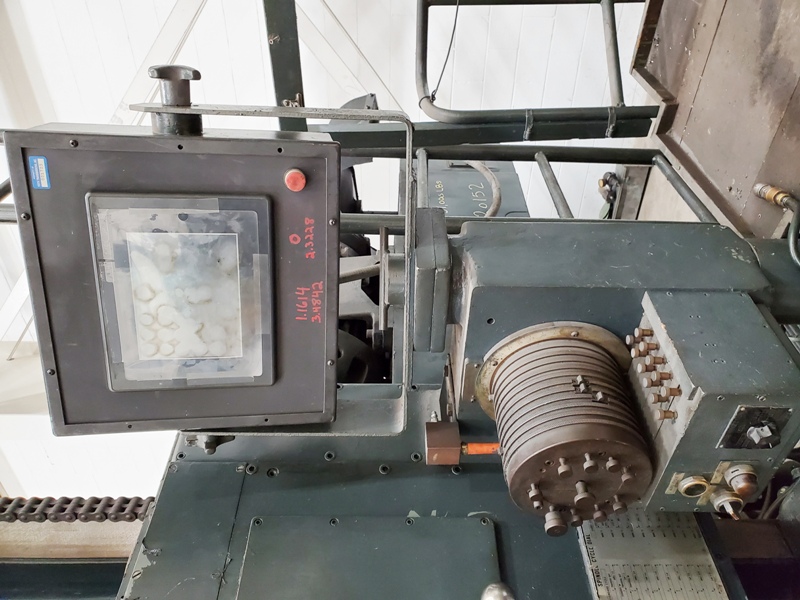

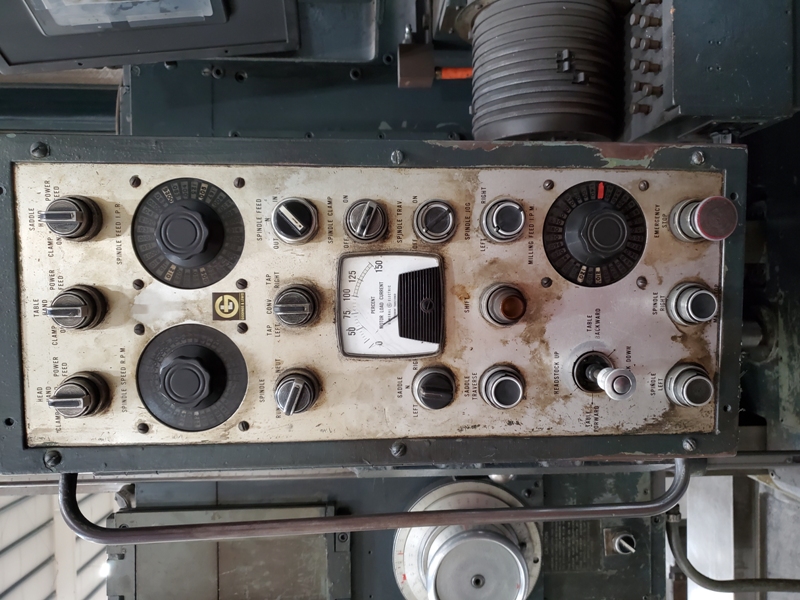

Pendant Control For: Spindle, Table, Saddle and Head Traverse, Feeds and Rapid Traverse
Separate Milling and Spindle Feeds
Spindle Tapping Control for Left and Right Hand
Power Clamping to All Axies
Adjustable Vernier Readouts on Head, Saddle and Table
Bijur Central Lubrication System for Head on Column and Table on Saddle
Traveling Work Platform Attached to Head
(2) Floor Mounted Table Outriggers
Lot of Assorted 50 Taper Tool Holders
0.5 HP Gusher Coolant Pump Motor
40 HP Spindle Motor
10 HP Feed Motor
All Motors Wired For 3 Phase 60 Hz 220 / 440 Volts
Presently Wired For 440 Volts

Overall Size of Machine Components:
Saddle with Column: 87" x 233" x 164" High with Control and Pendant Installed x 51,000 Lbs.
Work Platform: 36" x 33" x 54" High x ?? Lbs.

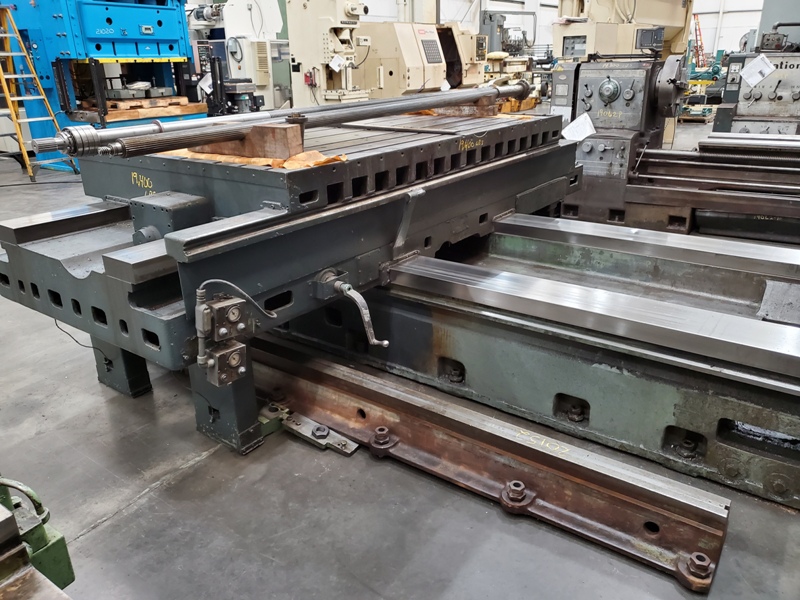

Saddle with Table: 145" x 69" x 48" High x 19,400 Lbs.
Box with Tooling: 36" x 47" x 29" High x ?? Lbs.
Skid with Air Conditioner and Misc for Control: TBD
(2) Floor Table Outriggers: 29" x 123" Long x 8" High x 2,000 Lbs. (for both)

NOTE: Lucas Rotary Table on Main Table is an OPTIONAL ITEM
see HMC stock number 20153
