SPECIFICATIONS

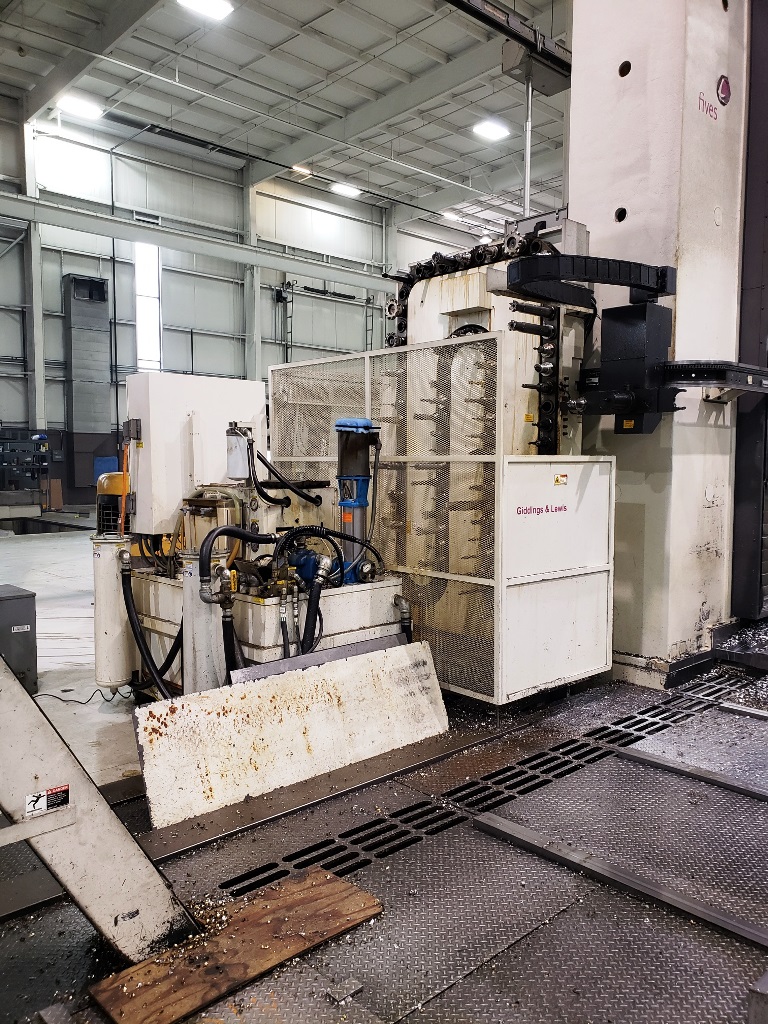

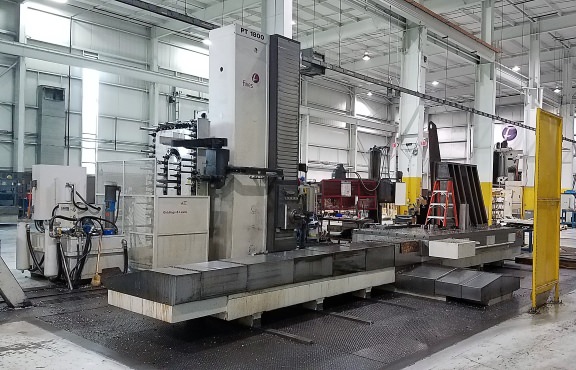

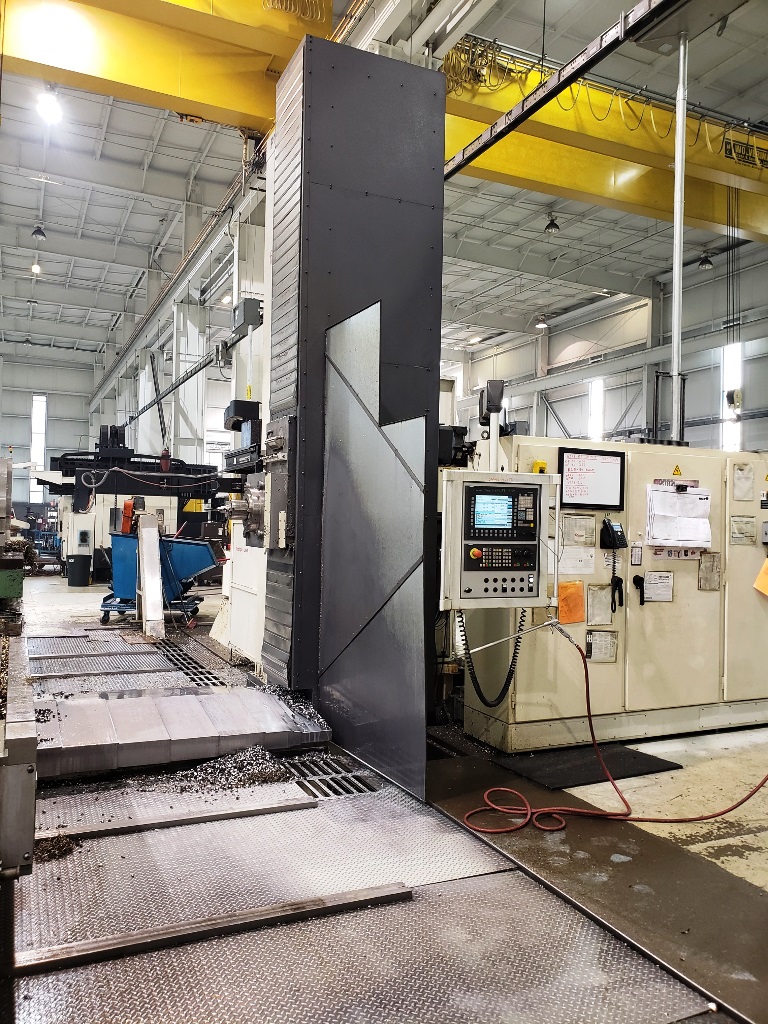

Giddings & Lewis 6.1" PT1800 CNC Table Type Horizontal Boring Mill MFG: 2011

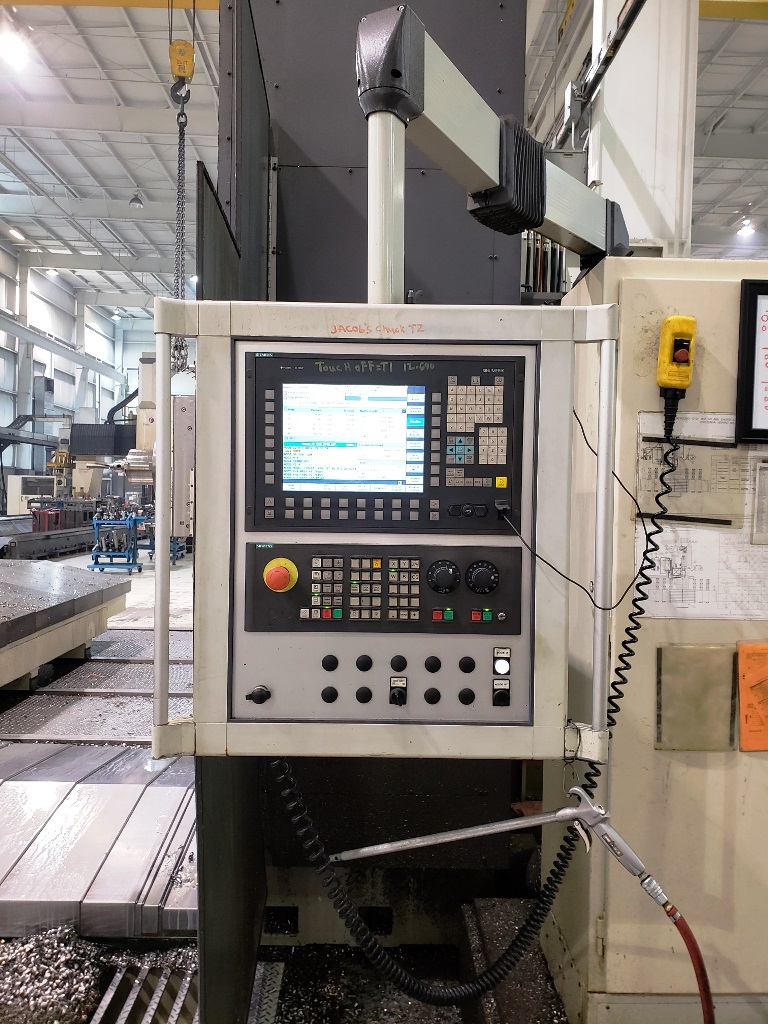

FEATURES: Siemens 840D 5-Axis CNC Control 90 Station Automatic Tool Changer
SPECIFICATIONS: Spindle Diameter 6.1"
Spindle Taper ANSI B5.50
Vertical Head Travel,
Y-Axis 122.04" Table Cross Travel,
X-Axis 165.35" Saddle
Travel, W-Axis 59.05"
Spindle Travel, Z-Axis 49.2"
Table Load Capacity 88,200 Lbs
Spindle Speeds, Inf Variable 1-3500 RPM
Spindle Speed Ranges 4
Spindle Motor 74 HP
Table Size 70.9" x 165.35"
Rapid Traverse, X, Y, Z-Axes 985 IPM
Rapid Traverse, W-Axis 708.66 IPM
Electrics 460V 3Ph 60 Cycle
EQUIPPED WITH: Siemens 840D 5-Axis CNC Control 90 Station Automatic Tool Changer Remote Hand Held Operator Station Thru Spindle Coolant With Programable Pressure Rigid Tapping Wired for 4th Axis Rotary Table Heavy Ribbed Cast Iron Column,Bed,Saddle & Headstock Steel Telescoping Way Covers Independent Electric Servo Drives Thermal Compensation of Spindle Visual Management Saddle & Bed Way Covers Jorgensen Chip Conveyor System 480 Volt, 3-Phase, 60 Cycle
The following scope of work was performed by Fives (the Manufacturer) in 12-2018: Replacement of X-Axis Ball Screw, Replacement of W-Axis ways and Replacement of W Axis way covers
