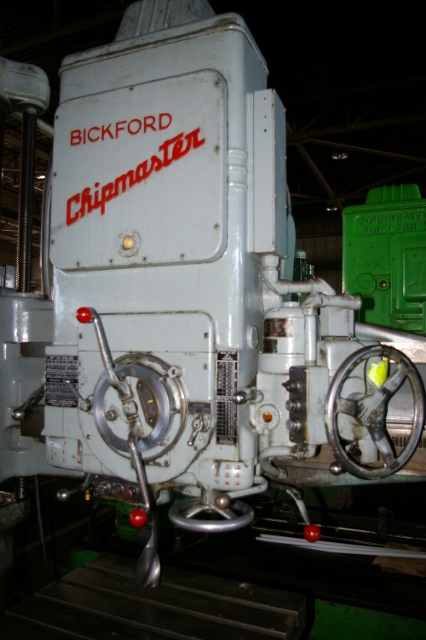

GIDDINGS& LEWIS CHIPMASTER HEAVY DUTY RADIAL DRILL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


CHIPMASTER, BOX TABLE
S/N 3NE107
Drills Manual and CNC
Radial Drill
used
14200 (LB)
1960
$0.00

Description

4 X 13" GIDDINGS & LEWIS CHIPMASTER HEAVY DUTY RADIAL DRILL

DRILLS TO CENTER OF CIRCLE AT BASE -------- 96"

MAXIMUM DISTANCE SPINDLE TO BASE ---------- 60"

MINIMUM DISTANCE SPINDLE TO BASE ---------- 11-1/2"

SPINDLE TRAVEL ---------------------------- 20"

SPINDLE TAPER ----------------------------- #5 M.T.
SPINDLE SPEEDS --------- ( 36 ) ----------- 14 TO 1750 RPM
SPINDLE FEED CHANGES --- ( 18 ) ----------- .004 TO .0125 IPR
6 BUILT IN TAP LEADS ---------------------- 8, 11-1/2, 14, 18, 20, 27 TPI
WORKING SURFACE OF BASE ------------------- 36" X 59"
MAIN MOTOR & CONTROLS --------------------- 15 HP 208/220/440/3/60
EQUIPPED WITH ---
POWER RAPID TRAVERSE OF HEAD ON ARM
POWER ARM ELEVATION
POWER ARM AND COLUMN CLAMPING

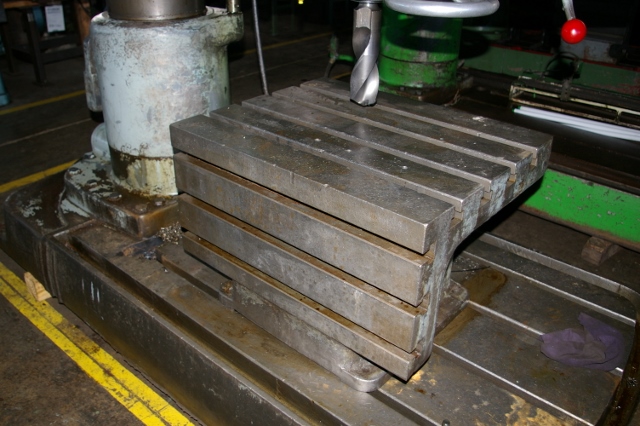

30" X 24" X 20" BOX TABLE
COOLANT SYSTEM

STOCK# 18094
