GIDDINGS& LEWIS HEAVY DUTY CNC TURNING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


MO. 50U, FANUC 10TF CTRL, CRT,
S/N 532-4015-89
Lathes and Turning Centers CNC
Slant Bed Turning center
used
32000 (LB)
1989
$0.00

Description

GIDDINGS & LEWIS MASTERLINE 50U HEAVY DUTY CNC TURNING CENTER

MODEL 50U

MAX. SWING OVER BED ----------------------- 30"

MAX. TURNING DIAMETER W/ENDWORKING TURRET - 22.5"

MAX. TURNING DIAMETER W/TURNING TURRET ---- 18"

MAX. TURNING LENGTH ----------------------- 72"

SPINDLE BORE ------------------------------ 5.18"
MAX. BAR CAPACITY ------------------------- 4.5"
TRAVEL ---------- ( X AXIS ) -------------- 9.75"
TRAVEL ---------- ( Z AXIS ) -------------- 72"
SPINDLE SPEEDS -- ( 2 GEARED HEAD ) ------- 20 TO 1440 RPM
FEED RATE --------------------------------- .1 TO 200 IPM
RAPID TRAVERSE RATE ----------------------- 400 IPM
TAILSTOCK QUILL TAPER --------------------- #5 M.T.
TAILSTOCK QUILL STROKE -------------------- 6"
TAILSTOCK BACK STROKE --------------------- 78"
SPINDLE MOTOR ----------------------------- 50 HP A.C.
EQUIPPED WITH ---

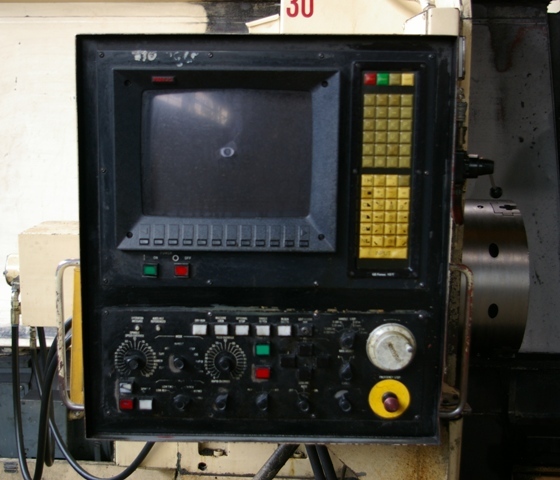

FANUC 10TF CONVERSATIONAL CNC CONTROL WITH 14" COLOR CRT
RS232 PORT

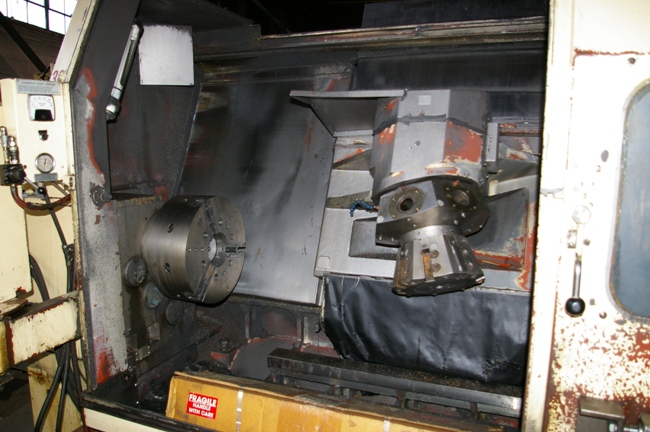

18" 3 JAW CUSHMAN CHUCK

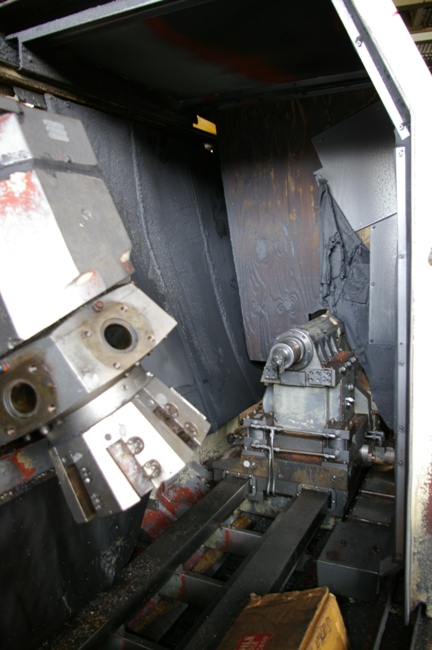

FULLY PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
COOLANT SYSTEM
FULL ENCLOSED GUARDING
TEMPORARY SPECIFICATIONS PENDING ARRIVAL.

STOCK# 16808
