GARDNER 4V36TR

Add to Your File

Brand: GARDNER 4V36TR

Model: 4V36TR

Serial No. : G4975

Category: Grinders

Sub Category: Electrical Discharge Machining EDM

Condition: used

Weight: (KG)

Year Built:

Status:

Price: $0.00

Description

'

Comments:

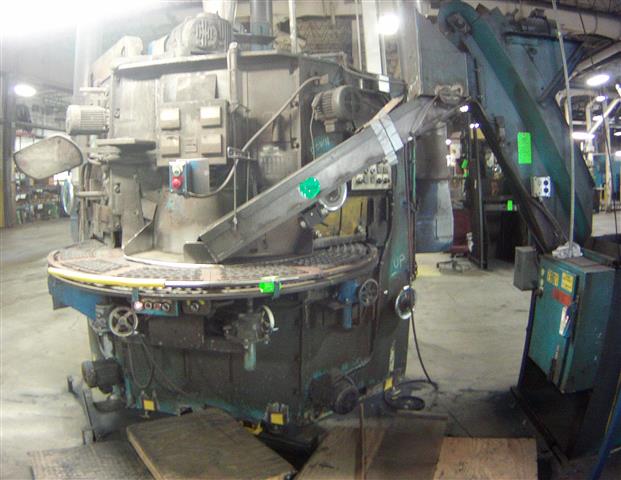

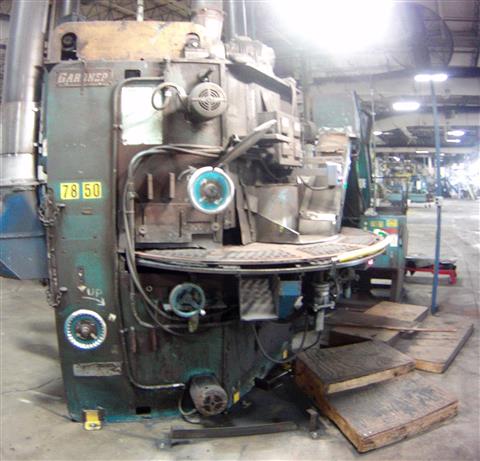

Single Pass Surface Grinder Model 4V36TR Serial Number 812-1
Four Grinding Spindles
Two pair of Vertical Spindles
8 foot Diameter Chuck
Auto Loading Feed
This machine is a business within itself and a
a real money maker for its next owner

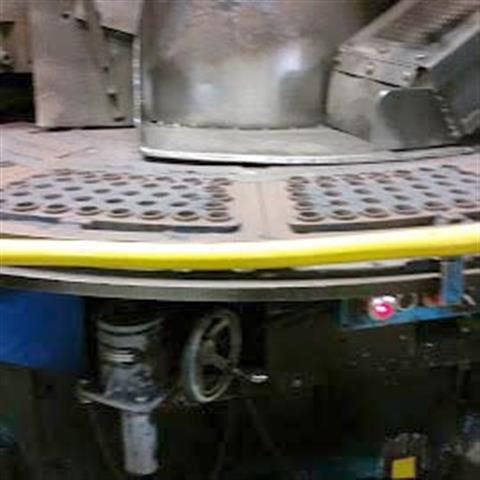

It has auto load into fixtures and unload
The part depends on the fixture for either bigger or small

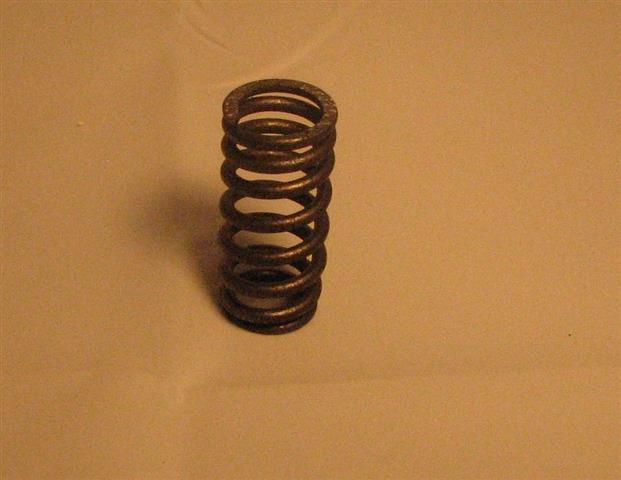

The last job run on this machine was gasoline engine valve
springs 7/8\" in diameter and length of 1 7/8\".

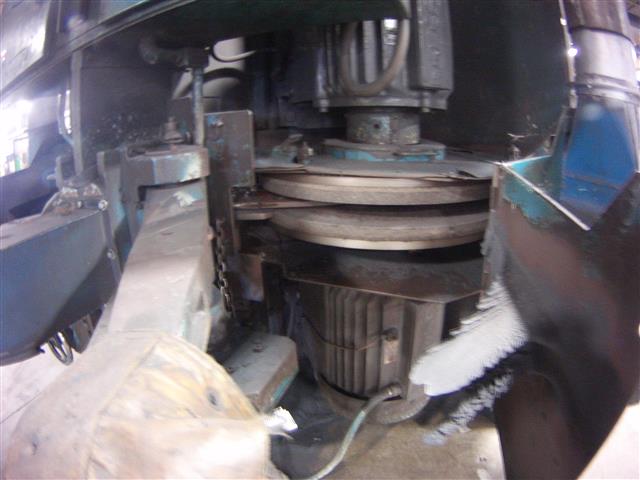

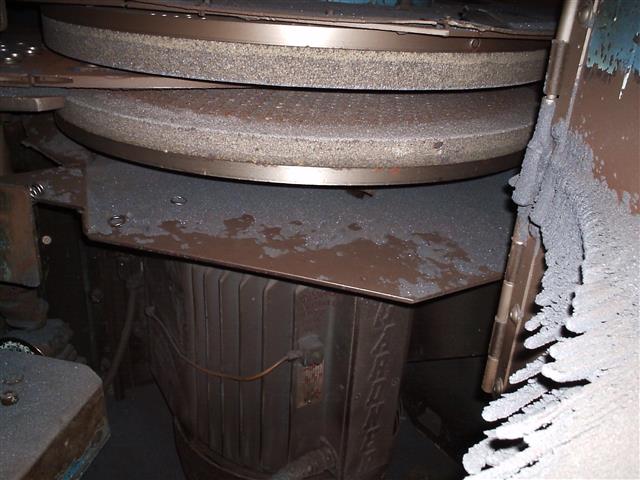

The part passes into the rough grinding spindles which are 36\" in diameter
Twenty-five horsepower each x 4 spindles
From there is goes to gauging to finish grinding spindles 36\" in
diameter where it is ground to size.
This is a super high production machine
The operator reported he could do 4,000 parts in an hour
It was taken right from service and should go right back to service for you
Tooling up should be very easy
Two Pair Opposing Vertical Spindles, 8\' Ring, Loading Feed
The dimensions are approximate, 8\' front to back, 10\' wide and
11\' tall. It has twenty-five HP spindles, 3 phase
Approximate weight 31,000 Lbs. Immediate delivery
This is a million dollars today new
It was rebuilt about two years ago
