Description

Serial no.                                              602496

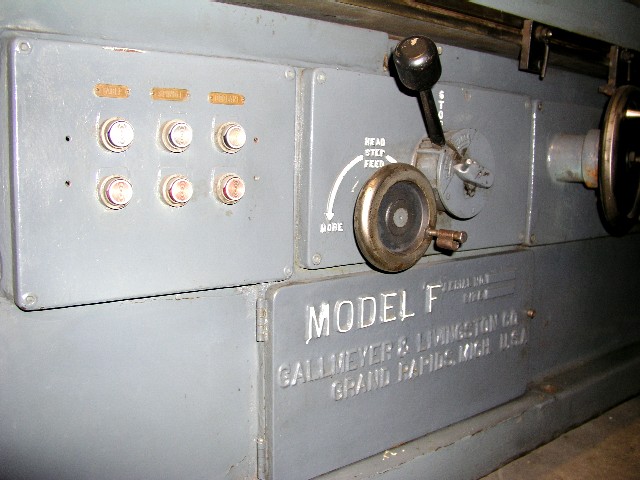

Model                                                    F
Working surface of table                       24" x 96"
Automatic traverse of head                  24"
Vertical movement of wheel head        30"
Maximum distance under 20" wheel    25"
Wheel size                                            20" x 6" x 12" C/B
Spindle motor                                       30 hp, 1160 rpm

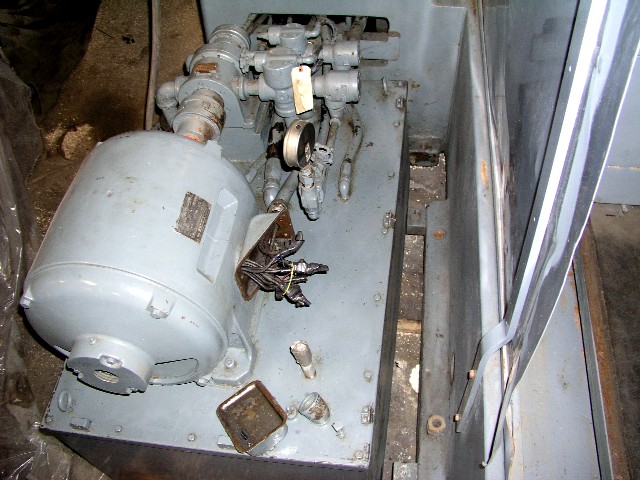

Hydraulic motor                                    20 hp, 1160 rpm
Coolant motor                                      1/4 hp, 1725 rpm
Vertical head motor                              3/4 hp, 1725 rpm
Neutrifier Model                                    2T1
Coolant separation tank                       Yes
Approximate weight                             28,000 lbs.

Price: $ 24,500.00 FOB Houston, TX
SUBJECT TO PRIOR SALE

Comments: This is an older (mid - 40s) grinder which we purchased from a local grinding shop. Originally this company used this grinder to sharpen shear blades, but several years ago they purchased a knife grinder and two years ago purchased another grinding shop which had an even larger knife grinder, consequently this grinder became surplus and was not used.

We have reconditioned this grinder. Major items as follows: We found six weak spots in the magnetic chuck and it has been disassembled, cleaned and repaired. The spindle bearings have been replaced. The ways had some scoring which had been filled and flecked. The hydraulic cylinder which strokes the table has been
rebuilt and the tank and valve body cleaned and rebuilt. Finally, the machine has been cleaned, painted and cycled.

G&L company can be reached at:
BUS: 616-451-2865, FAX: 616-451-4715
336 Straight Ave. S.W., Grand Rapids, MI, 49604-8482,
Attn: Scott Blahnik, Parts & Service.
