G&L 5" CNC HBM MODEL G50-T CNC HORIZONTAL BORING MILLS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


G50-T
Boring Mills
Horizontal, Table Type NC, CNC
used
(LB)
1996
$0.00

Description

Overview:

Type: CNC Horizontal Boring Mills
Category: Milling
Manufacturer: GIDDINGS & LEWIS
Model: G50-T
Condition: Used - Excellent
Year: 1996
Stock #:8340
Status: For Sale

Description:

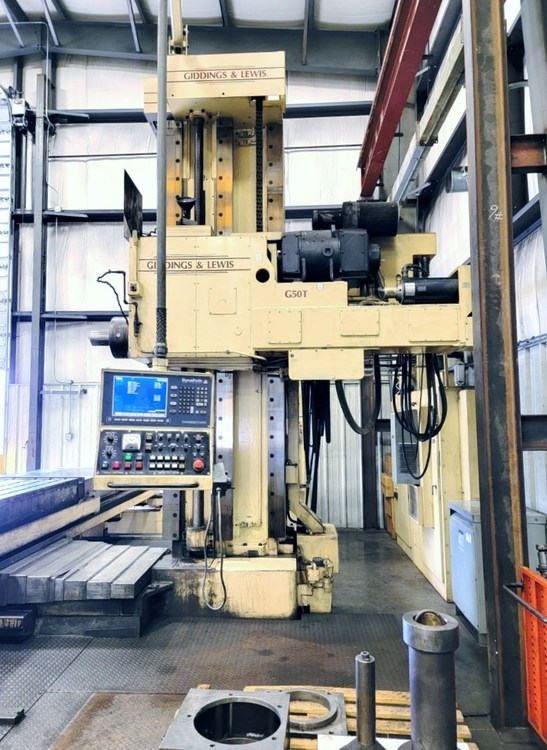

Very nice, Clean Giddings and Lewis 5" Horizontal Boring mill w/ Dynapath Control

Equipped With:
Newer Dynapath Control, Way covers, 3,000 RPM Spindle, outriggers

Specifications:
Spindle Size 5"
X-Horiz Tvl of Col 120"
Y-Vert Tvl of Head 91"
Power 50 hp
RPM 0 RPM
Table-W 60"
Table-L 120"
Z-Spdl Tvl 33"
Control CNC (Dynapath)
Main Specifications

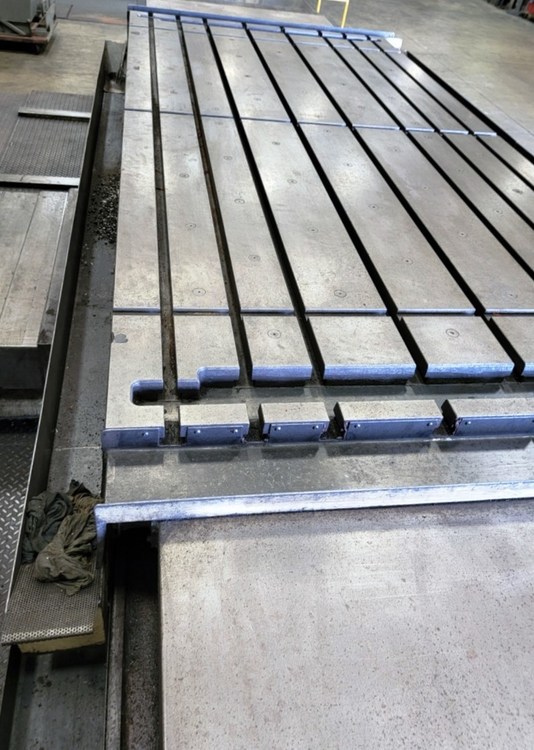

Full 4- Axis, 60 in x 120 in T-slot Table
30,000 Lbs. Part load capacity
Travels X=120 in, Y=91 in, Z=36 in, W=50",
5 Inch Diameter Spindle
25-1120 RPM Low Range High Range 3,000 RPM Option on Spindle Motor
2- Speed 50 HP. Gear Spindle Motor
50 Taper Spindle with Power Draw Bar
Heavy Duty 3-Way Box Hardened Way on Column

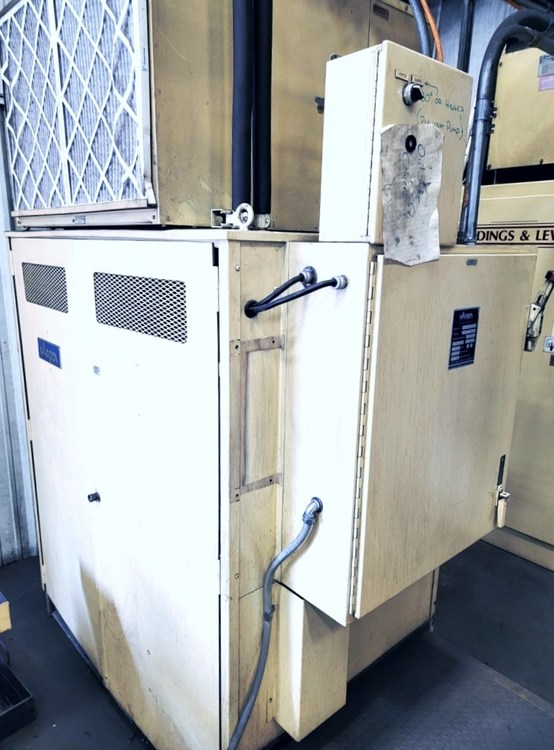

150 gallon coolant system, Wagner Factory spindle cooler unit

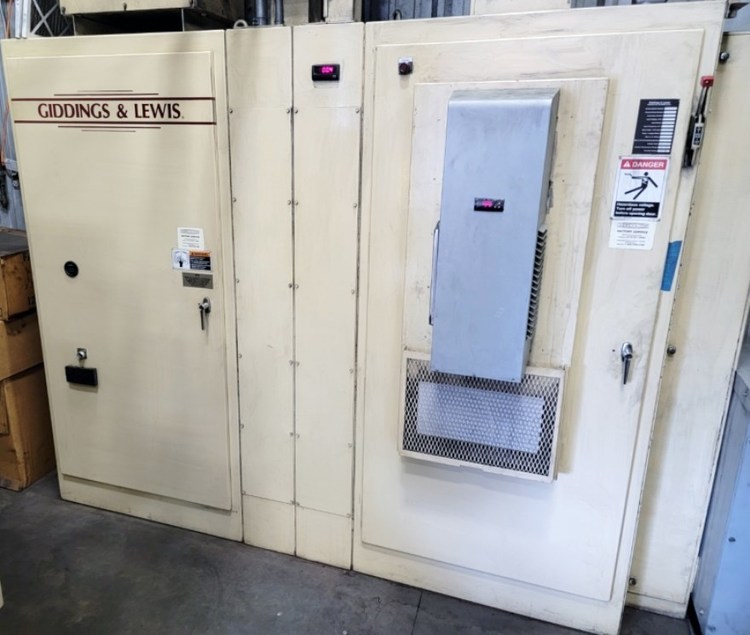

Dynapath CNC Control Retrofit Eagle Machine Tool
Adjustable Control Height Pendant Updated & Installed

* 3- Outriggers on Each Side on the Table for Added Part Weight Capabilities.
* Machine is Fully Installed in Shop for Inspection.
