Specification Description
Specifications I Beams
--Beam Depth Minimum 3-1/8"
--Beam Depth Maximum Saw 40"
--Beam Depth Maximum Drill 44"
--Flange Height Minimum 1-5/8"
--Flange Height Maximum 17-3/4"
--
Channels (with flanges oriented downward)
--Channel depth Minimum 3-1/8"
--Maximum Saw 40"
--Maximum Drill 44"
--Flange Height 1-3/4" to 11-3/4"
--
--Angles
--Leg height (unequal legs as well) Minimum: 3-1/8" x 3-1/8" x 3/8"
--Leg height (unequal legs as well) Maximum 10" x 10" x 1-9/16"
--
Flats
--Width Minimum 4"
--Maximum Saw 40"
--Maximum Drill 44"
--
Tubes
--Square Tubes Minimum 3-3/8" x 3-3/8"
--Square Tubes Maximum 17-3/4" x 17-3/4"
--
Tubes Rectangular
--Size Minimum 3-1/8" x 1-9/16"
--Maximum Saw 40" x 17-3/4"
--Maximum Drill 44" x 17-3/4"
--
All Beams
--Maximum thickness that can be drilled 3"
--Maximum length to be transferred 60
--Minimum length to be transferred 8
--
Drilling Capacities
--Drill heads 1
--Spindles per drill head 1
--Maximum hole diameter 2"
--Spindle rotation motor per head (AC): 15
--Programmable Spindle Speed 180 - 2500 RPM
--

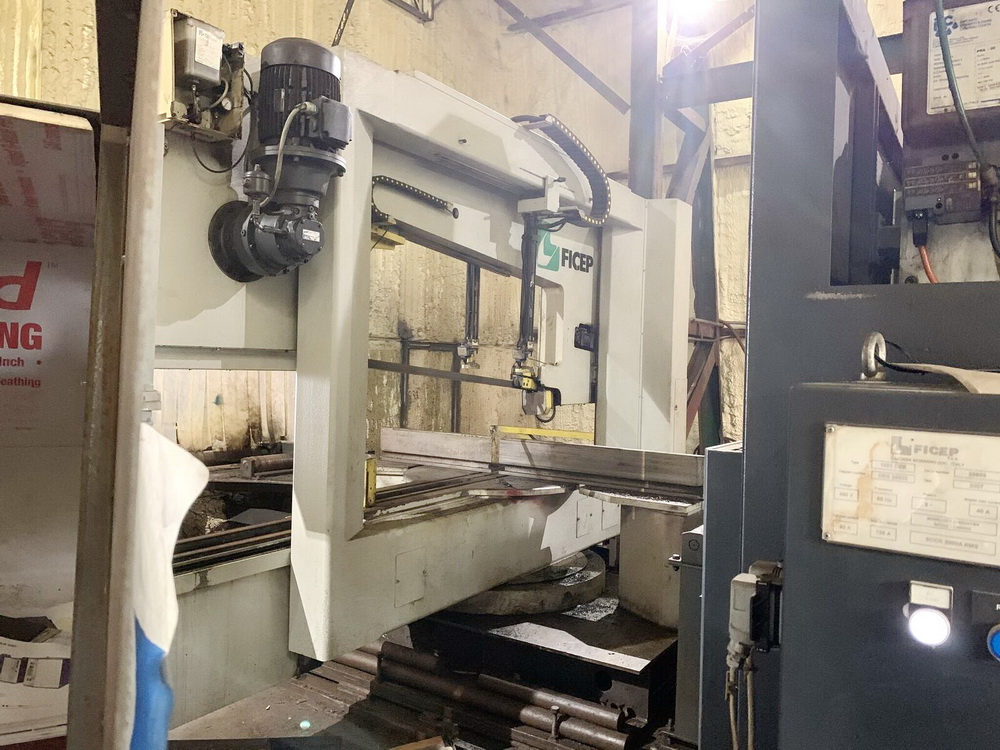

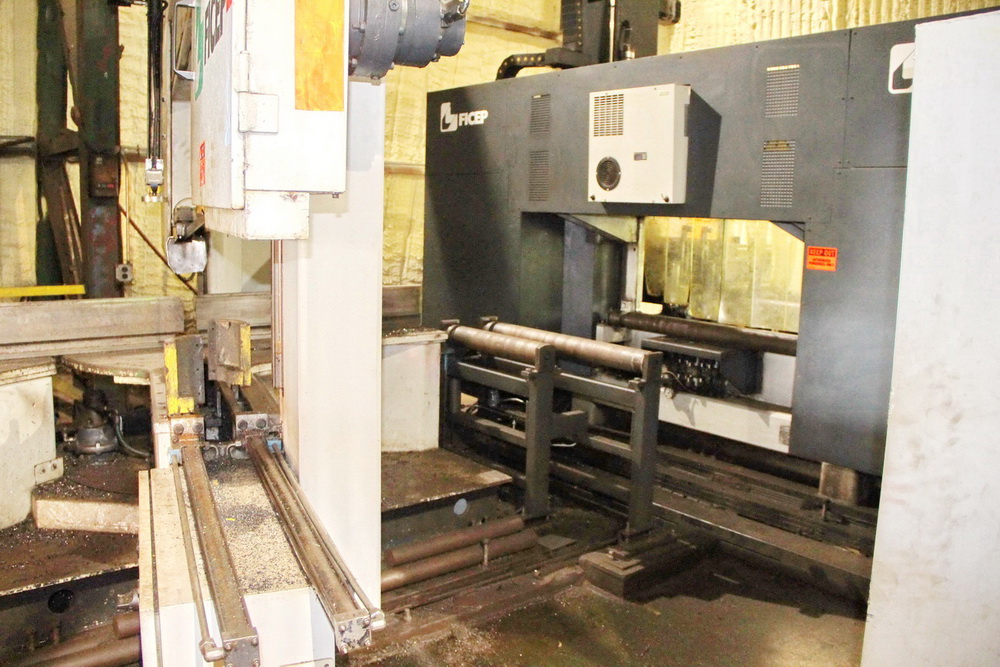

Band Sawing Unit Model 1045BH
--Sawing capacity at 90 deg Minimum 3-1/8" x 3/8"
--Sawing capacity at 90 deg Maximum 40" x 17-3/4"
--Sawing capacity at 60 degrees 13-3/4" x 13-3/4"
--Sawing capacity at 45 degrees 24-3/8" x 17-3/4"
--Blade size (width x kerf) 1.61" x 0.051"
--Band saw drive motor 7.5 HP
--Programmable blade speed 65 to 328 FPM
--
Other Specifications
--Maximum section weight as standard 11,900 LB
--Maximum carriage speed 164 FPM
--Passline 33-1/2"
Equipped With:

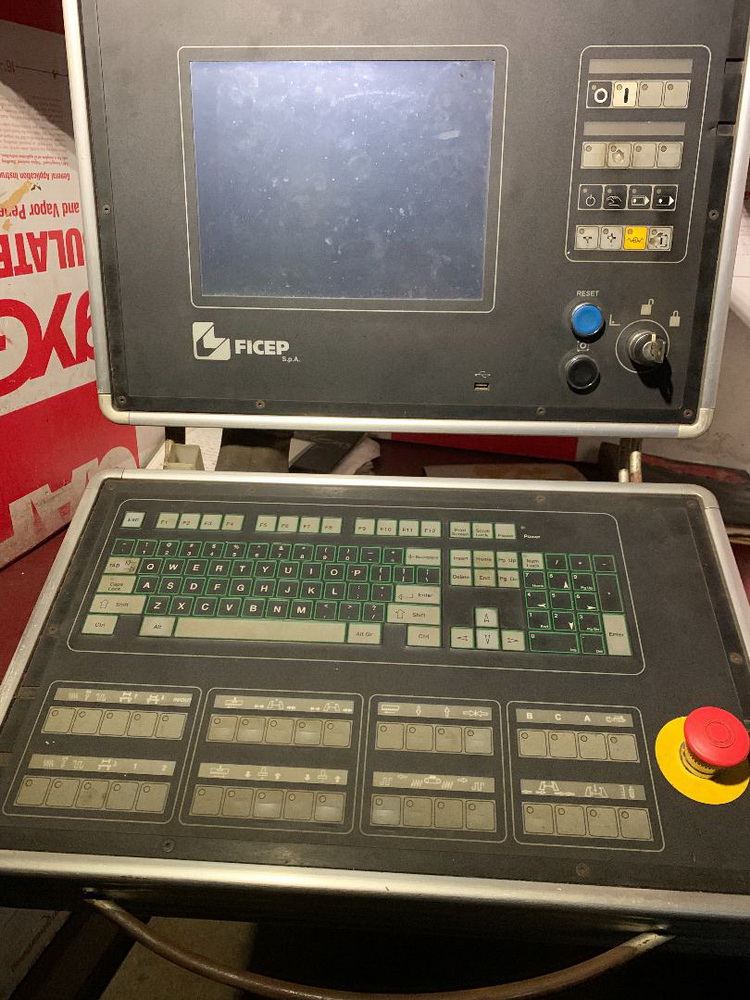

FICEP CNC Controls

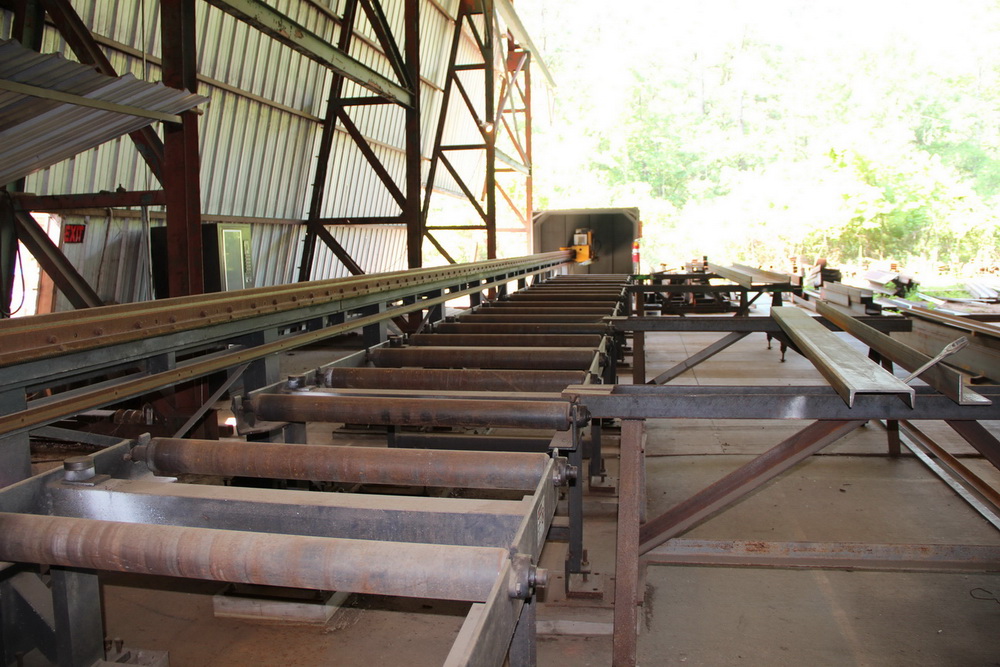

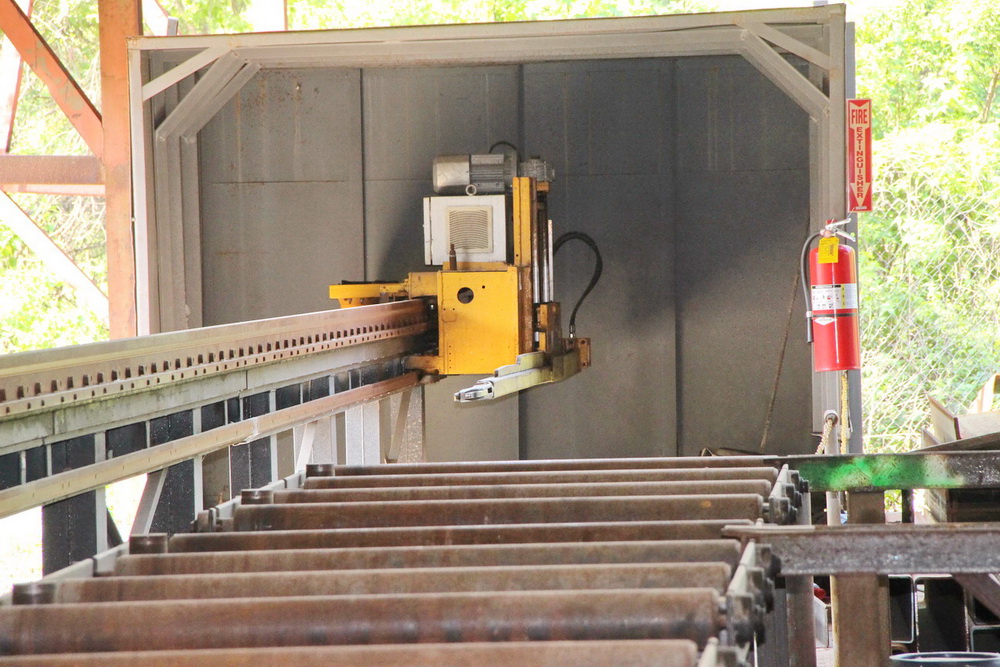

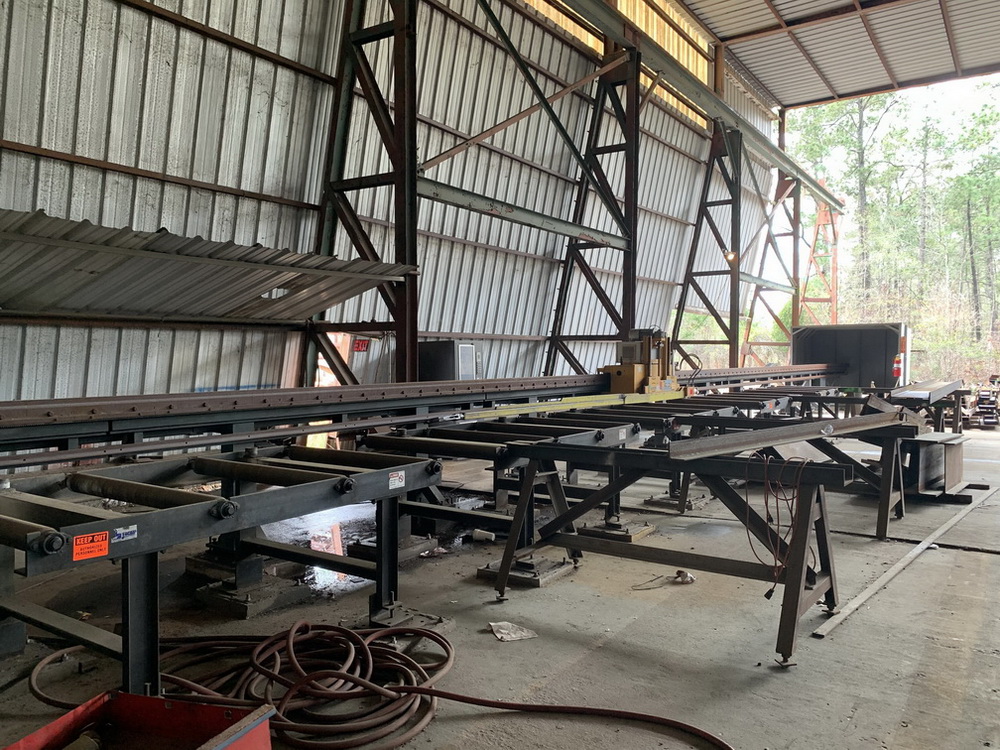

Infeed Conveyor

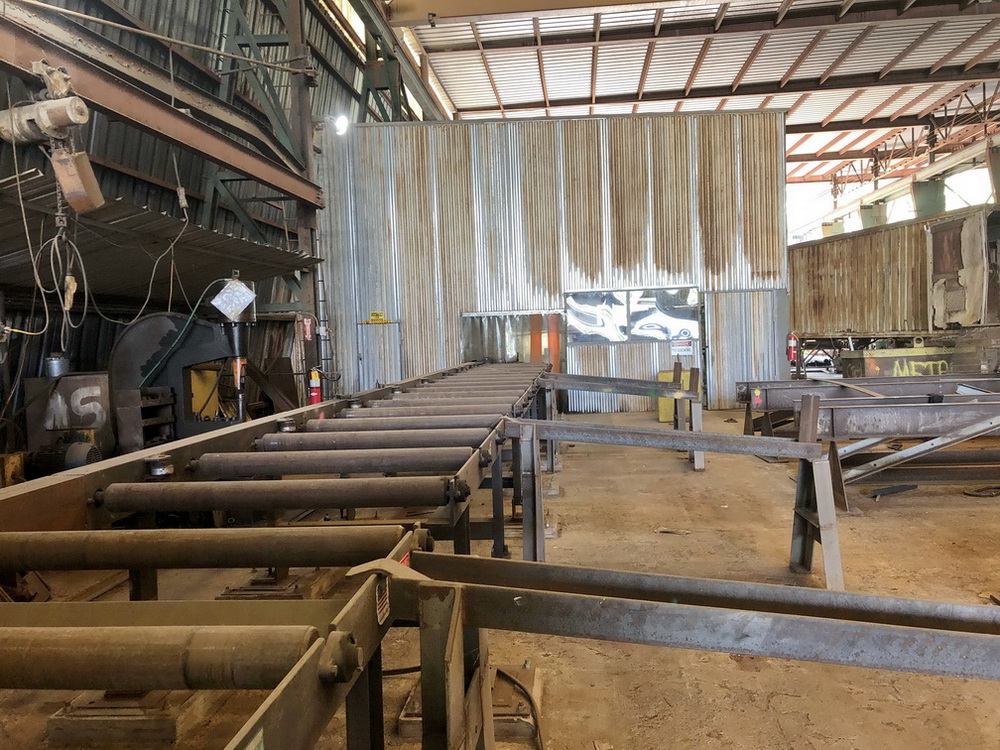

Outfeed Conveyor
Monospindle Rotating Drill Head
Tool-Change System with 6 positions
Hydraulic Double Jaw Vise Assembly
Automatic Web Probing
Band Sawing Unit Model 1045 BH - 40" Capacity
