FANUC ROBODRILL CNC VERTICAL MACHINING CENTER EQUIPPED WITH 4TH & 5TH AXIS.
a-D21MiA5
139YG673
Drills Manual and CNC
DRILLING and TAPPING MACHINES, NC and CNC
used
4500 (LB)
2013
$0.00

Description

SPECIFICATIONS Highlights: Fanuc 31iB5 CNC Control Peiseler 4th/5th Axis Rotary Table 100mm Riser for more machining room Renishaw Spindle Probe Blum Laser Tool Measuring

SPECIFICATIONS

CONTROLFANUC 31I-B5 Number of Axes 5

Table Size 25.6" x 15.7"/650mm x 399mm

Max Table Load 661 lbs/300 kg

Travel (X) 19.7"/500mm

Travel (Y) 15.75"/400mm

Travel (Z) 12.9"/328mm

Rapid Traverse (X,Y,Z) 2,125 IPM

Spindle Taper CAT 30

Spindle Speed 24,000 RPM

Spindle Motor Cont. 7.5 HP/6 KW

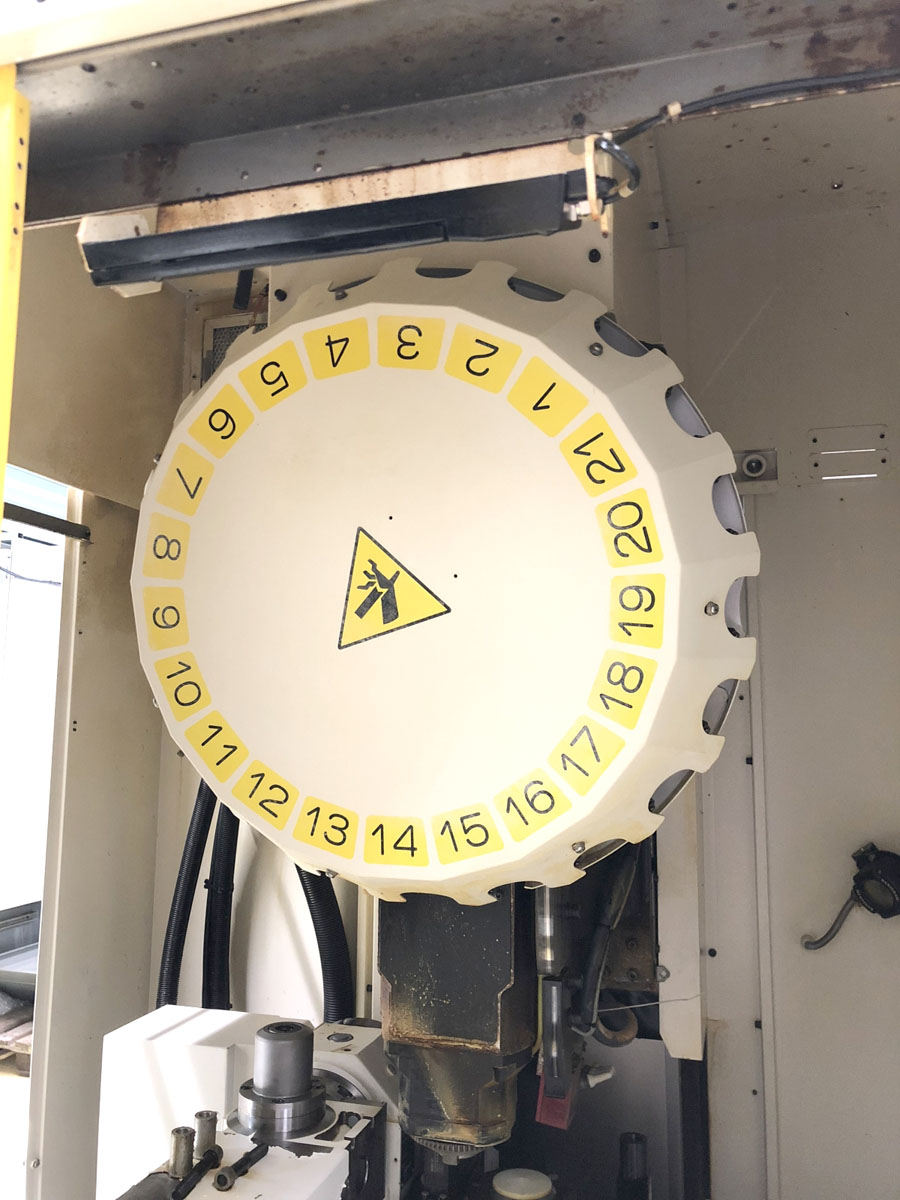

ATC 21

Coolant Through Spindle No

Machine Dimensions 81" x 62" x 88"/2057mm x 1575mm x 2235mm

Machine Weight 4,500 lbs/2,041 kg

Equipped With:

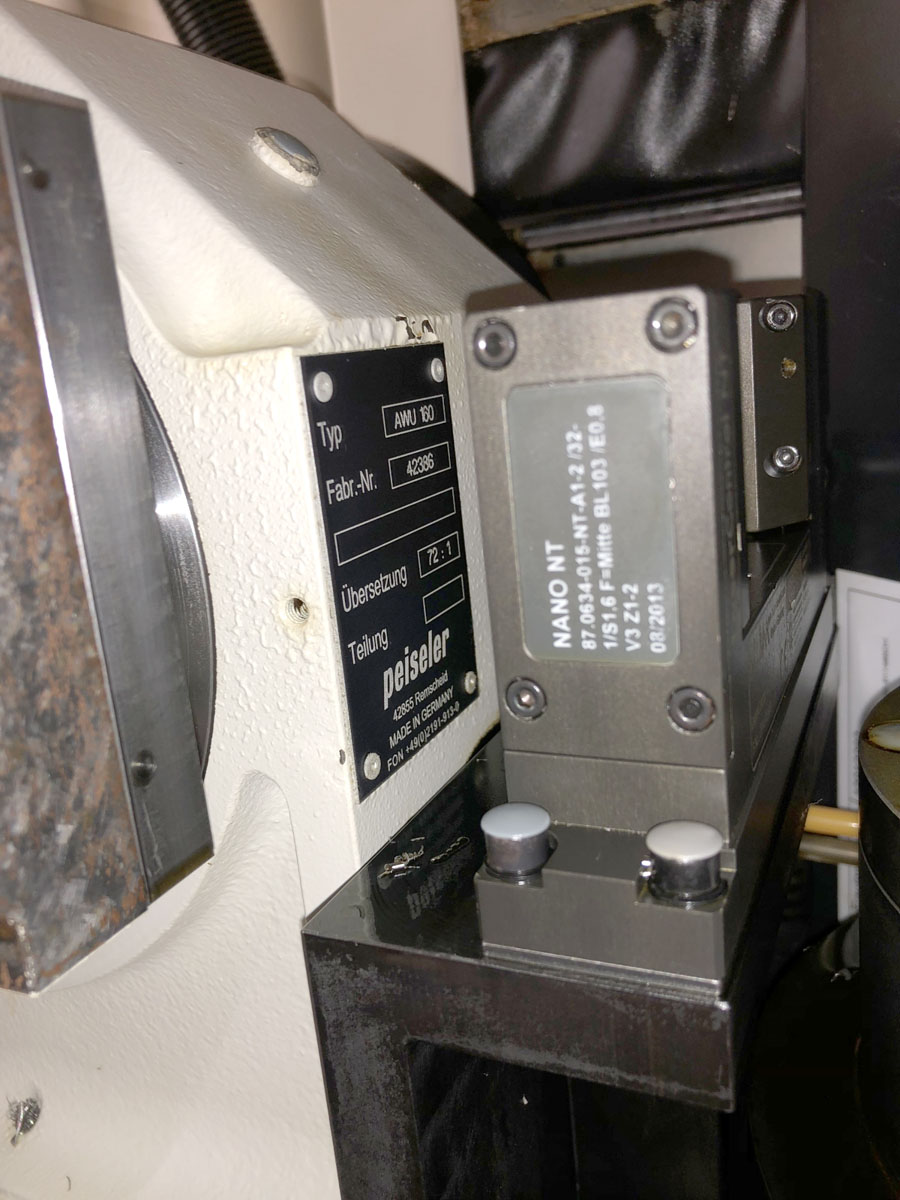

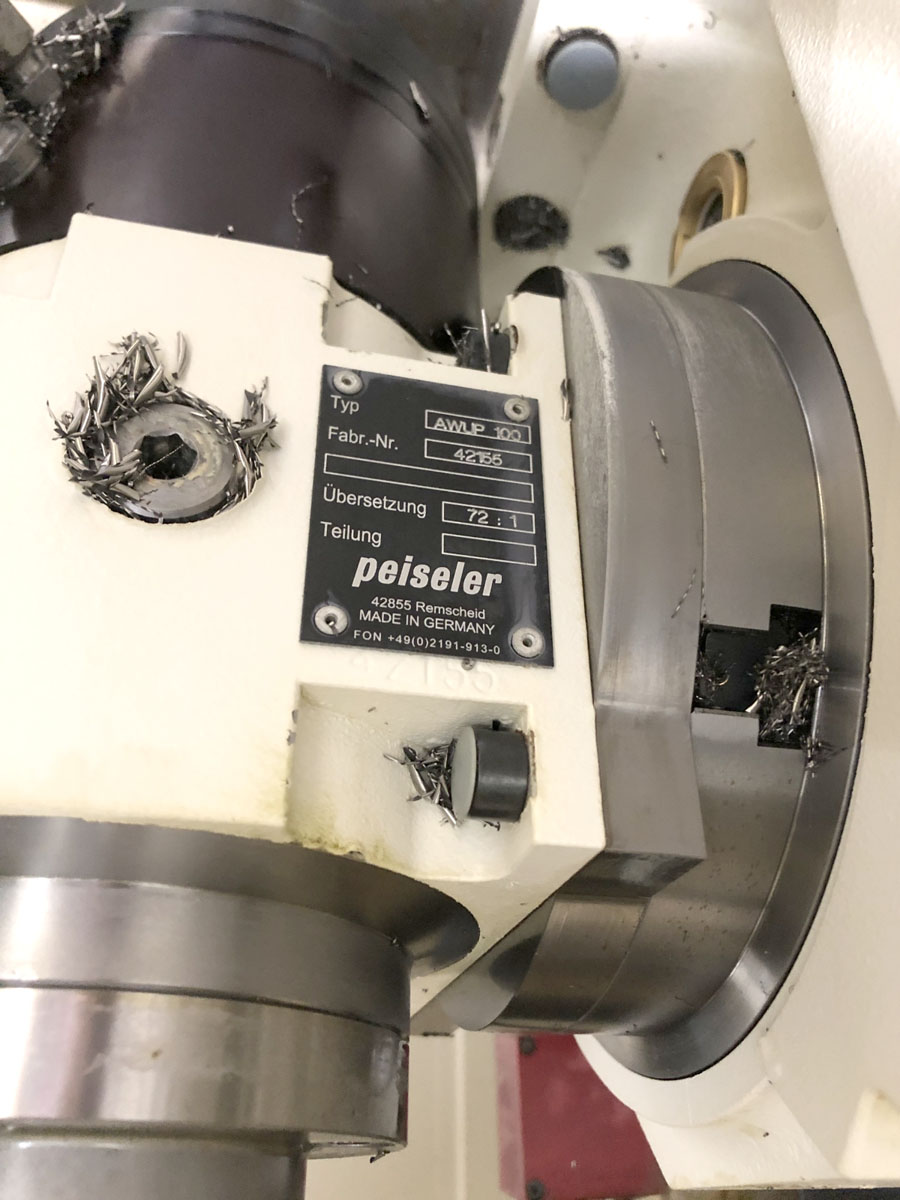

- Peiseler 4th/5th Axis Rotary Table

- Fanuc 31iB5 CNC Control

- USB and Ethernet Connection

- Renishaw Spindle Probe (OMI-2)

- Blum Laser Tool Measuring

- 100mm Riser for more machining room

- Misc. Tooling Available Tooling

- Mist Collector

- Available Manuals
