Description:
1-USED FANUC M710IC/50 6 AXIS ROBOT 50KG X 2,050 MM H-REACH WITH R30IB CONTROLLER
SERIAL NUMBER E-88731
DATE OF MFG. 07/2016
STK 104593
====================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

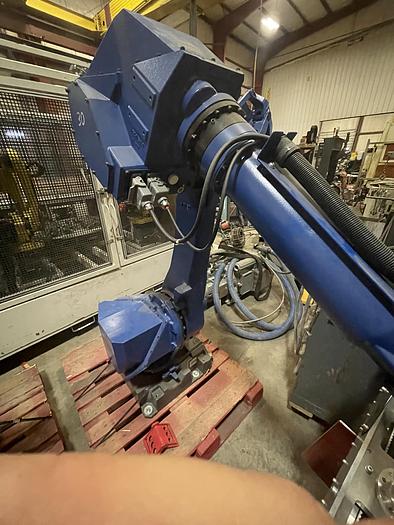

The FANUC M-710iC/50 is one of FANUCs intelligent robots. Performing dispensing, material-handling and packaging applications are no problem for this industrial robot arm. What distinguishes the M-710iC 50 is that the robot is coated with a protective epoxy. Its wrist, which is often subjected to the worst condition, can withstand high-pressure washing. Each joint has extra oil seals and every bolt is coated. The 710 iC 50 can be immersed in 15cm to 1m of liquid and is certifiably protected from all dust, cutting down on wear and tear. Even the robot\s base is safeguarded, designed to expel air, thus preventing outside air from seeping into the robotic arm.
Robot Specifications:
Axes: 6
Payload: 50kg
H-Reach: 2050mm
Repeatability: Plus/minus 0.07mm
Robot Mass: 560kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed:
J1 175 deg/s (3.05 rad/s)
J2 175 deg/s (3.05 rad/s)
J3 175 deg/s (3.05 rad/s)
J4 250 deg/s (4.36 rad/s)
J5 250 deg/s (4.36 rad/s)
J6 355 deg/s (6.2 rad/s)
Robot Motion Range:
J1 Plus/minus 360 deg
J2 Plus/minus 225 deg
J3 Plus/minus 440 deg
J4 Plus/minus 720 deg
J5 Plus/minus 250 deg
J6 Plus/minus 720 deg
EQUIPPED WITH:
FANUC R30IB CONTROLLER

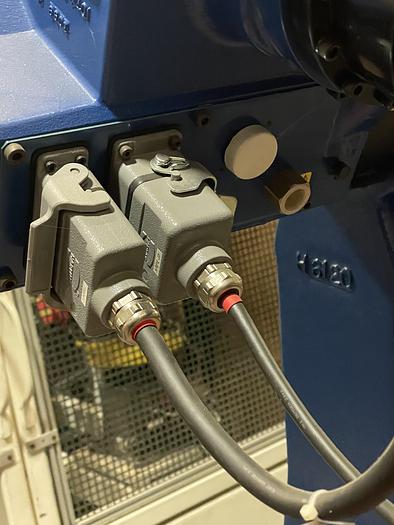

FANUC ROBOT CONNECTION CABLES RM1 AND RP1
FANUC COLOR TEACH PENDANT
ARM1 CONNECTION
ARP1 CONNECTION
FOB TRUCK, IMLAY CITY, MI 48444
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
RAB INDUSTRIES, INC.
Specifications:
Manufacturer FANUC
Model FANUC M710IC/50
Year 2016
Condition Used
Serial Number E-88731
Stock Number 104593
Axes 6
Payload 50kg
H-Reach 2050mm
Repeatability Plus/minus 0.07mm
Robot Mass 560kg
Structure Articulated
Mounting Floor, Inverted, Angle
Controller Fanuc R30IB
Robot Applications Dispensing Robots, Machine Loading Robots, Material Handling Robots, Cutting Robots, Fiberglass Cutting Robots, Foundry Robots, Material Removal, Robots Meat Processing, Automation Robots, Arc Welding Robots, Waterjet Robots
