FANUC M3IA/6S DELTA BOT HIGH SPEED PICK & PLACE/SORTING CELL WITH DUAL ROBOTS AND 2 PASS UNDER CONVEYOR SYSTEMS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


M3iA/6S DELTA BOT
Robotic Equipment
High Speed Pick & Place/Sorting
used
160 (KG)
0
$0.00

Description

Description:
1-USED FANUC M3iA/6S DUAL UNIT PICK & PLACE/SORTING CELL WITH 2 CONVEYORS RUNNING END TO END UNDER THE ROBOTS
   SERIAL NUMBERS
   DATE OF MFG
   STK#104810

=================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

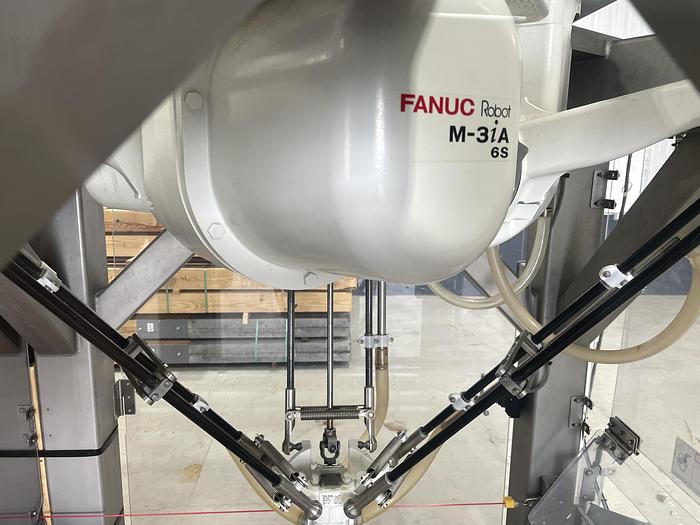

Fitted with powerful servomotors for high acceleration and short cycle times, this Delta Robot is ideal for high speed picking operations. Its four axes and high-speed single axis wrist provide increased dexterity, while its long reach makes it ideal for picking applications across multiple conveyors.

The FANUC M-3iA/6S is a high speed picking robot. The M3iA/6S is a 4 axis model that features a single axis wrist rotation. This model also includes Visual Line Tracking. The FANUC M3iA 6S robot features a 6kg payload and is IP67 rated to be water and dust proof.

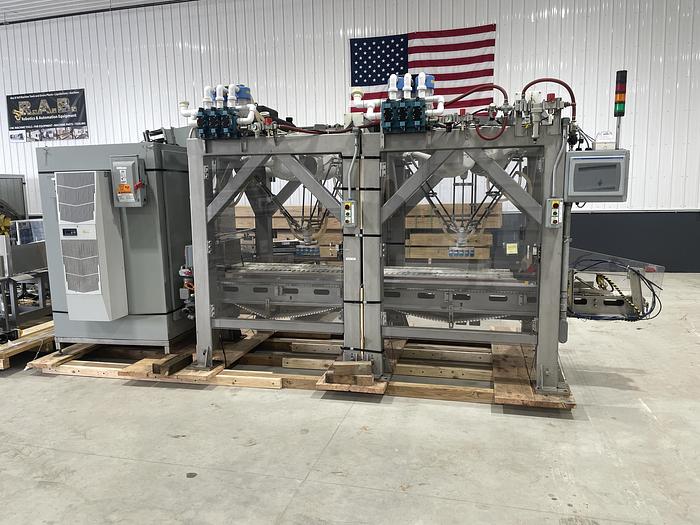

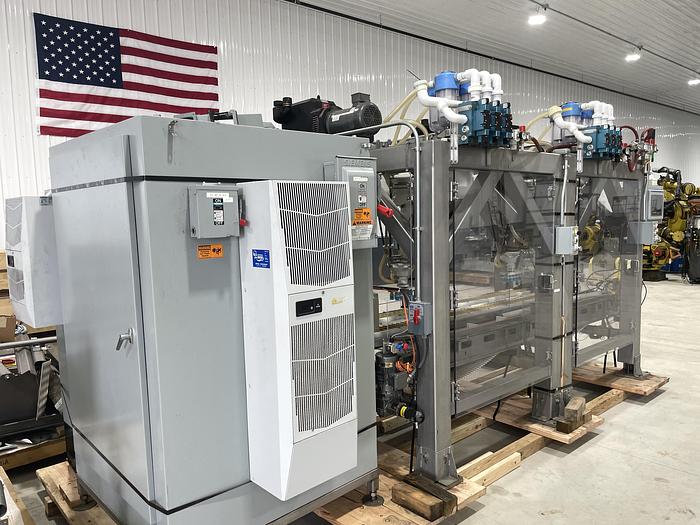

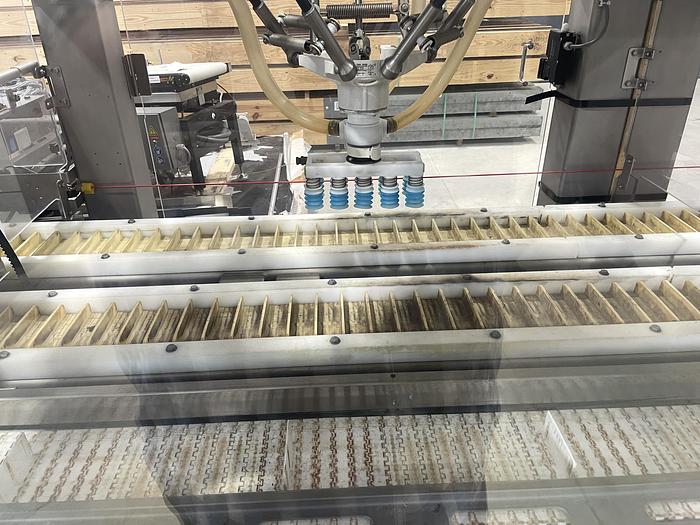

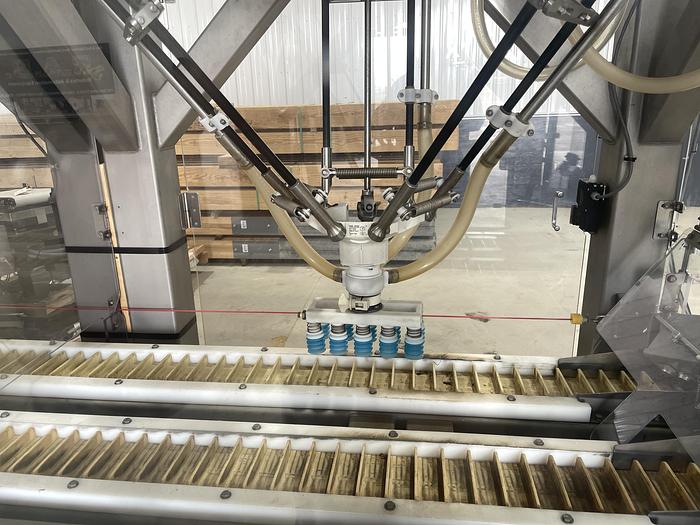

This Cell is constructed with two M3iA/6S robots in line with each other on fabricated structure with 2 conveyors running underneath both robots

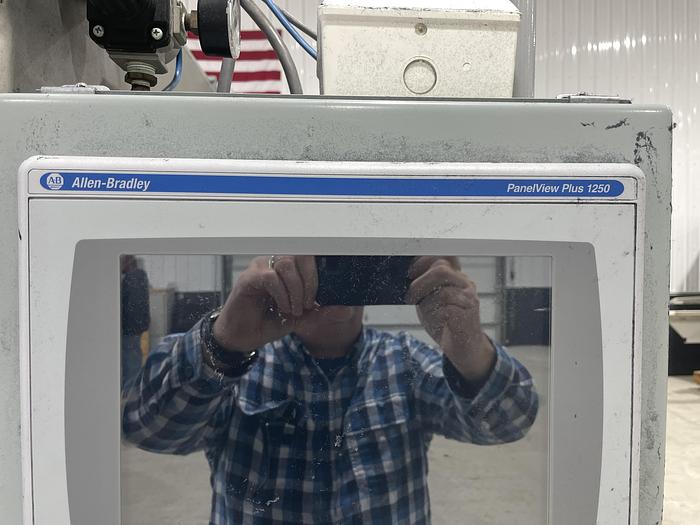

from end to end of the cell.  Complete with plc controls to run the cell.  Many possible applications in its current configuration.

Robot Specifications:
Axes: 4
Payload: 6kg
H-Reach: 1350mm
Repeatability: Plus/minus 0.1mm
Robot Mass: 160kg
Structure: Delta, Parallel Link
Mounting: Inverted

Robot Motion Speed:
J1 4000 deg/s (69.81 rad/s

Robot Motion Range:
J1 Plus/minus 720 deg


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

RAB INDUSTRIES, INC.

Specifications:
Manufacturer FANUC
Model FANUC M3iA/6S DELTA BOT
Condition Used
Stock Number 104810
Axes 4
Payload 6kg
H-Reach 1350mm
Repeatability Plus/minus 0.1mm
Robot Mass 160kg
Structure Delta, Parallel Link
Mounting Inverted
Manufacturer Fanuc
Model Fanuc M3iA/6S Delta Robot
