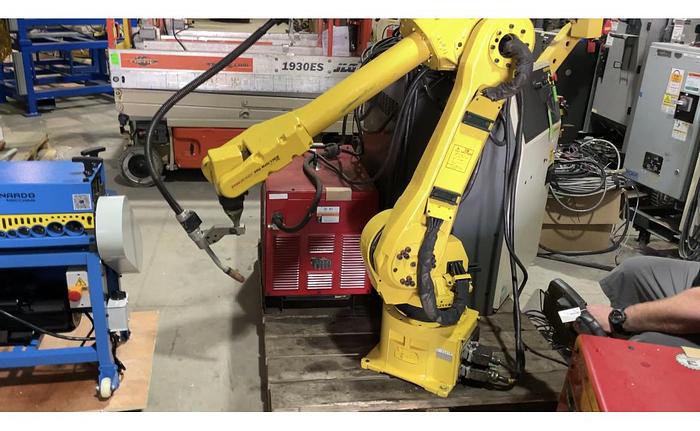

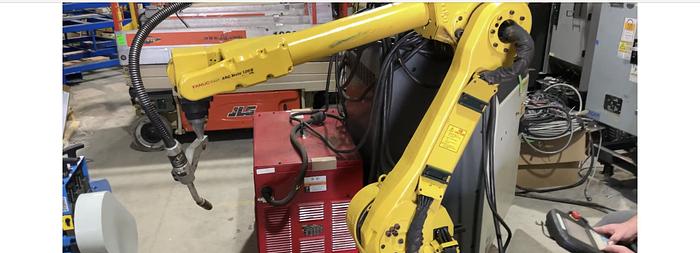

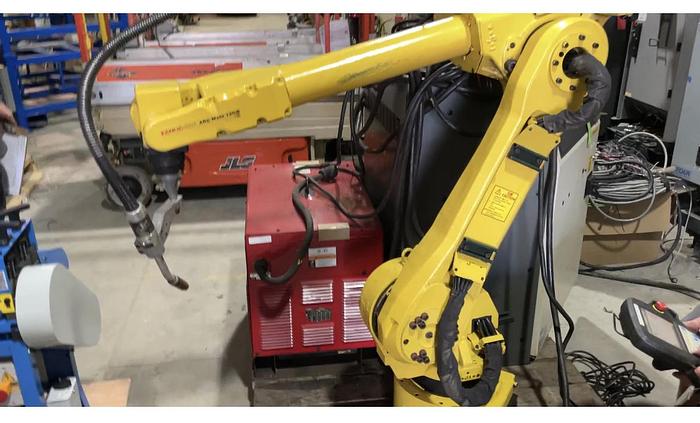

FANUC ARCMATE 120IB/10L MIG WELDING ROBOT WIRE FEEDER, TORCH, LINCOLN POWER WAVE 455M

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


ARCMATE 120iB/10L
F90417
Robotic Equipment
Robotic Welders
used
220 (KG)
2008
$0.00

Feature Video

Description

Description:

1-USED FANUC ARCMATE 120iB/10L 6 AXIS ROBOT 10 KG X 1885 MM HIGH REACH

   SERIAL NUMBER F90417

   DATE OF MFG. 03/2008

   STK#104544

===========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

Robot Specifications:

Axes: 6

Payload: 10.00kg

H-Reach: 1885.00mm

Repeatability: Plus/minus 0.1000mm

Robot Mass: 220.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 165 deg/s (2.88 rad/s)

J2 165  deg/s (2.88 rad/s)

J3 175  deg/s (3.05 rad/s)

J4 350  deg/s (6.11 rad/s)

J5 340  deg/s (5.93 rad/s)

J6 520  deg/s (9.08 rad/s)



Robot Motion Range:

J1 Plus/minus 170 deg

J2 +160 deg - 90 deg

J3 +285 deg - 170 deg

J4 Plus/minus 200 deg

J5 Plus/minus 140 deg

J6 Plus/minus 450 deg

Robot Applications:

MIG Welding Robots

Plasma Welding Robots

TIG Welding Robots

Welding Automation Robots

Arc Welding Robots


The extended reach FANUC ARC Mate 120iB/10L performs arc welding and cutting applications with ease. The 120iB/10L uses its six-axes, overhead rail-mount, horizontal reach of 1,885 millimeters and,  +/- 0.1 millimeter repeatability to ensure that parts large and small receive extremely accurate welds and cuts. The FANUC ARC Mate 120iB 10L RJ3iB arc welding robot has a maximum payload capacity of 10 kilograms.


The 120iB is the best in its class for reach versus stroke ratio and fastest motion speeds. The exceptionally fast wrist axes reduce air cut times, and the ARC Mate has an extremely large work envelopes and complex tooling.


EQUIPPED WITH:

FANUC R30iA CONTROLLER

FANUC RCC ROBOT CABLES

FANUC TEACH PENDANT


TREGASKISS WELDING TORCH


WIRE FEEDER

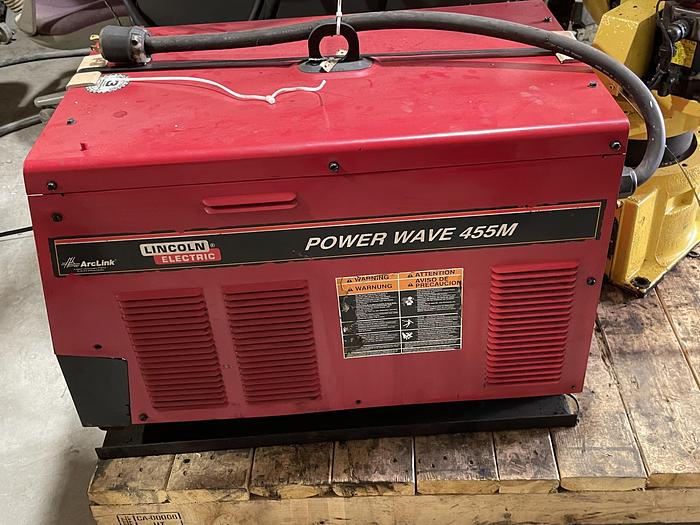

LINCOLN 455M WELDING POWER SUPPLY


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.


RAB INDUSTRIES, INC.


Specifications:

Manufacturer FANUC

Model ARCMATE 120iB/10L

Year 2008

Condition Used

Serial Number F90417

Stock Number 104544

Documents

 FANUC ARCMATE 120iB BROCHURE.pdf
