Description

The FANUC wire cut electrical discharge machine - Alpha 1iC-S/AWF has been developed as a result of the past 28 years of FANUC CNC controls, electronics and wire EDM experience. The Alpha 1iC-S/AWF is a "Next Generation" model that responds to the customers need for high performance, high reliability, and low cost operation. This machine includes not just one, but four (4) separate Micro-Processors: numerical control (64 bit), digital power supply (32 bit), graphics functions (32 bit), and digital servo system (32 bit). The Worlds Fastest Cutting AC Power Supply.

Specification                                                                        Description

Machining Stroke ( X x Y x Z )                                        21.6" x 14.6" x 16.1"

UV Axis Travels                                                                       +/- 2.364"

Taper Capacity                                                                  +/- 30 Deg. at 3.26"

Taper Capability with Optional Diamond Guides                   +/-45 @ 1.6"

Table Size                                                                            37.4" x 24.8"

Maximum Workpiece Size                                                   43" x 32" x 16"

Maximum Submersible Height                                                  15"

Maximum Workpiece Weight                                              3,550 lbs

Rapid Traverse                                                                         50 ipm

Wire Guide System                                                    Round Diamond Die Guide

Wire Diameter Capability                                                 0.004" - 0.012"

Wire Tension                                                                     250-2500g

Wire Feed                                                                             0-590 ipm

Maximum Wire Spool                                                                35 lbs

Factory Rated Cuttng Speed                                                31 sq/in/hr

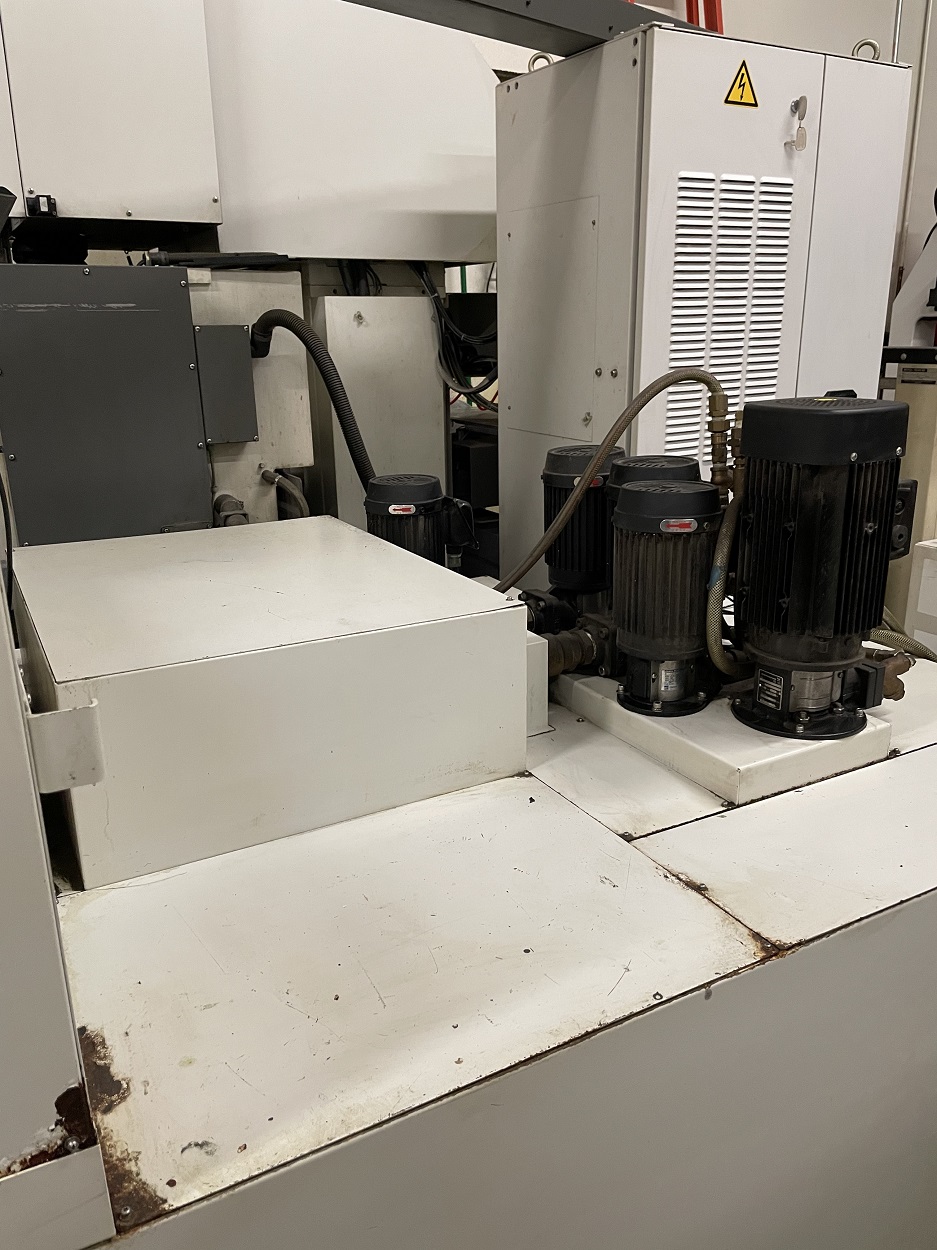

Total Volume of Dielectric                                                      301 Gallons

Total Power Required                                                  13 KVA (200/200V+/-10%,

                                                                                    3 Phase, 60 Hz)

Machine Footprint Dimensions                                          115" x 119" x 92"

Machine Weight                                                                    7,000 lbs

Equipped With:

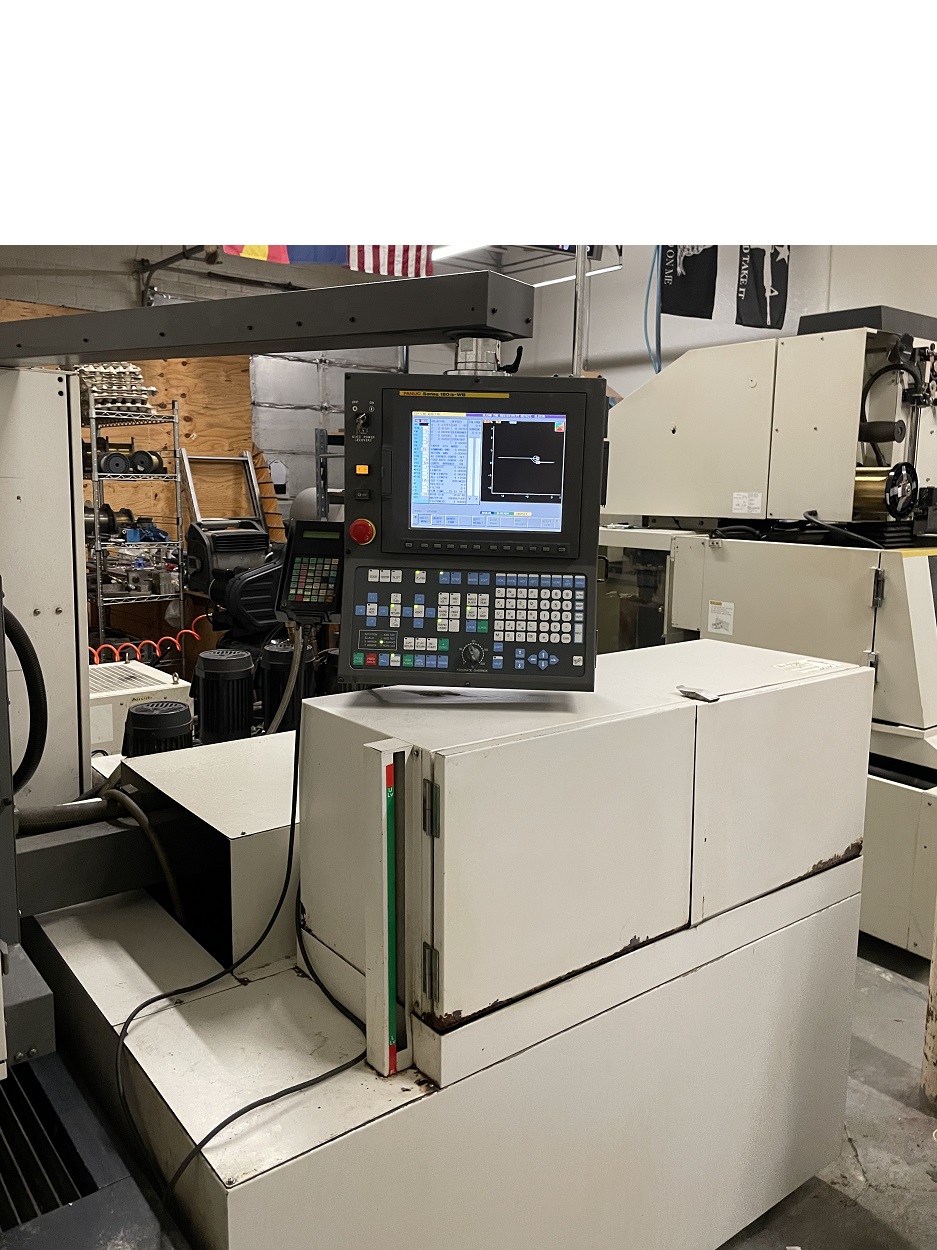

* Fanuc Series 180is-WB 64 bit CNC Control 12.1" Color LCD * Fanuc High Speed Digital / AC Power Supply ??? * Optional PCD Power Supply ??? * Optional Micro Finish (MF) Power Supply * Anti-crash Protection * Automatic Wire Threader * Submerged Cutting * 30 Degree Taper Cutting Capability * Fanuc Serial / Digital AC Servo Motors * Five Controllable Axis (X,Y,U,V,Z) * Resolution of .000004" * Absolute Position Detection System * Heidenhain Linear Glass Scales X & Y Axis * Column Mounted Independent U and V Axis Slides * CNC Operator Panel - Swing Mounted/Adjustable * Programmable "Z" Axis * AI Function - Automatic Setting of Cutting Conditions * Advanced Hand Pendant * Quick Conversational Programming * Automatic Water Level Control in Work Tank * Operator Guidance Screens for Operation, Alarms, and Maintenance * RS232C Input/Output Port for Reader * Automatic Power Recovery * Automatic Restart * Coordinating System Rotation * Reverse Copy (Symmetry) M96/97 * Automatic Corner Rounding * Dielectric Water Filtration Unit * All Available Manuals and Accessories

Stock Number: 0786

Condition: As Is, Where Is
