FADAL VMC 6030 HT FEATURES

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


6030 HT
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
17000 (LB)
2003
$0.00

Description

22.5HP High Torque Spindle Motor
10000 RPM High Precision Spindle
21 Station Automatic tool changer
Programmable coolant
Telescopic way covers
Flood Coolant system

FADAL VMC 6030 HT Specifications:

Travels:
X-Axis: 60 in
Y-Axis: 30 in
Z-Axis: 30 in

Table:
Length: 62.5in
Width: 30.0 in
Number of Std T-Slots: 5
T-Slot Width: 0.625 in
Max Weight on Table: 3500 lbs

Spindle:

32 MP CNC controls
Taper Size: CAT 40
Speed Range: 0 to 10000 RPM
Spindle Power: 22.5 HP
Max Torque: 230ft-lb @ 500RPM

Automatic Tool Changer:
Capacity: 21
Max Tool Weight: 15 lbs
Max Tool Dia: 6 in
Max Tool Length: 15 in
Tool Changing Time: 4.2 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 480v / 1 kva  3-Phase
Overall Dimensions: 162 in x 104 in x 125 in High
Weight: 17000 lbs

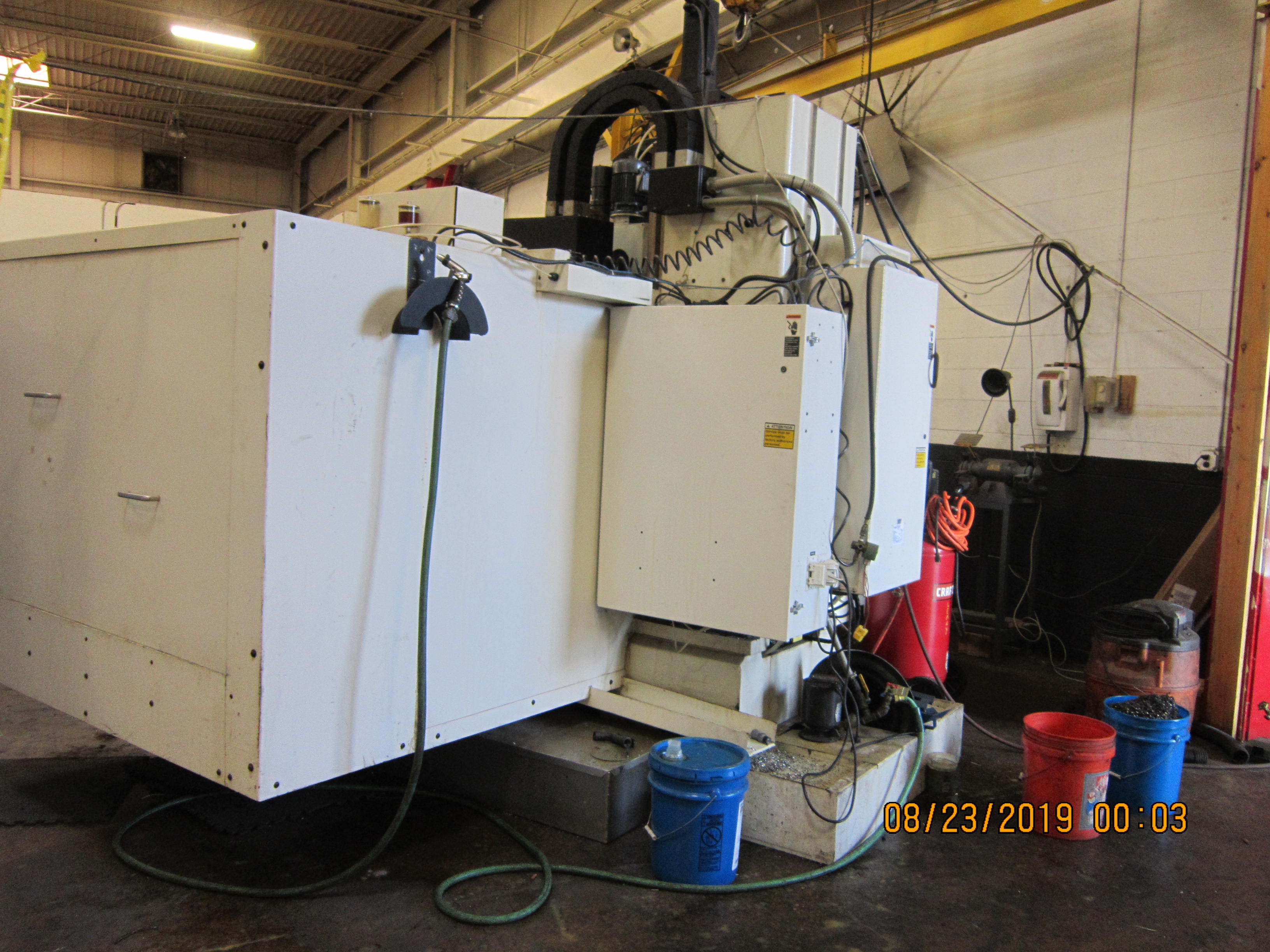

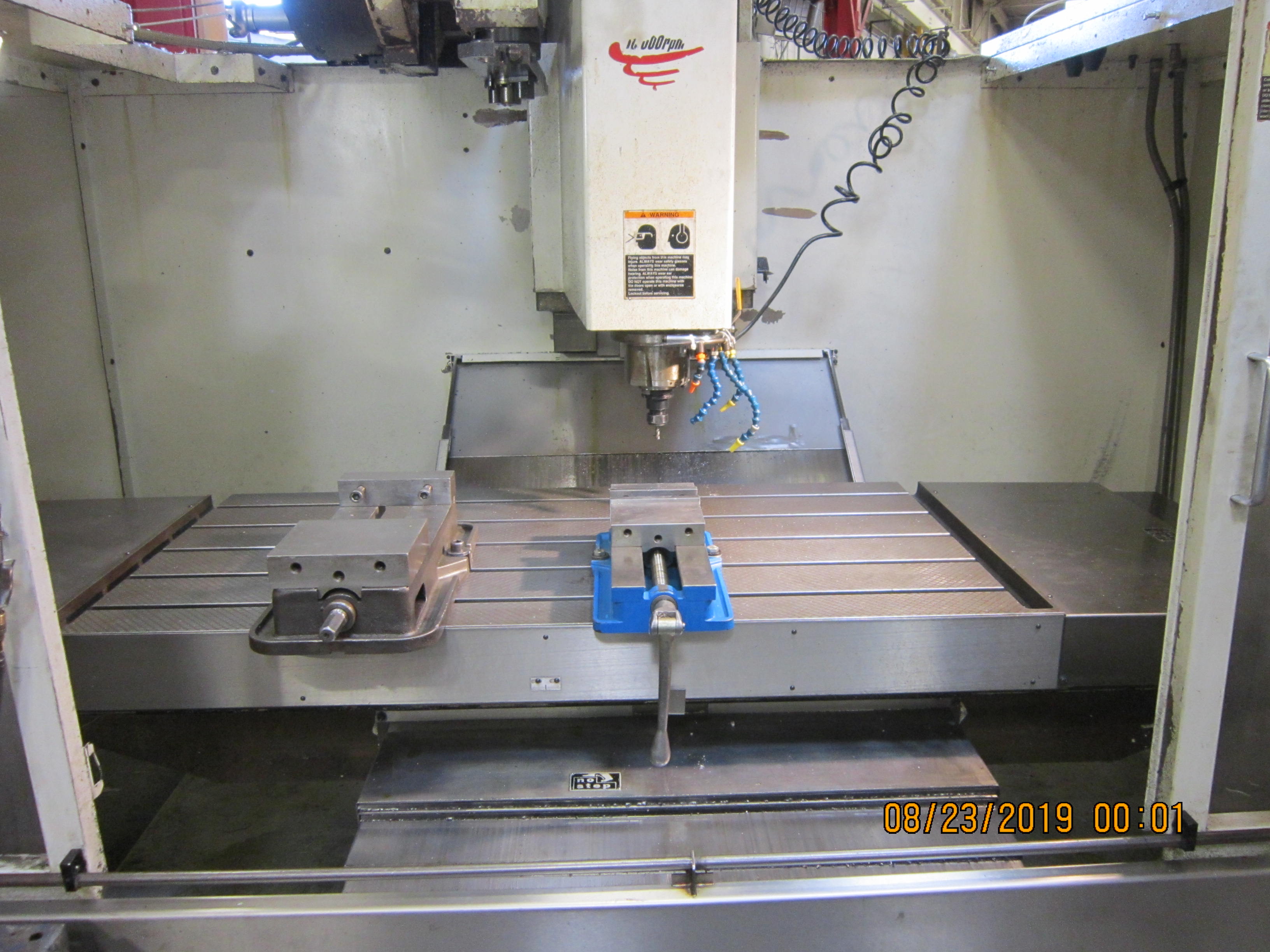

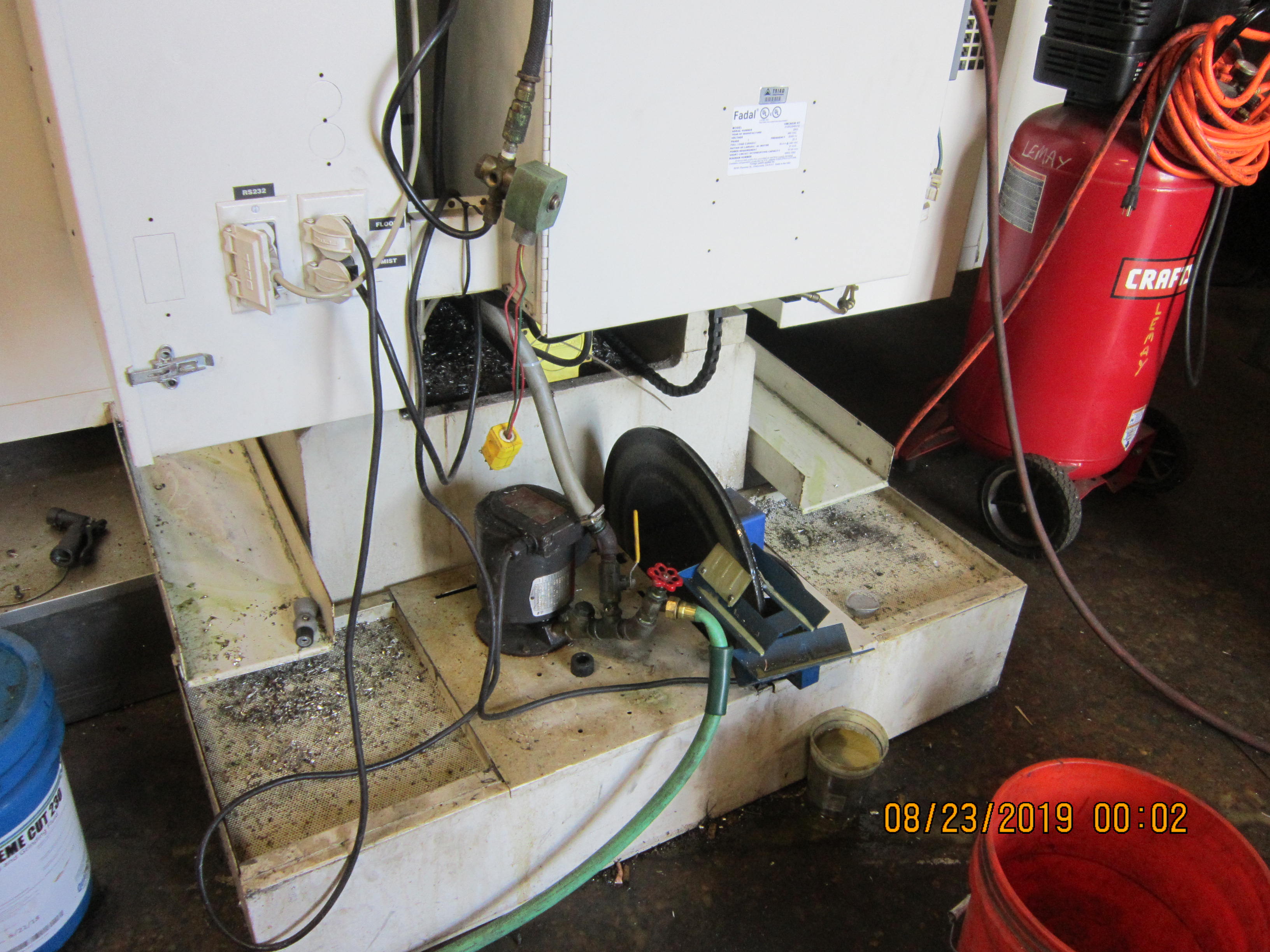

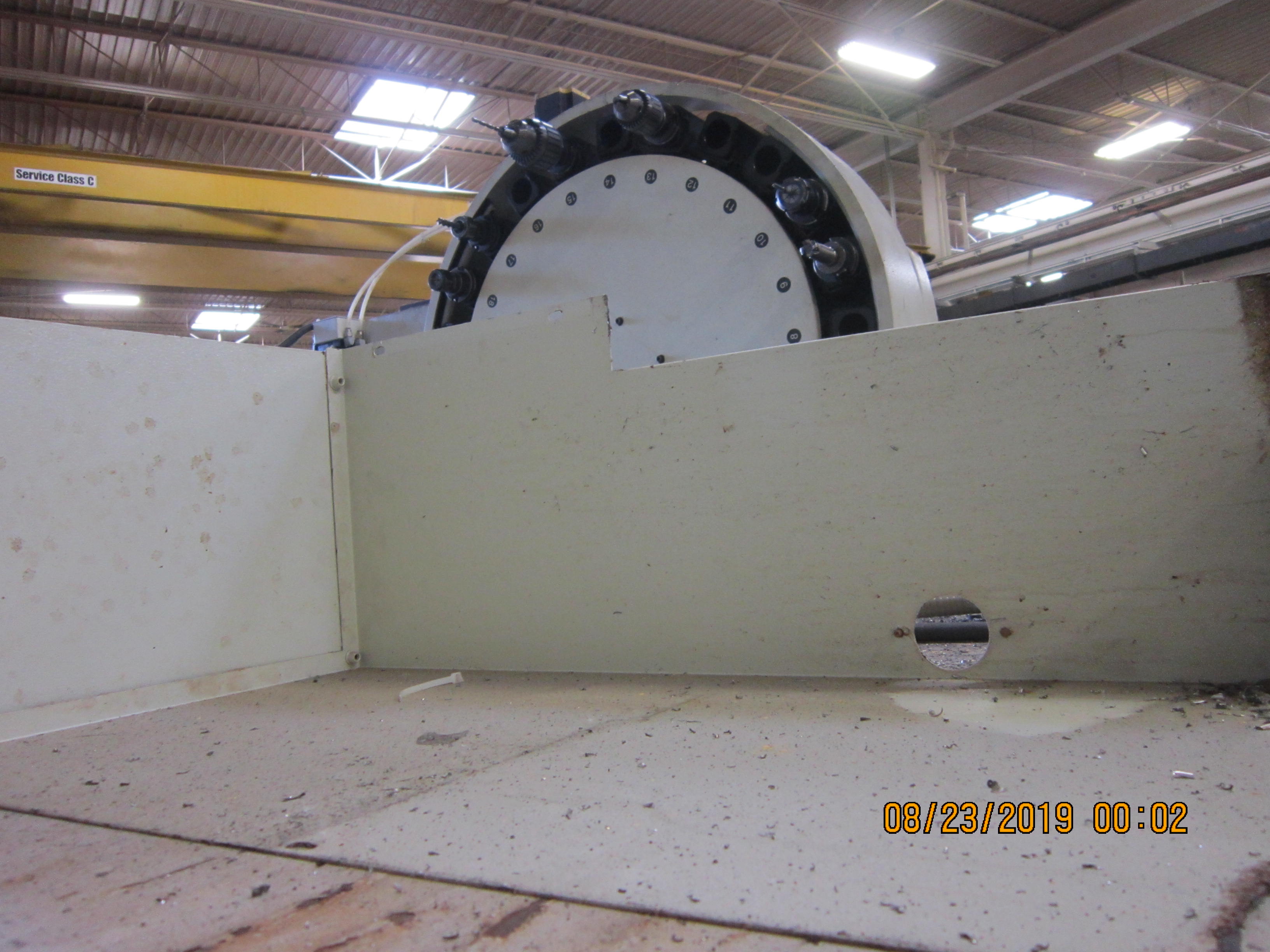

FADAL VMC 6030 HT Comes as shown in pictures.
