Description:

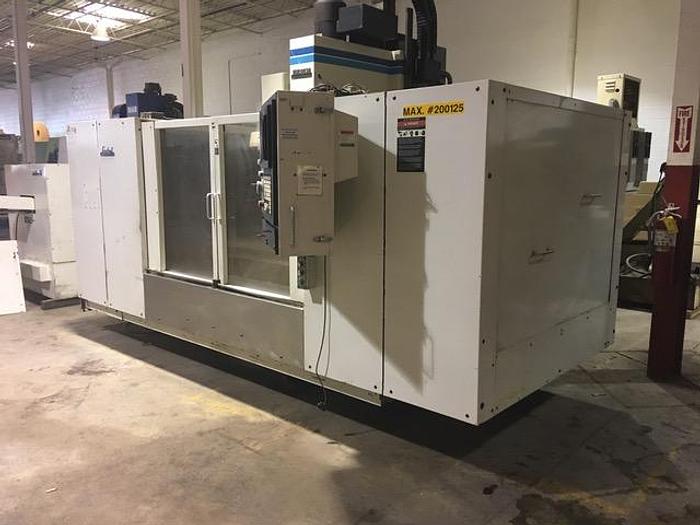

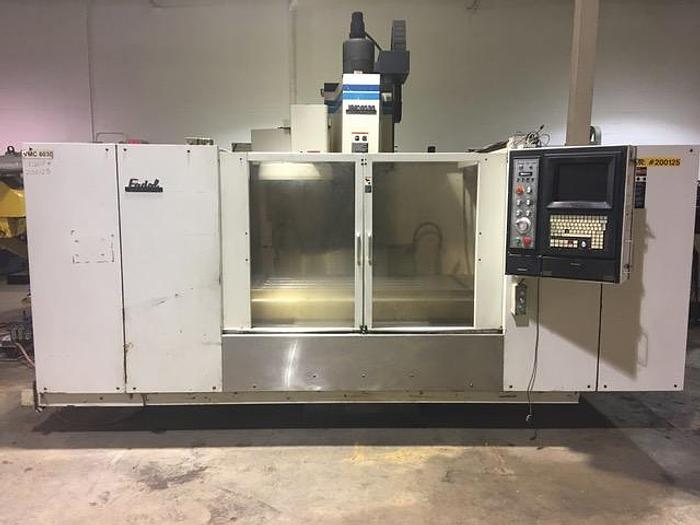

1-USED FADAL 6030 VHT VERTICAL MACHINING CENTER
MACHINE SERIAL NUMBER 9311232
DATE OF MFG. 1993
STK# 103534
===================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

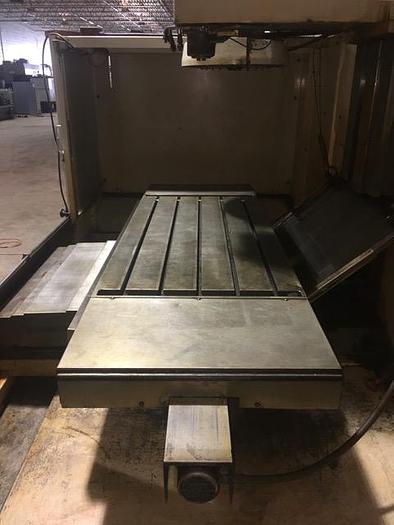

Table Size 62.5" x 30"
Floor to Table Surface 36"
T-Slots (No. x Width x Span) 5 x .687" x 5.5"
Cutting Feed Rate (X/Y/Z) .01-250 ipm / 375 @ 150%
Rapid Travel Rate (X/Y/Z) 400(X/Y/Z) ipm
Max. Weight on Table 4,120 lbs.
Axis Drive Motor (X/Y/Z) 5,000 lbs. thrust
Ball Screw Size 44mm dia. (X/Y) 38mm (Z)
Longitudinal (X Axis) Travel 60"
Latitudinal (Y Axis) Travel 30"
Vertical (Z Axis) Travel 30"
Spindle Nose to Table 5.5" - 35.5"
Spindle Center to Column Ways 30"
Main Motor - Spindle Horse Power 22.5 HP / 30 HP (option)
Spindle Torque 220 ft-lbs.
Accuracy, Axis Positioning Plus/minus .0003"
Accuracy, Axis Repeatability Plus/minus .00015"
Spindle Speed 10,000 rpm
Spindle Orientation Electromechanical
Spindle Taper No. 40
ATC, Number of Tools 21
ATC, Tool Selection Random / Bi-directional
Max. Tool Diameter 3"
(Without Adjacent Tools) (6")
Max. Tool Length 15"
Max. Tool Weight 15 lbs.
Machine Width x Depth 158" x 103"
Machine Max. Height 122"
Machine Weight 17,000 lbs.
Air Pressure Requirement (Momentary) 80-120 PSI, 15 SCFM

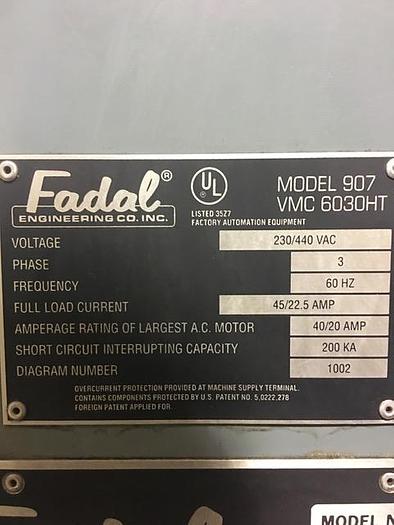

Power Requirement (3 Phase) 50/60 Cycle 240 VAC
Full Load Current 68 Amps
Power Requirement 28 KVA
Rating of Largest AC Motor 56 Amp @ 240 VAC
Equipped With:

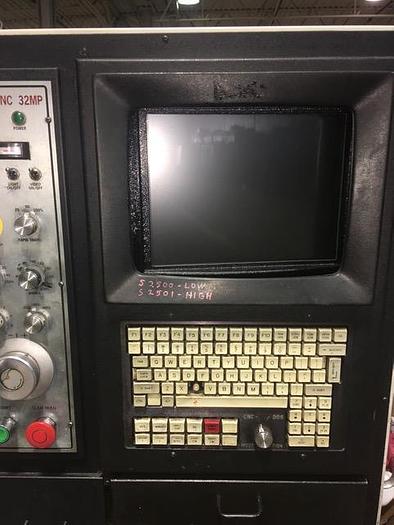

Fadal Multiprocessor CNC Control

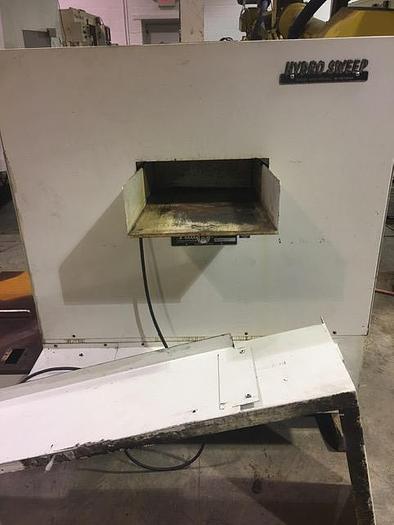

Chip Conveyor
FOB TRUCK, IMLAY CITY, MI 48444
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
586-752-0090
Specifications:
Manufacturer FADAL
Model 6030
Year 1993
Condition Used

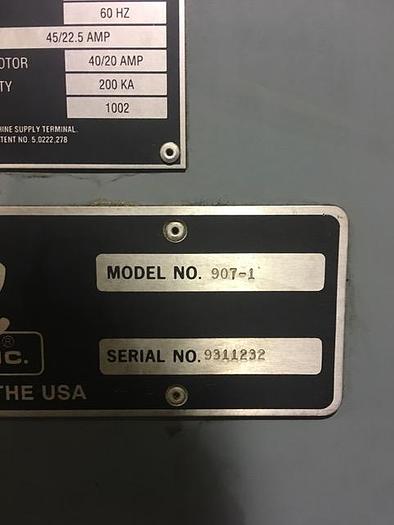

Serial Number 9311232
Stock Number 103534
