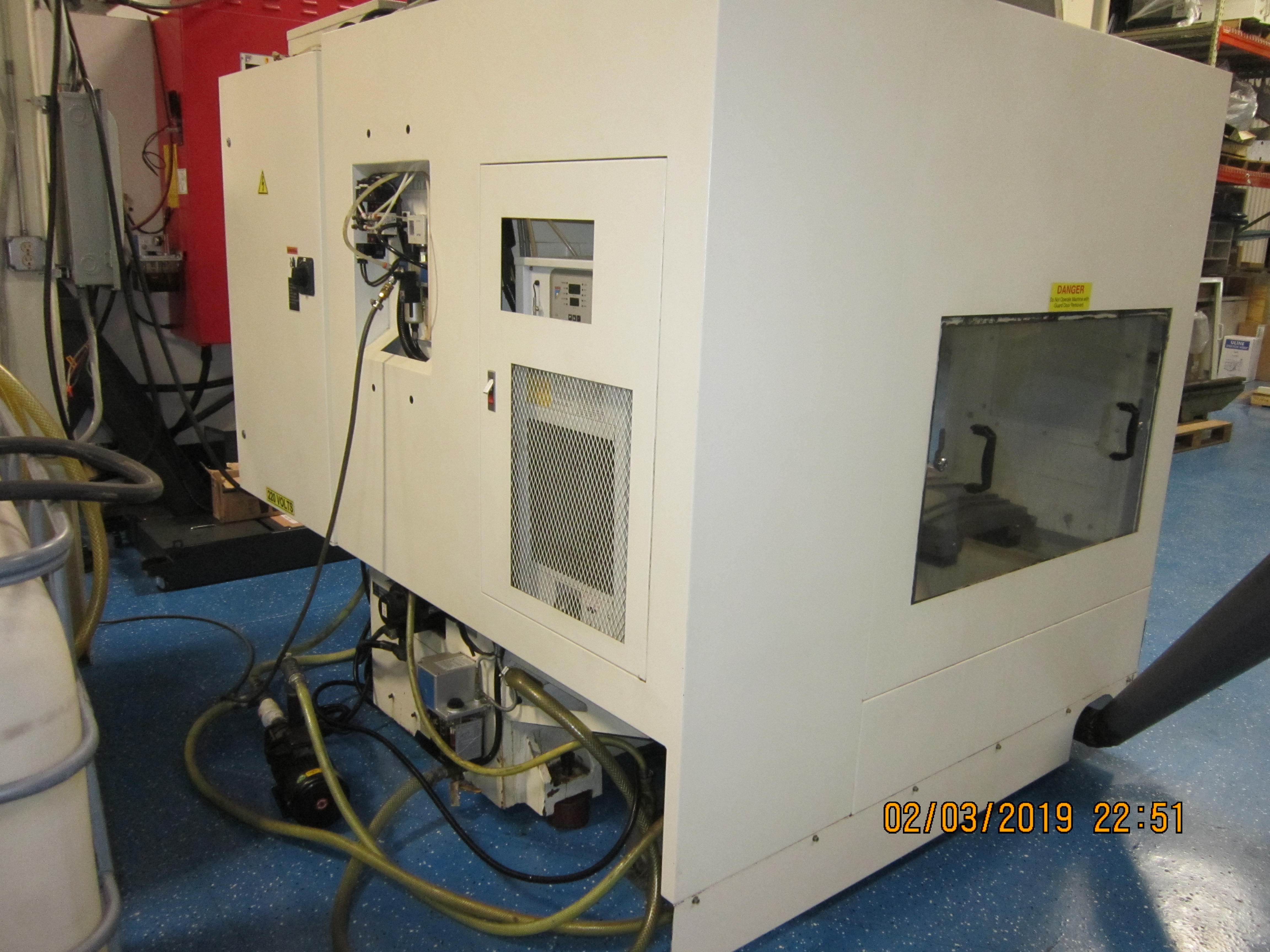

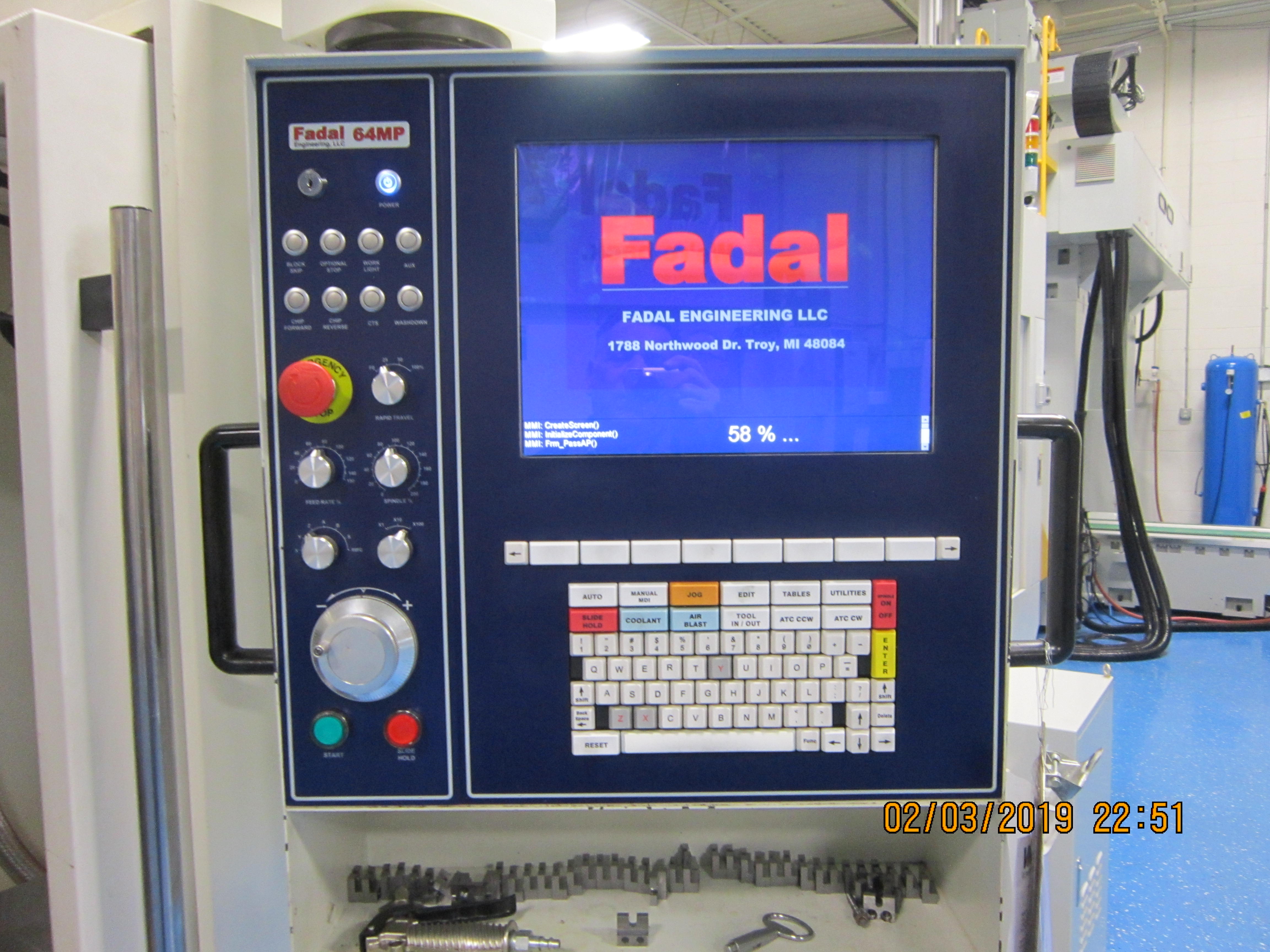

Description

Models VMC-2516R VMC-3016R VMC-4020B VMC-6030B VMC-8030B
Travel X axis (in.) 25.6 30 40 59 78.7
Travel Y axis (in.) 16 16 20 30 35
Travel Z axis (in.) 19.6 19.6 26/30* 30/35* 32
Table size (in.) 30 x 15 39 x 15.7” 47 x 20 62 x 30 82 x 30
Max. weight on table (lbs.) 1,000 1,000 3,500 4,400 4,400
Floor to table surface (in.) 37 37 34 32.2 34.8
Spindle nose to table (in.) 5 to 25 5 to 25 30 39 36
Spindle center to column (in.) 16.8 16.8 23.6 30.2 34.2
T-slots and dimensions (in.) (3) .708 x 4.92 (3) .708 x 4.92 (5) .63 x 3.38 (5) .708 x 5.9 (5) .708 x 5.9
Way construction Roller Roller Box Box Box
Cutting feed rate (ipm) 590 590 590 590 590
Rapid travel rate X/Y/Z (ipm) 1,400/1,400/1,181 1,400/1,400/1,181 944 787 787
Axis drive motor X,Y & Z (hp) 1.8, 1.8, 2.4 1.8, 1.8, 2.4 1.8, 1.8, 2.4 4.4, 4.4, 4.4 4.4, 4.4, 4.4
Ballscrew size (mm.) 40 40 40 50 50
Accuracy positioning - JIS B6338 (in.) 0.0002 0.0002 0.0002 0.0003 0.0004
Accuracy repeatablilty - JIS B6338 (in.) 0.0001 0.0001 0.0001 0.00015 0.0002
Glass scales X,Y & Z No No Optional Optional Optional
Power transfer Automatic mechanical 2-speed Yaskawa drive

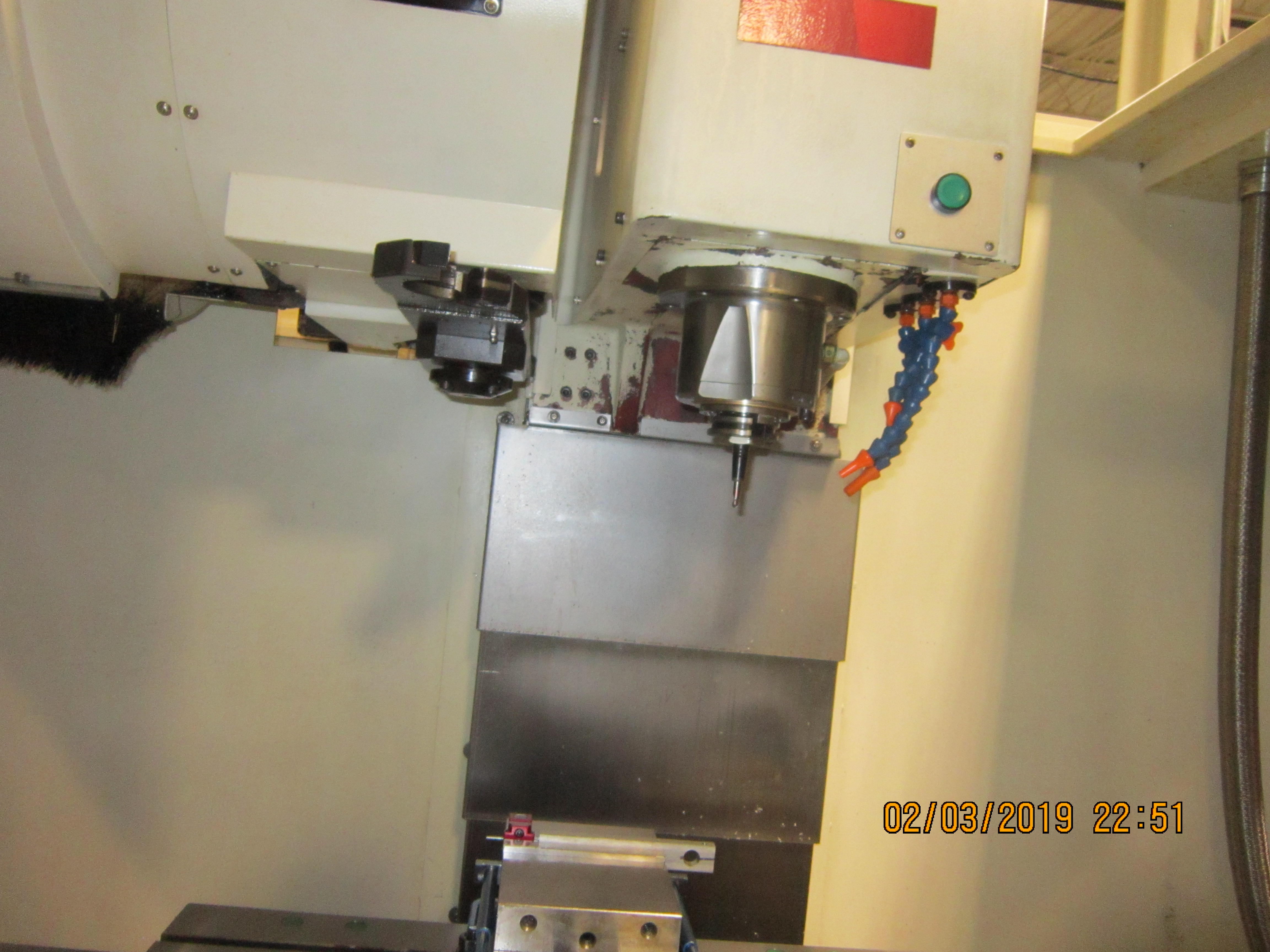

Spindle speed (RPM) 10,000 10,000 10,000 10,000 10,000
Spindle taper CAT-40/Big Plus* CAT-40/Big Plus* CAT-40/Big Plus* CAT-40/Big Plus* CAT-40/Big Plus*
Spindle motor (hp) 15/22.5* 15/22.5* 15/22.5* 22.5 22.5
High torque Optional Optional Optional Standard Standard
Spindle chiller Standard Standard Standard Standard Standard
Spindle orientation Standard Standard Standard Standard Standard
Rigid tapping Standard Standard Standard Standard Standard
ATC type Dual arm Dual arm Dual arm Dual arm Dual arm
ATC tool selection Random Random Random Random Random
Number of tools 24 24 24 24 24
Max. tool diameter (in.) 4.9 4.9 4.9 4.9 4.9
W/O adjacent tool (in.) 3.1 3.1 3.1 3.1 3.1
Max. tool length (in.) 13.8 13.8 13.8 13.8 13.8
Max. tool weight (lbs.) 15 15 15 15 15
Chip auger and coolant tank Standard Standard Standard Standard Standard
Coolant pump Walrus multi-stage TPHK2T5-3
Air pressure required (PSI) 90 90 90 90 90
Machine dimensions L x W x H (in.) 127 x 92 x 102 145 x 92 x 102 152 x 88 x 102 195 x 108 x 106 220 x 114 x 113
Machine weight (lbs.) 8,800 9,240 11,000 17,500 22,500
