FACCIN (USED) MODEL 4HEL-3146 4- ROLL PLATE BENDING ROLL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


4HEL-3146
15105146-5126
Rolls
CNC Plate Roll
used
59500 (LB)
2016
$0.00

Description

Stock# 016972

Category: Rolls
Subcategory: Plate & Sheet
Manufacturer: FACCIN
Model: 4HEL-3146
Serial No: 15105146-5126
Year: 2016
Status: Used
Dimensions: 252" X 85" X 105"
Weight: 59,500

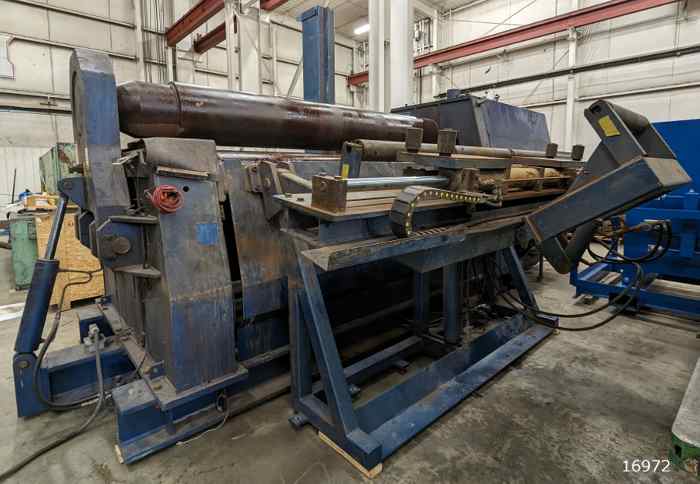

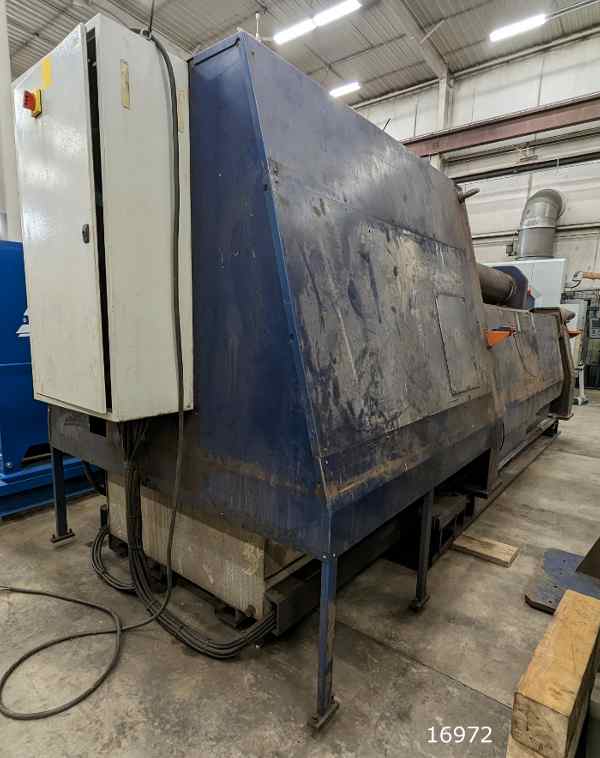

FACCIN (USED) MODEL 4HEL-3146 4- ROLL PLATE
BENDING ROLL

4 ROLLS
LINEAR SLIDES
120" MAXIMUM PLATE WIDTH
18.11" TOP ROLL DIAMETER
16.93" LOWER ROLL DIAMETER
13.39" SIDE ROLLS DIAMETER
441 TON BENDING FORCE ON TOP ROLL
25 FEET/MINUTE INFINITELY VARIABLE ROTATION SPEED
60 HP ROLLING POWER

FULL-LENGTH CAPACITY AT 37.7 KSI
- 1.42" BENDING THICKNESS WITH 90.5" INSIDE DIA.
- 1.18" PRE-BEND THICKNESS WITH 90.5" INSIDE DIA

FULL-LENGTH CAPACITY AT 52.2 KSI
- 1.22" BENDING THICKNESS WITH 90.5" INSIDE DIA.
- 0.95" PRE-BEND THICKNESS WITH 90.5" INSIDE DIA

STANDARD CONFIGURATION:
- HARDENED & POLISHED ROLLS
- CONE BENDING WITH ELECTRONIC CONTROL
- SIMULTANEOUS MACHINE MOVEMENTS
- MICRO-POSITIONING
- DESIGNED TO ACCEPT FUTURE UPGRADES
- EXTRA-LARGE DOUBLE SHAFT DROP END
- ELECTRONIC BALANCING SYSTEM FOR ROLL SYNCH
- TOP ROLL TILTING WITH HYD DROP END OPENING
- DUAL LINEAR SLIDE SYS FOR ROLLS TRANSLATION
- ULTRA-WIDE ROLL BEARING HOUSINGS
- 4 BEARINGS SUPPORTING EACH ROLL
- CENTRALIZED PUMP LUBRICATION SYSTEM
- PRESSURE GAUGES FOR PINCH ROLL MONITORING
- EXTRA TORQUE & SPECIAL BRAKING POWER SYSTEM
- HIGH PRECISION AND PRODUCTIVITY PACKAGE
- SAFETY BARRIER WITH EMERGENCY STOP
- MACHINERY DIRECTIVE 2006/42/EC COMPLIANT

EQUIPPED WITH:

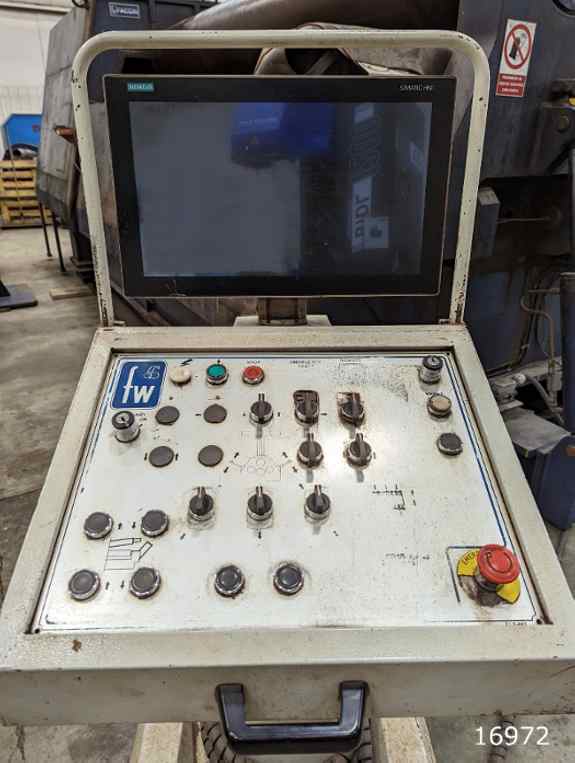

- SIEMENS PGS-ULTRA CNC

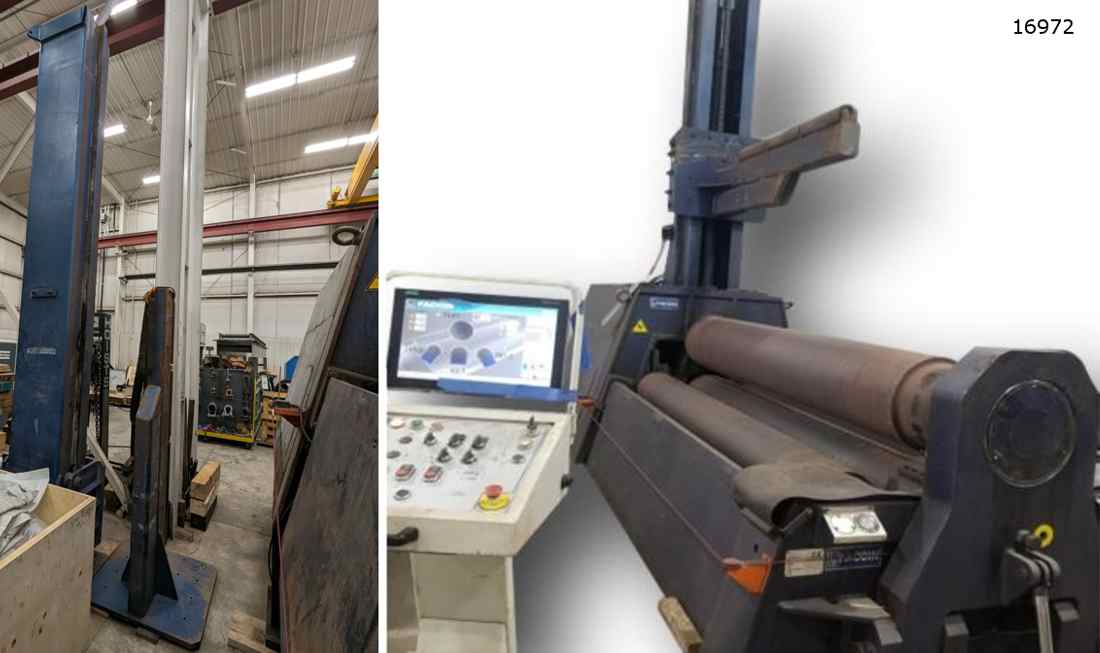

- OVERHEAD SUPPORT

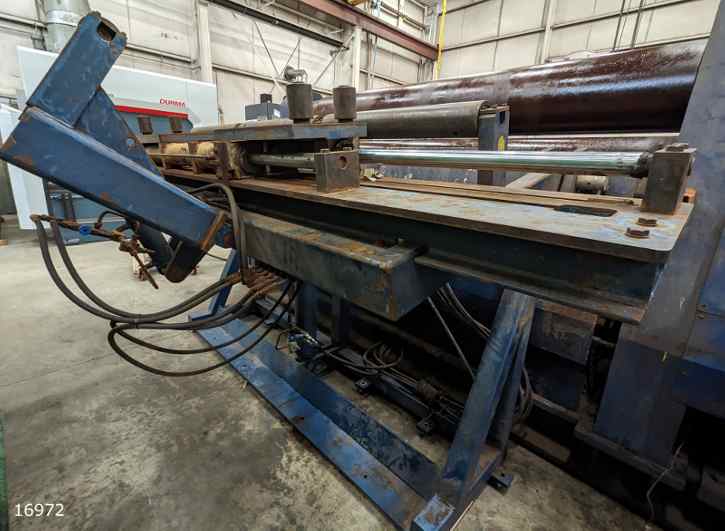

- SIDE SUPPORT
- 4 AXIS CLAMPING FOR SIDE SUPPORT
- AIR-OIL EXCHANGER UPGRADE
