Description

Stock# 088638

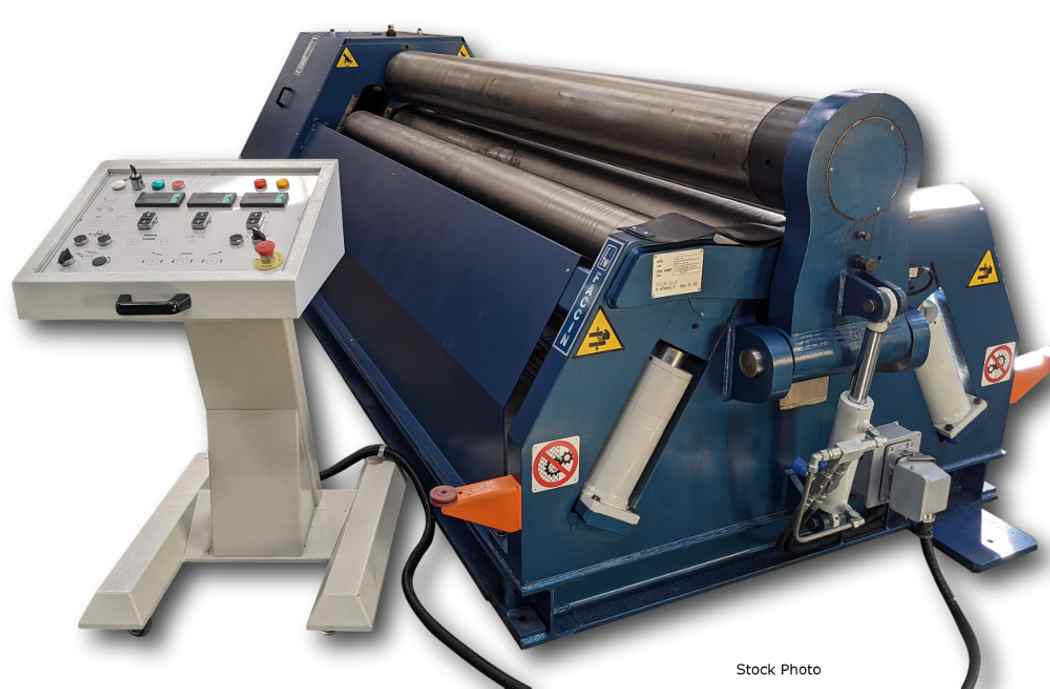

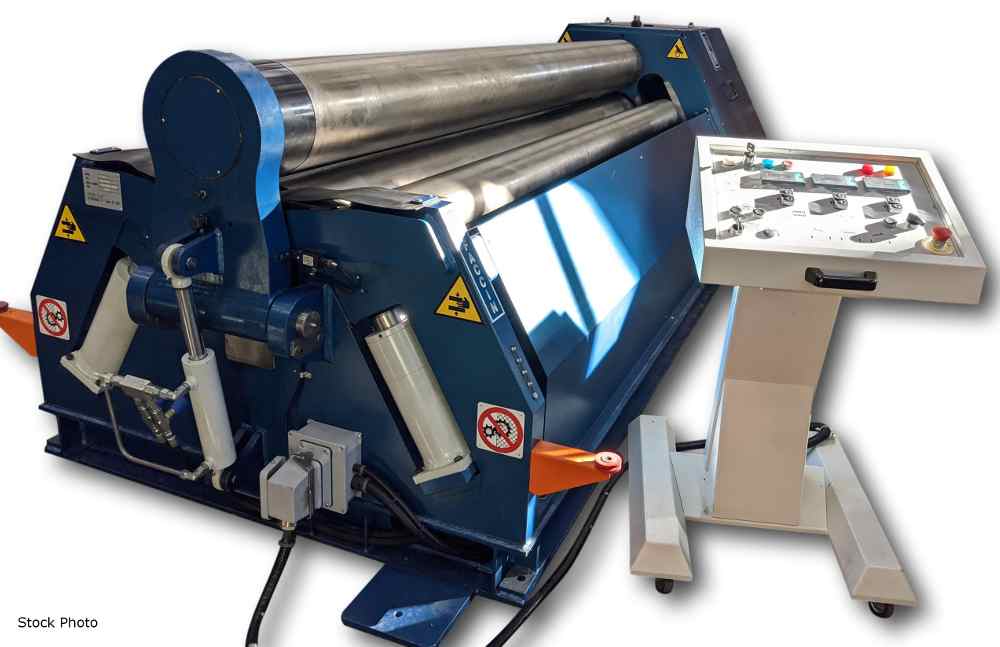

FACCIN (NEW) MODEL 4HEP-S30 4-ROLL PLATE ROLL
WITH LINEAR DESIGN

120.08" PLATE WIDTH
11.22" TOP ROLL DIAMETER
10.43" LOWER ROLL DIAMETER
8.07" SIDE ROLLS DIAMETER
16 FPM ROTATION SPEED
15 HP

FULL-LENGTH CAPACITY AT 37.7 KSI
- 0.394" BENDING THICKNESS WITH 57" INSIDE DIA.
- 0.32" PRE-BEND THICKNESS WITH 57" INSIDE DIA.
- 0.276" BENDING THICKNESS WITH 15" INSIDE DIA.
- 0.236" PRE-BEND THICKNESS WITH 15" INSIDE DIA.

HALF-LENGTH CAPACITY AT 37.7 KSI
- 0.512" BENDING THICKNESS WITH 57" INSIDE DIA.
- 0.394" PRE-BEND THICKNESS WITH 57" INSIDE DIA.

FULL-LENGTH CAPACITY AT 52.2 KSI
- 0.34" BENDING THICKNESS WITH 57" INSIDE DIA.
- 0.256" PRE-BEND THICKNESS WITH 57" INSIDE DIA.
- 0.236" BENDING THICKNESS WITH 15" INSIDE DIA.
- 0.197" PRE-BEND THICKNESS WITH 15" INSIDE DIA.

HALF-LENGTH CAPACITY AT 52.2 KSI
- 0.433" BENDING THICKNESS WITH 57" INSIDE DIA.
- 0.335" PRE-BEND THICKNESS WITH 57" INSIDE DIA.

STANDARD FEATURES
- HARDENED AND POLISHED ROLLS
- CONTROL CONSOLE ON WHEELS WITH DIGITAL READOUT
- CONICAL BENDING DEVICE
- EXTRA-LARGE DOUBLE SHAFT DROP END
- DUAL LINEAR SLIDE SYSTEM FOR ROLLS TRANSLATION
- LUBRICATION SYSTEM
- EXTRA TORQUE AND SPECIAL BRAKING POWER SYSTEM
- PERIMETER CABLE PULL SWITCHES FOR EMERGENCY
STOP
- COMPLIANT WITH MACHINERY DIRECTIVE 2006/42/EC

OPTION INCLUDED
- SIEMENS TOUCH PANEL PGS-CLASSIC SERIES CONTROL
