EUROTECH MODEL E-42S SLANT BED CNC LATHE WITH SUB SPINDLE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


E-42S
6592
Lathes and Turning Centers CNC
Slant Bed Turning center
used
9500 (LB)
2001
$22,500.00

Feature Video

Description

Description:

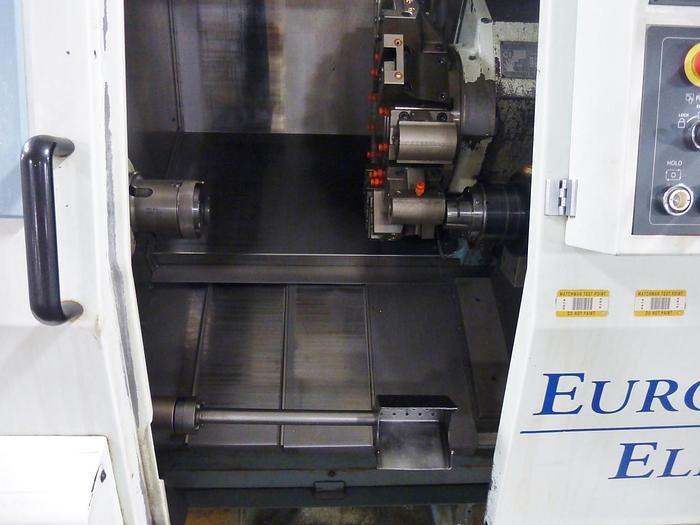

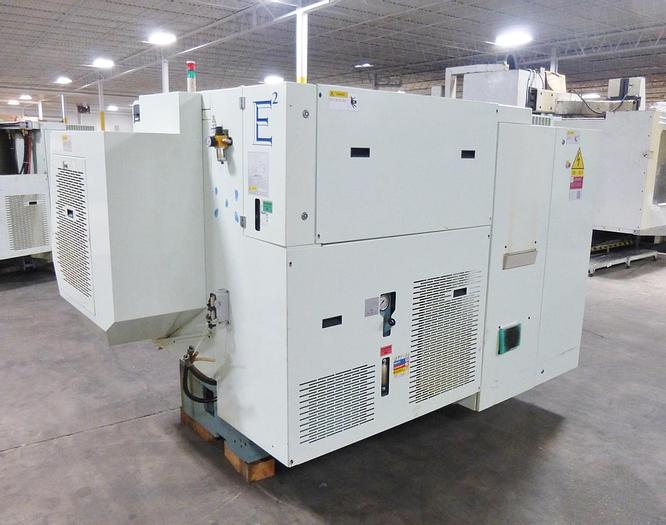

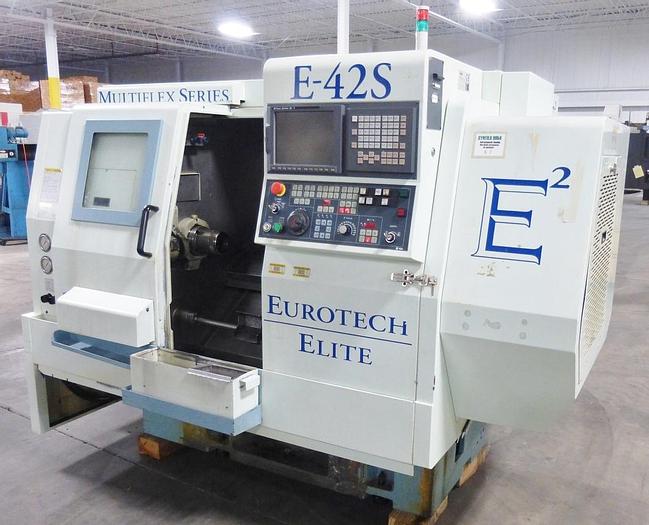

         Eurotech Model E-42S Slant Bed CNC Lathe With Sub Spindle

  Max Turning Diameter:                   8.7"
  Max Machining Length:                   14.96"
  Max Swing:                              15.74"
  Bar Capacity:                           1.7"
  Spindle Shaft Bore:                     2.165"
  Spindle Speeds:                         100- 5000 RPM
  Spindle Motor:                          20 HP

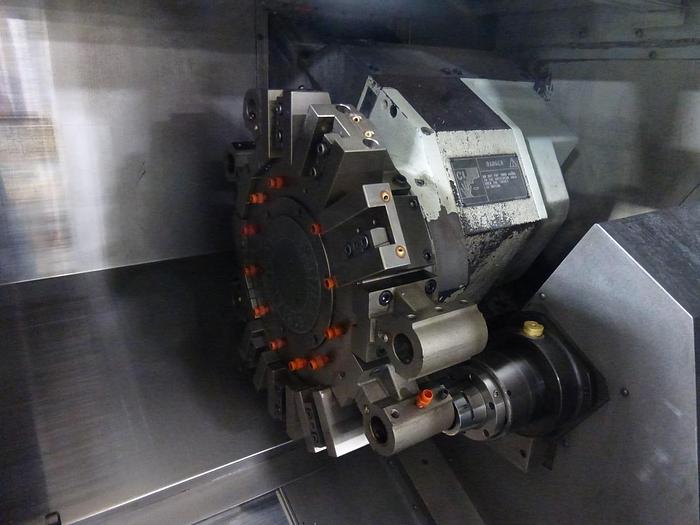

  Number of Turret Stations:              12
  X Axis Stroke:                          6.29"
  Z Axis Stroke:                          14.9"
  X Axis Rapid Feed:                      787 IPM
  Z Axis Rapid Feed:                      944 IPM
  Tool Shank for Outer Tooling:           .79" x .79"
  Tool Shank for Inner Tooling:           .98" x 1.25"

  Equipped With:

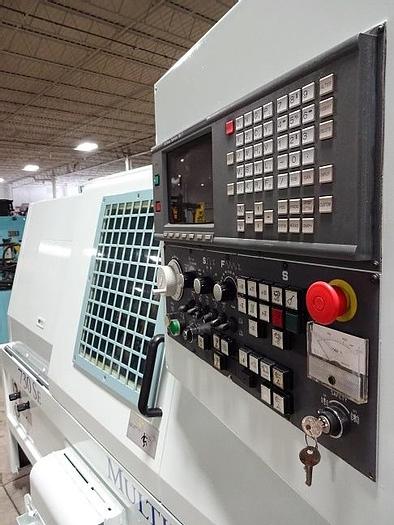

  Fanuc 18-T CNC Control

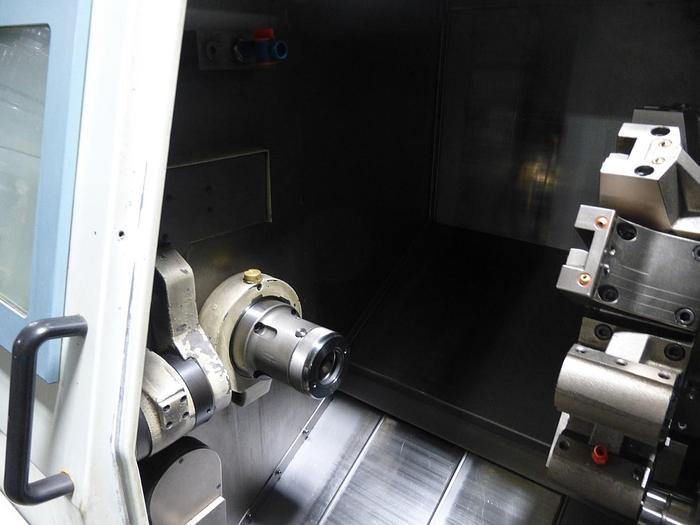

  Sub Spindle
  Chip Conveyor
  Collet Chuck

  Power On Hours:                         60,192
  Cutting Hours:                          15,369


  Approximate Dimensions:                 108"(LR) X 80"(FB) X 70"(H)
  Approximate Weight:                     9,500 Lbs.

  Serial No: 6592                         Year Mfg. 2001


 Price  $22,500.00

Specifications:
Manufacturer Eurotech E42S CNC Lathe
Model E 42-S
Year 2001
Condition Used
