EUROTECH, ELITE 545 SL-Y, CNC TURNING MACHINE, 2013

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Elite 545 SL-Y
Lathes and Turning Centers CNC
Slant Bed Turning center
used
(LB)
2013
$0.00

Description

Description

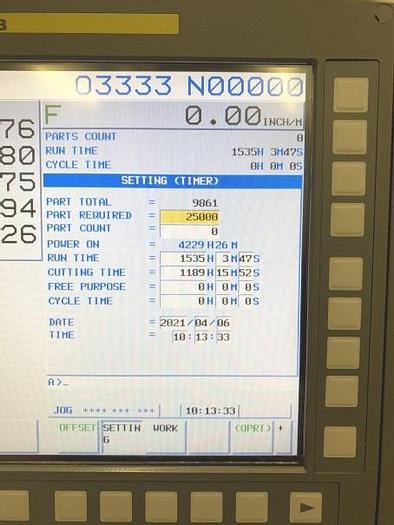

Power On Time: 4229 H

RUN Time : 1535 H

CUT Time : 1189 H


Specifications

Swing 22.83"

Bar Capacity 2"

Power 15 hp

Max RPM ,000 RPM

Turning Dia 12.6"

Tailstock No

Live Tooling Yes

Sub Spindle Yes

Bar capacity 2.0 in.

Max. machining diameter 12.6 in.

Max. swing 22.83 in.

Main spindle max speed 5000 RPM

Main spindle nose 5 in.

ASA Spindle bore 2.17 in.

8 Motor power 15 HP

Sub spindle nose 5 in.

ASA Sub spindle bore 2.17 in.

Drawtube inside diameter 1.77 in.

Sub max chuck diameter 6/8

Sub motor power 15 HP

Max # of cutting tools 96

# of live turret Stations 12

# of live turret Stations 12 Standard Features

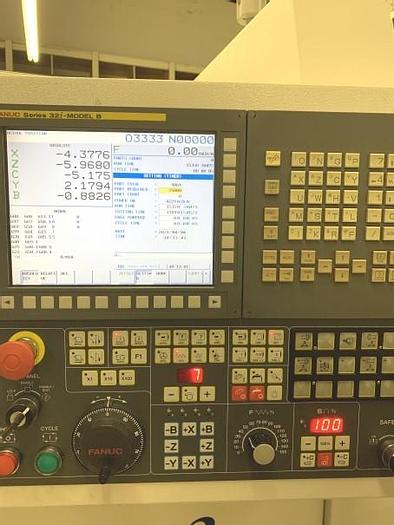

Fanuc 32i-B Series Control

Color Graphics Screen with 10.4" Color LCD

Full Keypad with Custom Touch Keys

Macro A & Macro B

RS232/PCMCIA Interface/Ethernet

Extra Memory G54 - G59 G80 - G89

Eurotech's EASY CYCLES

Disc Brake on Main and Sub-spindles

High-Pressure Coolant

Rigid Tapping on Main and Sub-spindle

Tool Life management

Air Purge on Main and Sub-spindle

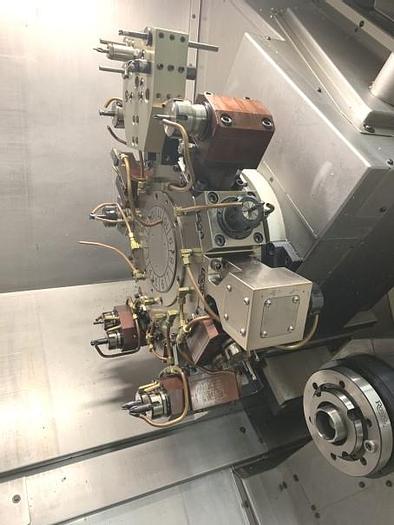

12 station servo turret - 96 tool capacity - EGS Tooling

SBS Tool Load Monitoring

G10 Programmable Input

Chip Conveyor

Parts Catcher

Parts Conveyor

Automatic Tool Probe

Barfeed Interface

Live Tooling Package

Standard Tooling

Collet Systems

Heidenhain Scales on X and both C axes

Air-Conditioned Electronics

B-Axis Stress Control on Sub-spindle

Polygonal Turning

Unexpected Disturbance Detection (Airbag)

Servo Turret Set-up Assistance

Sub-spindle Eject

Specifications

Manufacturer Eurotech

ModelElite 545 SL-Y

Year 2013

Condition Used

Stock Number3127
