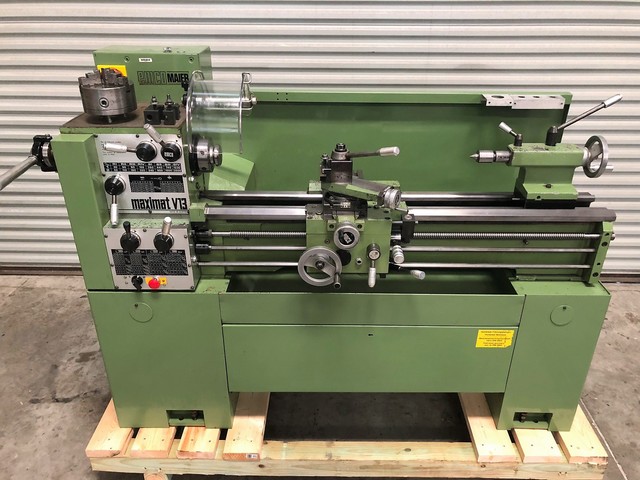

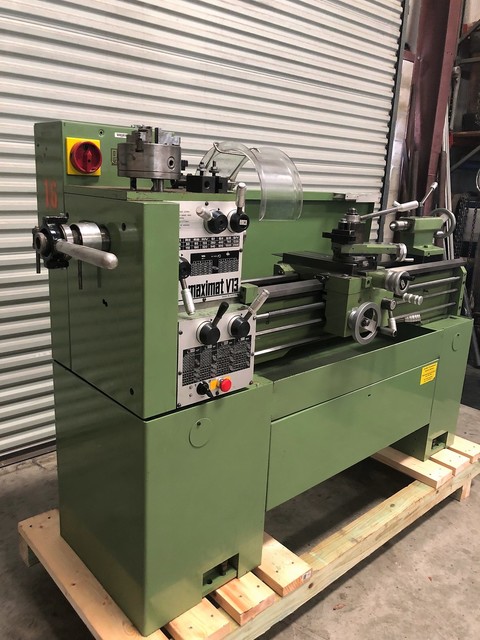

EMCO MAXIMAT V13 13 X 39.3 CC PRECISION LATHE

Add to Your File

Brand: EMCO MAXIMAT V13 13 X 39.3 CC PRECISION LATHE

Model: V13

Serial No. : D2PF6F6008

Category: Lathes (Manual)

Sub Category: Precision

Condition: used

Weight: 1400 (LB)

Year Built: 0

Status:

Price: $6,450.00

Description

SPECIFICATIONS:

Reference #: GMT-1519
Model #: V13
Serial #: D2PF6F6008
Distance between centers: 39.3 in
Swing over bed: 13 in
Swing over cross slide: 7.4 in
Width of lathe bed: 8.2 in
Top slide travel: 4.1 in
Cross slide travel: 7.5 in
Leadscrew diameter: 1 in
Hole through spindle: 1.4 in
Spindle taper: D-1-4 Camlock

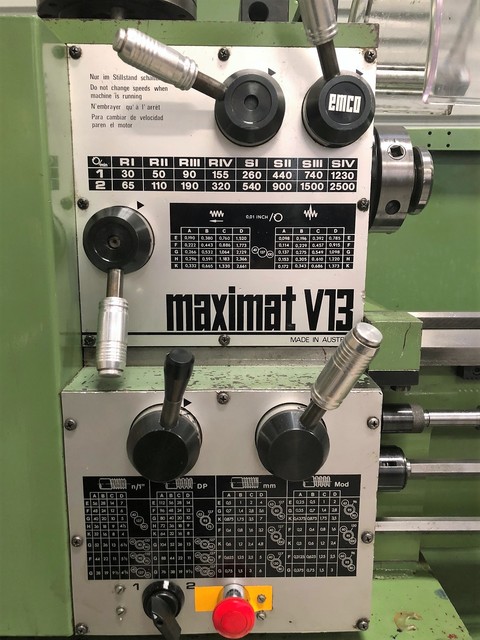

Spindle speeds: 30 to 2500 R.P.M.

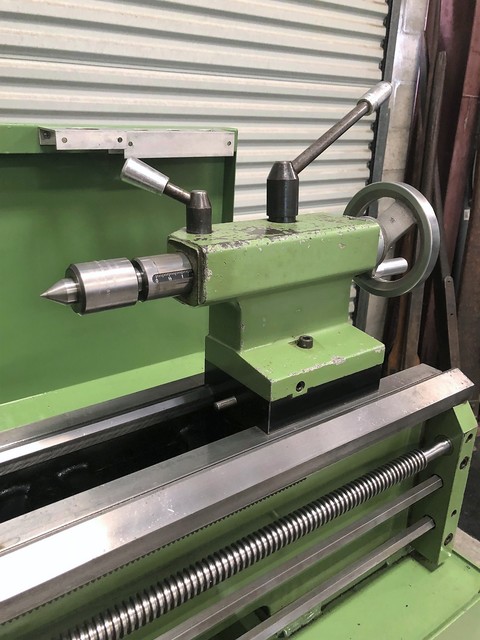

Tailstock quill travel: 3.9 in
Tailstock taper: #3 Morse
Feeds-
Inch range: (20) .190 in to 2.661in
Metric range: (28) .098 in to 1.373
Threads-
Inch: (24) 56 T.P.I.
Metric: (28) - .4 to 7mm

EQUIPPED WITH:

***Machine was purchased out of a trade school***

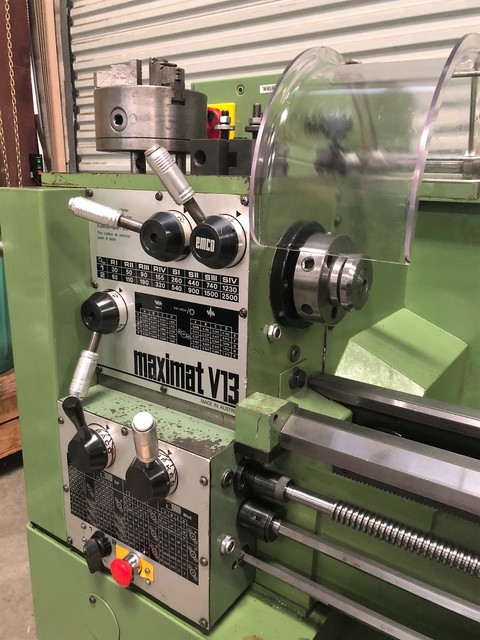

6.25 in BISON 3-Jaw Chuck

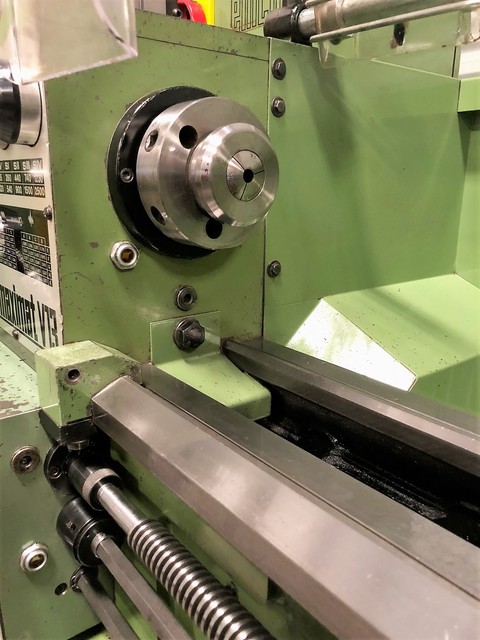

5-C ROYAL Drawbar & Nose piece

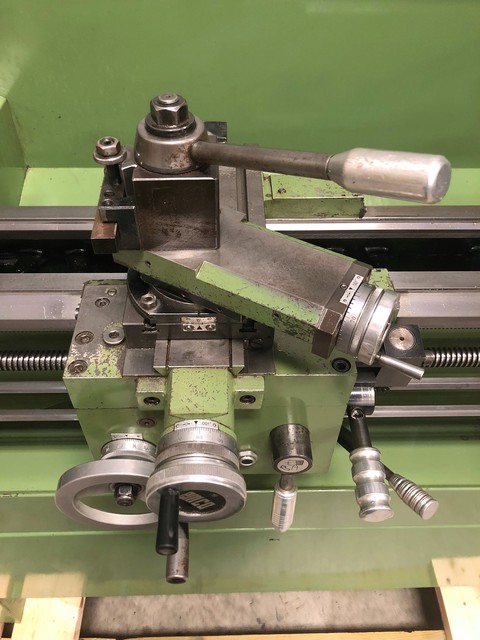

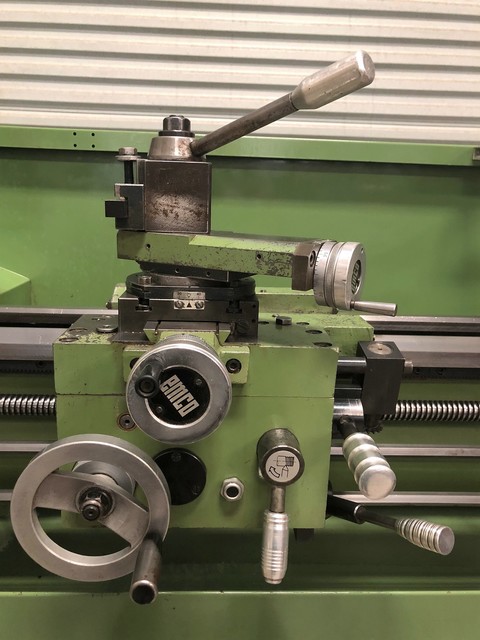

Tool post & (3) Holders
ROYAL live center

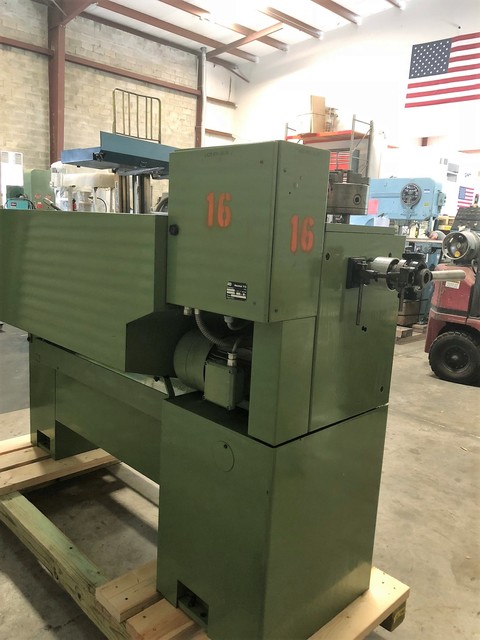

3 H.P. Main spindle motor
Machine is wired for 220 volt / 3 phase / 60 HZ

APPROXIMATE WEIGHT (MACHINE ONLY):: 1400 Lbs.

APPROXIMATE DIMENSIONS:: 78 in L x 32 in W x 54 in H

LOCATION:: F.O.B. Bradenton, Florida

REFERENCE #:: Lathe -GMT-520

PRICE #:: $6,450.00
