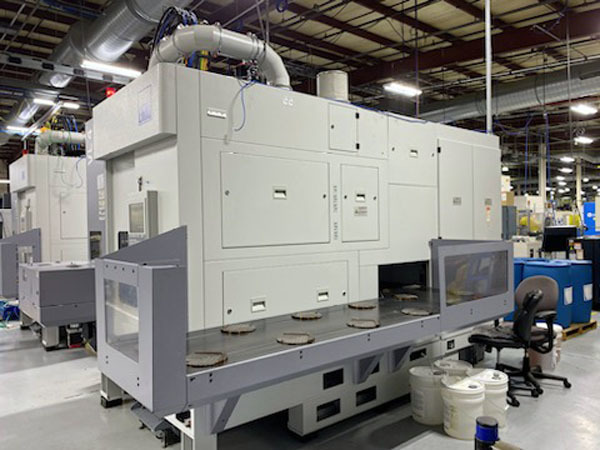

EMAG VL-4 VERTICAL CNC TURNING CENTER LATHE 2019 VERY LOW HOURS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VL-4
Lathes and Turning Centers CNC
Vertical Turning Center
used
(LB)
2019
$0.00

Description

Overview:

Type: Vertical Turning Center, Vertical Turning Center CNC
Manufacturer: EMAG
Model: VL-4
Condition: Used - Excellent
Year: 2019
Stock #: 3164
Status:For Sale

Description:
Like new very low hours approx

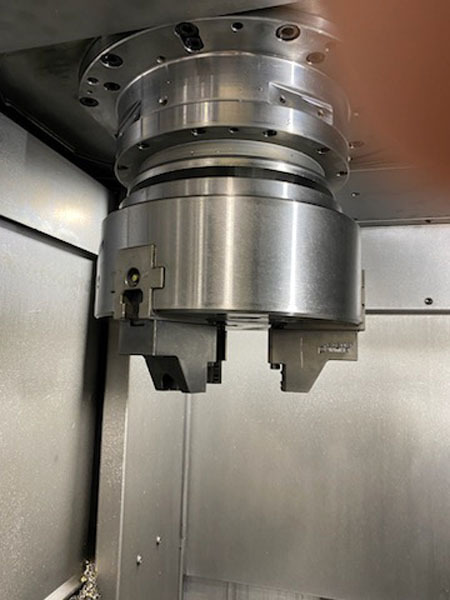

Chuck diameter 10 in
Workpiece Diameter, max. 8 in
Workpiece length, max. 8 in
X-Axis Travel 29 in
Z-Axis Travel 15.5 in

Main Spindle:
Power Rating 34/24 hp
Torque, 40% / 100% 207/149 ft-lb
Max. number of revolutions 4,500 rpm

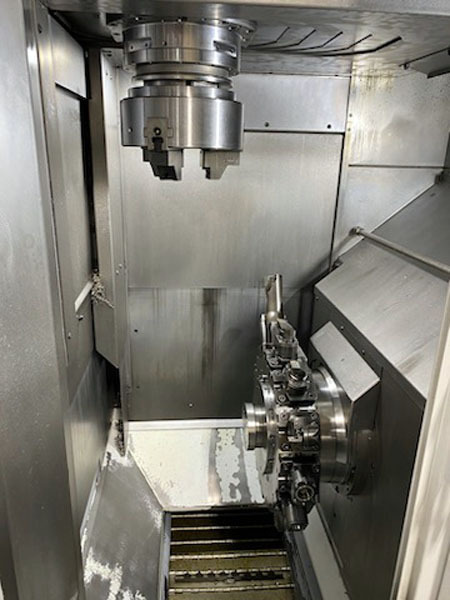

Turret tool positions 12
Rapid Traverse rate X/Z 60/30 m/min
Revolutions of driven tools 6,000 rpm
Torque driven tools 30% / 100% 27/15Nm

Equipped with:

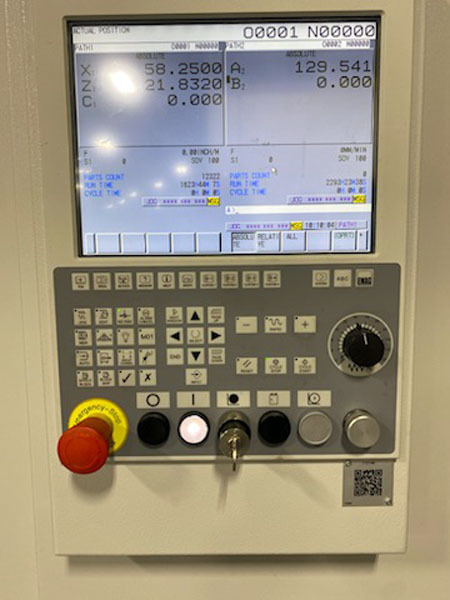

Fanuc 32iB CNC Control Chuck package
Parts Gauging
Hi Pressure Coolant
Chip Conveyor
Mist Control CTS
Turret Basic Unit and Console
Component Storage and Transport Conveyor  U-Type (GU 636 in)

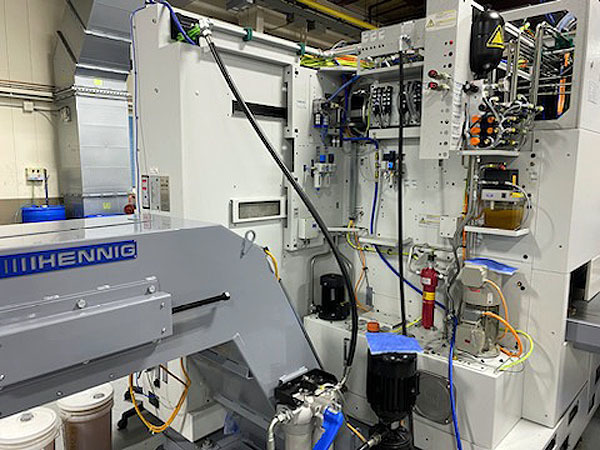

Swarf Conveyor, Chain Type  Rear Discharge
Component Gauging

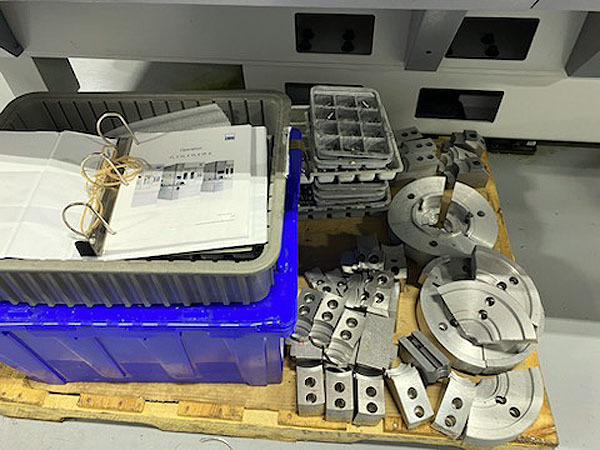

Assorted, Misc tooling
