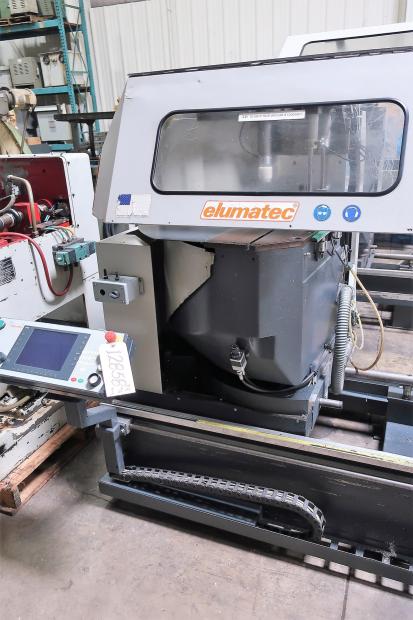

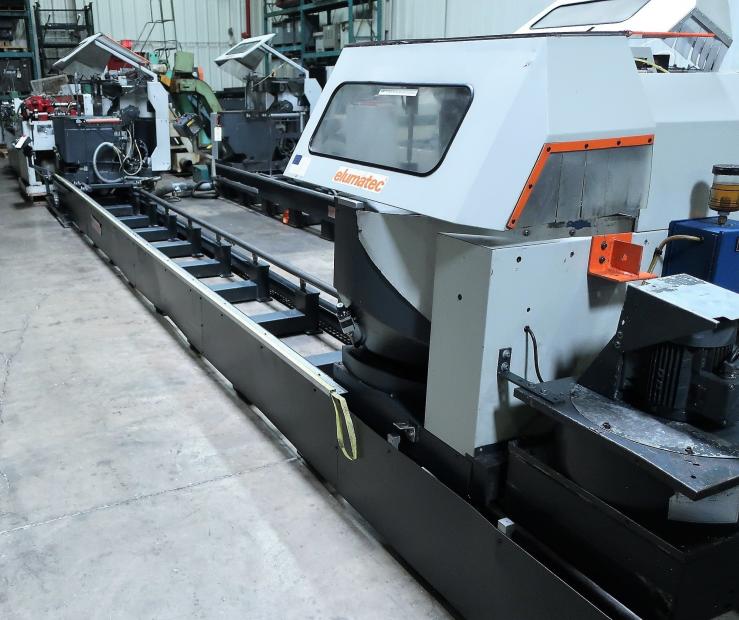

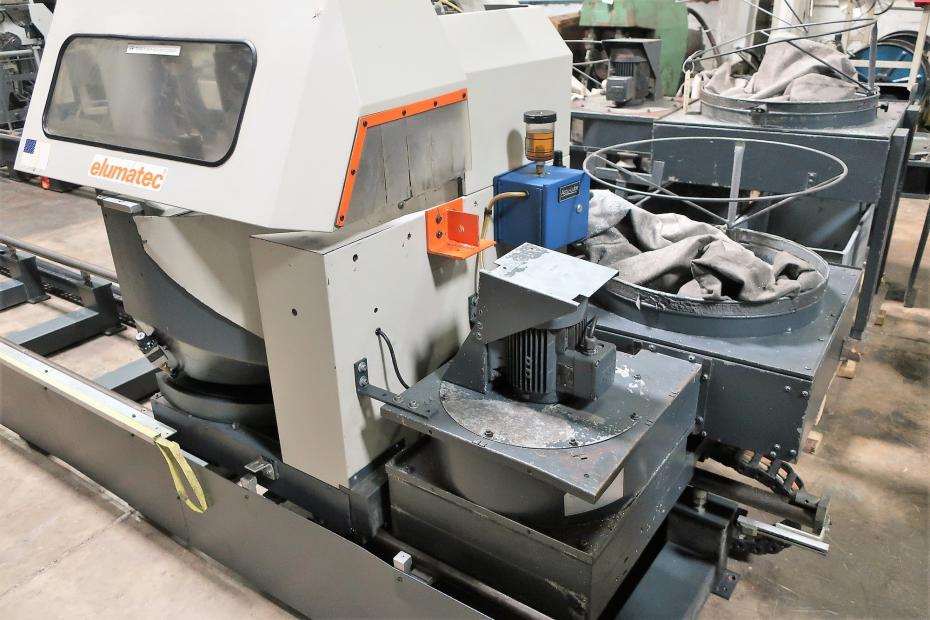

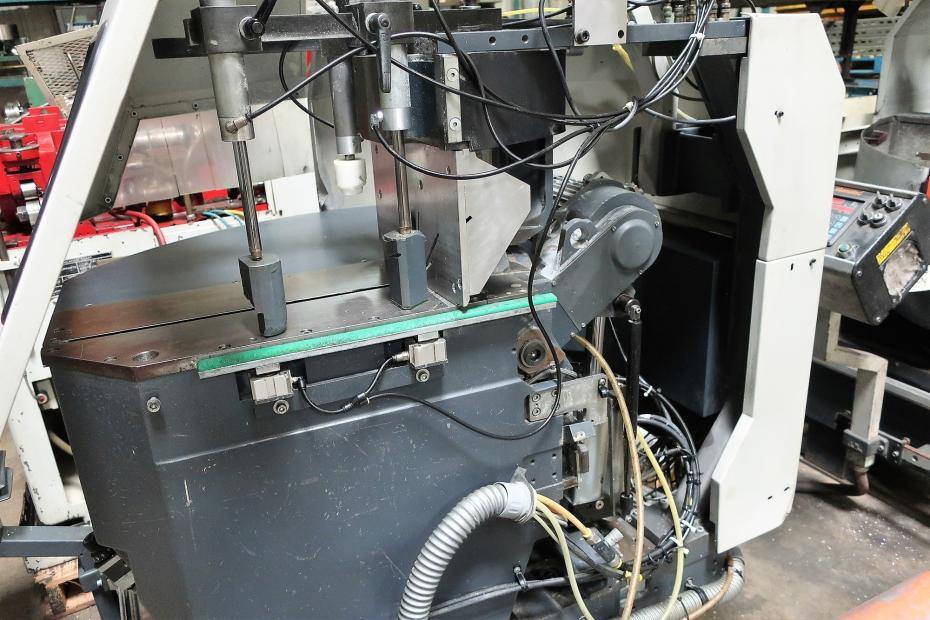

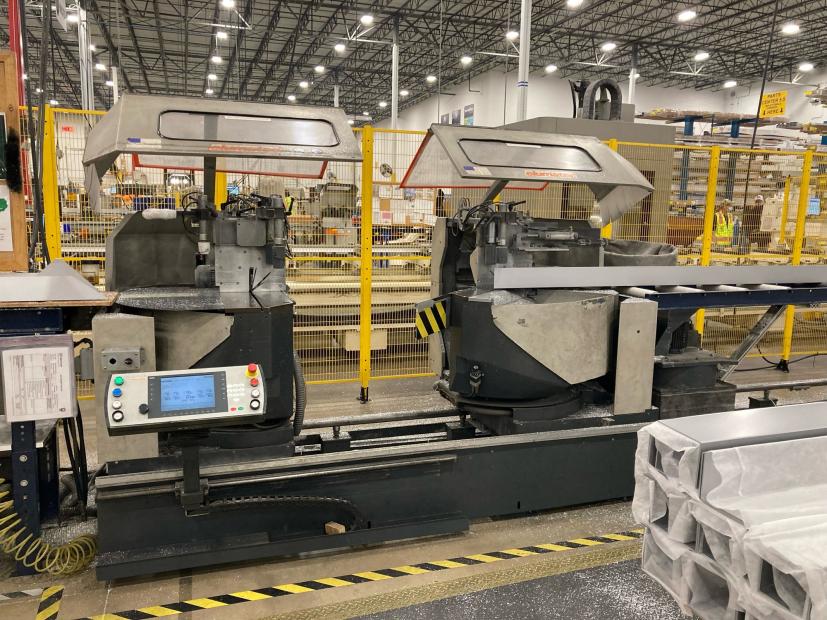

ELUMATEC DG244/02 DOUBLE END MITRE SAW, 7.5 METER LENGTH - ELUMATEC DG 244

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images

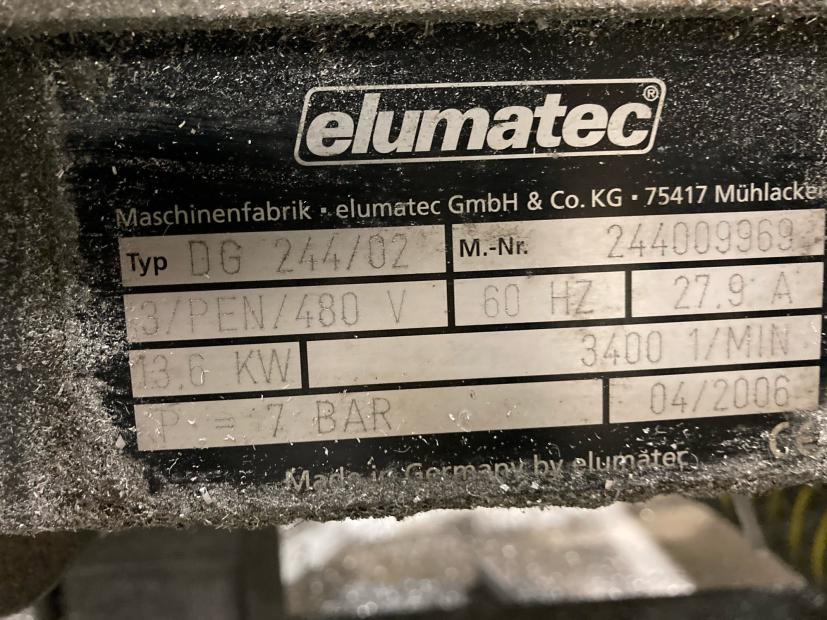

DG244/02
Saws
SAWS, MITRE
used
(LB)
2006
$0.00

Feature Video

Description

Technical data:

Minimum cutting length at 90 deg 375 mm

Minimum cutting length tilted at 45 deg 375 mm

Pivoting range inwards, pneumatically, 90 deg to 45 deg (manually up to 22.5 deg inwards and up to 140 deg outwards with digital display)

Tilting range inwards pneumatically 90 deg to 45 deg (intermediate angles manually adjustable with digital read-out display and turret stop)

For cutting range, see cutting diagram Saw blade diameter 550 mm Saw blade speed 2250 rpm Power supply 3 phase 460v 60 Hz Power output per motor 4 kW Compressed air supply 7 bar Air consumption per working cycle 40  without spraying 64  with spraying

ELUMATEC DG244 02 DOUBLE END MITRE SAW 7.5 METER LENGTH

Stock Number 12858
