DYNAMICS RESEARCH DYNAMIC BALANCING MACHINE 5,000 LBS. X 63" X 68"

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


605
68880
Balancing Machines
Dynamic Balancing
used
(LB)
0
$0.00

Description

Basic Information

Model: 605

Manufacturer: Dynamics Research
Serial #: 68880
Location: Huntington Park, CA
Year Built: -


Specifications

Max. Weight Capacity: 5,000 Lbs.
Min. Weight Capacity: 1 Lb.
Max. Diameter Over Bed: 63"
Max. Distance Between Support Bearing Centerlines: 68"
Min. Distance Between Support Bearing Centerlines: 4"
Journal Diameters On Standard Bearing Set: 1/8"- 17"
Max. Weight Per Support: 3,500 Lbs.
Max. Indicated Sensitivity Per Plane: 0.0001 Once-Inch
Maximum Achievable: 0.0084 Ounce-Inch Total
Residual Unbalance: 0.0042 Ounce-Inch/Plane
Maximum Unbalance Reduction Per Run: 95%
Speed Range : 10- 4.000 RPM
Dimensions (L x W x H) (Machine Only): 72" x 50" x 63"
Dimensions (L x W x H) (Controls Only): 50" x 24" x 59"
Weight: 2,300 Lbs.

Equipped with

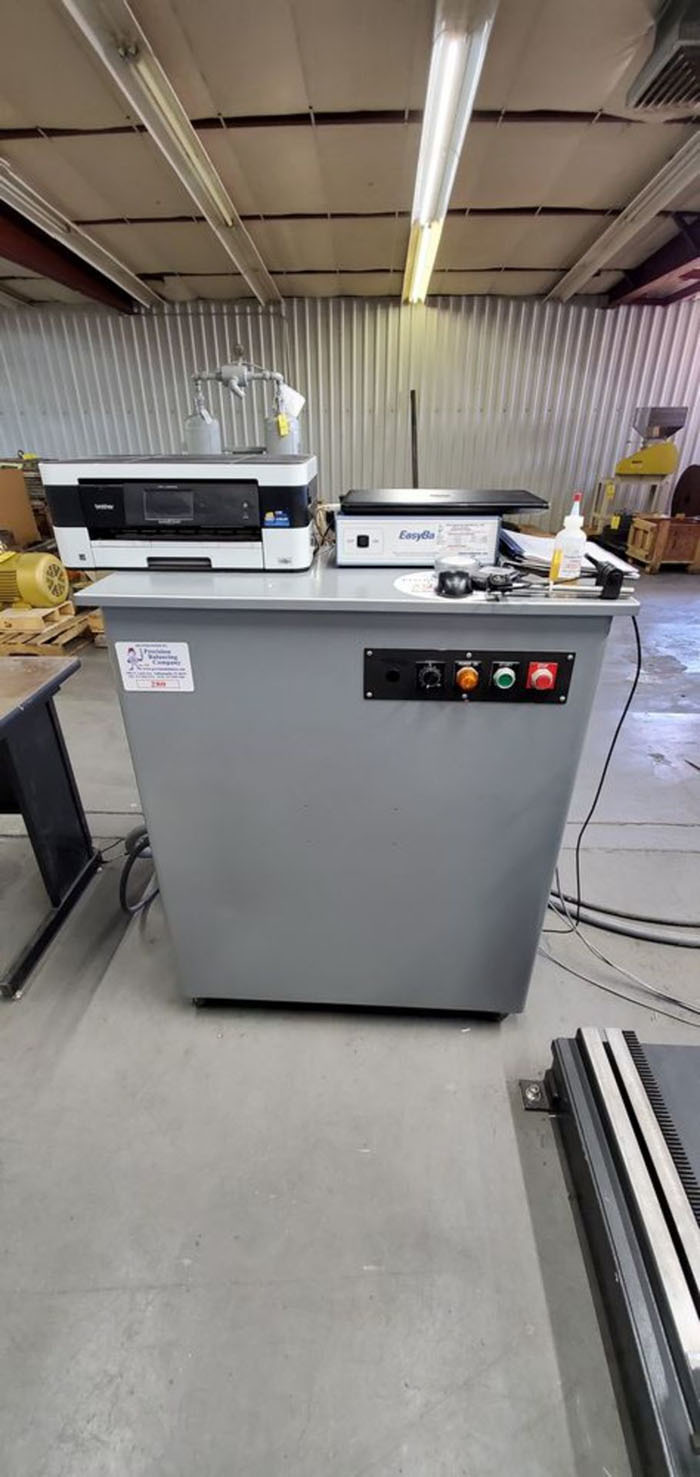

  • Easy Balance Controls

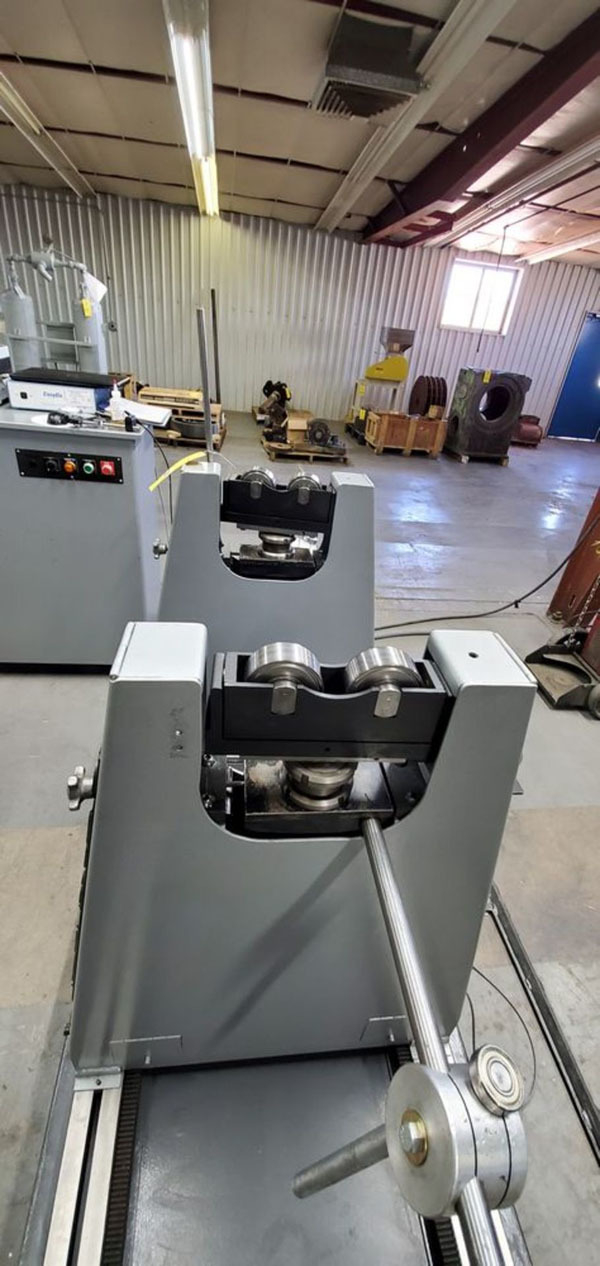

  • Two Roller Supports

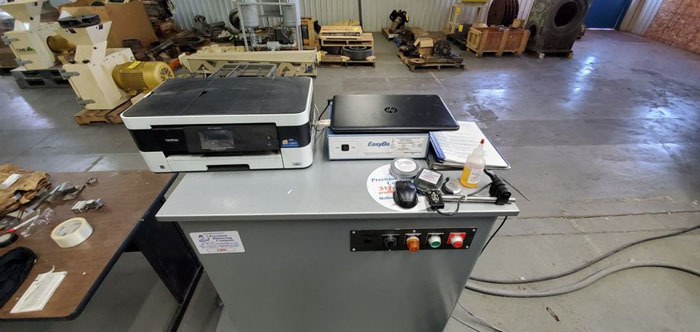

  • HP Lap Top Computer & Printer

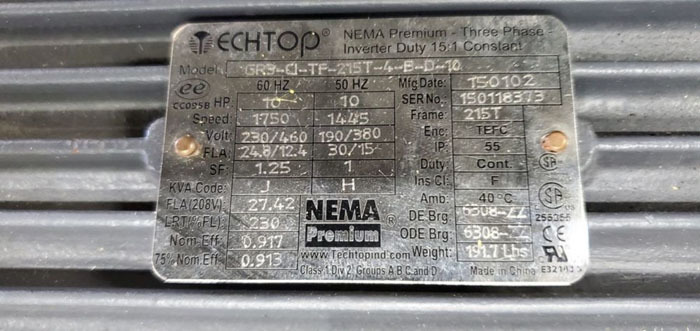

  • Horsepower: 10
