Overview:
Type: Horizontal Band Saws (Automatic)
Manufacturer: DOALL
Model: DC-400CNC
Condition: Used - Excellent
Year: 2017
Stock #: 8270
Status: For Sale
Serial #: 400-1707008
Description:

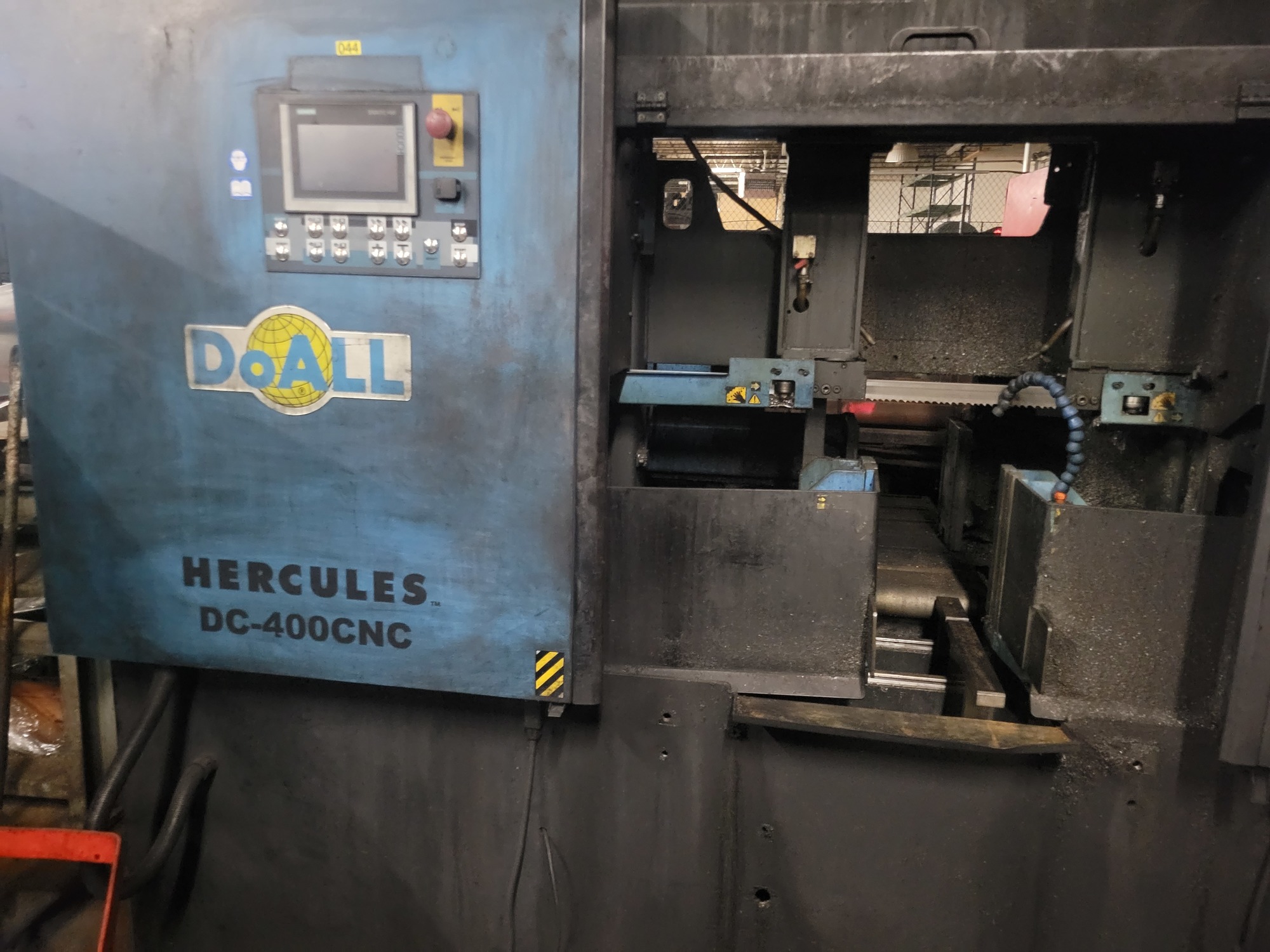

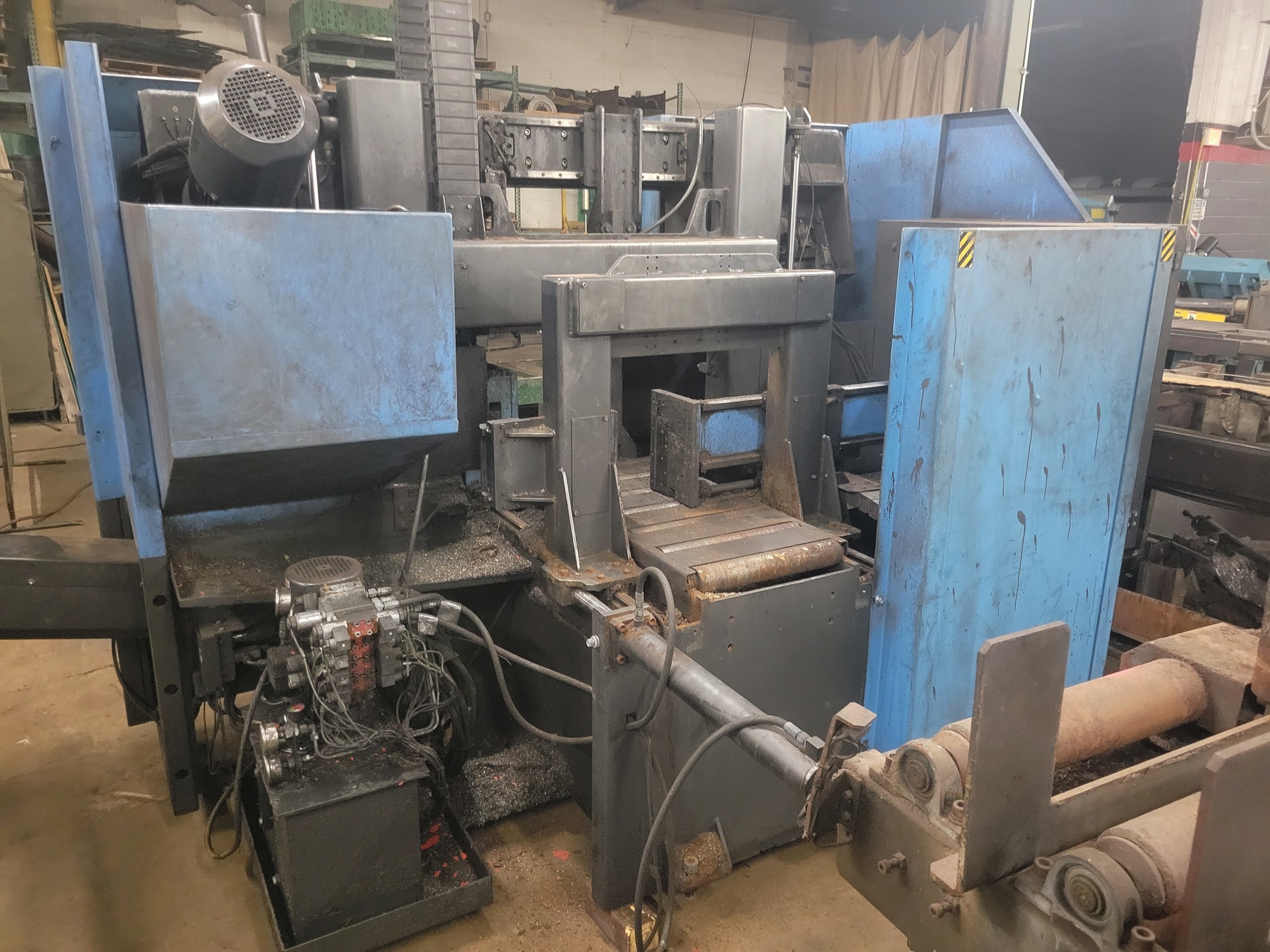

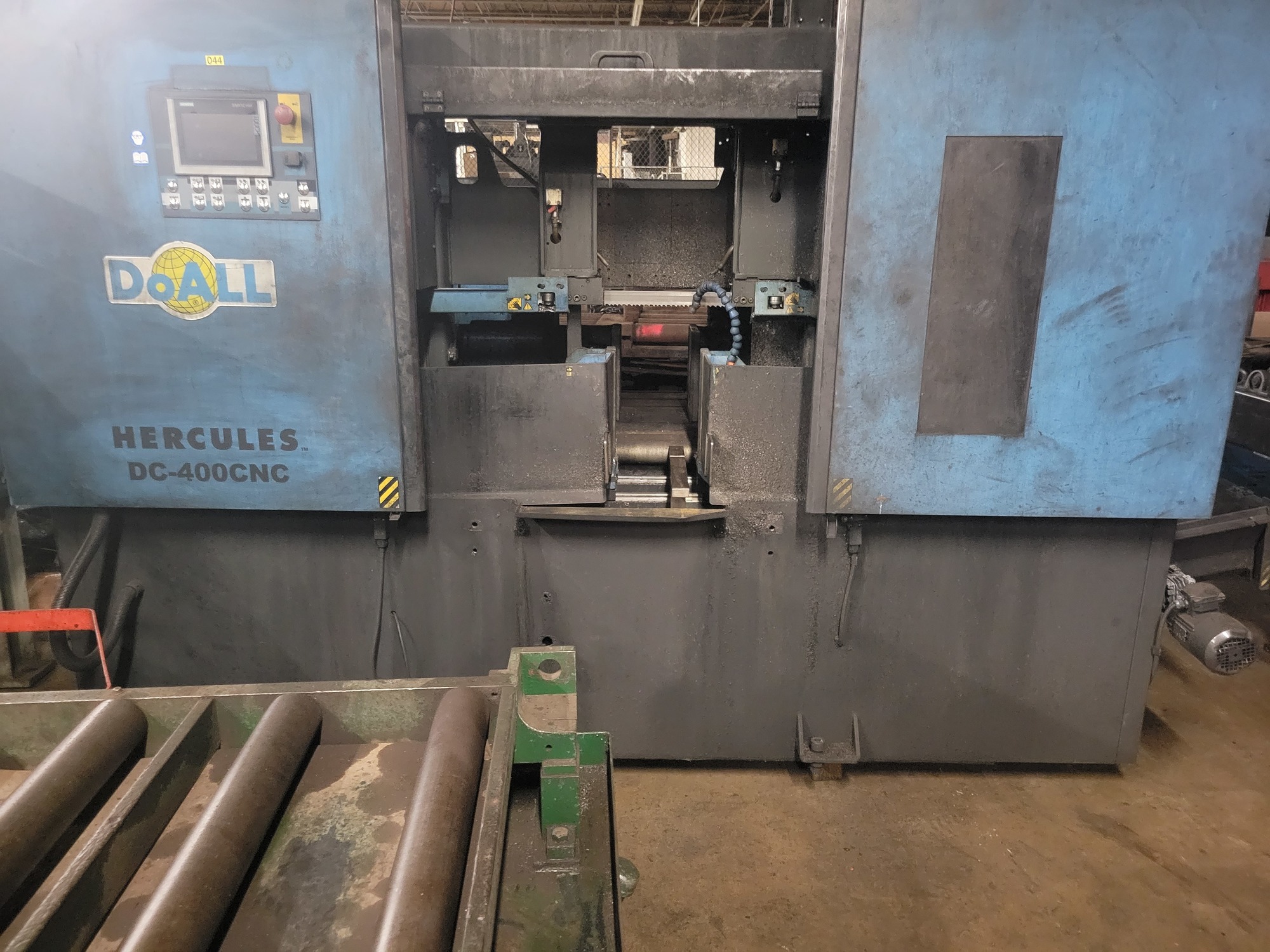

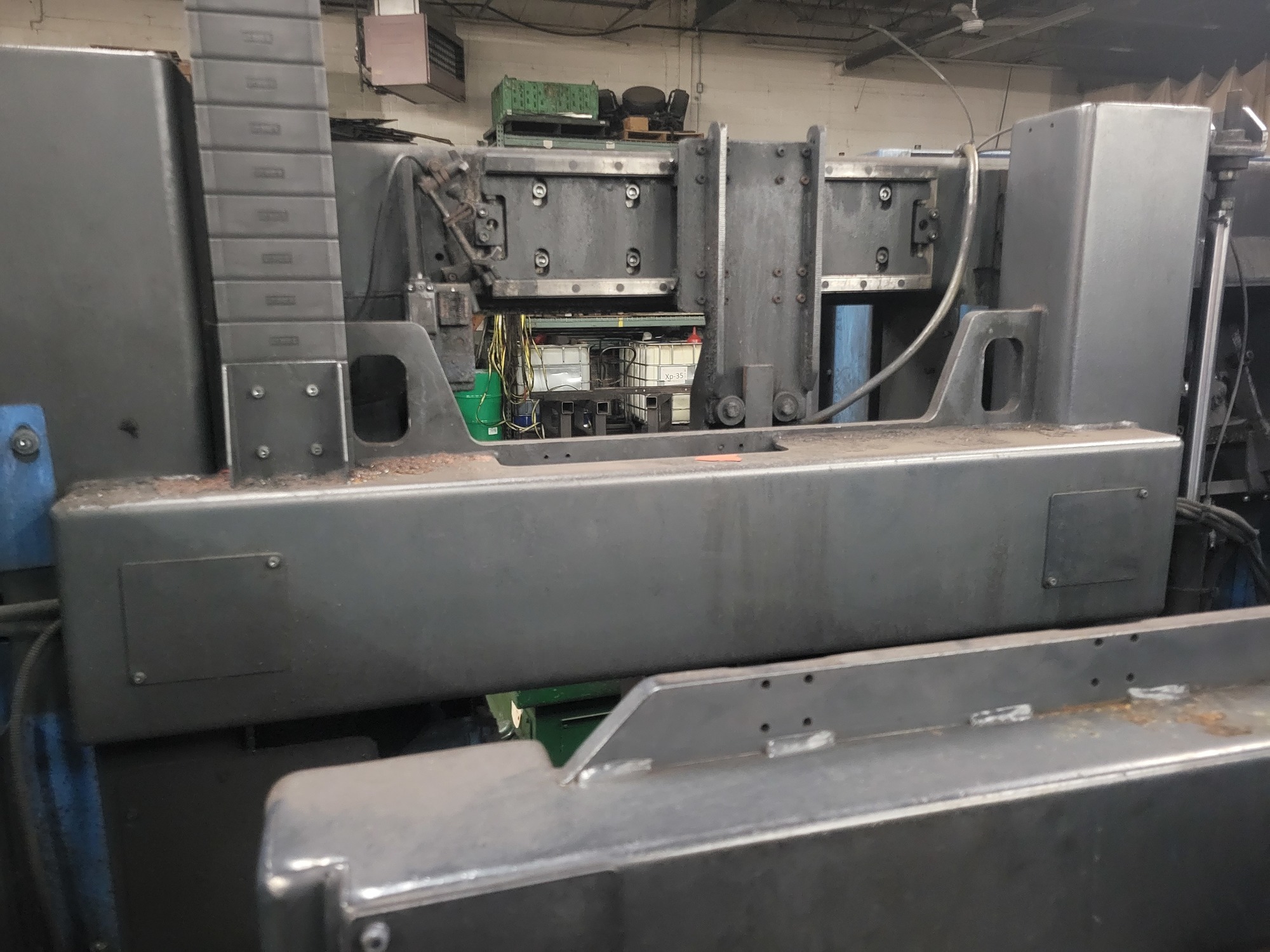

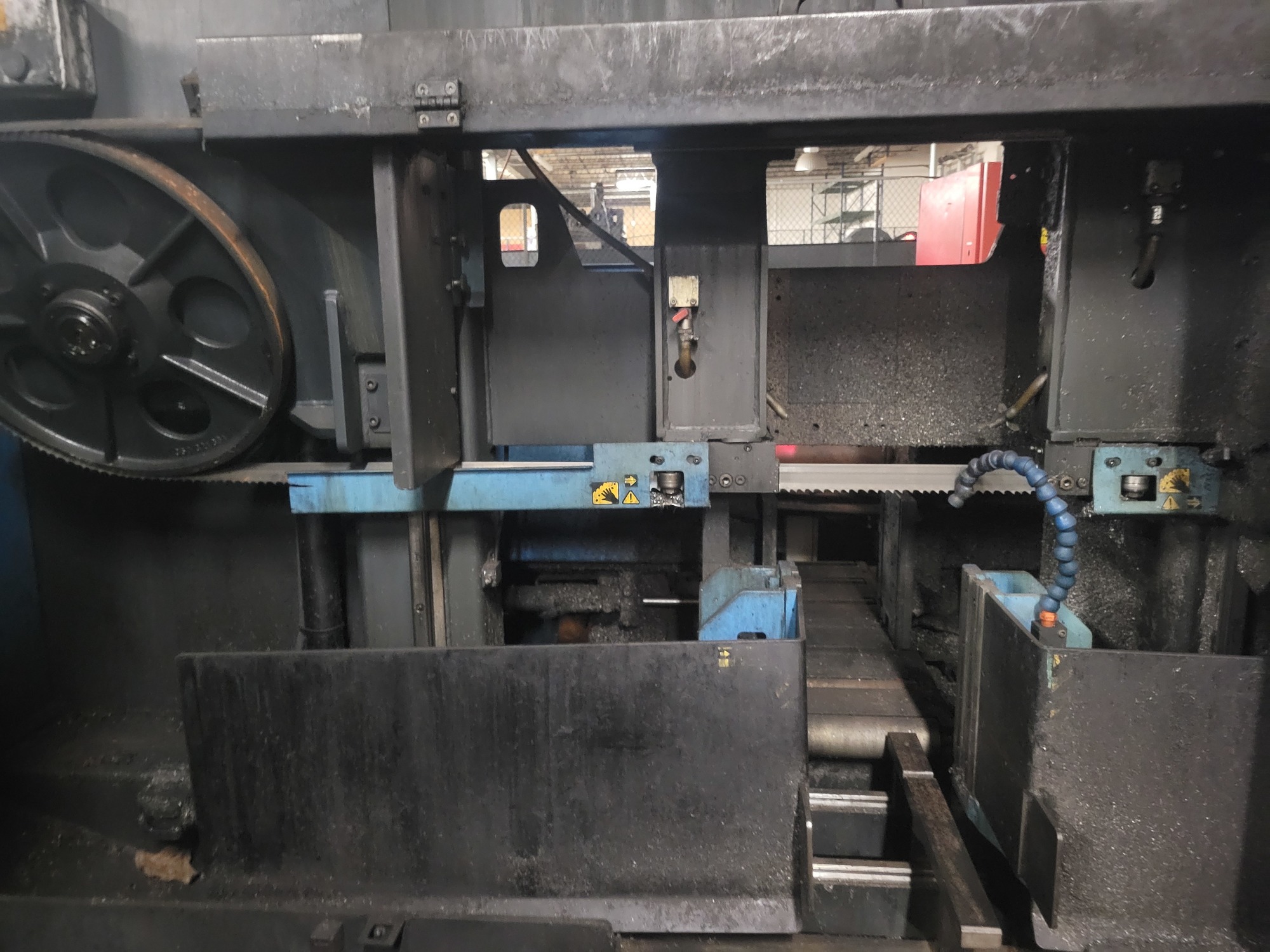

Doall Hercules Double column horizontal CNC bandsaw, Fully enclosed design, 16" x 16" Capacity, CNC controls with color touch screen allows for programmable Blade break in cycle, variable feed rate for Alloys and strucuals,
Equipped With:
SIEMENS Control with Touch Screen Display
One 1-1/2"W x .05" THK x 220"L x 2/4 TPI Vari-Tooth Bi-Metal Saw Blade
Automatic Feed Control with Programmable Feed Rates
Variable Vise Pressure Control - Set of 2
Worm Chip Conveyor for Long Chips Including Chip Pan

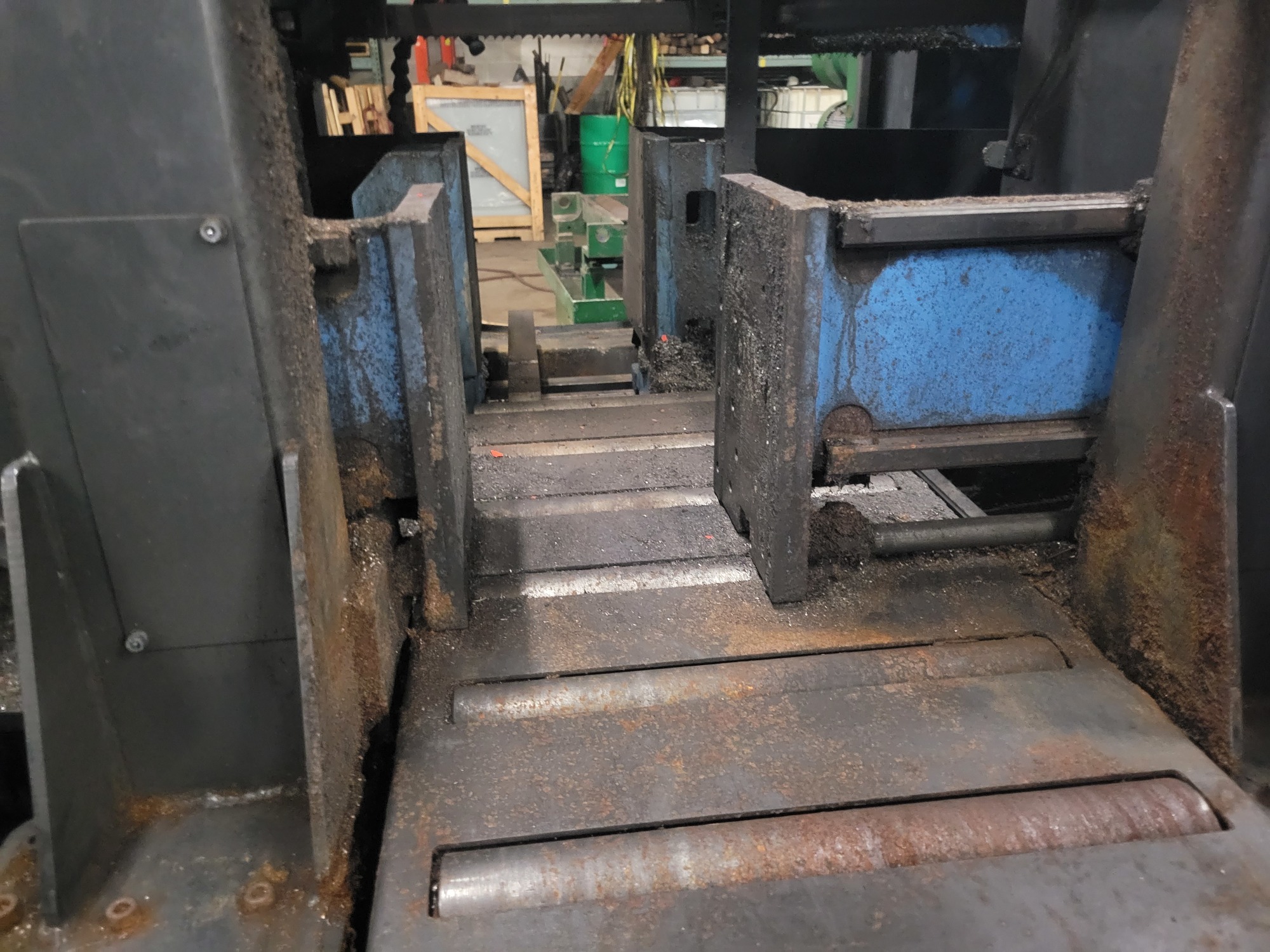

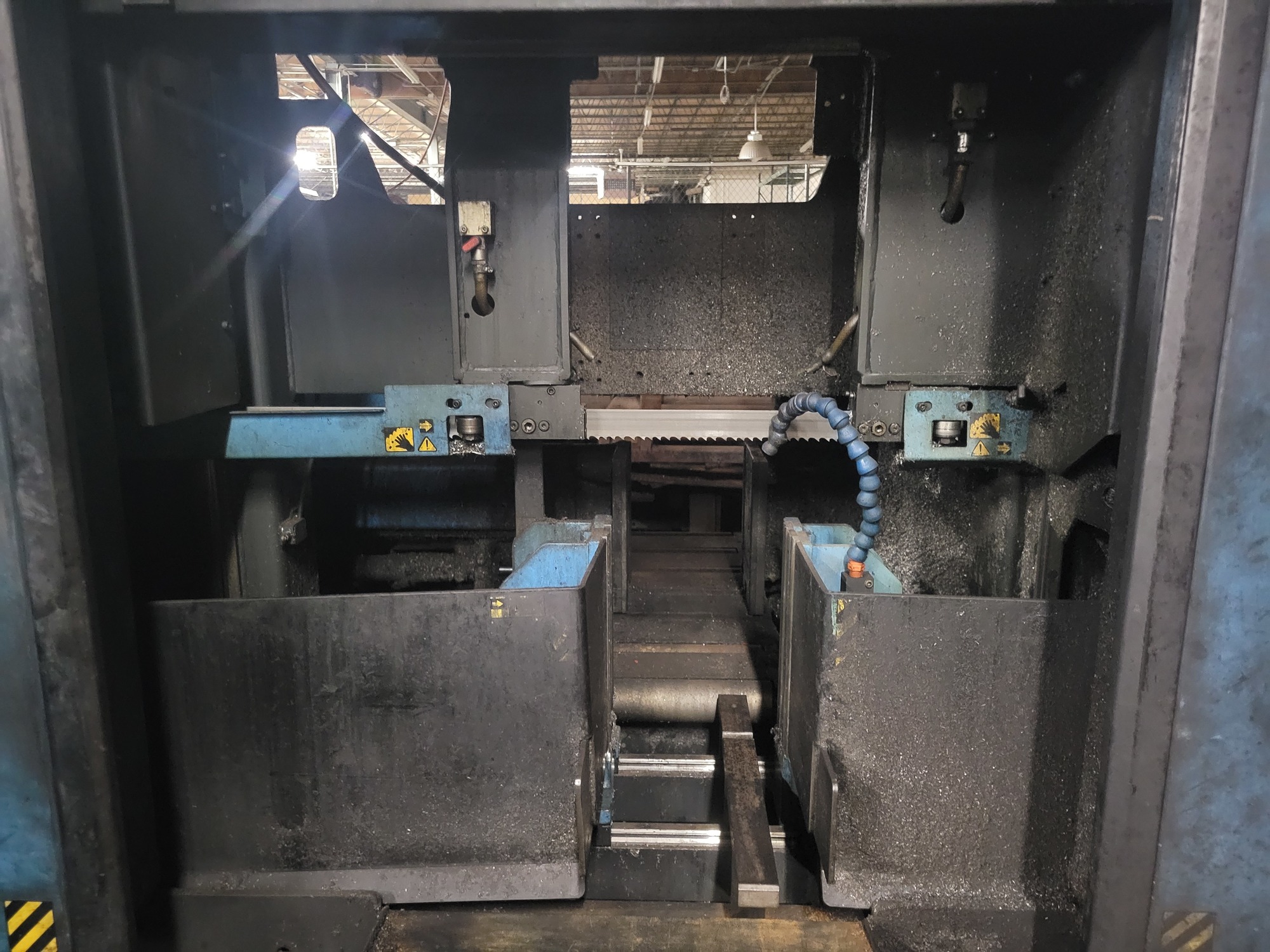

Dual Acting Index Vise Jaws for Crooked Stock
Automatic Retraction of Material in Cycle for Protection of Carbide Blade

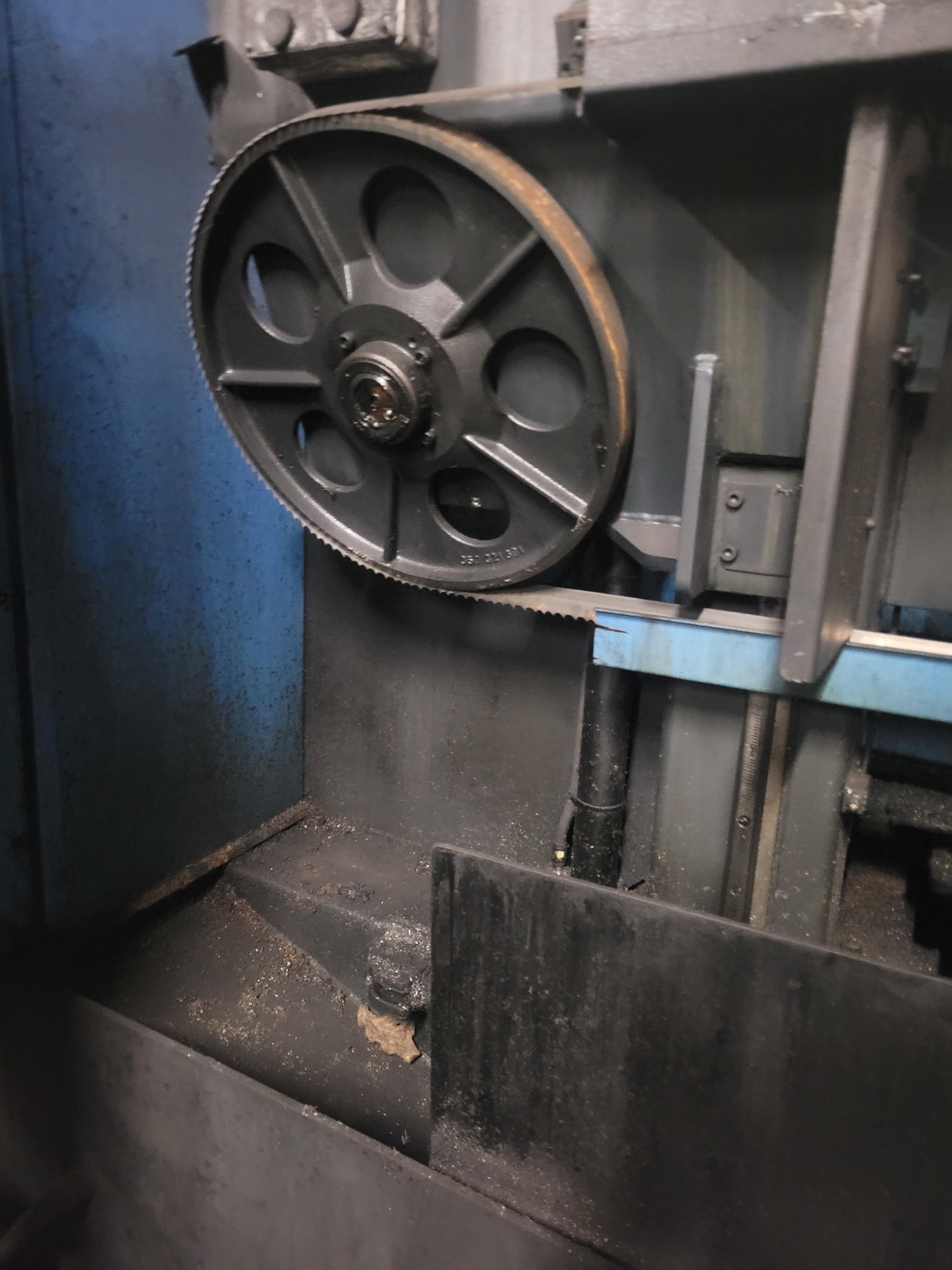

Hydraulic Band Tension
Automatic Guide Arm Setting
Powered Driven Band Brush
Work Height Sensor
Work Light
Flood Coolant System
Operators Instruction and Parts Manuals
Specifications:
Rect-Cap (H) 15.75"
Rect-Cap (W) 15.75"
Control CNC (Siemens)
Dimensions 124" x 128" x 87" tall
Weight 7,850 lbs.
This Hercules series high production, highly efficient, horizontal automatic, dual column, CNC metal cutting band saw, hydraulically controlled machine with multiple material feeds.
Designed for vertical cuts, this band saw is ideal for serial production in industrial settings.
The robust construction, it is possible to cut a wide range of full and profile materials including stainless and tool steel.
Enclosed design for high levels of operator safety
A large variety of optional accessories are available to customize the machine for specific sawing requirements.
SIEMENS electronic system PLC control with touch screen display which enables easy and accurate operator control.
The control system operates the regulation of the cutting feed rate and electronic setting of upper and down position of the arm.
The PLC displays blade speed and cutting feed and also controls the inputs and outputs for connection of any accessories.
The machine can operate in two modes:
Semi-automatic Cycle - The machine cuts the material immediately in a semi-automatic mode. The operator uses the feeder of
the machine for the manipulation with the material and for the exact feed of the material into the cutting zone. The movement of
the feeder is realized by manual buttons or by GTO function. After starting GTO function the operator sets the position of the
feeder, presses START button and feeder goes to the set position.
Automatic Cycle - The feeder feeds the material according to the set program. The operator sets the cutting program, machine.
realizes these programs, and it is possible to make 99 different programs. The part of one program is a complete setting of the
cut, blade speed, feed speed, automatic regulation, height of the material to be cut, the length of the material and number of
pieces. The length and number of pieces are possible with 99 lines, and the machine feeds differently and set lengths.
automatically
The cutting feed rate is regulated by hydraulic throttle valve led by the servo motor enabling very precise feed rate. The
operator sets the program needed with feed rate - mm | min, and the machine will set it up. There are no external factors.
influencing cutting feed like temperature - viscosity of hydraulic oil
Two basic regimes of automatic system regulation - ASR:
RZP Indicator - System allows to set the optimal cutting feed rate depending on material band position. Cutting feed rate is
regulated on beginning and end of cut. It is suitable for using of carbide blades.
ARP Indicator - System of the automatic regulation of the cutting feed rate depending on the cutting resistance of the material
or blunting the blade
System offers two basic modes of ARP:
Bi-metal mode is suitable for optimization of the cutting feed when cutting profiles by bi-metal blades. The cutting feed is
higher if the blade cuts sides of the profile. As the blade reaches the full material, the system reduces the cutting feed.
automatically so that teeth gap of the blade would not be filled.
Carbide mode is suitable for cutting of full bars. If the blade is excessively loaded the cutting feed reduced on 50% and cut is
finished by this speed. Safety module with auto diagnostics
An emergency stop is mounted on the control panel to shut down all saw operations.
Band speeds range 65 - 328 FPM | 20 - 100 MPM
Automatic feed control with programmable feed rates
Variable vise pressure control - set of 2.
Worm chip conveyor for long chips including chip pan.
Dual acting index vice jaws for crooked stock
Automatic retraction of material in cycle for protection of carbide blade
Hydraulic band tension
Automatic guide arm setting
Powered driven band brush.
Work height sensor
Work light
Specifications:
Cutting Capacity at 90 deg, Tube | Solid:
Round (Diameter/In. | mm)
Rectangle (H x W/In. | mm)
15.74 | 15.74 | 400 | 400
15.74 x 15.74 | 400 x 400
Maximum Bundle Capacity at 90 deg (H x W/In. | mm) 9.84 x 15.74 | 250 x 400
Minimum Bundle Capacity at 90 deg (W/In. | mm) 3.34 | 85
Remnant Length Drop (In. | mm) 1.96 | 50
Minimum Butt End (W/In. | mm) 4.72 | 120
Blade Speed (FPM | MPM) 65 - 328 | 20 - 100
Blade Wheel Diameter (In. | mm) TBA
Blade Size (W x THK x L/In. | mm) 1-1/2 x .05 x 220 | 41 x 1.3 x 5,580
Upper Band Wheel Layback Adjustment 20 deg
Material Pass Line Height (In. | mm) 31-1/2 | 800
Standard Indexer | Shuttle Length (Ft. | M) 1.8 | .55
Auto Index Single Stroke (Minimum - Maximum/In. | mm) .118 - 21.65 | 3 - 550
Auto Index Multiple Stroke (Maximum/In. | mm) 394 | 9,999
HMI Controller SIEMENS
Numeric Control Program Capacity Yes
Feed System Hydraulic Control
Blade Guides Bi-metal | Carbide
Feed Force Hydraulically Controlled
Multiple Feed (In. | mm) 393.7 | 9,999
Main Motor (HP | kW) 7.5 | 5.6,
460V/3 Phase/60 Hz.
Hydraulic Pump Motor (HP | kW) 2 | 1.5
Coolant Pump Motor (HP | kW) .16 | .12
Coolant Tank Capacity (Gallons | Liters) 10.56 | 40
Floor Space Dimensions Required (W x L x H/In. | mm) 116.92 x 102.36 x 86.61 | 2,970 x 2,600 x 2,200.
Machine Weight (Lbs. | Kg) 7,848.45 | 3,560
Design and specifications are subject to change without notice.
