DOOSAN VC 630/5AX HIGH PRODUCTIVITY 5 AXIS SIMULTANEOUS VERTICAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VC 630/5AX
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
(LB)
2014
$0.00

Description

Overview:

Type: Vertical Machining Centers (5-Axis or More)

Manufacturer: DOOSAN

Model: VC 630/5AX

Condition: Used - Excellent

Year: 2014

Stock #: 8977

Status: For Sale

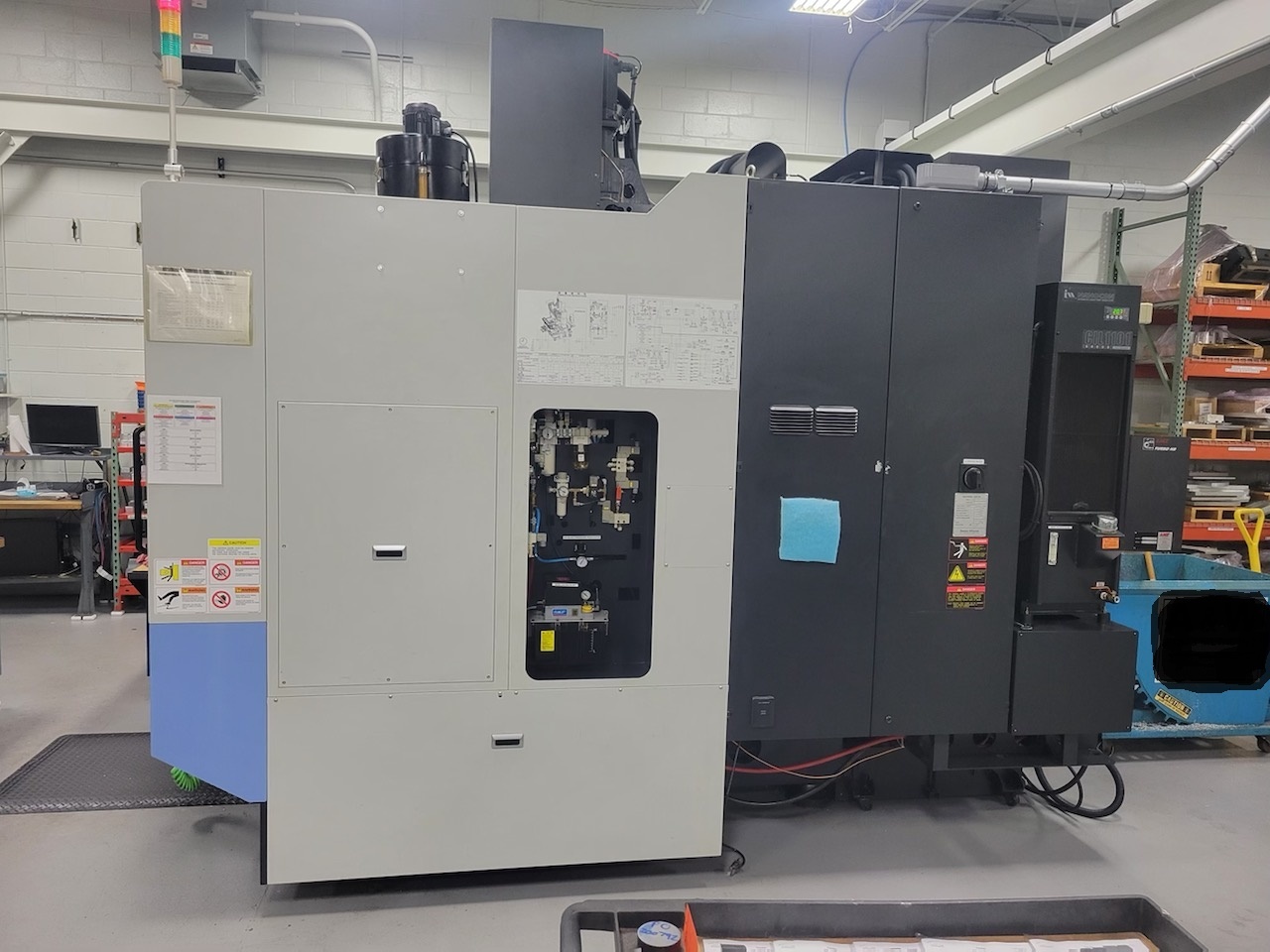

Doosan VC 630/5AX High Productivity 5 Axis Simultaneous Vertical Machining Center

The VC630 5/AX is designed for a wide range of applications, especially highly complex work pieces. It is capable of full 5 axes simultaneous machining, greatly reducing the need for multiple setups and increasing the precision of the finished component. The powerful, 12,000 rpm high speed spindle provides superior performance in virtually any machining application or material.

Specification:

X 25.59"

Y 30.12"

Z 20.47"

# Axis 5

Power 30 hp

RPM 12,000 RPM

# ATC 80

Taper Cat 40 Big Plus

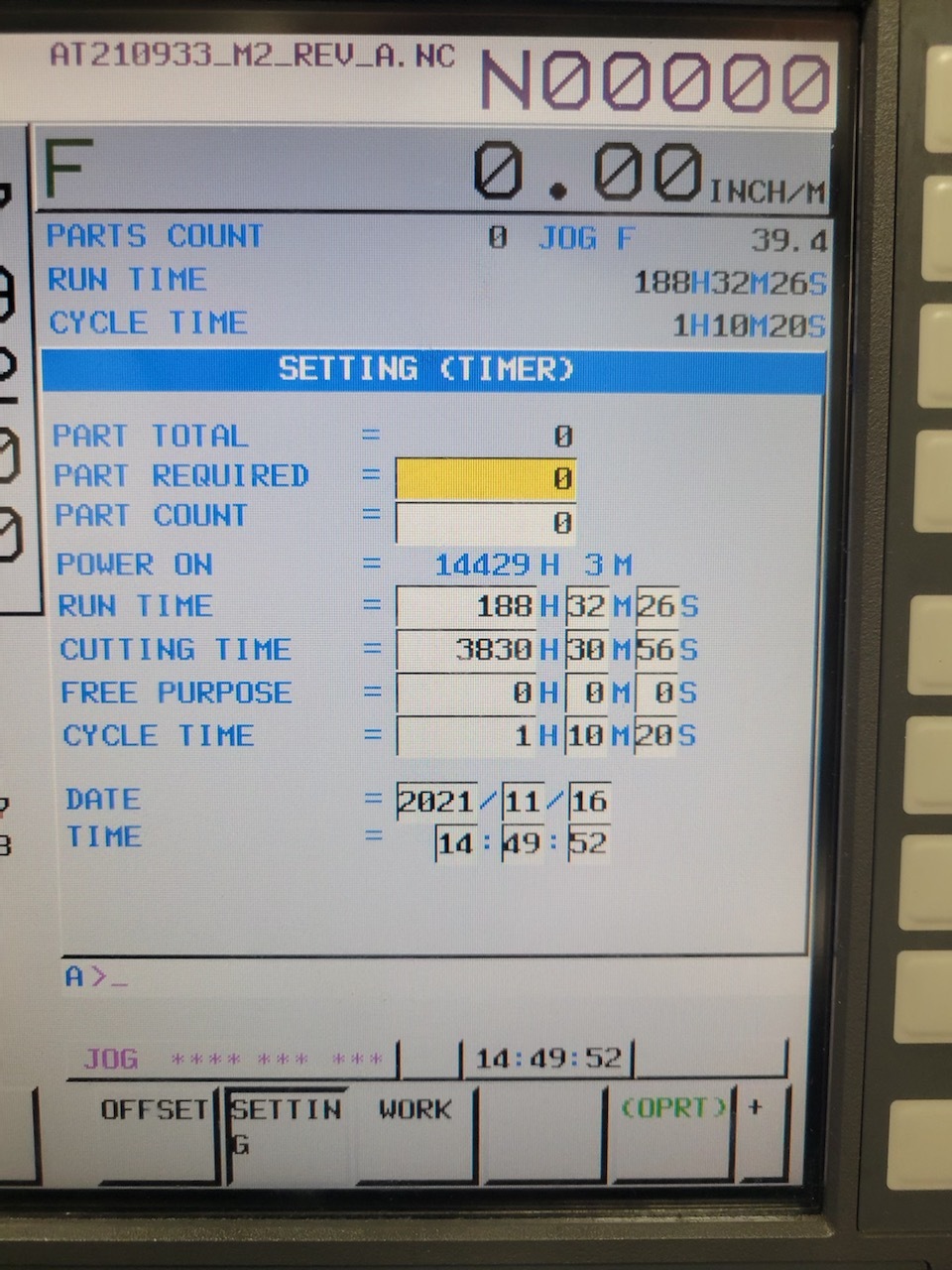

Control CNC (Fanuc 31i model b Control)

Fanuc F31i-B5 Control

80 Tool Positions

Chip blaster 1000 psi

Tool touch off

Renishaw probing

Probing kinematic software

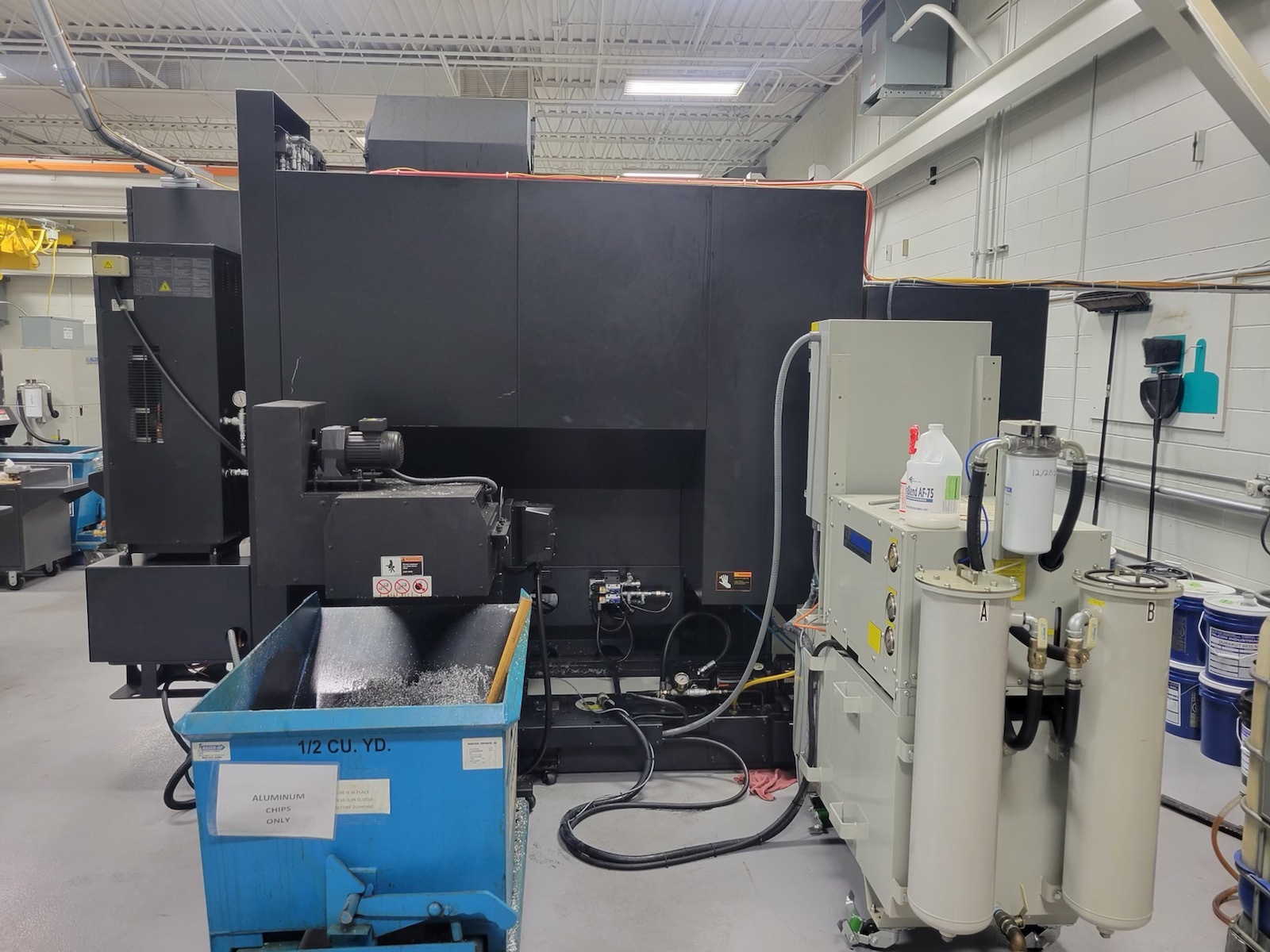

LNS chip conveyor

Mist collector

Master cam post

Thru spindle coolant

Thru spindle air

Holds within a couple tenths

Cutting Mostly Alum, Stainless and Inconel

New Price with Options was over $400k

Main Features:

5 Simultaneously controlled axes (X,Y,Z,A,C) with high precision, absolute rotary encoders on A and C axes

High precision, built in spindle design with (22 kW \ 30 hp motor, 12,000 rpm)

Spindle oil chiller

Spindle orientation, load meter, override and rigid tapping

Cam Type, Double Arm ATC (81 tools)

High rigidity, traveling column design with large linear roller guides (X - 45 mm \ 1.772", Y - 45 mm \ 1.772", Z - 45 mm \ 1.772")

Servo motors mounted directly to the oversized, double pre-tensioned ball screws (X - 45 mm \ 1.771", Y - 45 mm \ 1.771", Z - 45 mm \ 1.771")

Fast rapid traverse rate (X - 40 m/min \ 1,575 ipm, Y - 40 m/min \ 1,575 ipm, Z - 36 m/min \ 1,417 ipm)

Z-axis thermal compensation by multiple temperature sensors and proprietary Doosan feed smoothing algorithms for increased precision

630 mm (24.8") diameter T-Slot table surface

DSQ 4 (1,000 block look ahead + 1 GB Data Server) and Nano Smoothing

Renishaw probe ready (RMI-Q radio receiver, RTS tool setter and GUI software)

Doosan Intelligent Kinematic Compensation (IKC) software for fine calibration of rotary axes. Requires 600 series probe and calibration artifact (sold separately)

Doosan Tool Load Monitoring and Adaptive Feedrate Control
