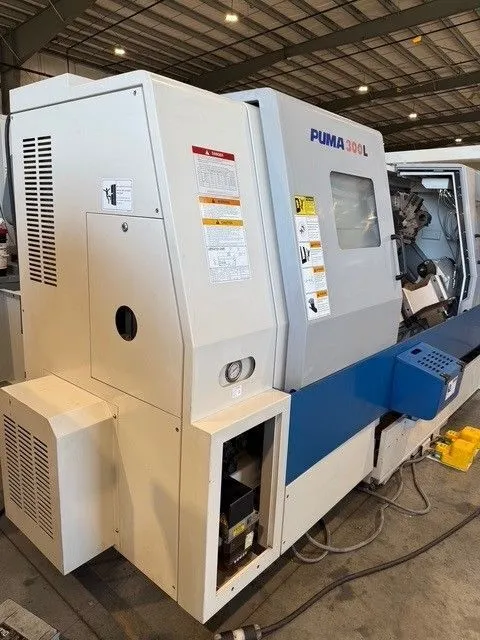

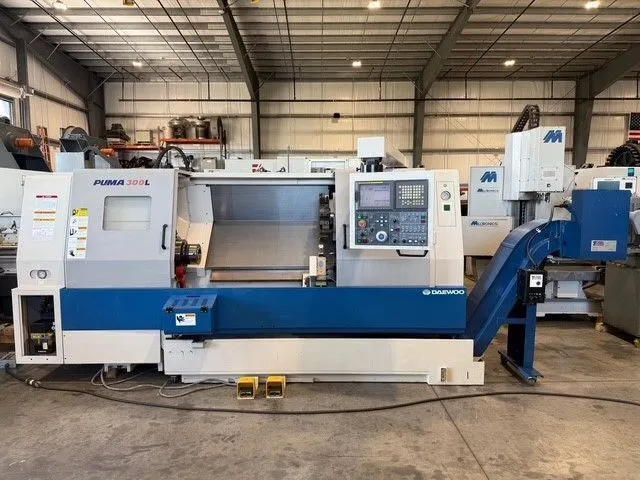

DOOSAN PUMA 300LC CNC Lathe Turning Center Big Bore 2004 #7365
Specifications:
DOOSAN PUMA 300LC CNC Lathe Turning Center Big Bore 2004 #7365
Reference #7365
Model # 300LC

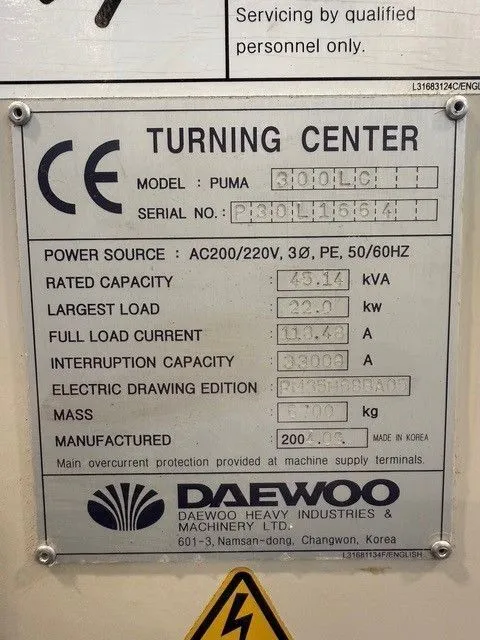

Serial # P30L1664
Spindle speeds- 2,800 R.P.M.
Spindle bore- 4.05 in
X axis travel- 11.1 in
Z axis travel- 52.4 in
X rapids-787 I.P.M.
Z rapids-945 I.P.M.
Max swing- 22.4 in
Max turning diameter- 15.7 in
Max turning length- 50.4 in

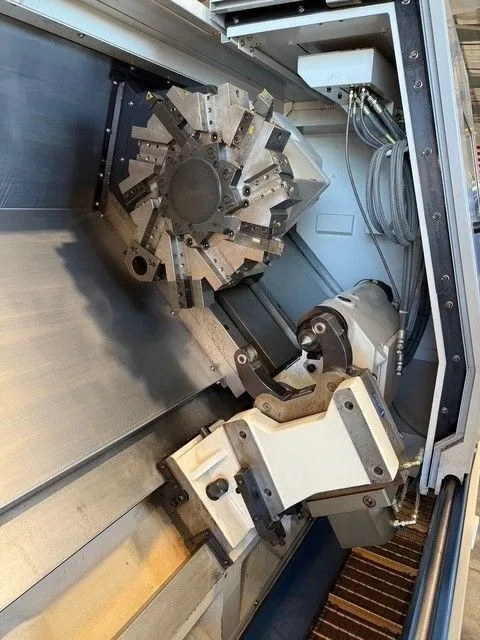

Turret station- 12
Equipped With:
***Machine came out of Military Surplus and looks like it was never put into production***

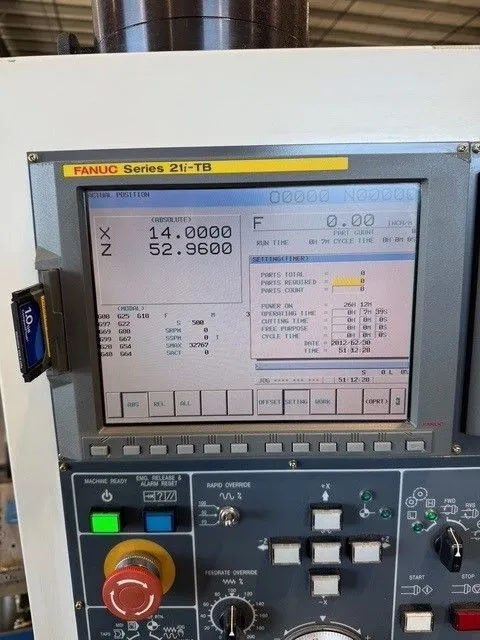

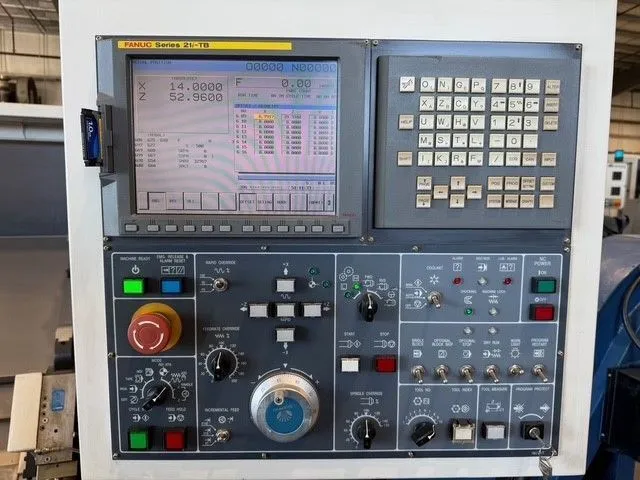

FANUC 21i-TB CNC Control

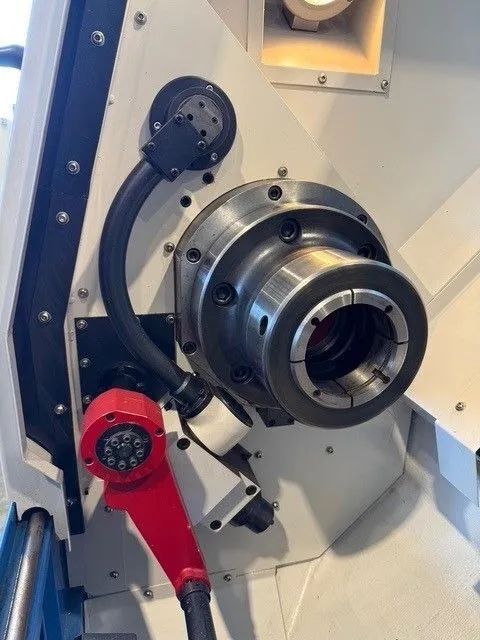

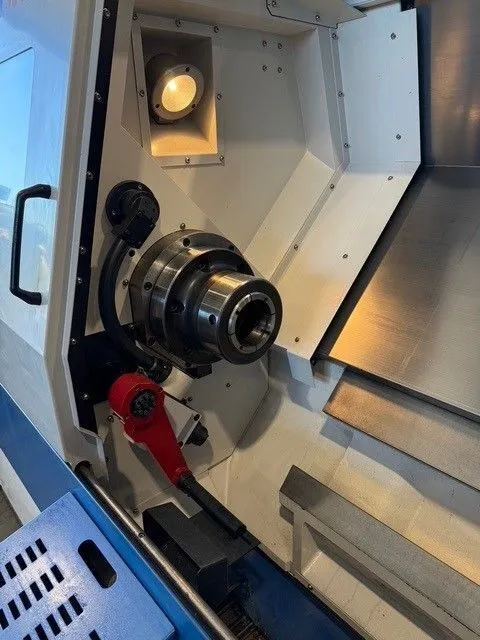

Collet chuck
Parts catcher

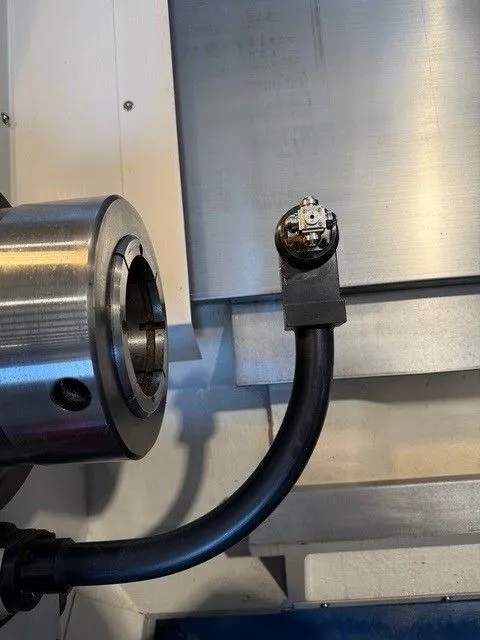

Tool Setter

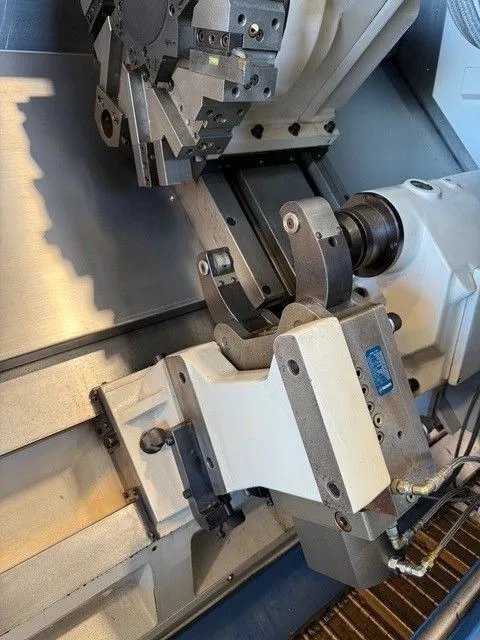

SHUNK Steady rest
Tailstock

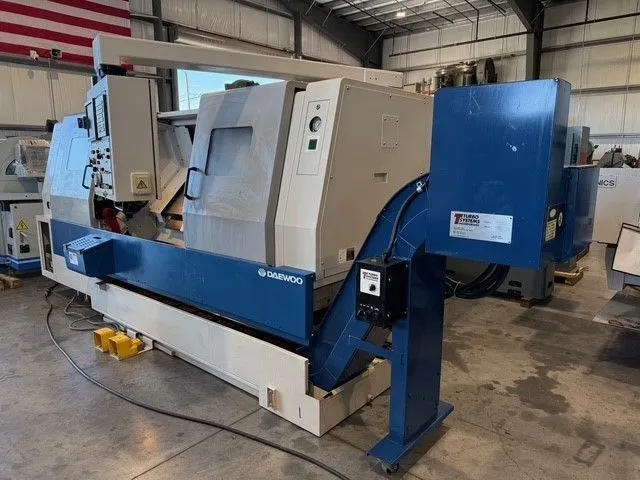

TURBO Chip conveyor

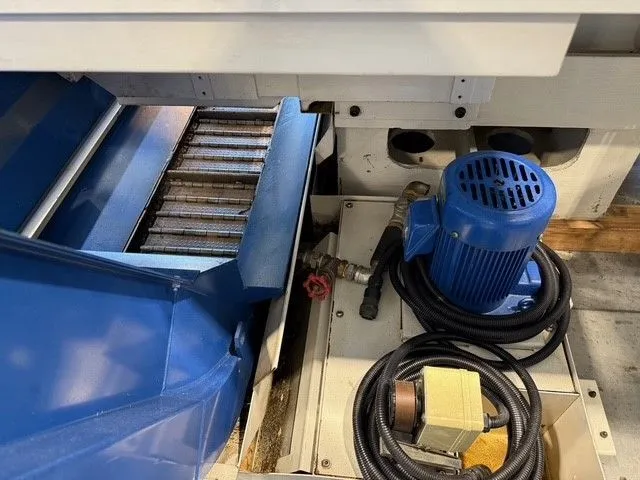

Coolant tank & Pump
Oil skimmer
Foot pedals
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 16,000 Lbs.
Machine dimensions- 168 in L x 79 in x 87 in H
Machine location- F.O.B. Sarasota, Florida
