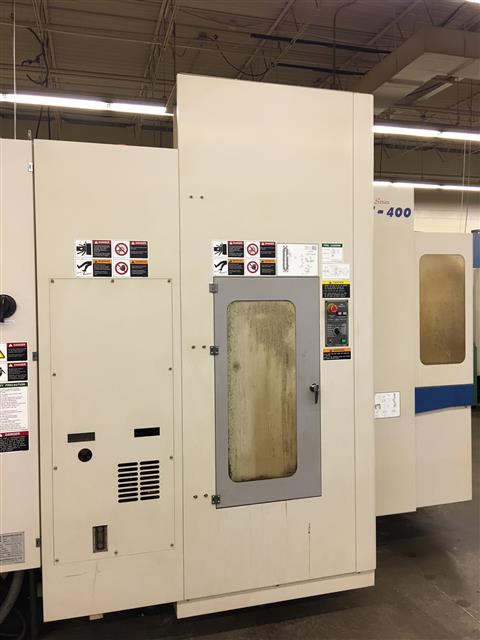

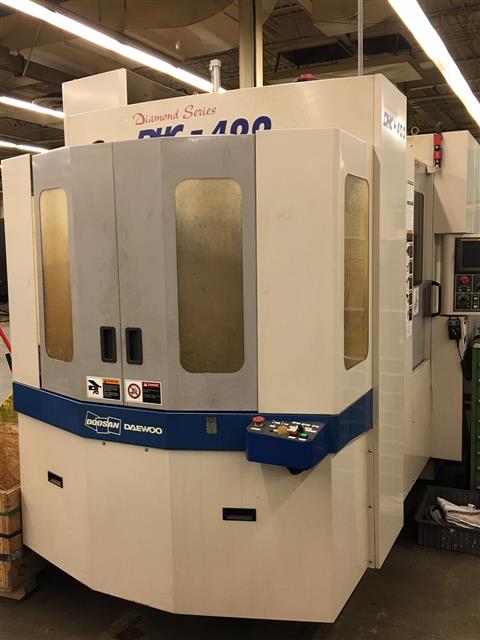

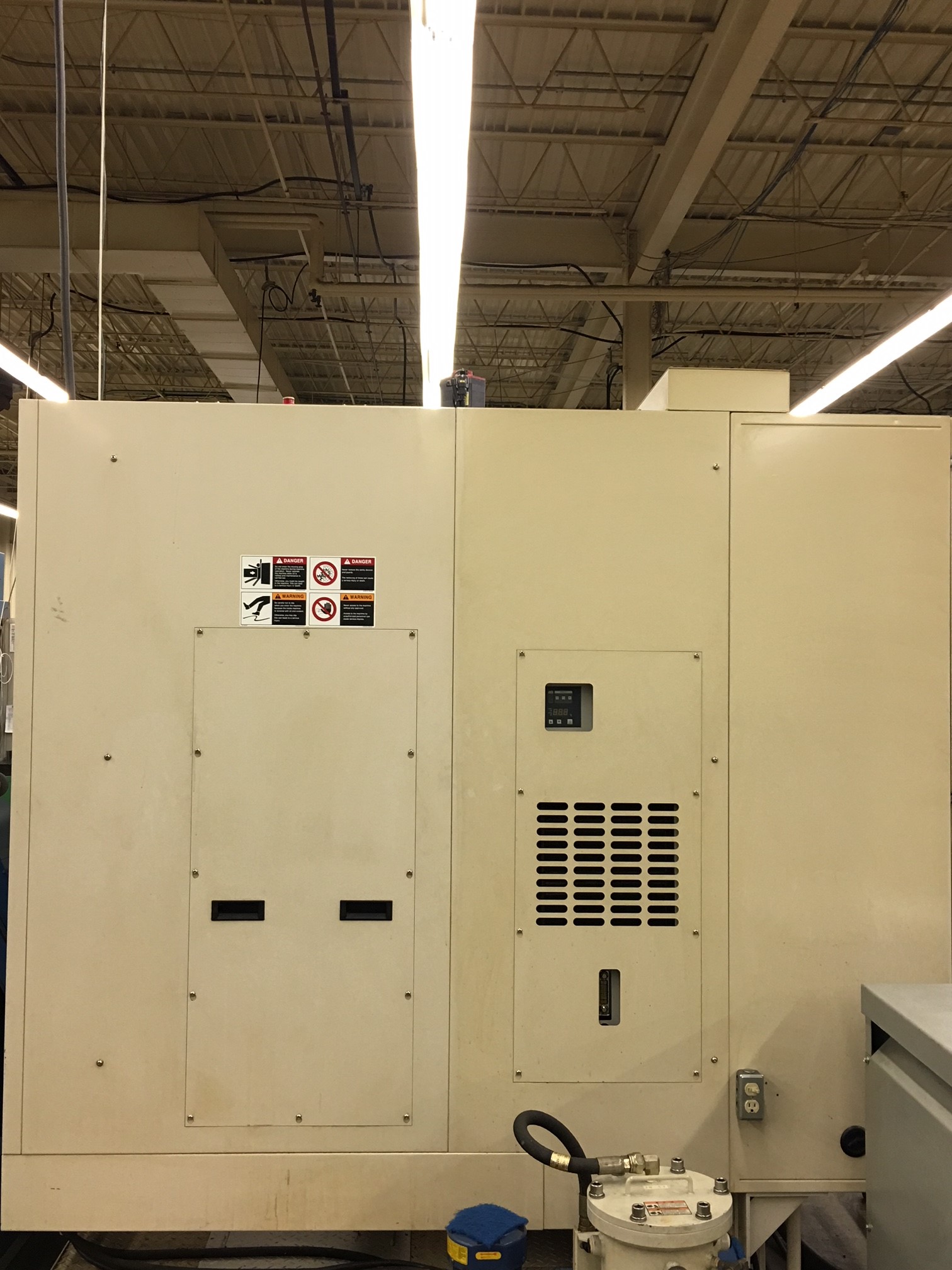

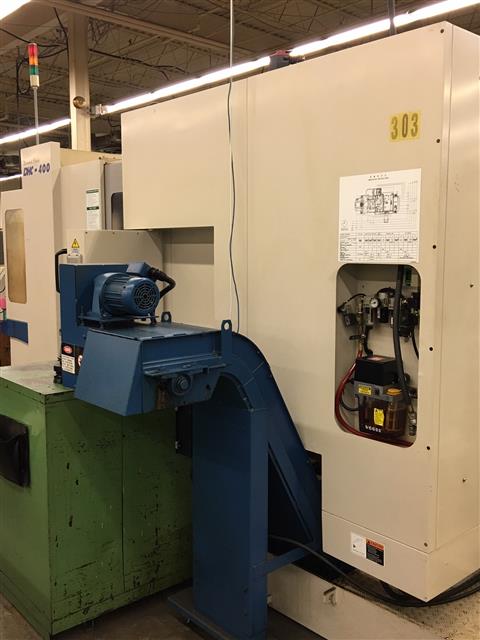

DOOSAN DHC-400
DHC-400
M0130
Machining Centers Vertical Horizontal CNC
used
(KG)
$0.00

Description

'

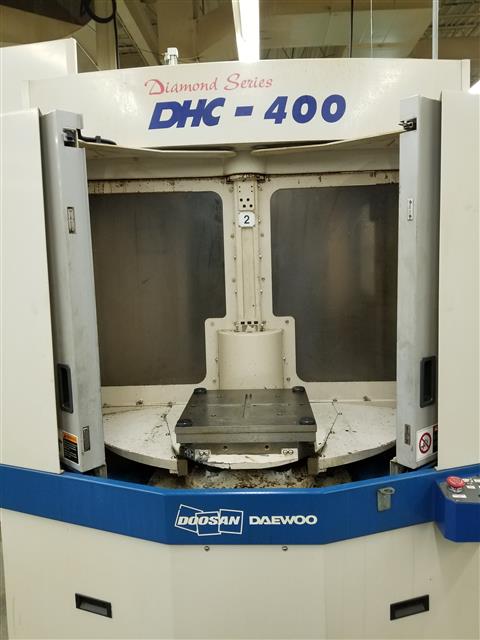

Pallet:

  • Pallet Size (2 Pallets): 15.75\" x 15.75\"
  • Pallet Indexing: 1 degree
  • Maximum Load On Pallet: 880 pounds
  • Maximum Part Swing x Height: 23.6\" x 31.5\"
  • T-slot width: (4) x .708\"
  • Changing method: Rotary shuttle
  • Pallet change time: 7.5 seconds

Travels:

  • X-Axis Travel: 23.6\"
  • Y-Axis Travel: 22.0\"
  • Z-Axis Travel: 22.2\"
  • Maximum Part Swing x Height: 23.6\" x 31.5\"

Spindle:

  • Max. Spindle Speed (RPM): 8,000 RPM
  • Spindle Taper: CAT 40
  • Main Motor (HP - 15 min): 25 HP
  • Spindle nose to pallet center: 5.9\" - 28.1\"
  • Spindle center to pallet top: 1.97\" - 24.0\"
  • Spindle torque (15 min ): 118 ft-lbs.

Tool Changer:

  • Tool Changer Positions: 40 ATC
  • Max. Tool Diameter: 3.3\"
  • with empty adjacent pockets: 5.51\"
  • Max. Tool Length: 11.81\"
  • Max. Tool Weight: 22 lbs.
  • Tool change time (tool to tool): 1.5 seconds
  • Tool change time (chip to chip): 4 seconds

Motion:

  • X and Z axis rapid traverse rate: 1,575 IPM
  • Y axis rapid traverse rate: 1,575 IPM
  • Cutting Feed rate: . 04 to 787 IPM
  • Least command increment: . 0001\"
  • X and Z axis servo motor: 5.3 Hp
  • Y axis servo motor: 9.3 Hp
  • X, Y and Z axis ball screw diameter: 1.57\"
  • Positioning accuracy (full stroke): +/- .00020\"
  • Repeatability: +/- .00008\"
  • 1 Degree B-Axis Positioning accuracy: +/- 3 Seconds
  • 1 Degree B-Axis Repeatability: +/- 1 Seconds

General:

  • Machine Height: 111\"
  • Floor Space Required (W x D): 88\" x 207\"
  • Machine Weight: 22,330 lbs.
  • Power Required: 67 KVA-180 A, 220v
  • : 205 - 235 V / 3 Ph

Equipped With:

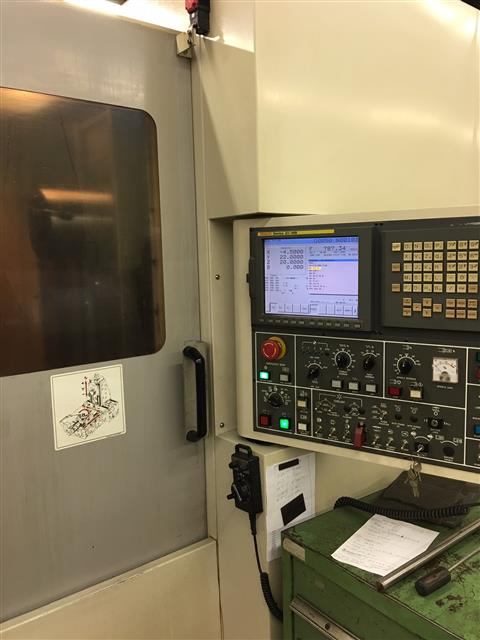

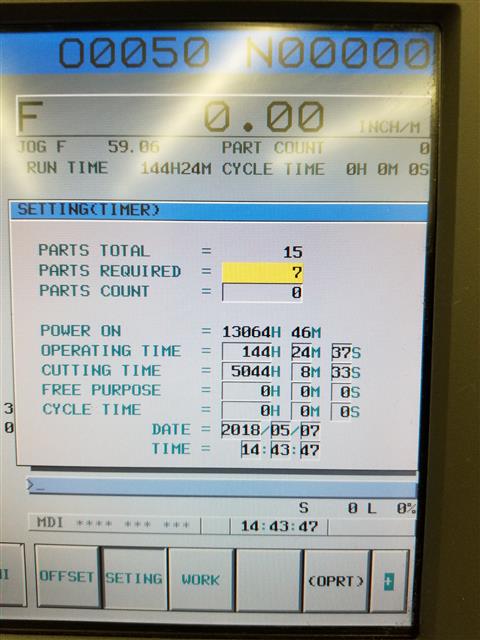

  • Fanuc 21iMB Control
    • '
