DOALL VERTICAL MILL.

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


80-2464
26
Milling Machines
Vertical Knee Mills
used
3100 (LB)
0
$7,950.00

Description

Description & Specifications

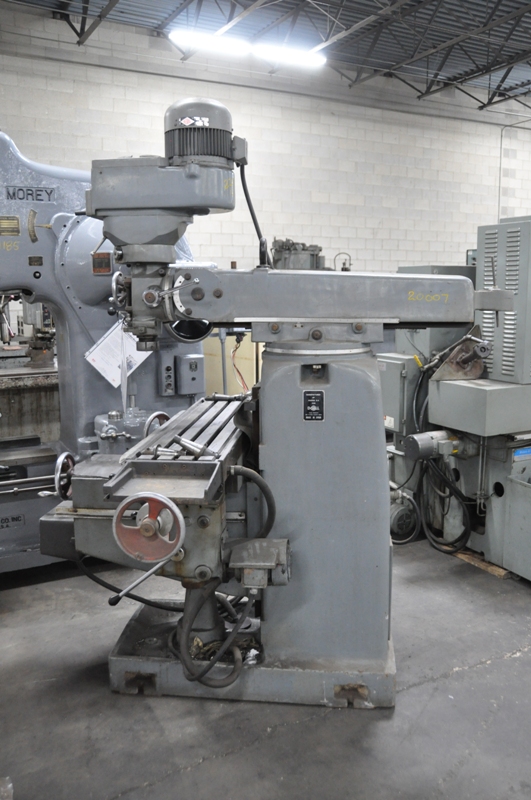

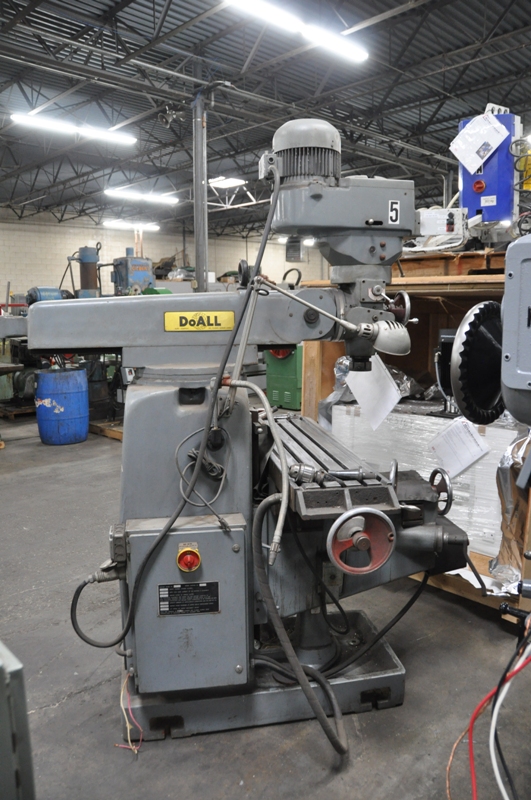

DOALL VERTICAL MILLING MACHINE

PRICE: Loaded on Truck, Our Warehouse, York, PA    $7,950.00

HMC Stock #20007

Machine Serial No.: 26
Machine Model No.: 80-2464
New Date: Unknown
Made for DoAll By Anayak S.A. in Spain

Table Working Surface: 12" x 48" with (3) T Slots
Table Travel Longitudinal: 31-1/2"
Saddle Cross Travel: 15-3/4"
Knee Vertical Travel: 17-5/8"
Quill Travel: 5-1/8"
Spindle Taper: #40 National Standard with Quick Switch Lockup (no spanner wrench supplied)
Spindle Nose to Table: 0" Minimum to 17-5/8" Maximum
Throat Distance: 6-5/16" to 31-1/2"
Table Work Load Capacity: 1,500 Lbs. Maximum
Power Quill Feeds: 0.0013", 0.0025", 0.0040" Per Revolution
Power Table and Saddle Feeds: 1/2" to 21" IPM
Variable Spindle Speeds in 2 Ranges: 60 to 400 and 545 to 4350 RPM
Head Swivels: 360 Degrees Left & Right
Head Tilts: 45 Degrees Up and Down
Ram Travels: 23" Front to Back
Ram Rotates: 360 Degrees on Column

EQUIPPED WITH:
A manual draw bar can also be use in place of the Quick Switch  NONE Supplied
(3) Assorted #40 NST Endmill Holders
(1) Jacobs Drill Chuck, Key Type, 0-1/2" Capacity (no key supplied)
Machine Work Light
Coolant Pump and Piping Built Into Base of Machine
(1) Knee Crank Handle
(1) Lever Type and (1) Wheel Type Quill Handles
Inch Graduated Satin Chrome Dials on Each Axis
Manual Table and Saddle Locks
Power Rapid Traverse to Table, Saddle and Knee
Saddle Knee Ways in Excellent Condition
Gear Box Style Power Feed System to Table and Saddle
3 HP Motor, Wired for 3 Phase, 60 Hz, 230 / 460 Volts
Presently Wired for 230 Volt Operation

Overall Size: 70" LR x 59" FB x 88" High x 3,100 Lbs.
