DN SOLUTIONS VERTICAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


DNM 4500
MV0090-003665
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
new
11000 (LB)
2022
$79,500.00

Description

Specifications:
Model                                 DNM 4500
Serial Number                     MV0090-003665
Year                                   09/2022

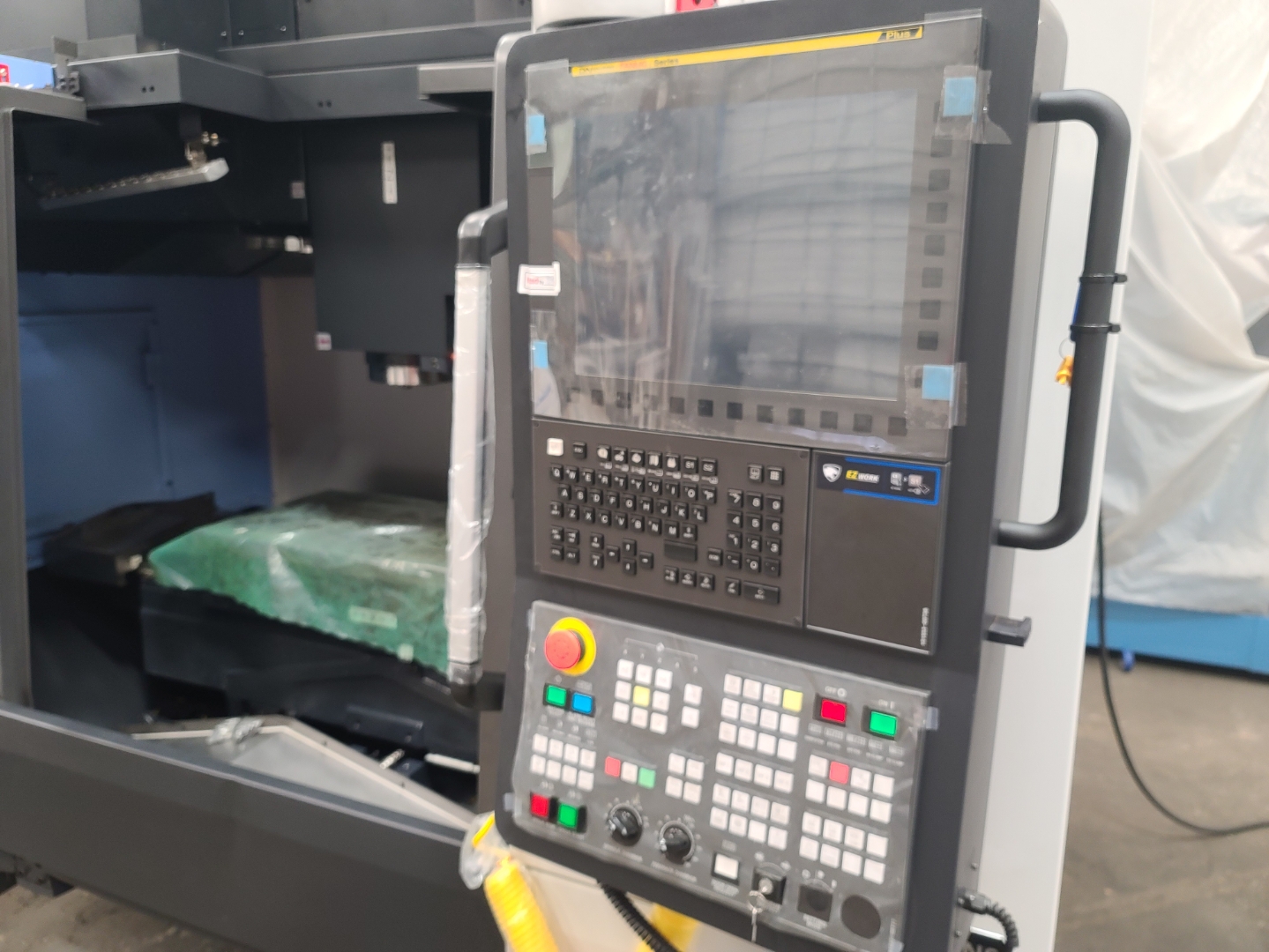

CNC control                        Fanuc Oi-Plus
Travels; X-Y-Z                   31.5 in x 17.7 in x 20 in
Max table load                    1320 lbs.
Spindle taper                       CAT 40
Max spindle speed               8,000 rpm.
AC spindle motor                 15/20  hp.
Tool stations                        30 stations
Table loading area               40 in x 18 in
Rigid tapping                        Yes
Thru spindle coolant              Yes, 215 psi.
Thru spindle air                     Yes
Oil jacket spindle chiller         Yes
Portable pulse generator        Yes
Flood coolant system             Yes, for chip disposal
Coolant tank                         52 gallons
Voltage                                220/3/60  77.5 amps

Weight                                 11,000 lbs.

 Price:  $ 79,500 FOB Houston, TX.

Condition: New, never used.

Warranty: Fanuc warranty on the CNC control as long as voltage is in the 205-235 range.
Availability: Stock, Subject to Prior Sale
Note: We are not a DN Solutions (Daewoo) dealer.  We purchased this machine from an insurance company as it had tipped over in its container when being unloaded in San Diego, CA from Korea sustaining sheet metal damage which we have repaired.
