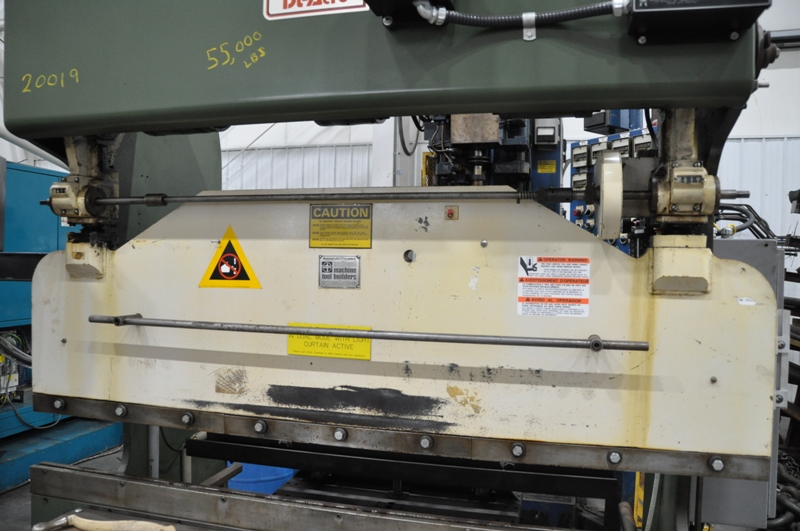

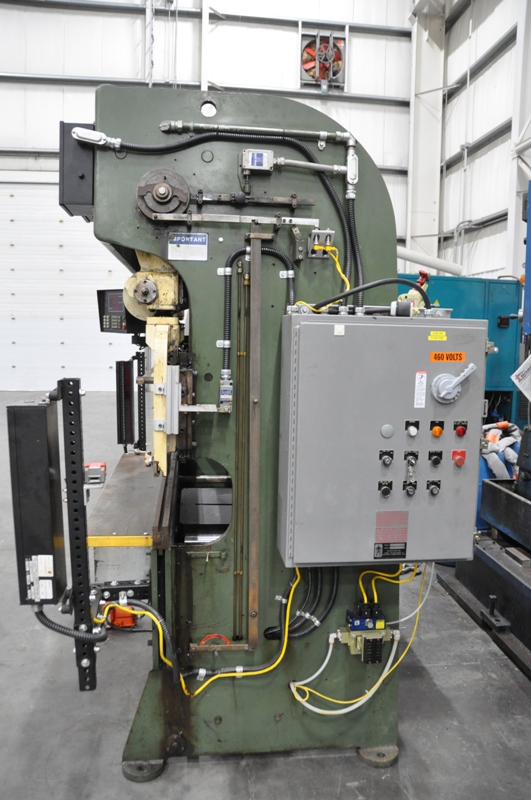

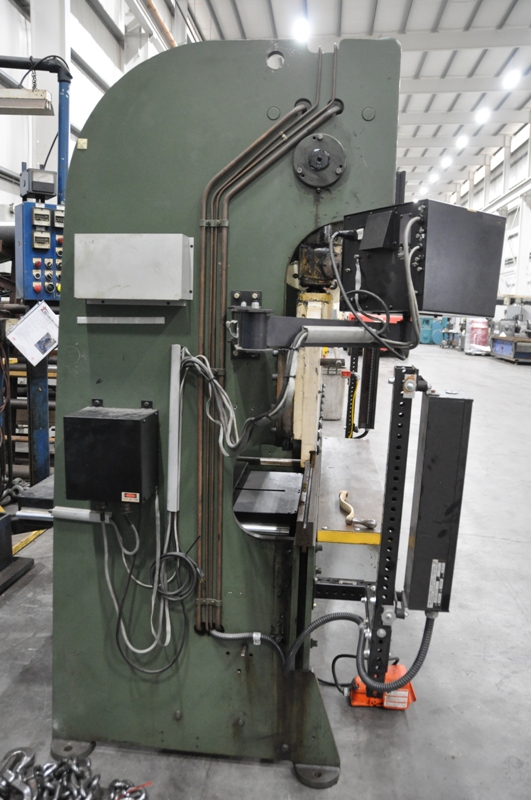

35 Ton x 6 TON DIACRO HYDRAULIC PRESS BRAKE
PRICE: Loaded on Truck, Our Warehouse, York, PA $9,750.00
HMC Stock # 20019
Machine Serial No.: 6600680606
Machine Model No.: 14-72 Hydra-Power
New Date: November 1980
Ram and Bed Length: 72"
Clear distance Between Housings: 5 2"
Rated Capacity: 6 x 14 Ga. Mild Stee
Ram Stroke: 2"
Ram Adjustment: 3"
Center of Die to Frame, Throat: 9"
Die Space, Stroke Down Adjustment Up: 9"
Distance Floor to Machine Bed: 34"
Variable Ram Stoke Speeds: 7 to 29 SPM
Speed Control Settings: Slow Fast, Dual
EQUIPPED WITH:
Dual Speed Operating Cycle with Power Work Stroke
Central Lubrication System
Maximum Tonnage Available for Forming and Punching

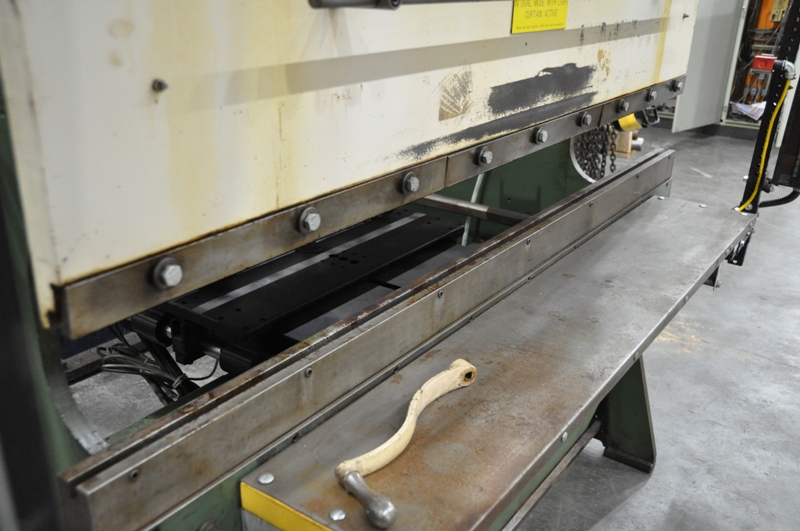

(1) 72" Long x 2" x 3" High Die Holder Rail
Full Compliment of Ram Punch Holder Plates

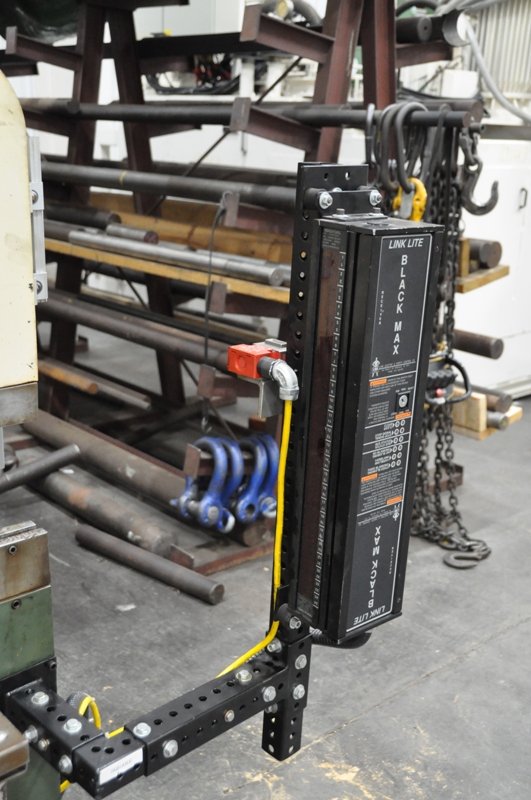

Link Lite Safety Control Blackmax Lite Curtains
Link Lite Safety Control System Installed to Control the Machine Operations

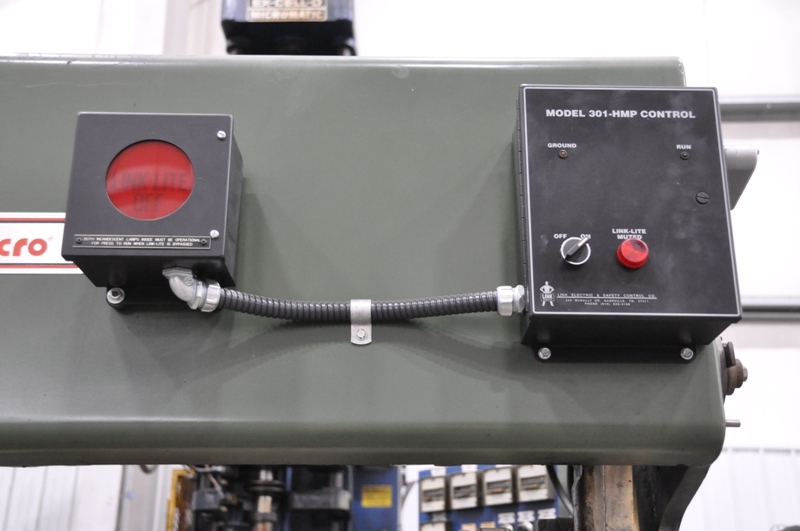

Link Lite Model 302LB, Serial No. 2142 with Model 301 HMP System
Electric Foot Pedal Operation Control
Air Actuated Clutch System with Ross Valve Unit
Dynamic Research Corp. (DRC) Programmable Back Gauge System, Inch Metric
Back Gauge System Also Has Ram Control
50" Long Back Gauge Bar with Manual Height and In Out Adjustment
Independent Manual Ram Adjustment Each Side with Position Indicator
Compressed Air Required for Operation
3 Horsepower Motor
Wired for 3 Phase, 60 Hz, 440 Volt Operation
Overall Size: 100" LR x 62" FB x 92" High x 5,500 Lbs.
