'REFERENCE NUMBER: 13066
MODEL: CLL-350
SERIAL #: 54-LL-04
350 mm /13.77″ HEIGHT OF CENTERS OVER BENCH
5.5 KW / 7.3 HP MAIN MOTOR 1500 R.P.M.
150 / 200 / 260 R.P.M. SPINDLE SPEEDS
100 mm / 4.0″ WORKING CARRIAGE TRAVEL
200 mm / 8.0″ TAIL STOCK TRAVEL
1500 dAN TAILSTOCK STRESS (50 BARS)
3000 dAN EJECTOR STRESS (100 BARS)

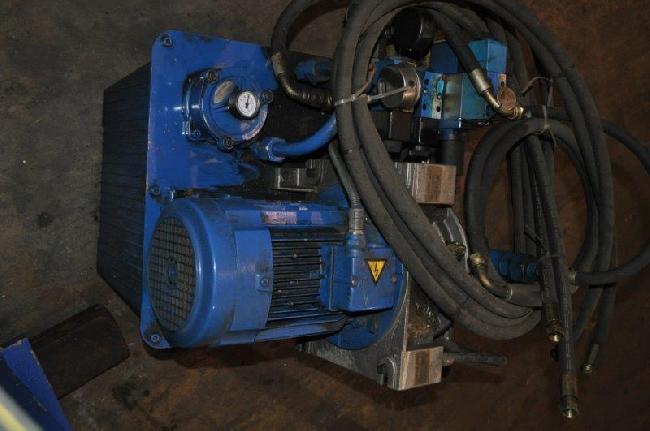

3 KW / 4.0 HP HYDRAULIC POWER PACK
100 BARS / 1450 LBS / SQUARE INCH MAXIMUM HYDRAULIC WORK
6 BARS / 87 LBS / SQUARE INCH MAXIMUM PNEUMATIC WORK
To view more information on the DENN CLL-350 BEADING AND TRIMMING MACHINE, including reviews, brand information, photos, videos, and more,
