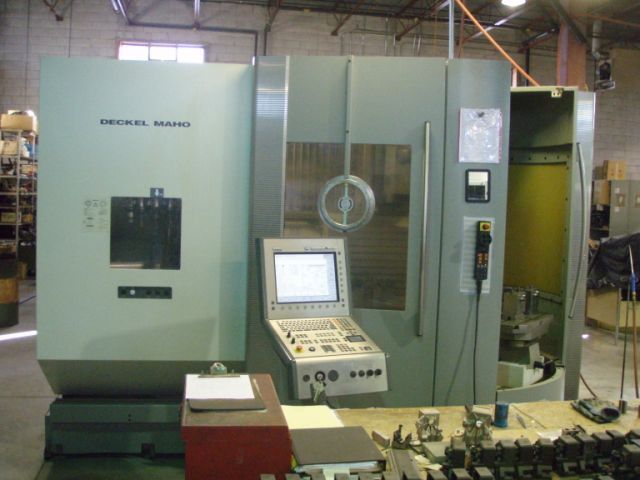

DECKEL MAHO DMC 60T 5-AXIS TWIN PALLET CNC MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


DMC 60T
11430002093
Machining Centers Vertical Horizontal CNC
Horizontal Machining Centers
used
25000 (LB)
2007
$0.00

Description

DECKEL
MAHO DMC 60T 5-AXIS TWIN PALLET CNC MACHINING CENTER, YEAR 2007.

Model
no. DMC 60T

Serial
no. 11430002093





Replacement
cost is US$480,000.00.

EXCELLENT
condition, only 11,818 operating hours.

-Can
be seen running in Newmarket, Ontario, CANADA.

Specifications:

Made
in Pfronten, Germany.

-WORKING
RANGE-

Traverse
range X (longitudinal)........................ 30.71" (780
mm)

Traverse
range Y (transverse).......................... 22.05" (560
mm)

Traverse
range Z (vertical)............................ 22.05" (560
mm)

Volume
machining area......................................... 245 dm-3

Max
workpiece dimensions 23.62"(600mm)diameter, 22.64"(575mm)height,
882 lbs(400kg)

-ROTARY
PALLET CHANGER WITH INTEGRATED NC ROTARY TABLE (C-AXIS)-

-Stable
compact construction with optimal linkage to guideway (Y-Axis)

-NC
rotary table with direct measuring system

-Backlash-free
preloaded precision spur gear for high rigidity, precision and high
torque, maximum holding momentum in closed loop

-High
rapid feed rate

-Note
this machine is equipped w/the optional 100mm distance T-slot
pallets

-Pallet
changer allows setup during production time

Rotation
range...................... 360 x 0.001 degree (Full 4th
Axis)

Clamping
Surface....................... 19.7" x 24.8" (500 mm x 630
mm)

Number
of Pallets....................................................
2

Maximum
table load.................................... 880 lbs (400
kg)

Centre
bush........................................ 2" (50 mm)
diameter

Torque
40% duty cycle.......................... 1,807 ft lbs (2,450
Nm)

Holding
momentum 40%........................... 1,807 ft lbs (2,450
Nm)

Maximum
feed.................................. 7,200 degrees per
minute

Maximum
table speed............................................. 30
rpm

Positional
uncertainty P..................................... 7 arc sec

Pallet
change time............................ Approximately 10
seconds

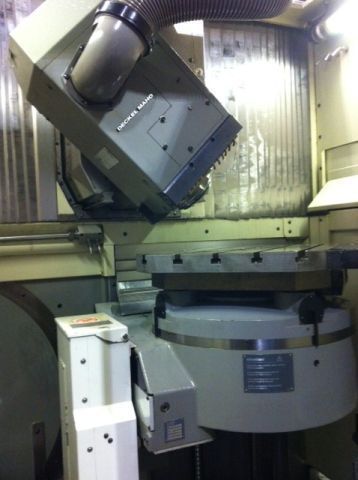

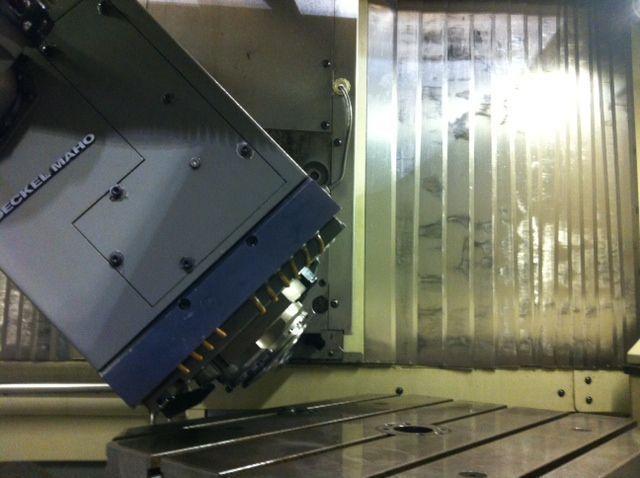

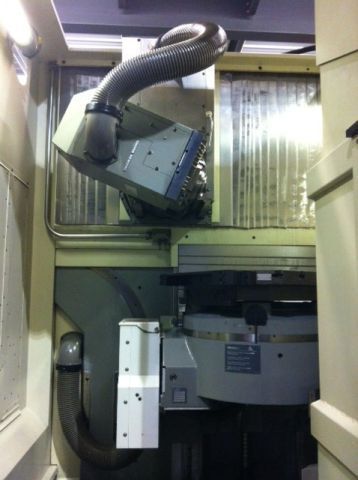

-SWIVEL
MILLING HEAD WITH PROGRAMMABLE B-AXIS-

-Integrated
12,000 rpm motor spindle

-High
pressure coolant supply centrally through spindle centre

Swivel
Range............................ 150 degrees (-120/+30 degrees)

(30
degrees past horizontal,horizontal,vertical,30 degrees past
vertical)

150
degree swivel range allows UNDERCUTS and machining at NEGATIVE
ANGLES

due
to the swivel range of 30 degrees across the horizontal or vertical
axis.This gives you advanced flexibility for complex parts like
impellers.

Swivel
momentum milling spindle (40% duty cycle) 1,620 ft lbs (2,200
Nm)

Holding
momentum without clamping (40% duty cycle) 1,438 ft lbs (1,950
Nm)

Holding
momentum with clamping................. 2,655 ft lbs (3,600
Nm)

Rapid
motion B-axis............................................. 35
rpm

Swivelling
time of the head from horizontal-vertical & vice versa 1.5
secs

Positional
uncertainty P................................. 9 arc
seconds

-INTEGRATED
MOTOR SPINDLE-

Type..............................................
Digitally controlled

Cooled
drive.....................................................
Water

Power
40% ED.......................................... 37.55 hp (28
kW)

Power
100% ED.......................................... 25.5 hp (19
kW)

Spindle
speed range......................................... 12,000
rpm

Acceleration/deceleration
0-12,000 rpm....................... 2 seconds

Number
of gear steps..............................................
None

Spindle
torque 40% ED................................ 89 ft lb (121
Nm)

Spindle
torque 100% ED............................. 60.48 ft lb (82
Nm)

Spindle
bearing diameter (front/rear)........... 3.15"/2.16" (80/55
mm)

Spindle
Taper..................................................
CAT40

Clamping
power.................................................... 8 kN

-FEED
DRIVES-

Drive
cooled X/Y/Z.......................................
Air/Air/Water

Feed
Rate X/Y/Z..................................... 590 ipm (15
m/min)

Rapid
Feed Rate X/Y/Z............................. 1,968 ipm (50
m/min)

Maximum
Feed Rate X/Y/Z........................... 1,968 ipm (50
m/min)

ACCELERATION
X/Y/Z.................................. 0.6 g IN ALL AXES

Feed
Power X/Y/Z........................................... 7/7.2/10
kN

Ball
Screw Spindle X/Y/Z 1.57"x0.8" (40x20 mm)
X&Y,1.97"x0.8"(50x20mm) Z

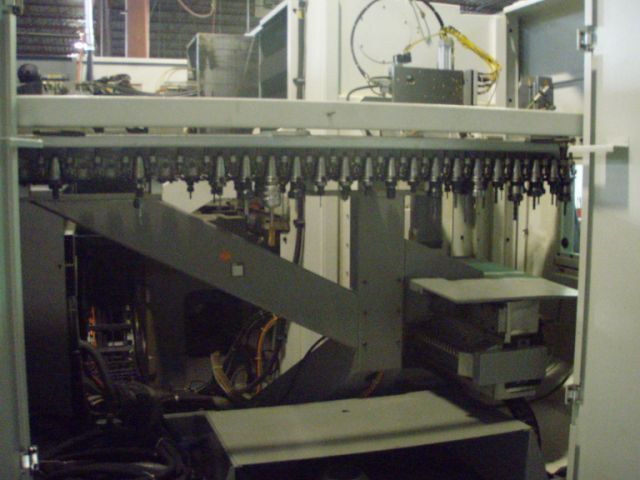

-60
POSITION VERTICAL CHAIN AUTOMATIC TOOL CHANGER-

Magazine
pockets....................................................
60

Maximum
tool weight................................... 17.64 lbs (8
kg)

Maximum
tool diameter without free pockets............... 3.15" (80
mm)

Maximum
tool diameter with free pockets.................. 6.3" (160
mm)

Maximum
tool length..................................... 12.4" (315
mm)

Tool
change time Approximately 0.8 seconds, double gripper tool
changer

Chip-to-chip
time Approximately 4 seconds vertical, 10 seconds
horizontal

-EXTERNAL
COOLANT SUPPLY ON THE OUTSIDE OF THE SPINDLE-

Pump
output.............................. 10.6 gallon/minute (40
l/min)

Pump
pressure......................................... 22 PSI (1.5
bar)

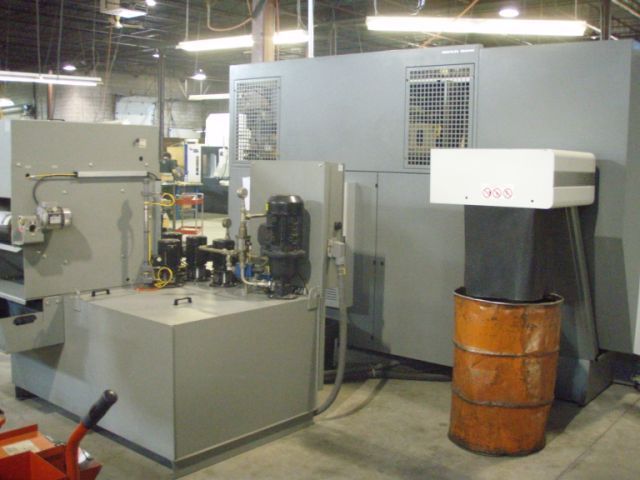

PRODUCTION
PACKAGE-

-238
gallon (900 l) coolant unit capacity

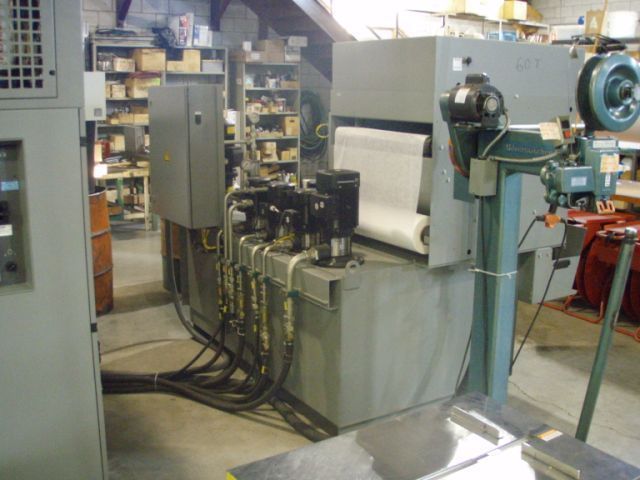

-Automatic
paper filter cleaning with fine filtering of the complete

emulsion
to less than 50 um

-Cleaning
of the spindle by spindle air blast for high

precision
also for cleaning with frequent tool changes

-580
PSI (40 bar) 6 gallon/min (23 l/min) coolant thru the spindle
centre

-Rotating
clear-view window in cabin pane

-Chip
flushing inside work cabin

-Chip
conveyor

INSTALLATION
DATA-

Operation
voltage..... 400 V input (comes with multi input
transformer)

Control
voltage................................................... 24 V

Max
at 100% duty cycle........................................... 100
A

Power
consumption at 100% duty cycle........................ 64
kVA

Recommended
net protection....................................... 100
A

Recommended
short circuit...................................... 3.6
MVA

Compressed
air required................................. 87 PSI (6 bar)

Air
consumption (average value)............................... 20
m-3/h

Air
consumption with tool cooling............................. 40
m-3/h

Total
weight with pallet changer..... Approximately 22,000 lbs (9
tons)

3-point
support with 3 leveling shoes, no special foundation required

-ITEMS
TO SHIP-

1/4:
DMG DMC60T: Approx 152" L X 134" W X 100" H, 22,000
lbs

2/4:
COOLANT TANK: Approx 90" L X 56" W X 66" H, 1,500
lbs

3/4:
CHIP CONVEYOR: Approx 127" L X 27" W X 77" H, 1,000
lbs

4/4:
TRANSFORMER ON SKID: Approx 48" square, 500 lbs

-MACHINE
IS EQUIPPED WITH-

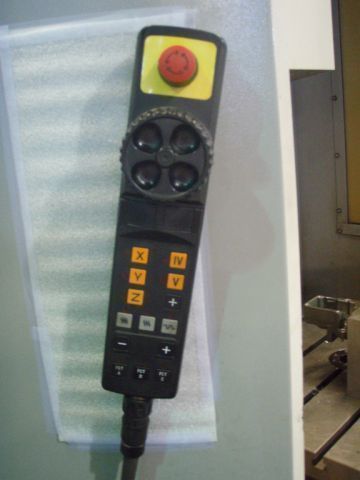

Heidenhain
iTNC530 CNC Control with HR410 electronic handwheel

Blum
Laser tool length and diameter measuring, horizontal/vertical

Air
blast through spindle centre, selected with M-function

Spay
pistol with pump

Multi
input transformer

Heidenhain
glass scales direct measuring system X/Y/Z Axes

Heidenhain
rotary encoders direct measuring system B/C Axes

External
coolant nozzles on outside of spindle air/coolant
selectable

Automatic
switch-off of positive air pressure for the main spindle after work
end

Linear
roller guideways and digital drives. Stability and high precision are
ensured with roller guideways with over-dimensioned distances between
the guideways. The table centre of gravity moves in between the
vertical guideways (Z-Axis).

Electronic
temperature compensation

Spindle
chiller

Manuals
and cd

Full
enclosure of machining area for safety and noise reduction

Sensitive
machine parts (measuring systems, limit switches, guide-ways, drives)
are separate from the machining area

Automatic
pallet changer.
