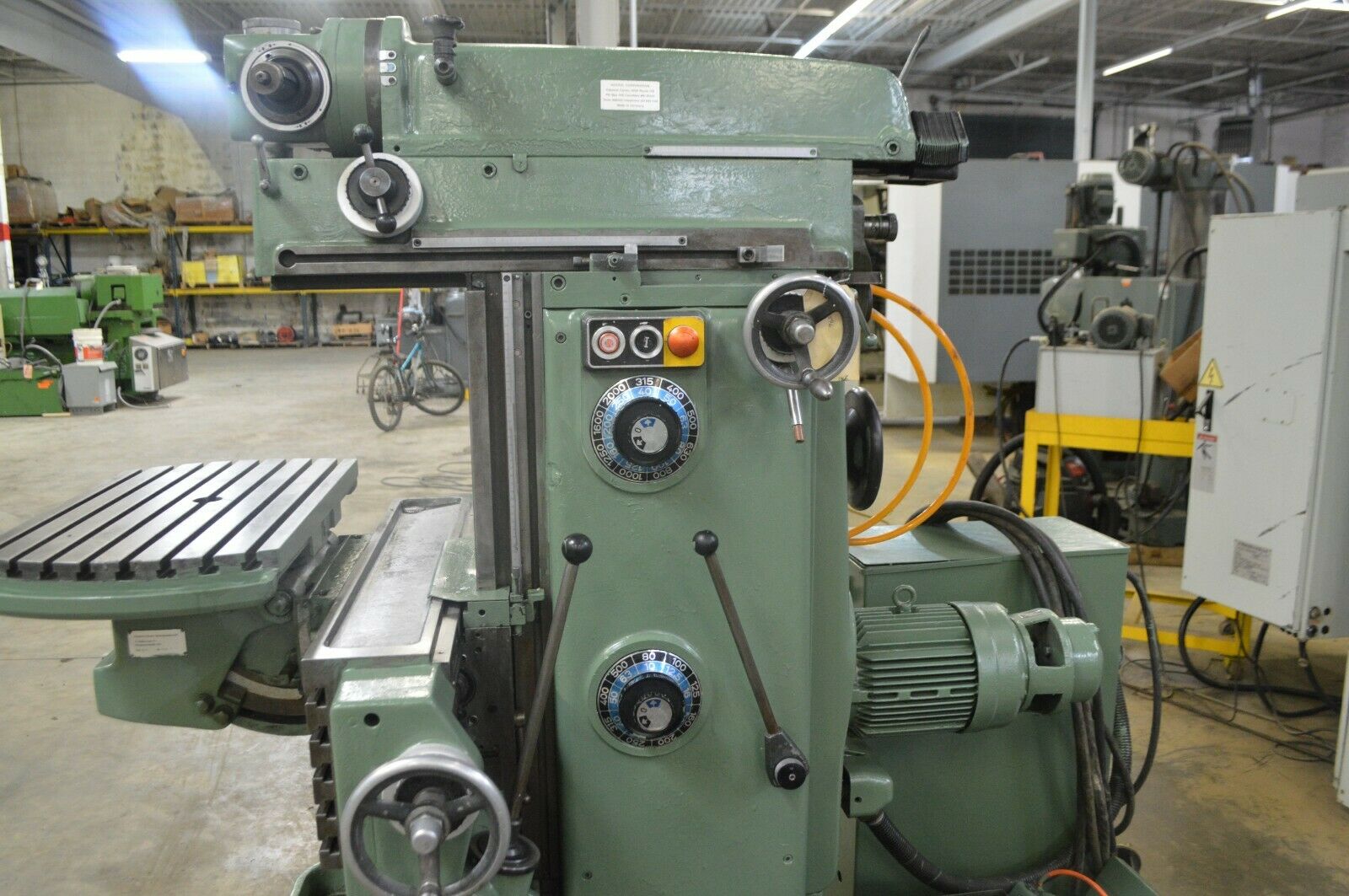

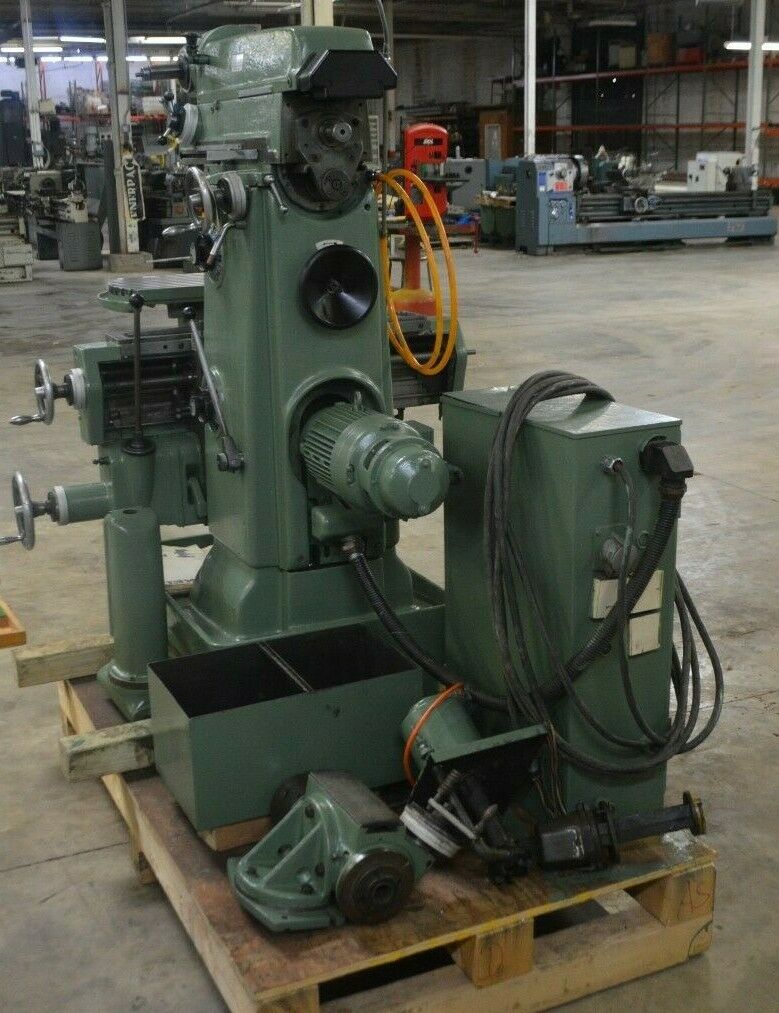

DECKEL FP3 UNIVERSAL MILL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


FP3
Milling Machines
MILLERS, HORIZONTAL, UNIVERSAL
used
(LB)
0
$14,500.00

Description

Motor: 3KW (4 hp); 1420 rpm
Spindle Speeds: 40-50-63-80-100-125-160-200-250-315-400-500-630-800-1000-1250-1600-200 rpm (Ratio between two consecutive speeds: 1: 1, 25)
Cutter Spindle: Standard taper No. 40

Clamping Areas:
              Table Slide: 3 T-slots 12mm, distance 90mm
Fixed Angular Table: 420 x 800 mm (16 1/2 x 31 1/2) 9 T-slots 12mm, distance 40mm

Adjustment Ranges:
        Vertical: power - 370mm (14 1/2), hand - 380mm (14 7/8)
Longitudinal: power - 490mm (19 1/4), hand - 500mm (19 5/8)
  Transverse: power - 290mm (11 3/8), hand - 300mm (11 3/4)
      Spindles: hand - 100mm (3 15/16)

Feed Rates:
Metric screws: 10-12,5-16-20-25-31,5-40-50-63-80-100-125-160-200-250-315-400-500 mm/min
   Inch Screws: .4-.5-.6-.8-1-1.3-1.6-2-2.5-3-4-6.5-8-10--13-16-20 ipm
Rapid Traverse Rate: 1500mm/min (60 ipm)

Traversing Screws:
Scale Drums: 1 revolution = 2.5mm (.1), 1 division = .25mm (.001)
For Quill of Spindle Head: 1 division = 1mm (.04)

Dimensions and Weights:
Machine without spindle head and tables, but with electr. equipment: approx. 2380lbs
Vertical spindle head: 190lbs
Machine, crated (depending on accessories): 1 3/4 to 2 1/2 tons
Crate: 60 x 71 x 76 (1510 x 1800 x 1930 mm)

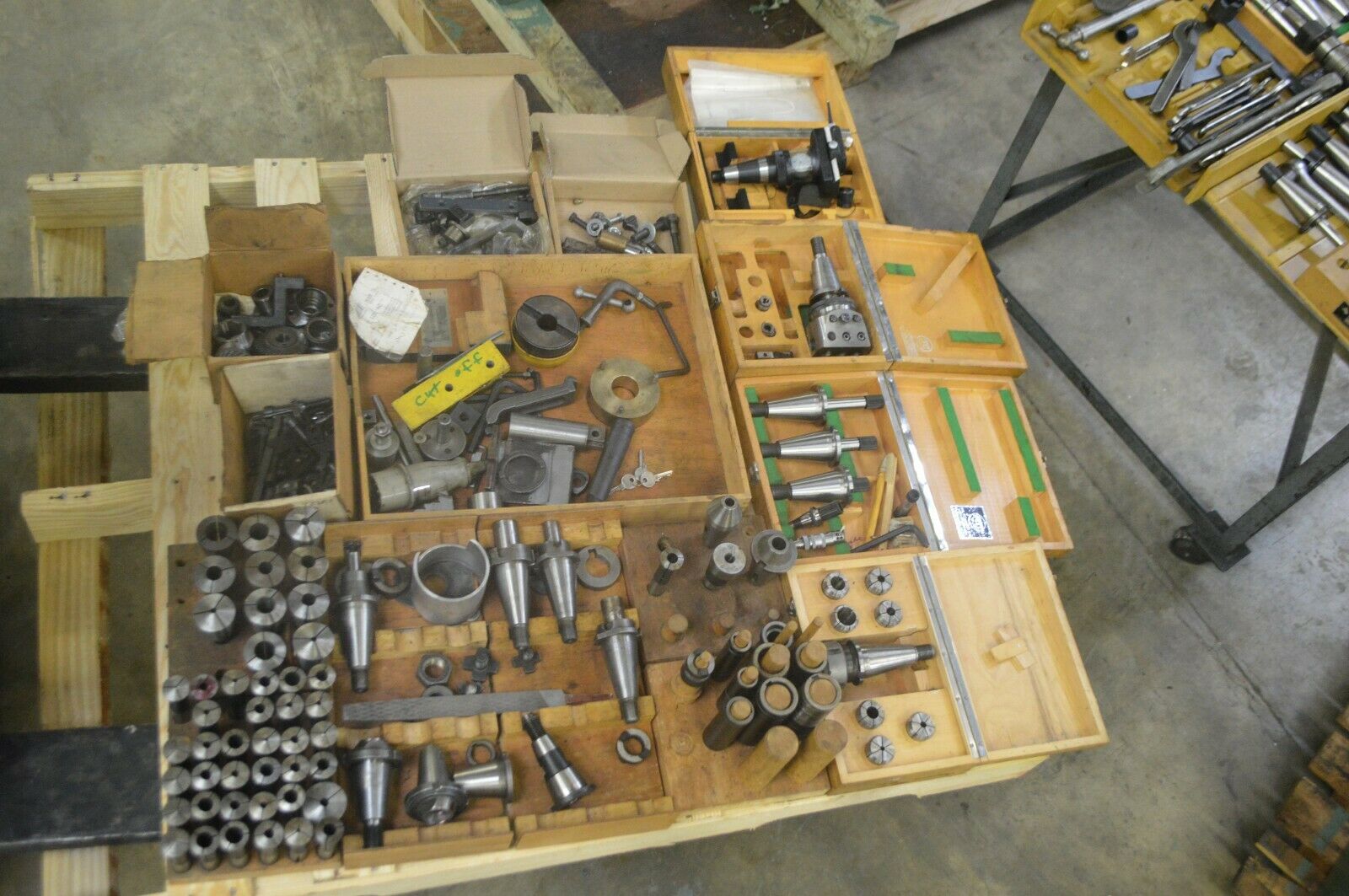

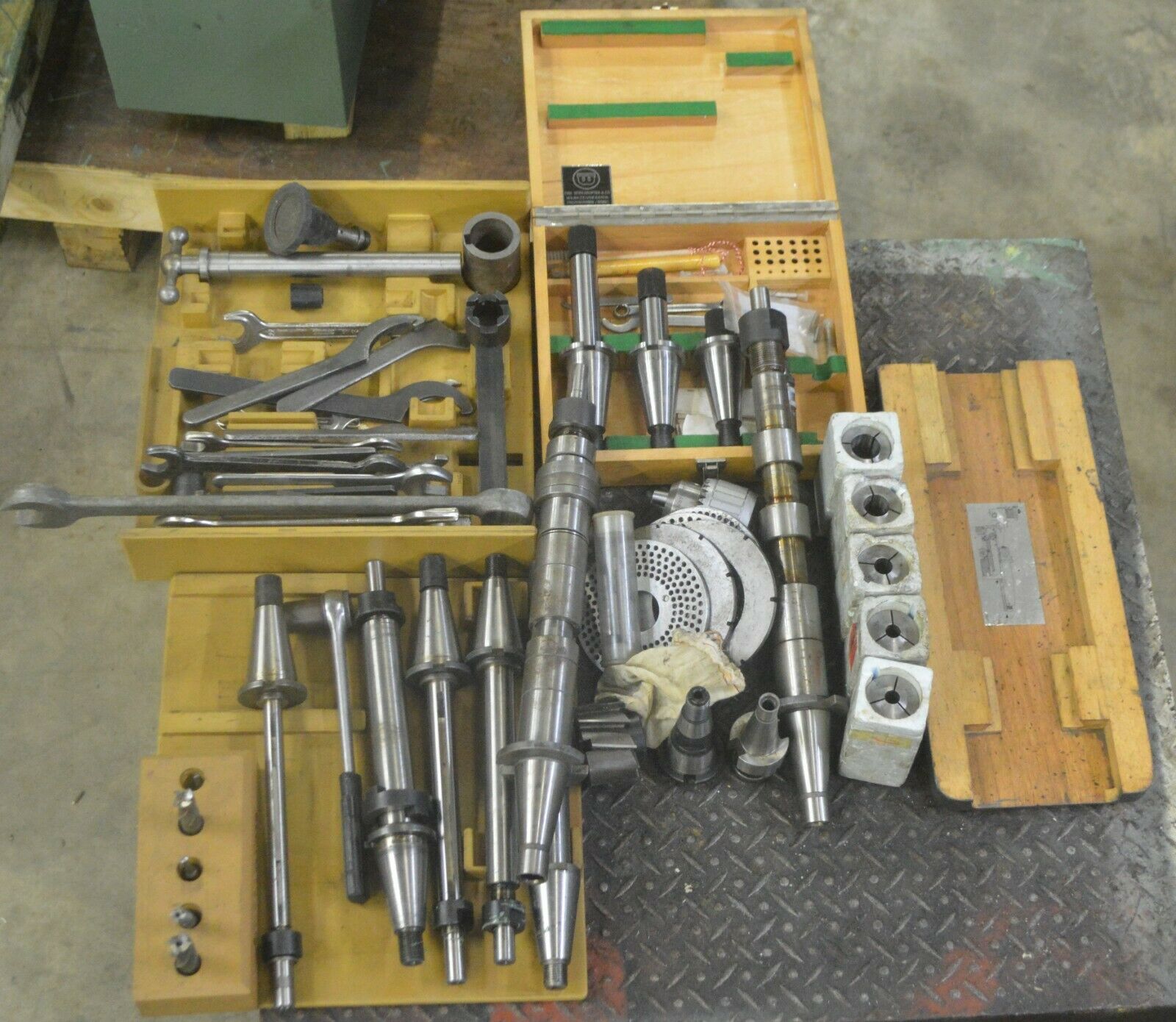

Accessories include:
Boring head
Slotting attachment

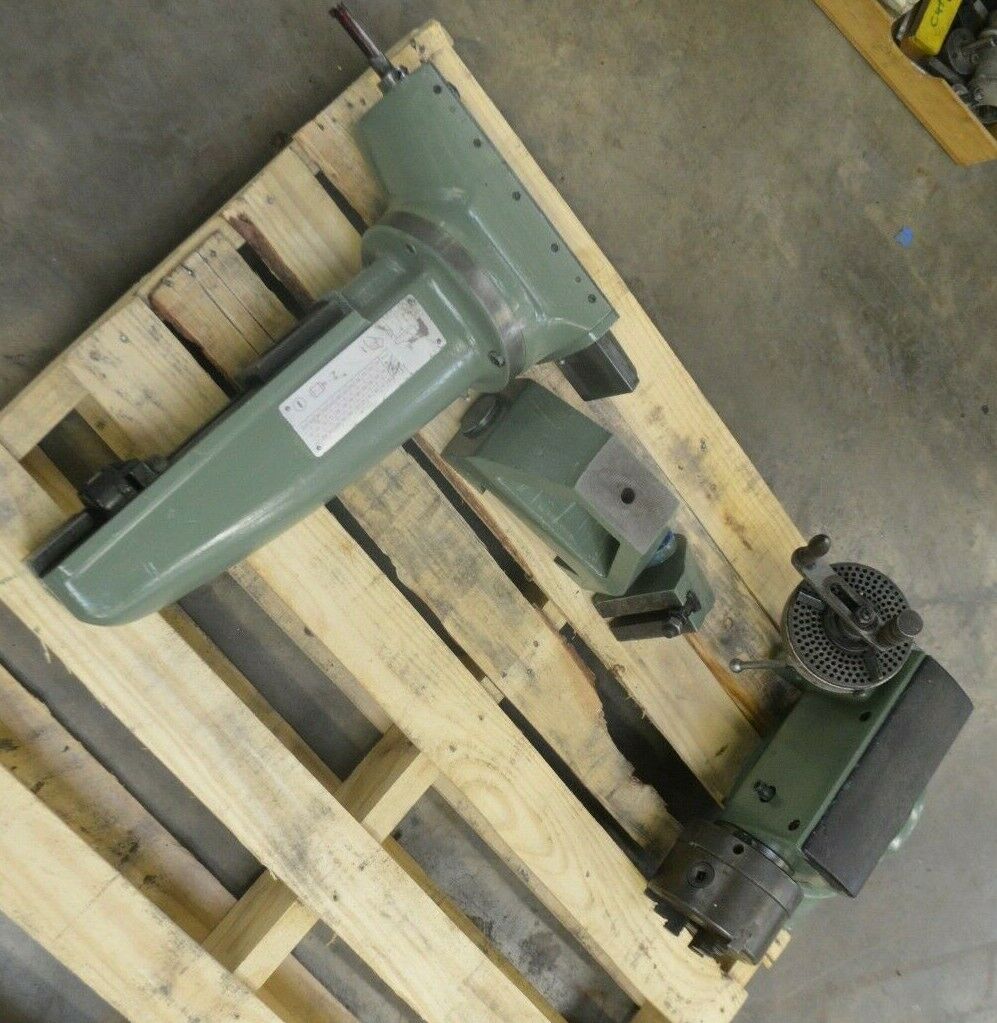

Dividing head
Tool holders
Horizontal milling arbors
Overarm support

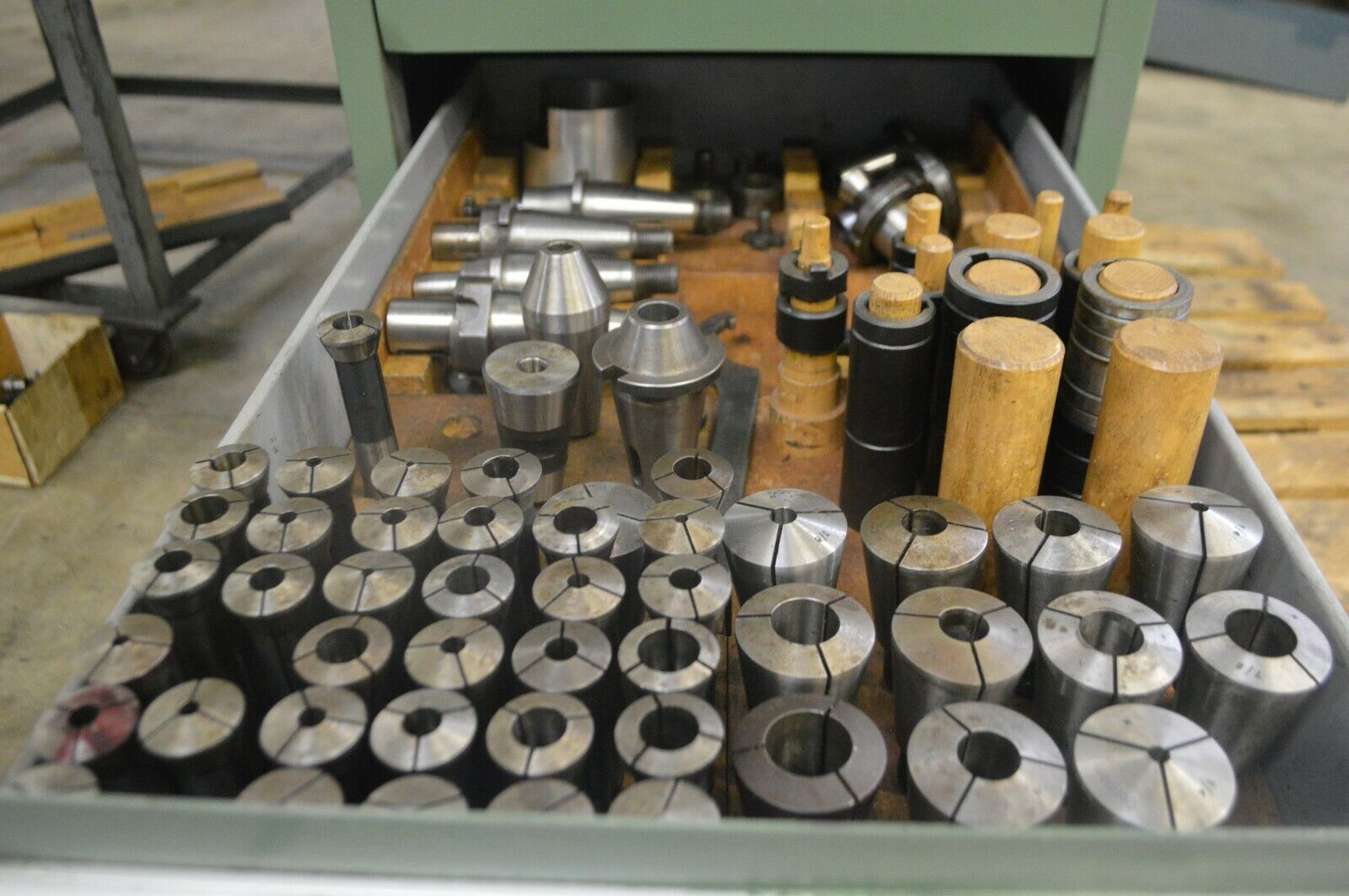

Collets
Wrenches
Drive Gears
Hardware

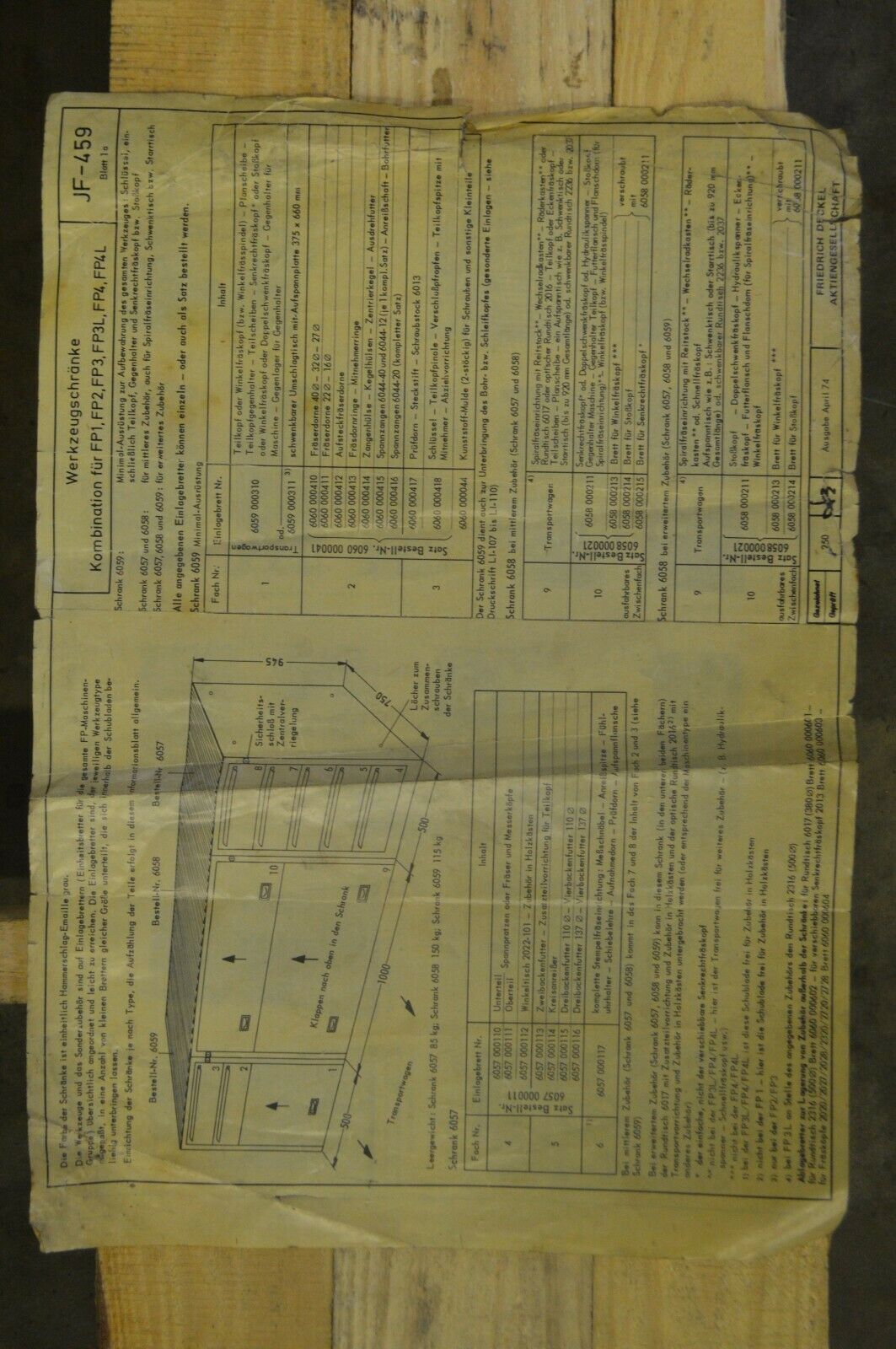

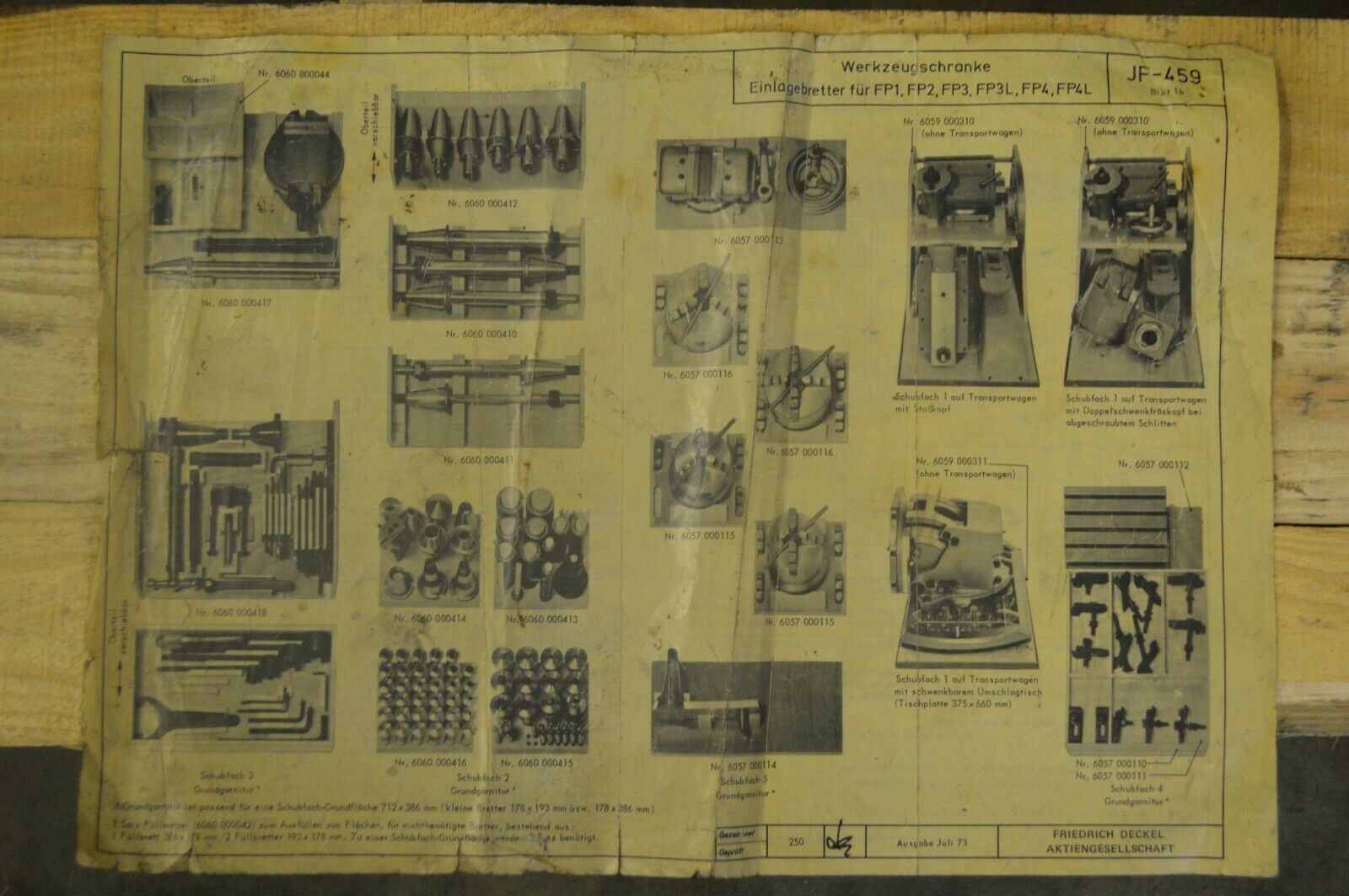

Manuals

Stock# 06596

The Above Specifications are Deemed Accurate, however, they are subject to verification.

**Freight Quote Available Upon Request
