DEAN SMITH & GRACE HEAVY DUTY MODEL 25 GAP BED LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


GRACE MODEL 25 HVY DUTY, CHUCK
S/N 33563-4-61
Lathes (Manual)
Gap Bed Lathes
used
14500 (LB)
1961
$0.00

Description

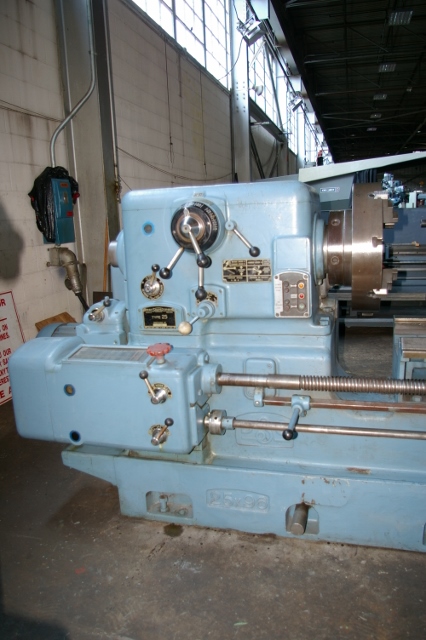

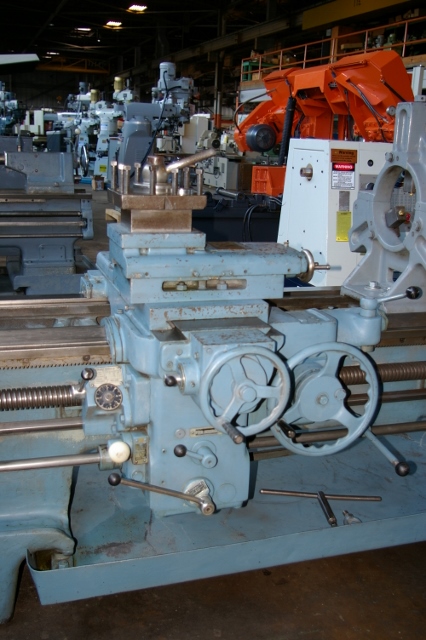

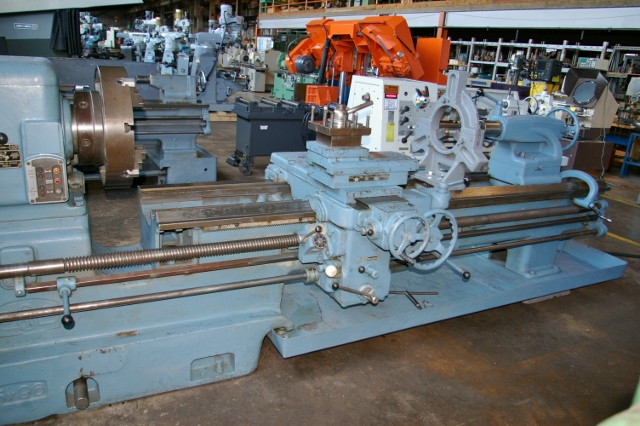

27"/42" X 96" DEAN SMITH & GRACE HEAVY DUTY MODEL 25 GAP BED LATHE

MODEL 25

MAXIMUM SWING OVER BED -------------------- 27"

MAXIMUM SWING OVER CROSS SLIDE ------------ 16"

MAXIMUM SWING IN GAP ---------------------- 42"
LENGTH OF GAP IN FRONT OF CHUCK ----------- 11"
MAXIMUM DISTANCE BETWEEN CENTER ----------- 96"
DIAMETER OF HOLLOW SPINDLE ---------------- 4-1/8"
CAMLOCK SPINDLE --------------------------- D1-11
24 SPINDLE SPEEDS ------------------------- 5.3 TO 420 RPM
48 RATES OF POWER FEED BY GEARBOX
48 THREADS -------------------------------- 2 TO 112 TPI
POWER FEED LONG. & CROSS TO SADDLE
MAIN DRIVE MOTOR -------------------------- 20 HP 440 VOLT
EQUIPPED WITH ---
20" 4 JAW CHUCK
THREADING DIAL
STEADY REST
SQUARE TURRET TOOL POST
COOLANT PUMP & PIPING
CHIP PAN BED

STOCK# 18374
