DCM / WILSON MINI PDG – PUNCH & DIE GRINDER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Mini PDG
11701
Grinders
Punch Grinder
used
800 (LB)
0
$8,950.00

Feature Video

Description

DESCRIPTION:

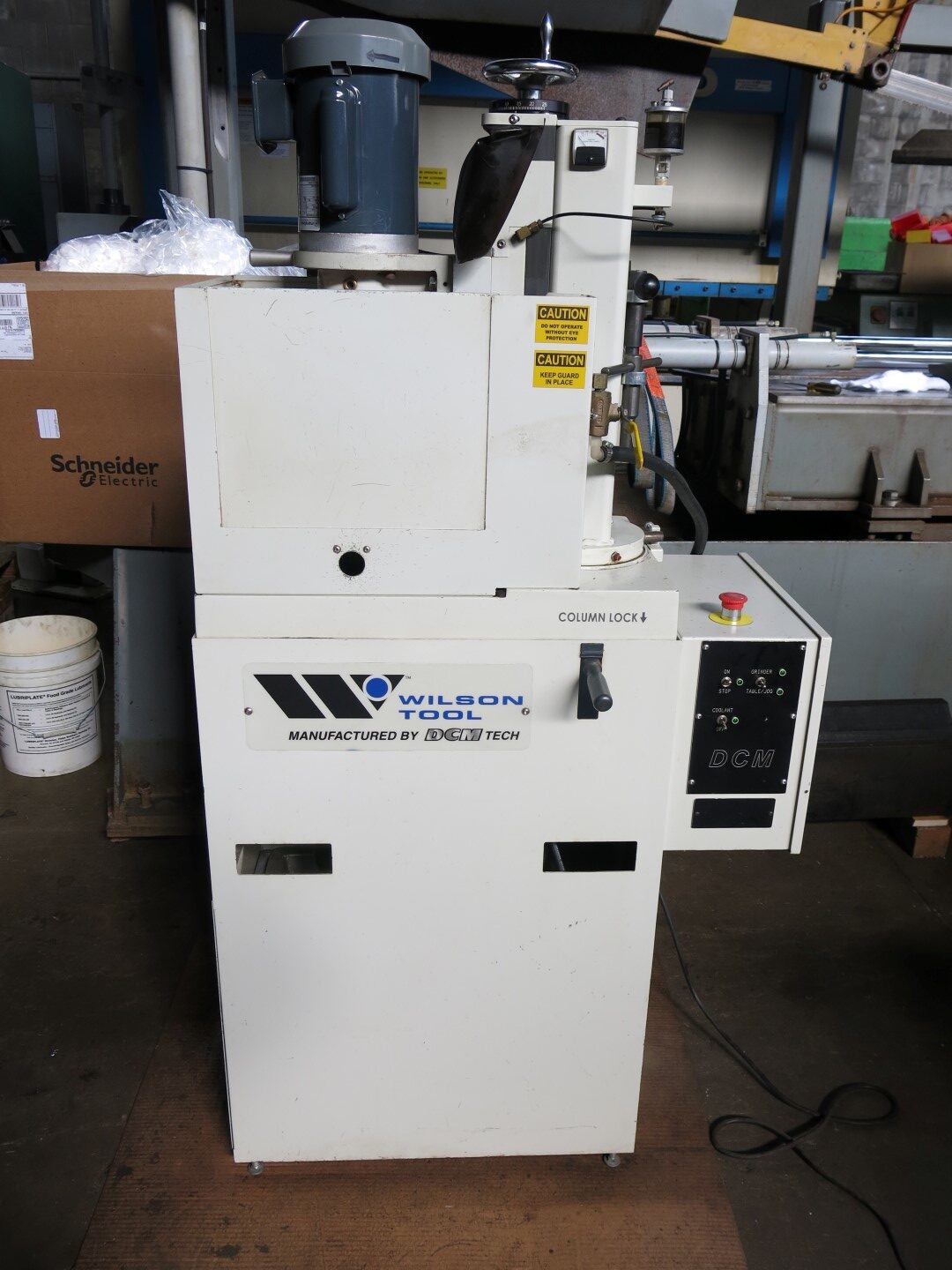

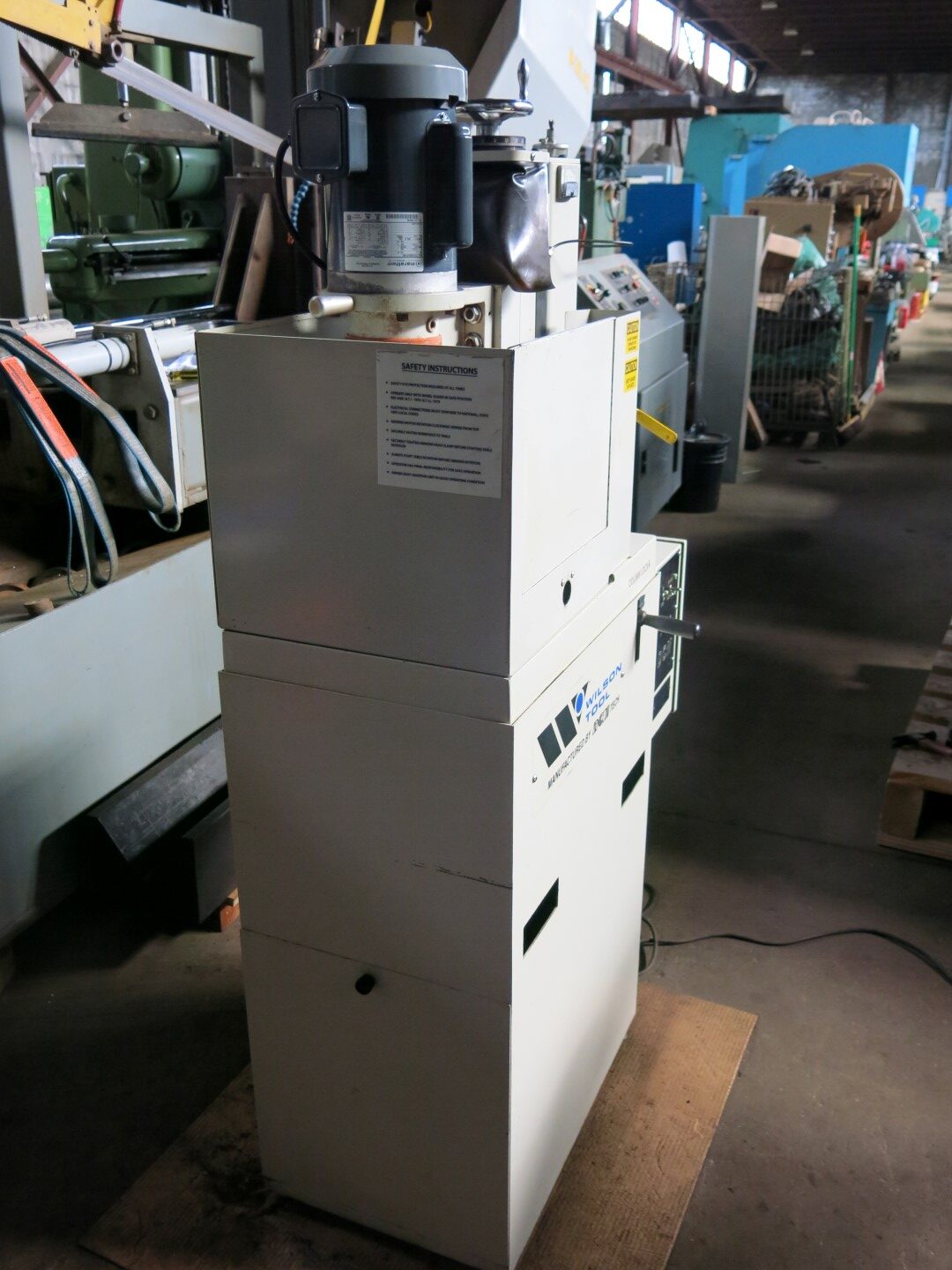

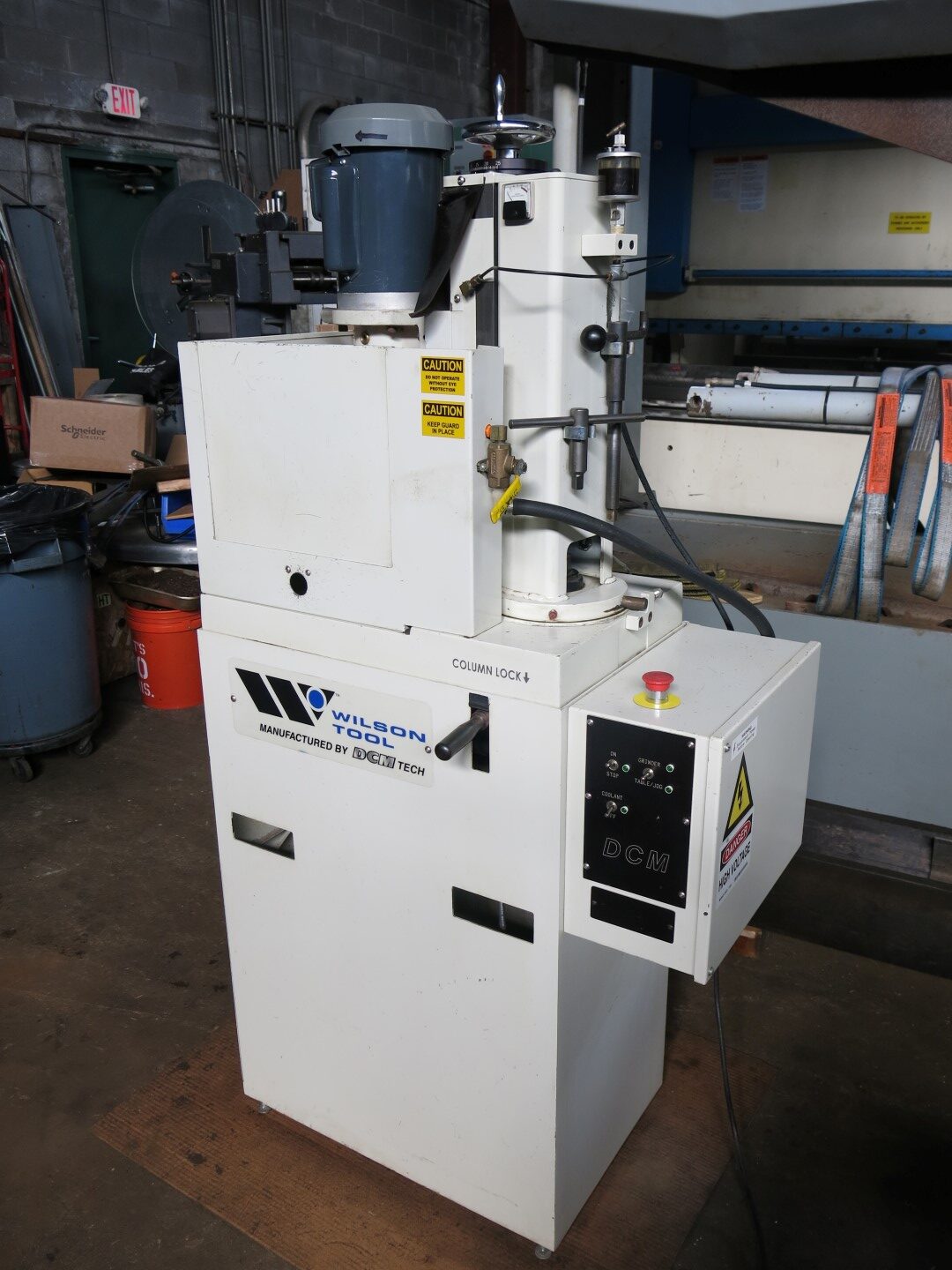

DCM / Wilson Mini PDG

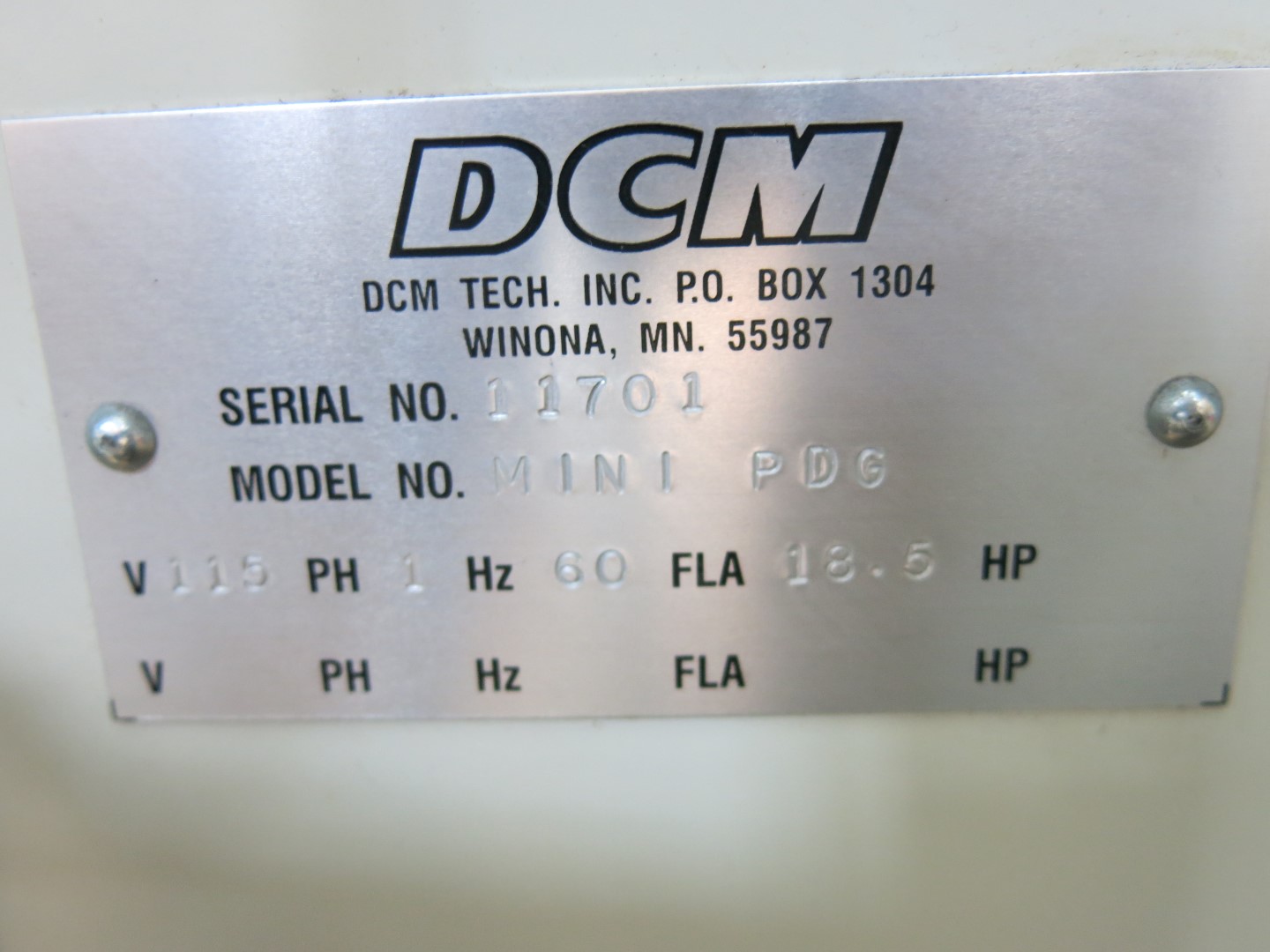

Serial # 11701

The Punch and Die Grinder (PDG), a Rotary Table Surface Grinder, is primarily dedicated to the sharpening of turret press tooling, but also includes the sharpening of rooftop punches and small progressive die details. DCM Techs Punch and Die Grinder is a turnkey package with autofeed control, self dressing CBN abrasives, through spindle coolant and universal fixturing that accepts Amada, Trumpf, Salvagnini, Finnpower, Weideman, Whitney, and other style tooling. Sharpen large station dies and rooftop/shear angle tooling up to 10 degrees with the standard fixturing package. Typical grind time is less than 5 minutes.

New cost $16,500

Machine Specifications:

Standard 110V, 1-Phase -or- Optional 208V, 1-Phase

Cast iron base

Rigid z-axis column with dovetail ways

Accepts 6 in diameter grinding wheel

Recirculating coolant system with paper filter media

Standard 3 jaw chuck workholding fixture

Optional fixturing for angled tool sharpening

1-1/2 HP 3600 RPM Grinding Spindle Motor

Powered Rotary Table

Dimensions 33 in x 17 in x 60 in

Weight 800 lbs

Grinding Applications:

Sharpen Turret Press Tooling

Sharpen Ironworker Tooling

Sharpen Rooftop Punches

Sharpen Progressive Dies

Regrind Dies Sets

Debur Stripper Plates
