Description

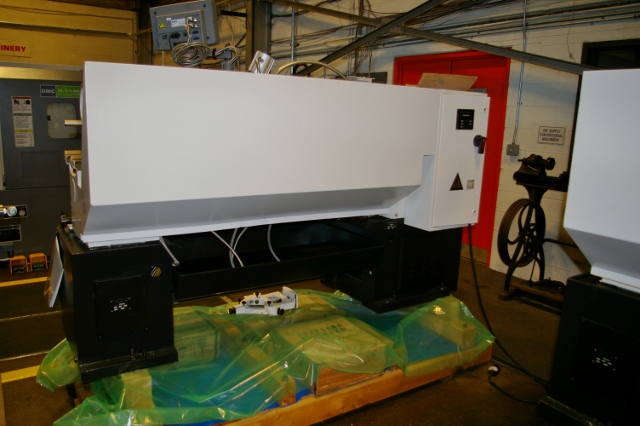

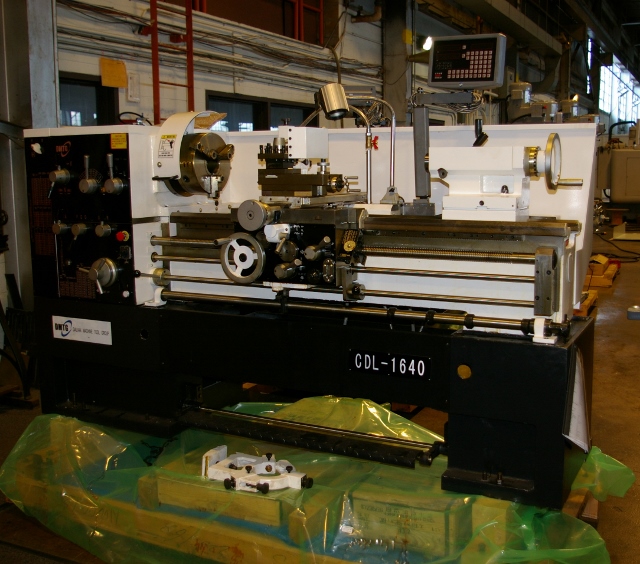

NEW DALIAN MODEL CDL6241/1000 16" X 40" CC GAP BED LATHE
STANDARD EQUIPMENT:

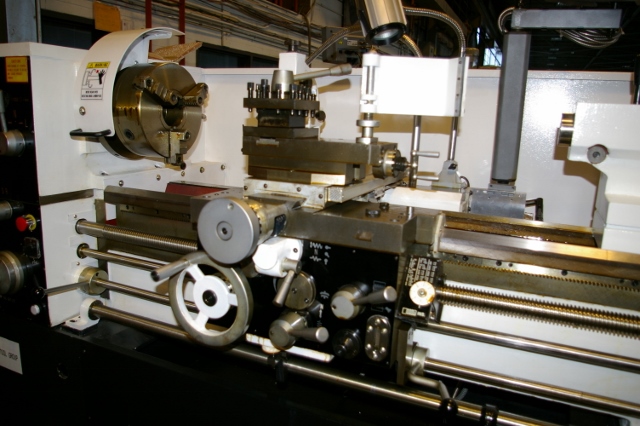

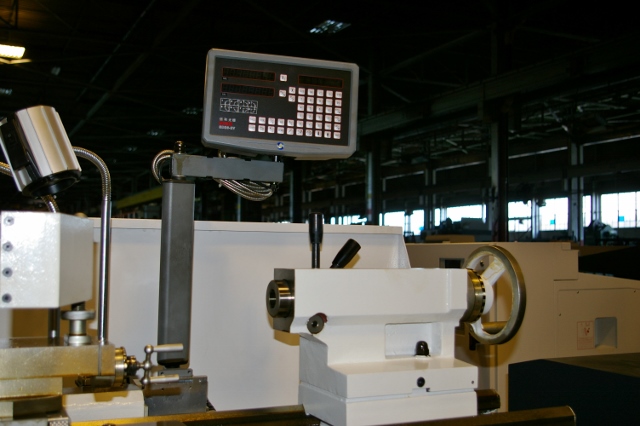

10" 3-JAW CHUCK 2-AXIS DIGITAL READ OUT INSTALLED
12" 4-JAW CHUCK TAPER TURNING ATTACHMENT
FOLLOW REST STEADY REST
COOLANT SYSTEM SPLASH GUARD & CHUCK GUARD
4-WAY TOOL POST DRIVE PLATE
FACE PLATE 18" THREAD DIAL
ANTI-VIBRATION PADS CE COMPLIANCE
SPECIFICATIONS:
CAPACITY:
SWING OVER BED ---------------------------- 16"
SWING OVER CROSS SLIDE -------------------- 9"
SWING OVER GAP ---------------------------- 25"
DISTANCE BETWEEN CENTERS ------------------ 40"
HEADSTOCK:
SPINDLE NOSE TYPE ------------------------- D1-6 CAMLOCK
SPINDLE BORE ------------------------------ 2.04"
SPINDLE SPEEDS ( 12 ) --------------------- 32 - 2,000 RPM
TAPER OF TAILSTOCK CENTER ----------------- MT#4
THREADS AND FEEDS:
INCH THREADS ------------------------------ 2 - 56 TPI
METRIC THREADS ---------------------------- .5 - 14 MM
BED WIDTH --------------------------------- 12"
TAILSTOCK:
QUILL TRAVEL (GRADUATED) ------------------ 5.9"
QUILL DIAMETER ---------------------------- 2.36"
QUILL TAPER ------------------------------- MT#4
GENERAL:
ELECTRICS --------------------------------- 220V/60HZ/3PH
SPINDLE MOTOR ----------------------------- 4/6 HP AC
NET WEIGHT (APPROX.) ---------------------- 3,000 LBS.
PRICE, F.O.B. OUR WAREHOUSE WITH 30 DAY RETURN PRIVILEGE
AND ONE YEAR WARRANTY ON PARTS ------------------------------- $ 11,650.00
SHIPPING RESPONSIBILITY TRANSFERS TO THE BUYER WHEN DELIVERY IS MADE TO
THE CARRIER. ANY CLAIM FOR LOSS OR DAMAGE MUST BE HANDLED BETWEEN
PURCHASER AND CARRIER.
TERMS PAYMENT PRIOR TO REMOVAL.
PRICING DOES NOT INCLUDE ANY APPLICABLE TAXES, FREIGHT OR RIGGING.
PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
