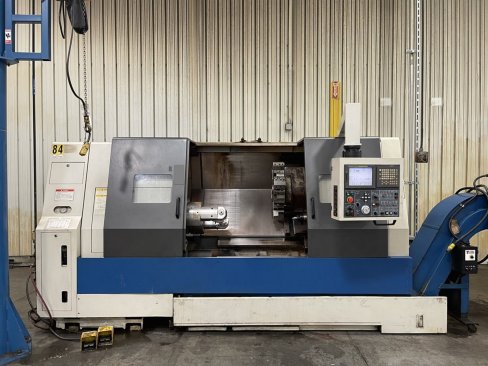

DAEWOO PUMA 400B, FANUC 21 ITB, 15"CHK,MFG:2006 OUR STOCK NUMBER: 12105

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


PUMA 400B
Lathes and Turning Centers CNC
Slant Bed Turning center
used
19000 (LB)
2006
$0.00

Description

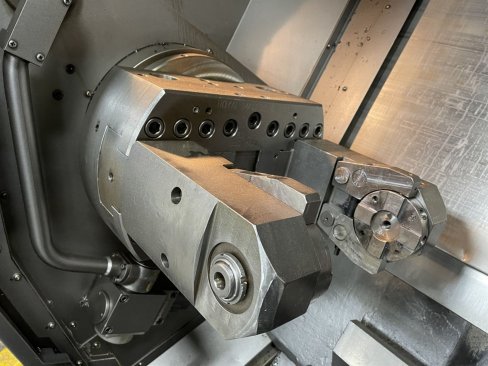

Chuck Size: 15" capacity
valve chuck is currently installed. Machine will also come with a
15" kitagawa hyd. chuck
Max Diameter Bar Capacity: 4.63"
Max Swing Over Bed / Carriage: 27.56" / 18.9"
Spindle Motor: 50 / 37 HP
Spindle Speed: 20 - 2000 RPM
Spindle Nose: A2-11
Spindle Bore: 5.2"

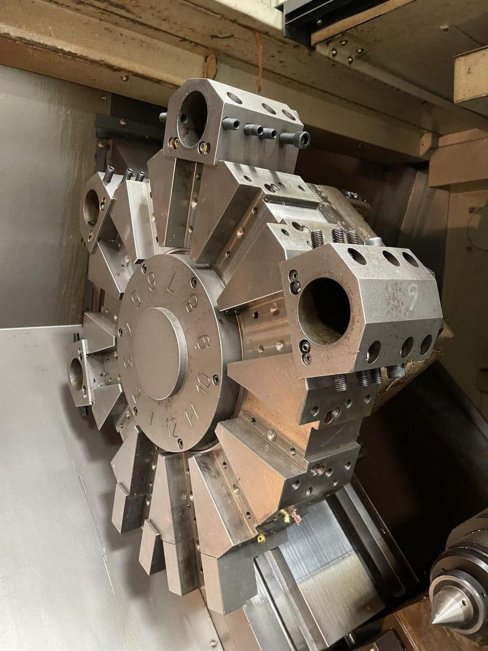

Tools: 10
Rapid Traverse Rates (X / Z): 630 / 790 IPM
X-Axis Travel: 14.3"
Z-Axis Travel: 43.5"
Turret Index (Single Step): 0.25 Seconds
Machine Dimensions (L x W x H): 153" x 85" x 90"
Machine Weight: 19,000 lbs.
Distance Between Centers: 44.1"
Max Turning Diameter (Max / Std): 21.65" / 14.96"
Max Turning Length: 41.34"
Spindle Torque: 1836 ft. lbs.
Tailstock Taper: MT#6
Product Features

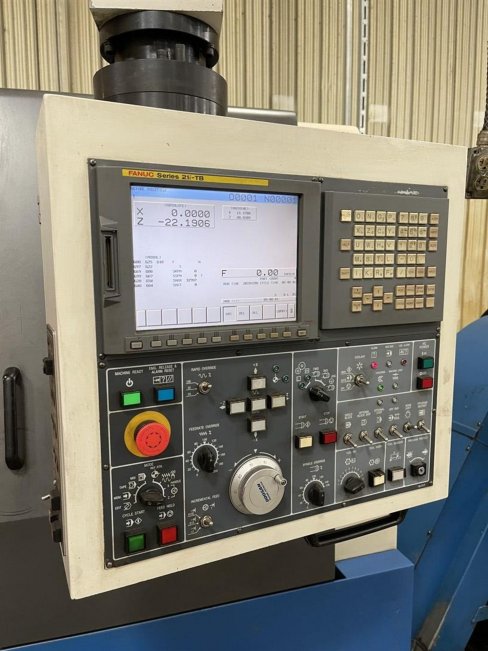

FANUC 21iTB CNC control
PC/MCIA Interface
15" Hydraulic Chuck
Programmable Tool Presetter

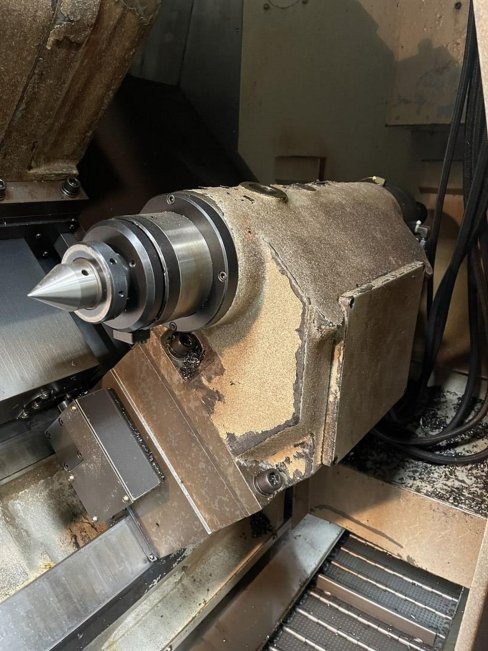

Programmable Tailstock Quill

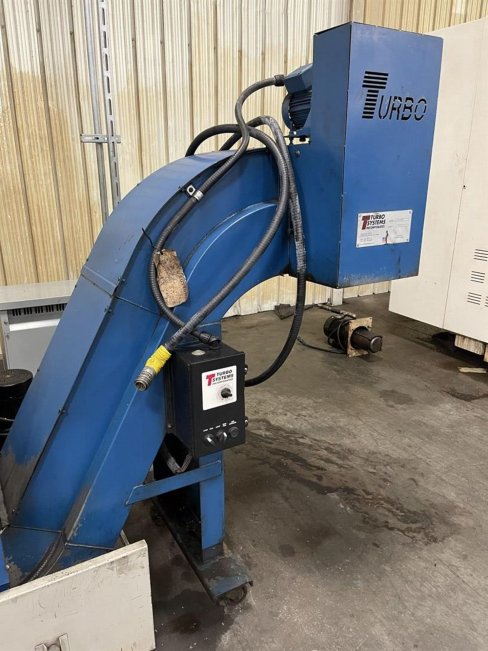

Chip Conveyor
2900 Hrs
