DAEWOO PUMA 230SA CNC LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


230SA
Lathes and Turning Centers CNC
Twin Chuck (Spindle) machines
new
10000 (LB)
2001
$22,500.00

More Specs

20.1 in
15
FANUC 18iT CNC
3 Jaw
12 POSITION TURRET

Feature Video

Description

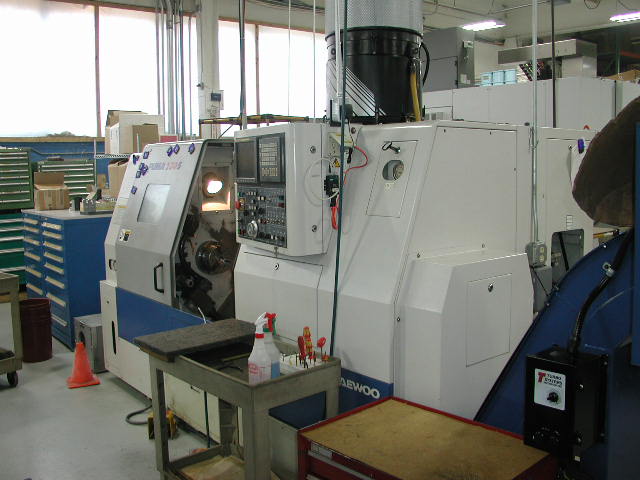

DAEWOO PUMA 230SA CNC LATHE Fanuc 18iT Subspindle Chip Conveyor 2001

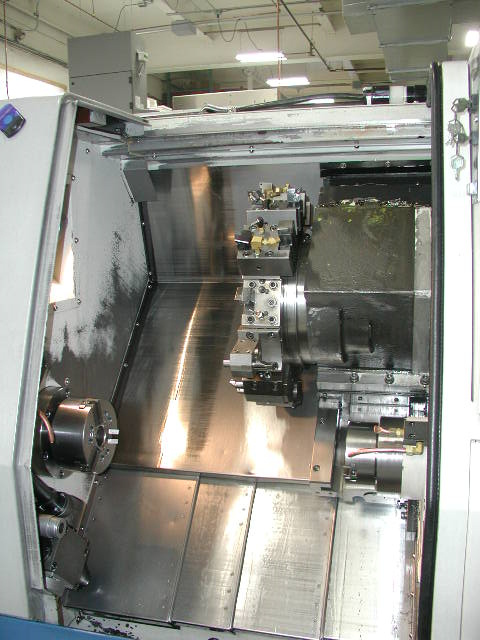

DAEWOO PUMA 230SA CNC TURNING CENTER W/ SUBSPINDLE

NEW: 2001



SPECIFICATIONS:

SWING OVER BED ............ 20.1"

SWING OVER SADDLE ......... 13.0"

MAX. MACHINING DIA. ....... 13.8"

MAX. WORK LENGTH .......... 16.7"

DRAW TUBE DIA. ............ 1.77"

X-AXIS TRAVEL ............. 8.66"

Z-AXIS TRAVEL ............. 17.32"

B-AXIS TRAVEL ............. 18.90"

MAIN SPINDLE SPEED ........ 60-6000 RPM

SUB SPINDLE SPEED ......... 60-6000 RPM

NO. OF TOOL STATIONS ...... 12

OD TOOL HEIGHT ............ 1"

BORING BAR DIA. ........... 1.5"

MAIN SPINDLE MOTOR ........ 15 HP

SUBSPINDLE MOTOR .......... 7.5 HP

APPROX. MACHINE WEIGHT .... 10,000 LBS



EQUIPPED WITH:

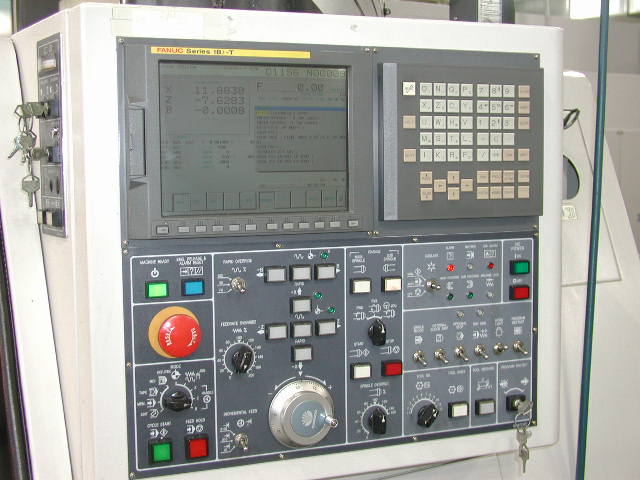

 - FANUC 18iT CNC CONTROL

 - TOOL PRESETTER

 - PARTS CATCHER

 - 3 JAW CHUCKS ON MAIN AND SUBSPINDLES

 - 12 POSITION TURRET

 - ALL AVAILABLE TOOL HOLDERS

 - ALL AVAILABLE MANUALS



 Call Marc @ (732) 390-0006 to inspect under power in NJ
