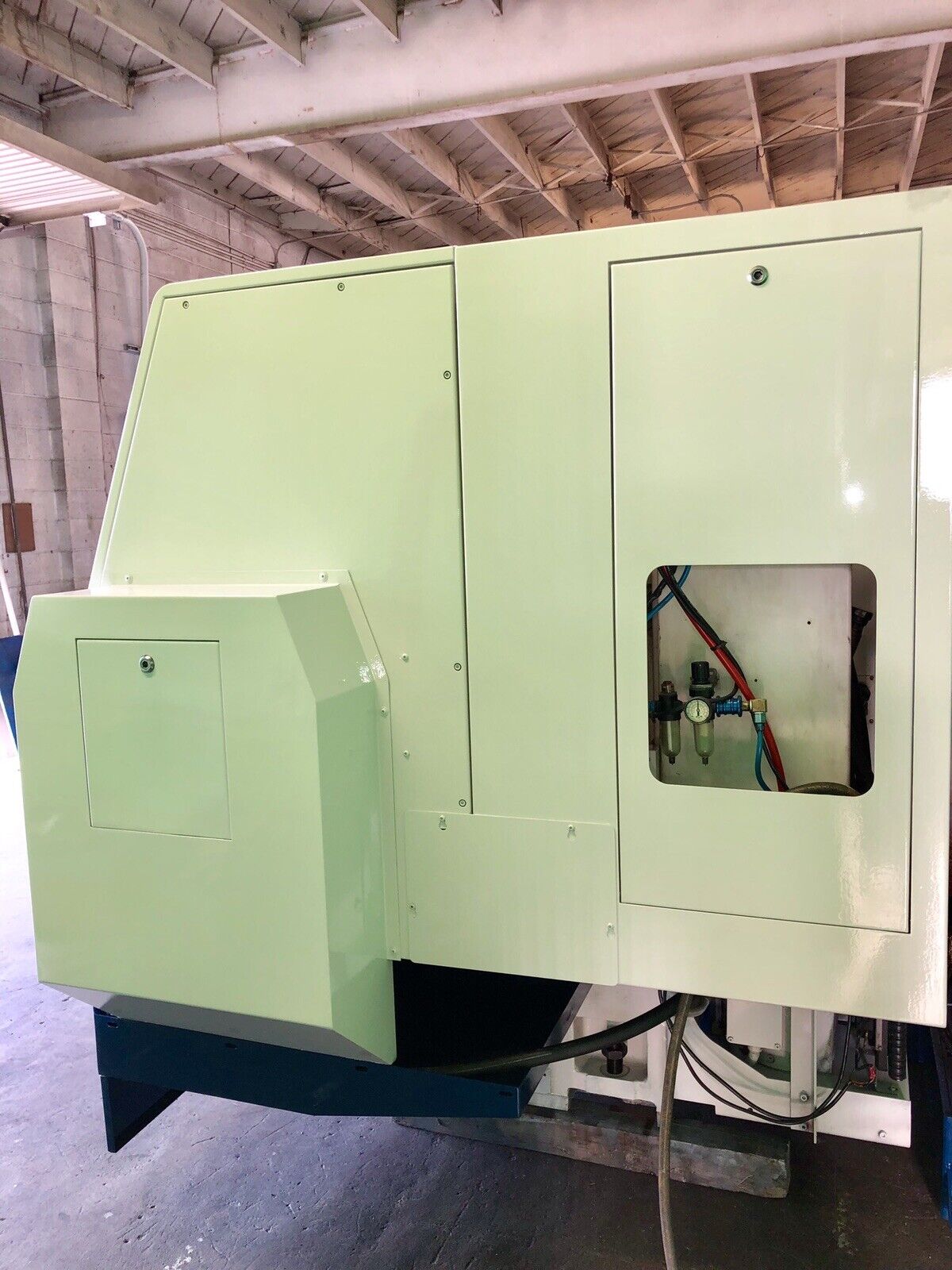

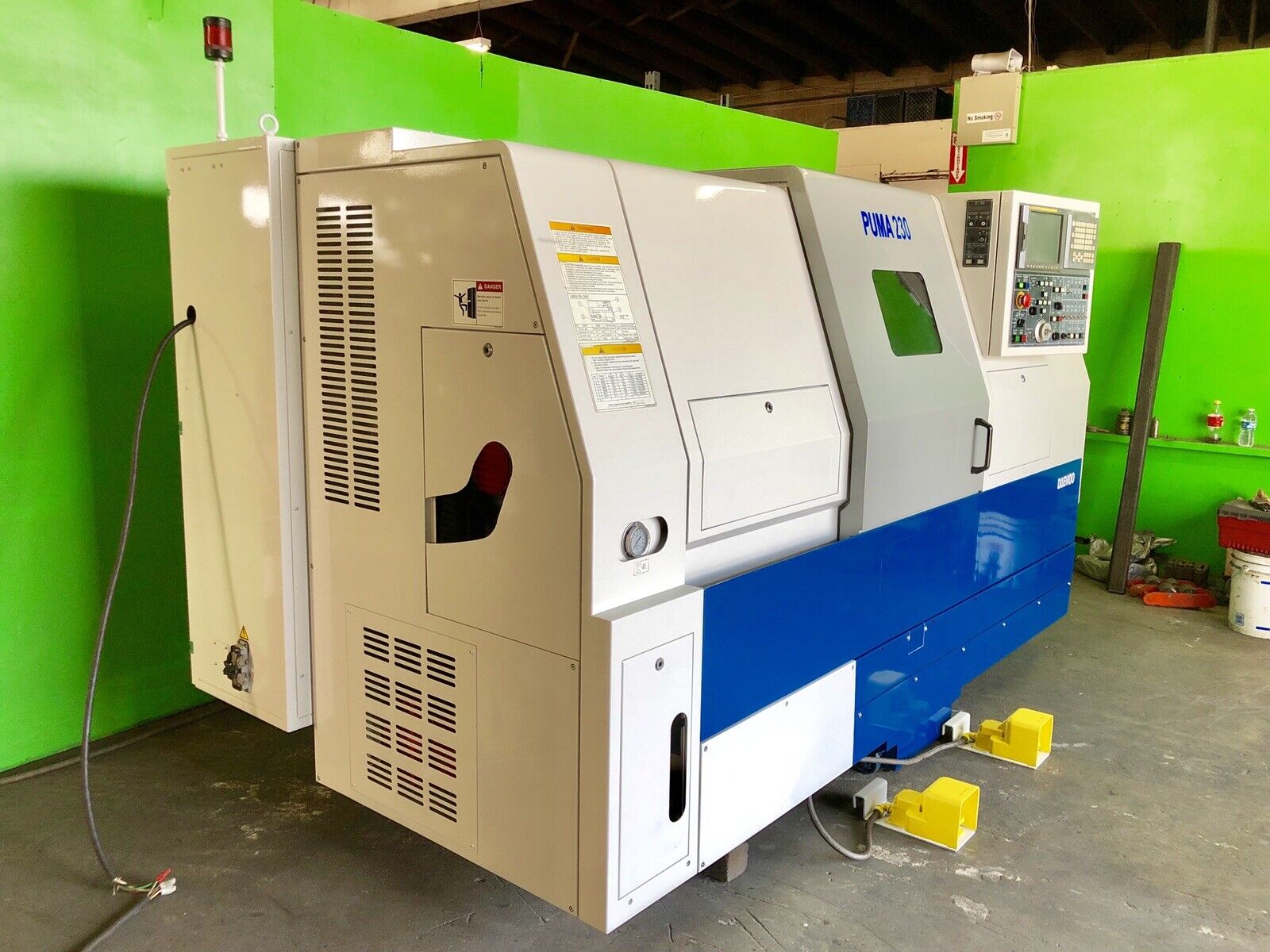

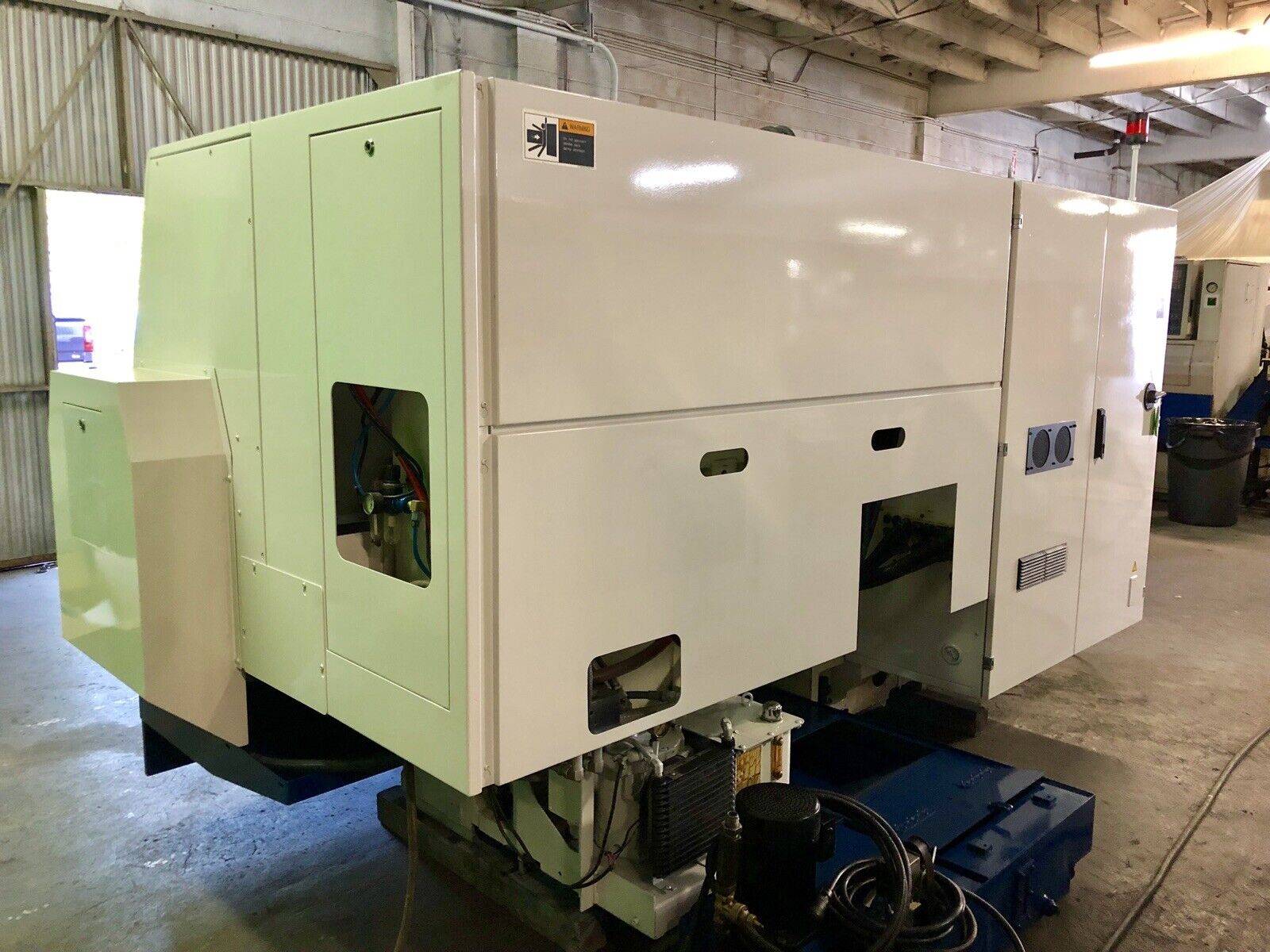

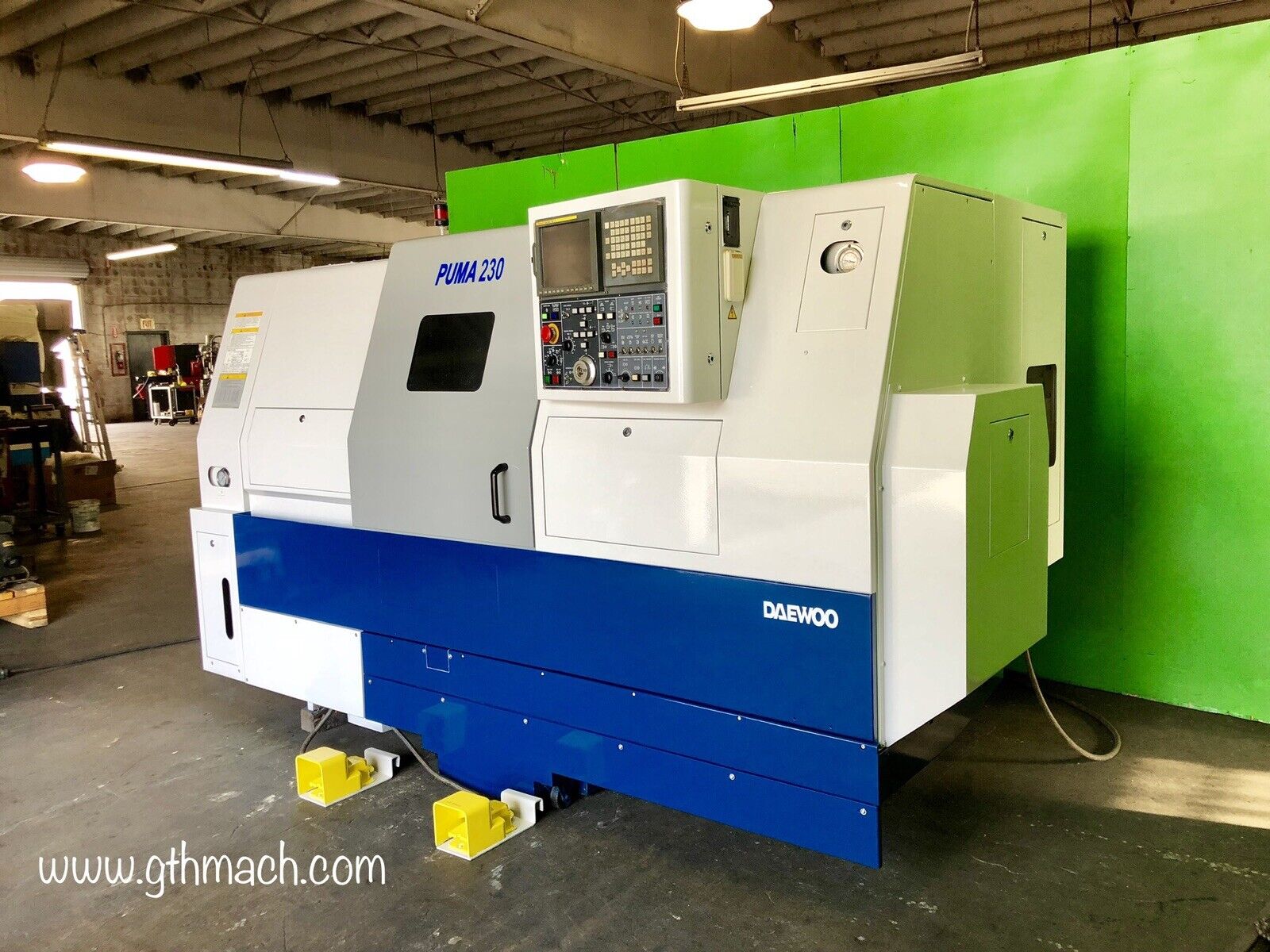

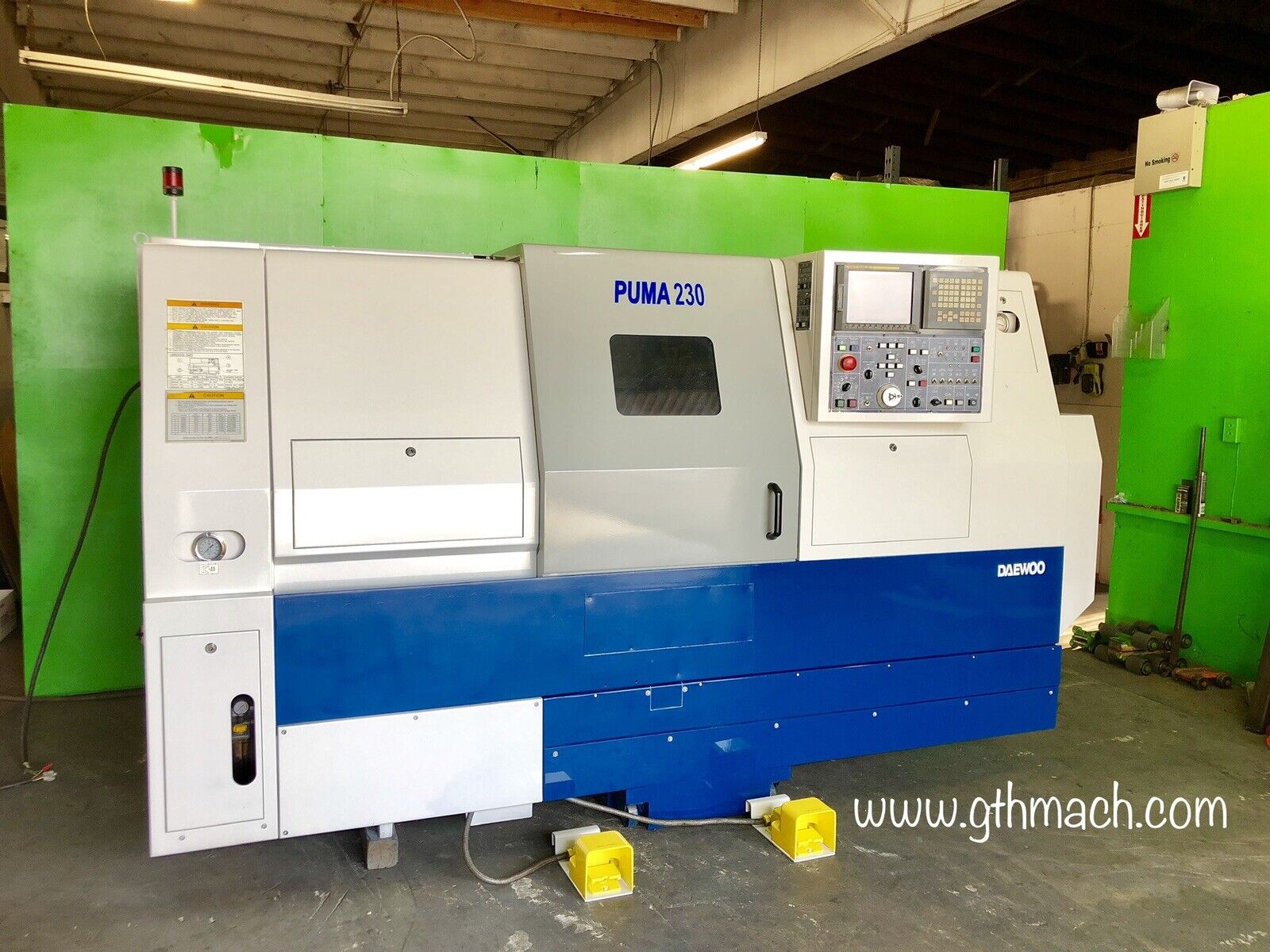

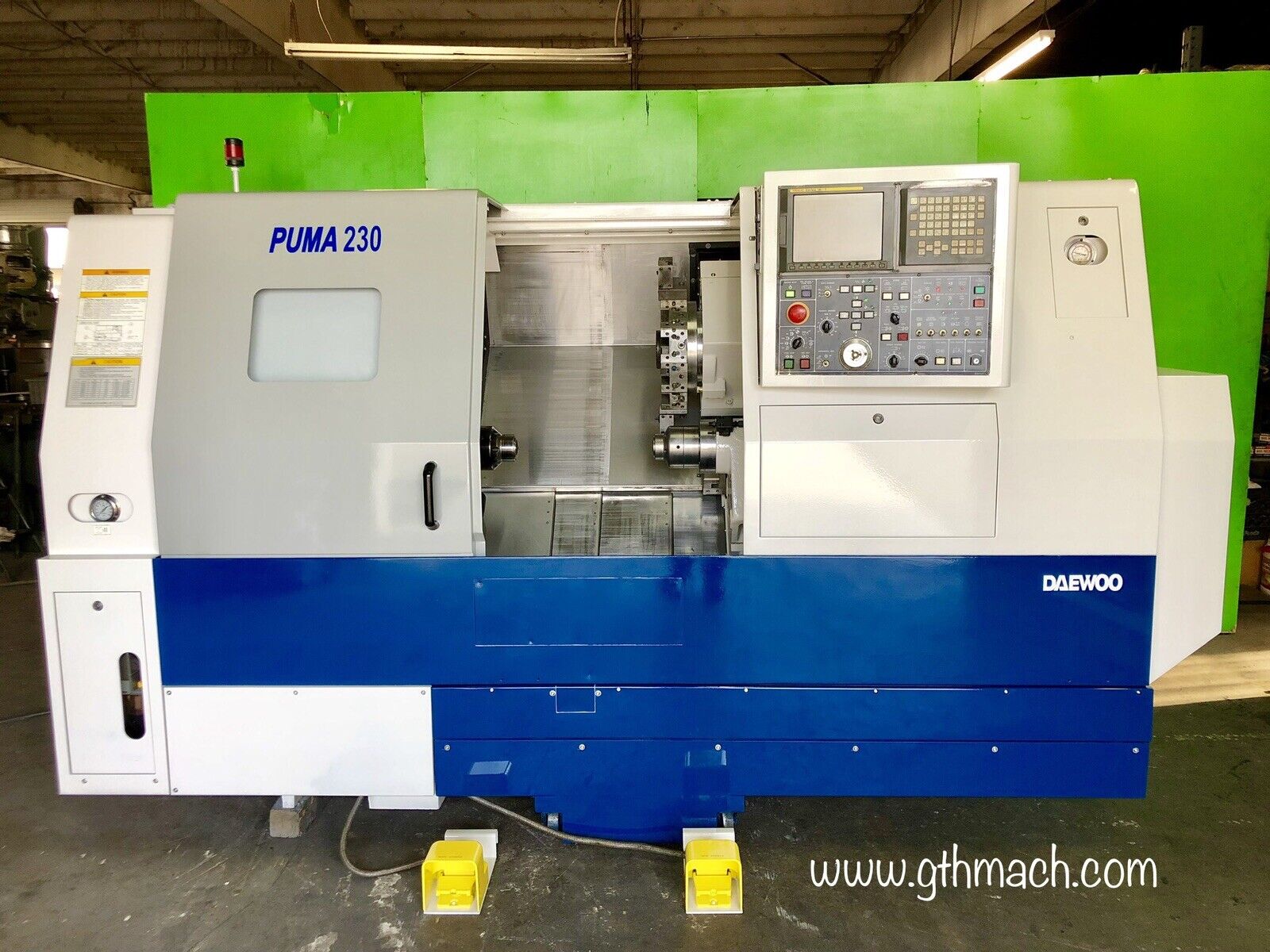

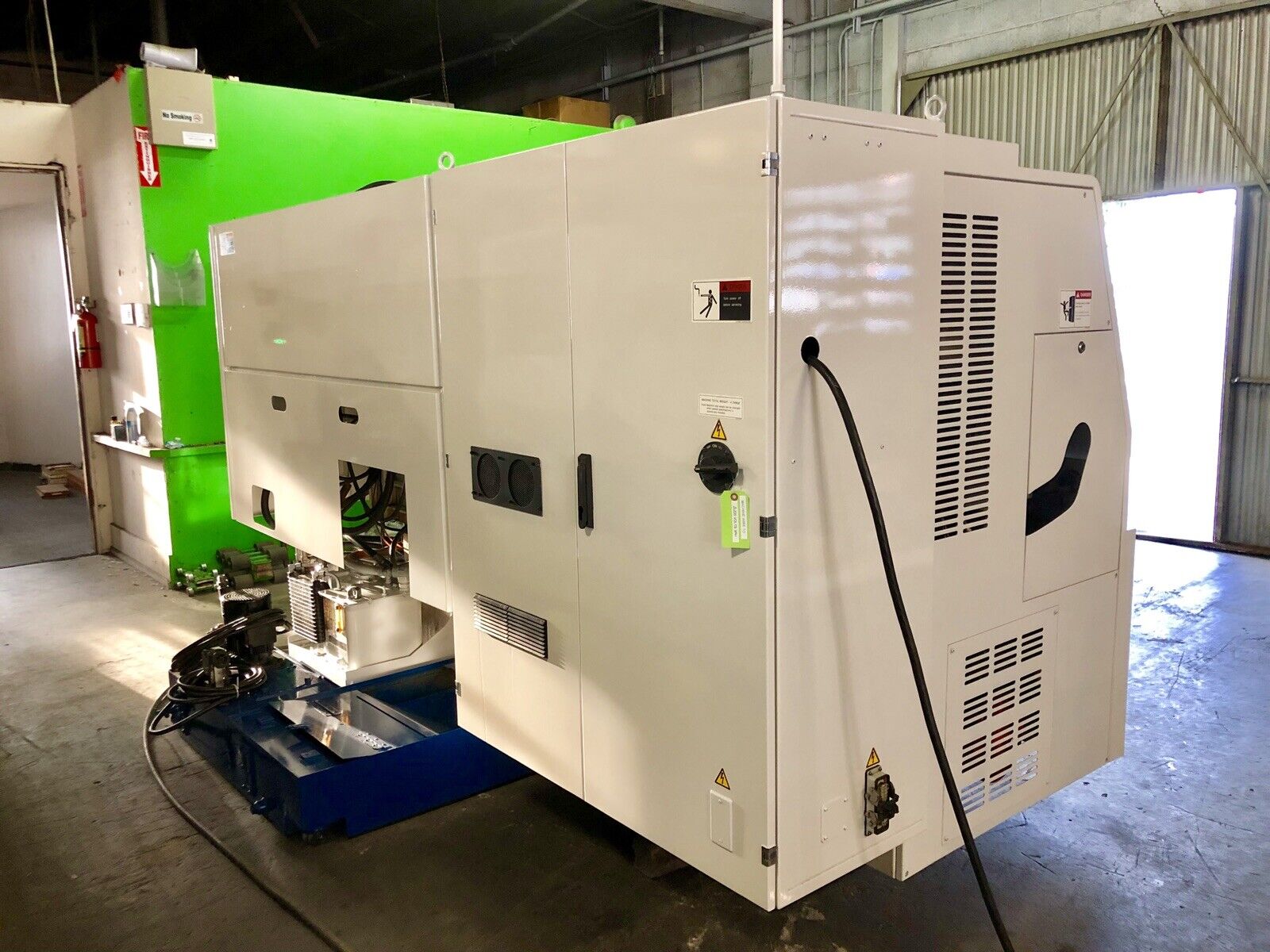

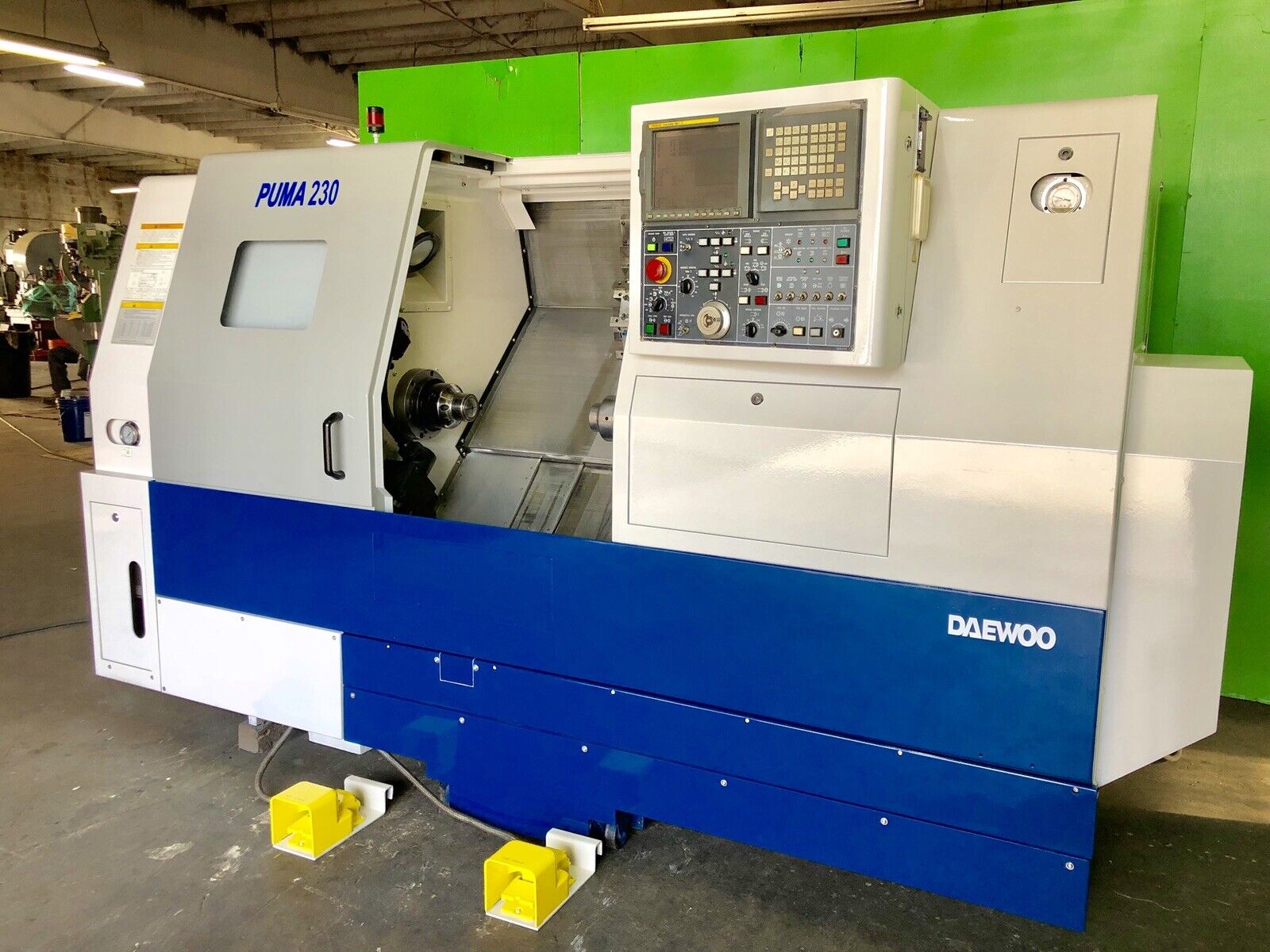

2000 Daewoo 230 LSA CNC Lathe Turning Center Sub Spindle
SPECIFICATIONS:
Max Swing Over Bed...................................... 21.65"
Max Turning Diameter.................................... 11.4"
Max Machining Length.................................... 19.37"
Standard Chuck Size..................................... 8"
Spindle Bore............................................ 2.99"
Bar Capacity............................................ 2.56"
Spindle Nose............................................ A2-6 3J Collet
Cross Travel (X-Axis)................................... 8.07"
Longitudinal Travel (Z-Axis)............................ 22.83"
Rapid Traverse Rate (X-Axis)............................ 945 IPM
Rapid Traverse Rate (Y-Axis)............................ 1200 IPM

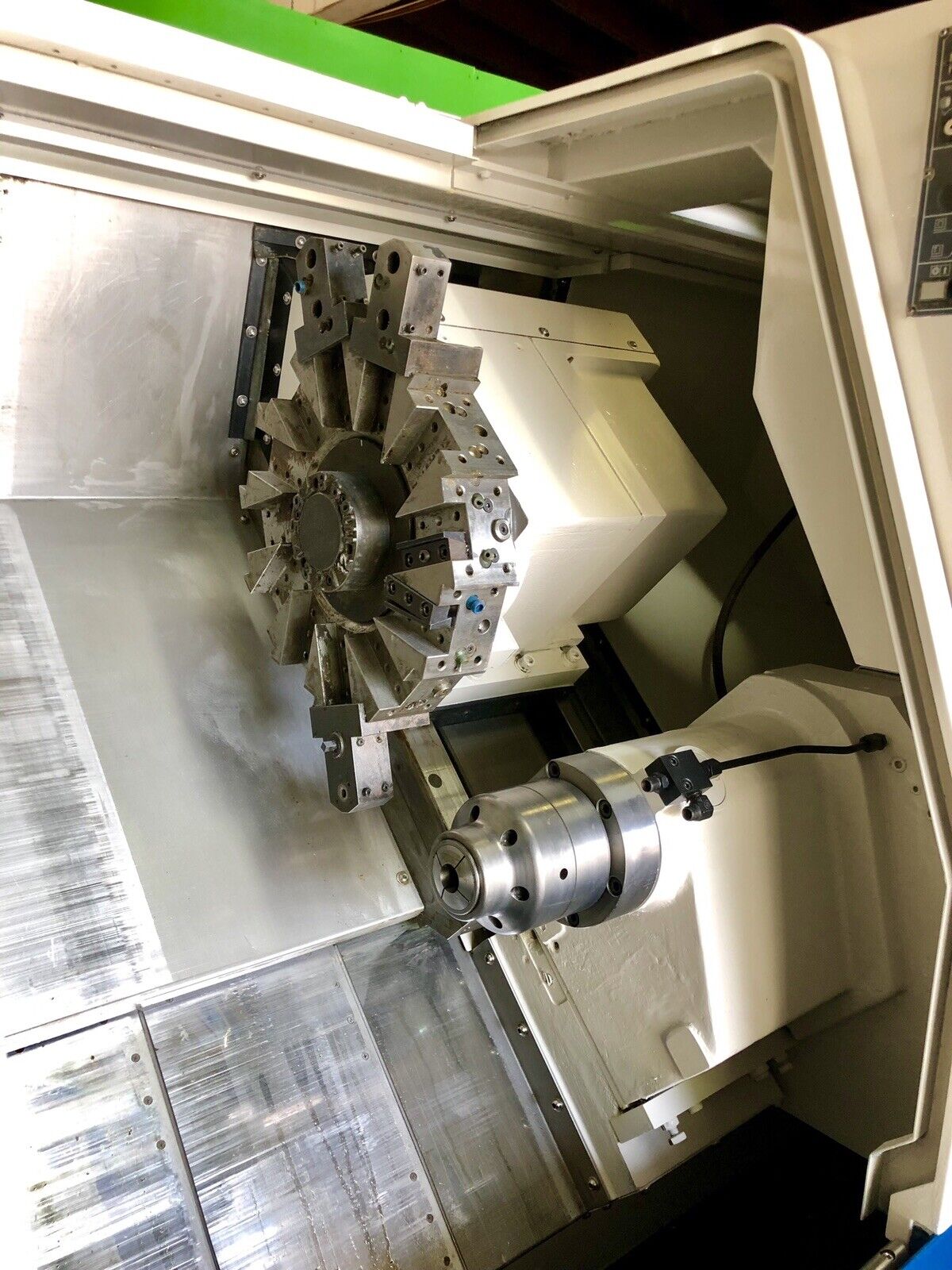

Tool Positions.......................................... 12 Total
Spindle Nose............................................A2-5 3J Collet
Spindle Speed Range..................................... 45-4500 RPM
Spindle Horsepower...................................... 20 HP

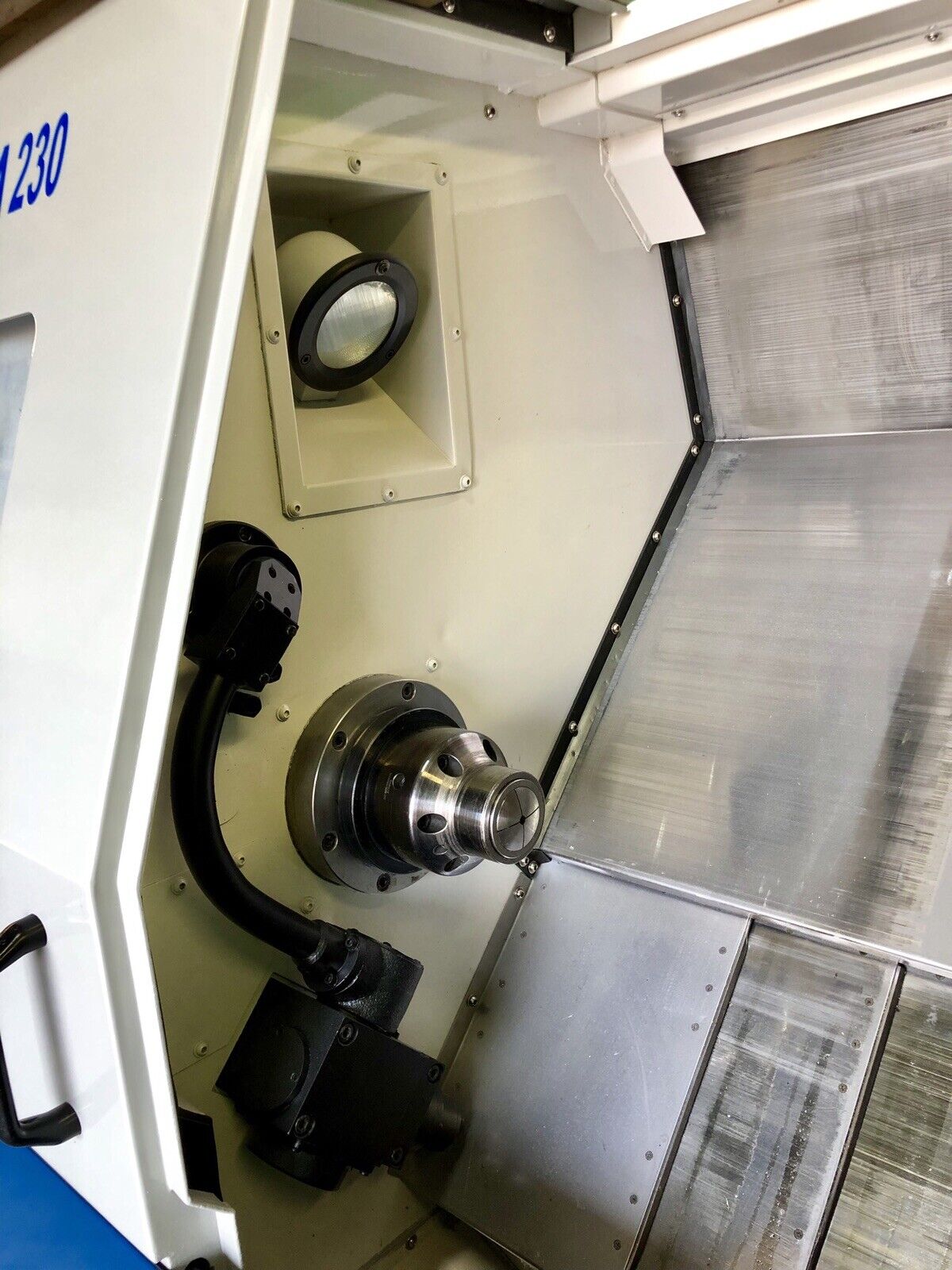

Sub-Spindle Speed Range................................. 60-6000 RPM
Sub-Spindle Horse Power................................. 7.5 HP
Approximate Machine Dimensions.......................... 170" x 74" H 73"
Approximate Machine Weight.............................. 11,000 LBS
EQUIPPED WITH:

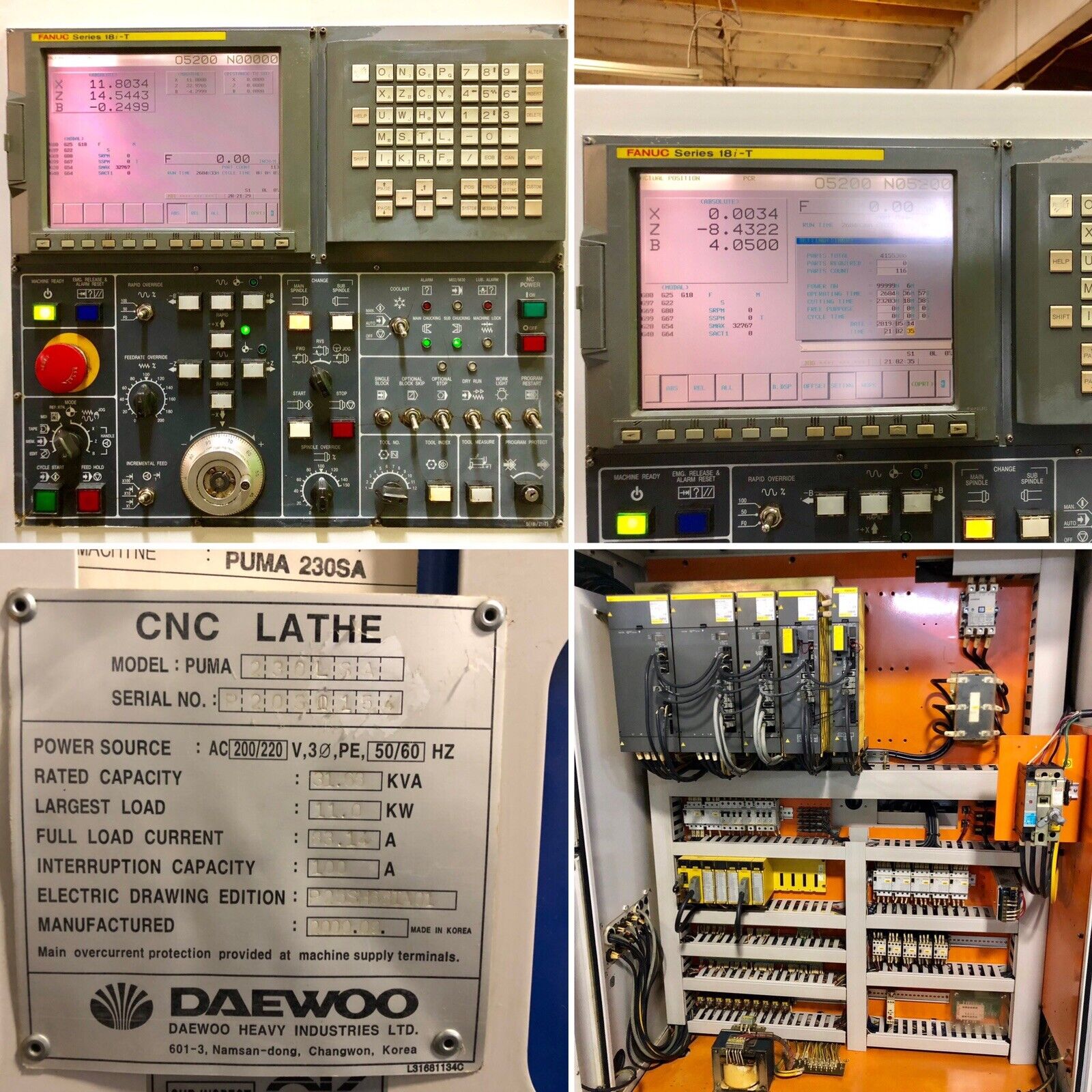

Fanuc Series 18i-T CNC Control
Multiple Part Program Storage
RS-232 Port
Sub-Spindle
Collet Chuck
Spindle Air Blow
Coolant System
Automatic Tool Setter
