DAEWOO PUMA 10 CNC LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Puma 10
380354
Lathes and Turning Centers CNC
Slant Bed Turning center
used
12500 (LB)
0
$19,500.00

Description

Overview:

Serial Number                         380354

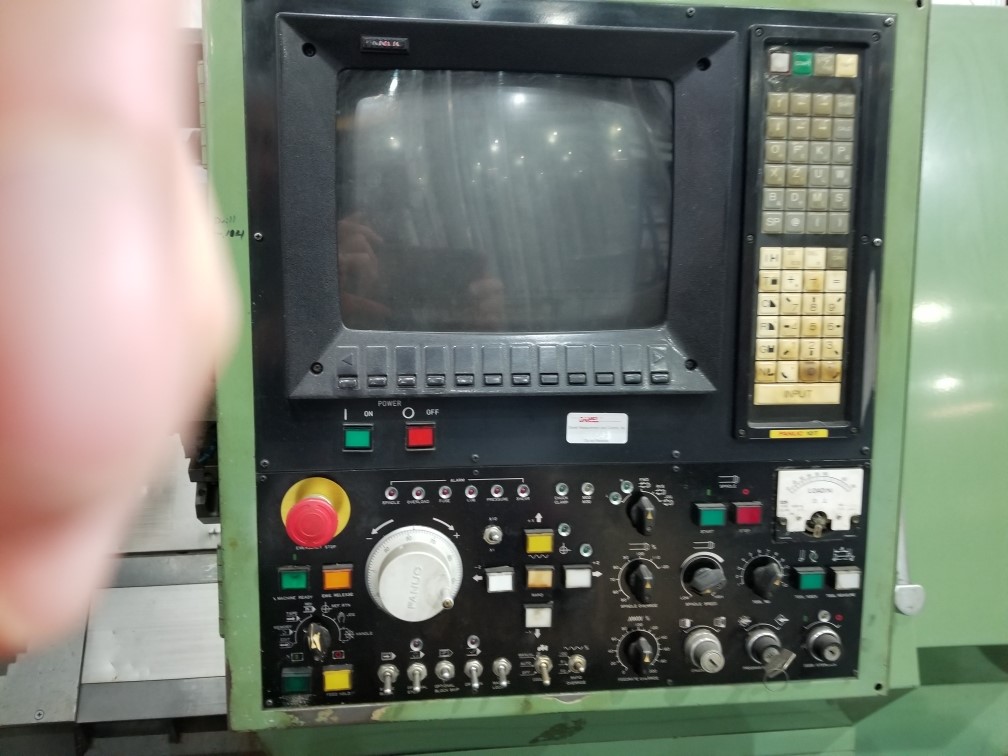

Control                                    Fanuc 10T

Features and Specifications:

Swing Over Bed                      22.8 in

Swing Over Carriage              13.8 in

Chuck:                                     10 in 3 jaw Hydraulic

Cutting Length                        Max.: 30.3 in

Travels:

X-Axis                                     7.875 in

Z-Axis                                      31.5 in

Rapid Traverse:

X-Axis                                     200 IPM

Z-Axis                                     400 IPM

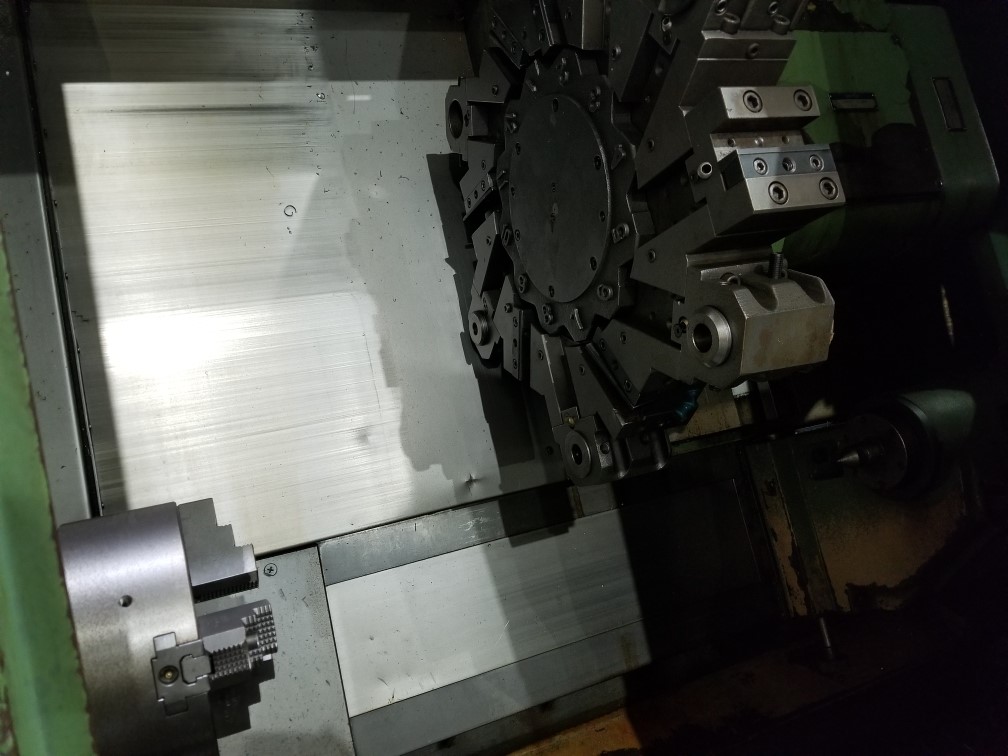

Turret                                     12 Position

Spindle Speeds                       20 to 3150 RPM

Spindle Nose/Bore                 A2-8 / 3.03 in

Spindle Motor                        20 HP

Thru Hole                               2.25 in

Tailstock Quill Diameter        4.3 in

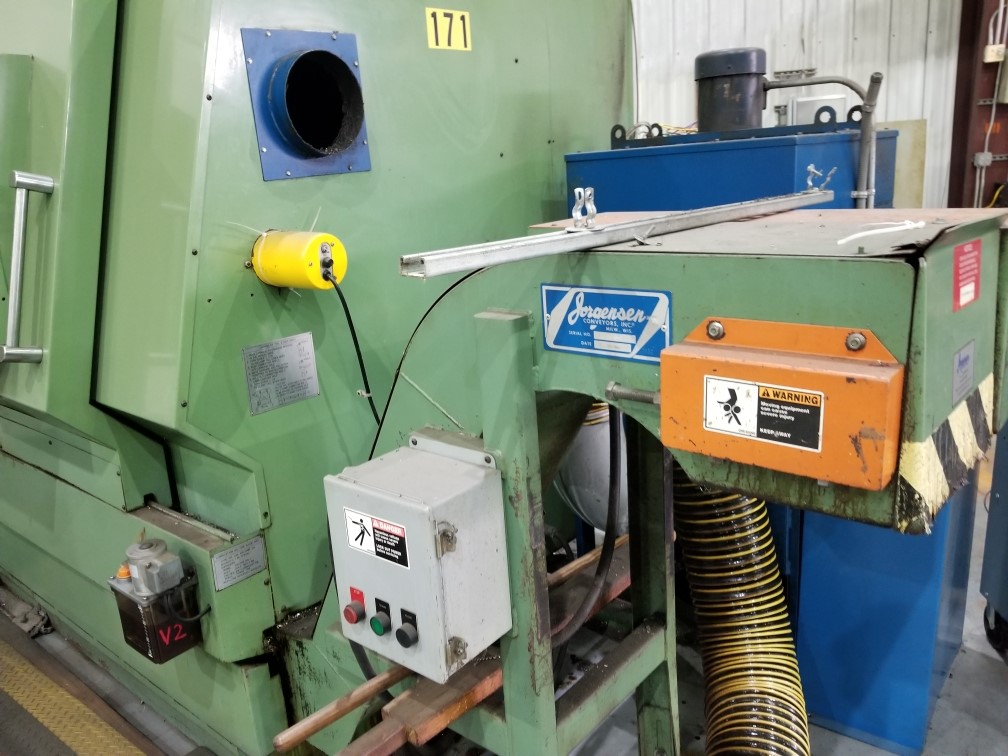

Chip Conveyor                       Yes

Electrics                                  220 Volt / 3 Phase / 60 Cycle

Machine Dimensions (approximate w/o conveyor): 131 in x 72 in x 72 in

Machine Dimensions (approximate w/conveyor): 168 in Long

Machine Weight (approximate): 12,500 lbs.

Price: $19,500


DAEWOO PUMA 10 CNC Lathe
