Description

Specifications:

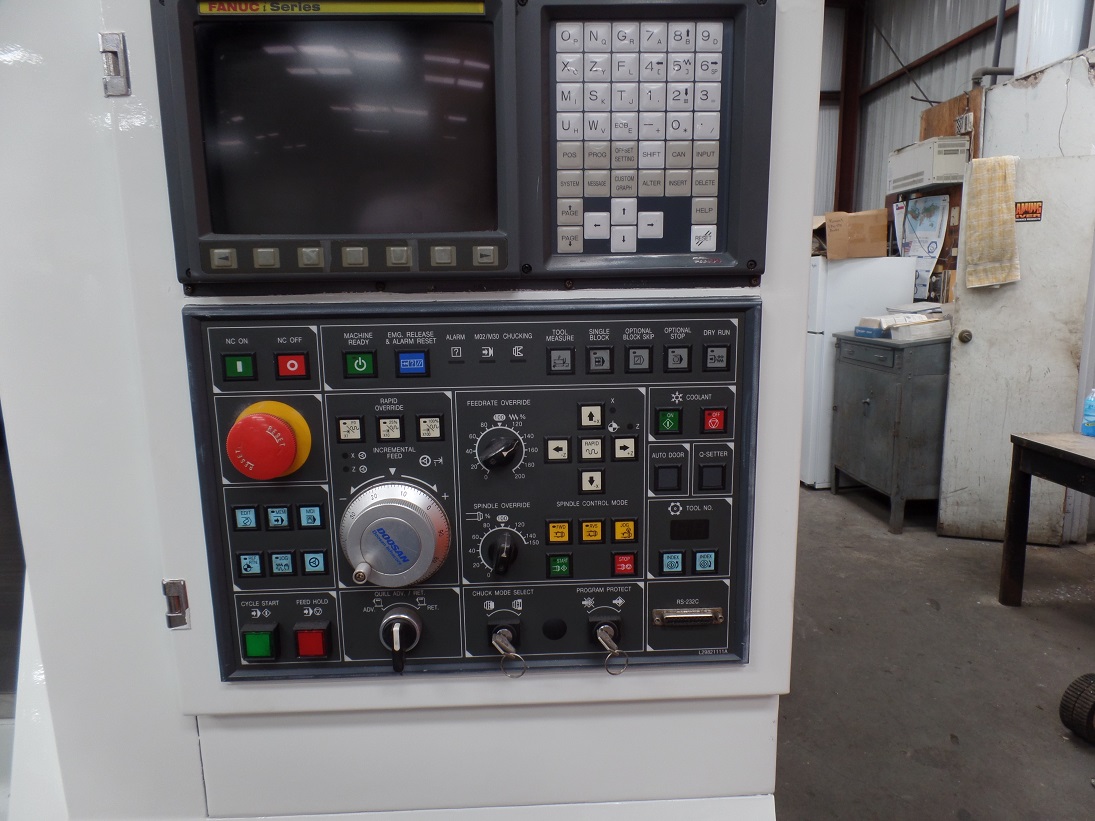

CNC Control                                                     Fanuc 21iT

Serial Number                                                  2000794

Year of mfg.                                                      11/2005

Chuck size                                                        8 in Samchully HH 20T 3-jaw hydraulic
Spindle speeds                                                 0-5,000 rpm.

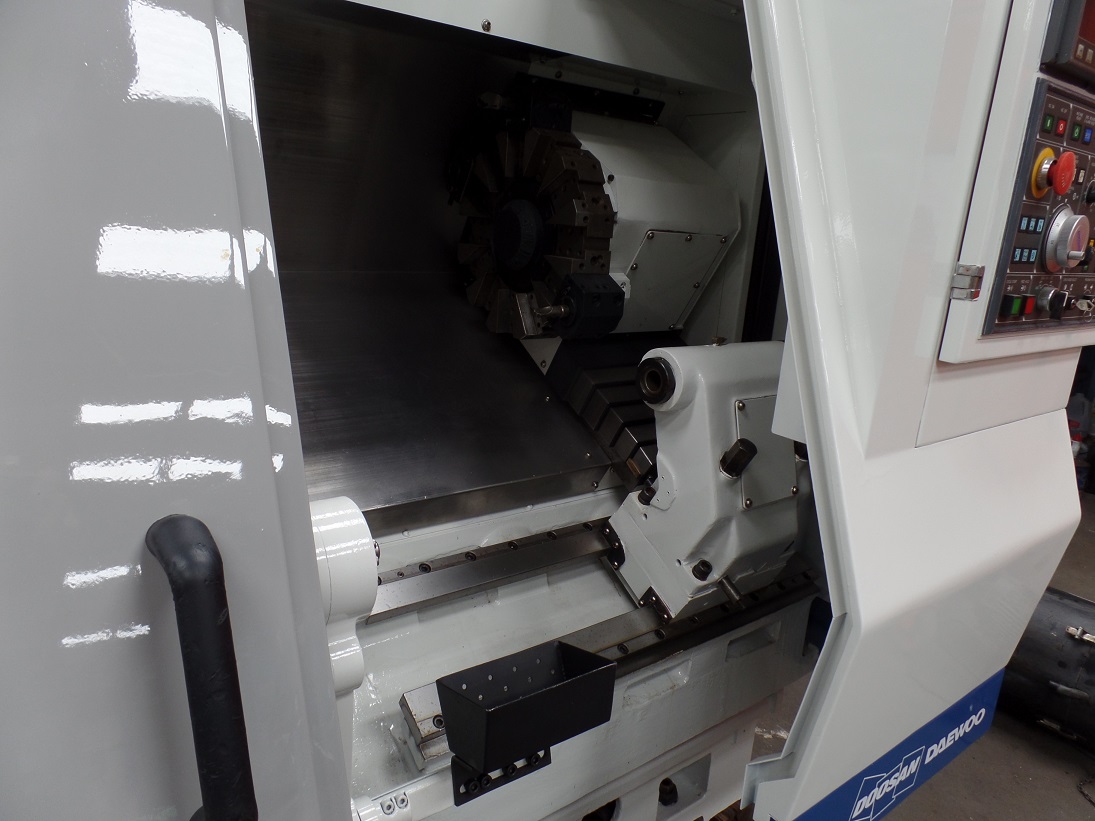

Turret stations                                                  12 stations
Swing over bed                                                18 in
Swing over cross slide                                     13 in
Bar capacity                                                      2.25 in
Max. turning diameter                                       7.1 in
Max. turning length                                            28 in
Tailstock                                                            Yes
Travels: X & Z                                                   6.3 in & 13 in
Rapids: X & Z                                                   787 & 950 ipm.
Main motor                                                       10 hp.
Dimensions                                                      70 in F to B x 84 in W x 65 in H
Machine weight                                                7,700 lbs.
Parts catcher                                                    Yes
Tool probe                                                        Yes

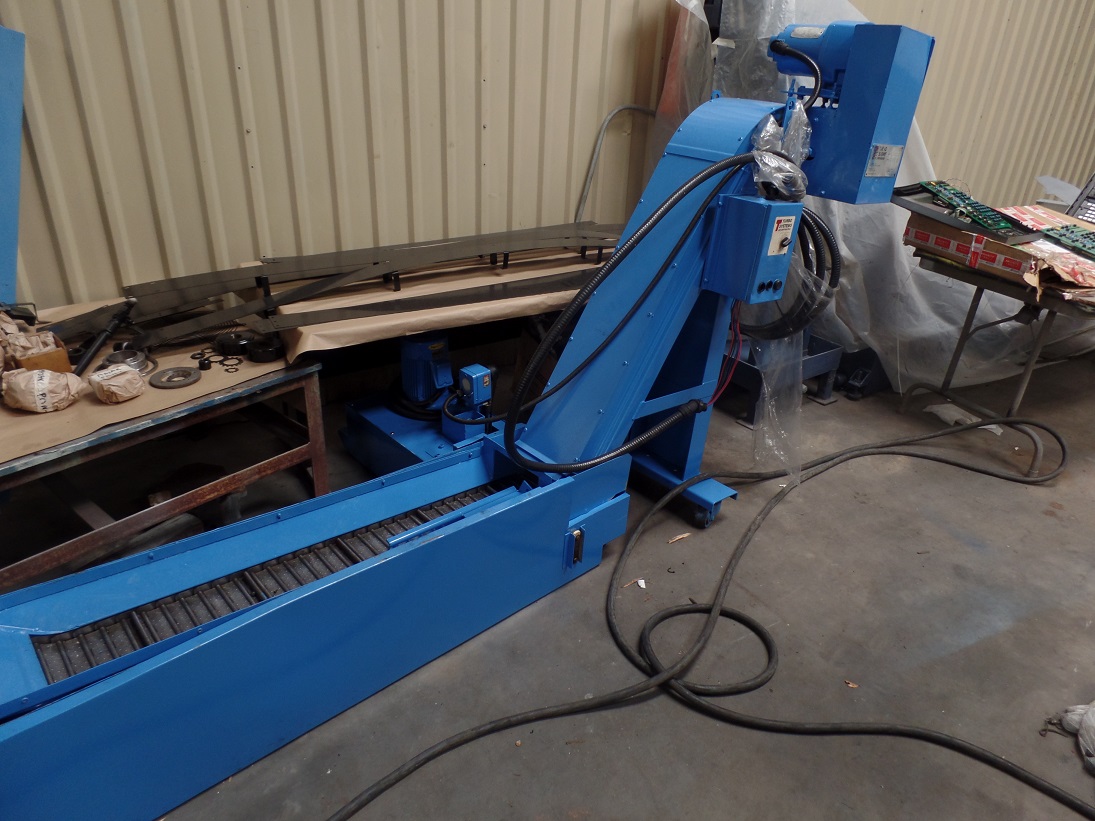

Chip conveyor                                                  Yes
Manuals                                                           Parameter list
Coolant                                                            Yes

Price: $ 29,500.        FOB Houston, TX. Subject to Prior Sale.
                                  Can be run under power in our warehouse on short notice.
